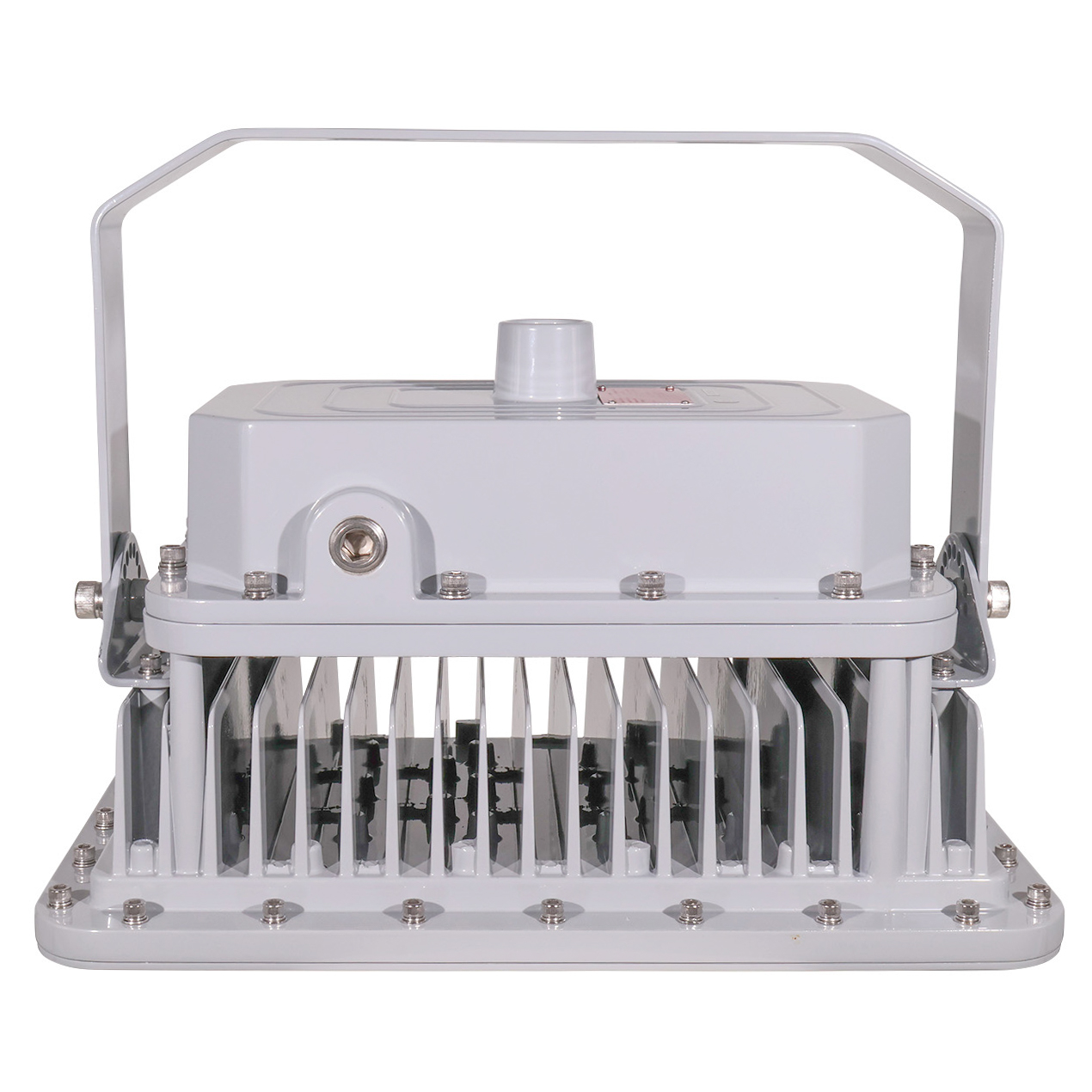

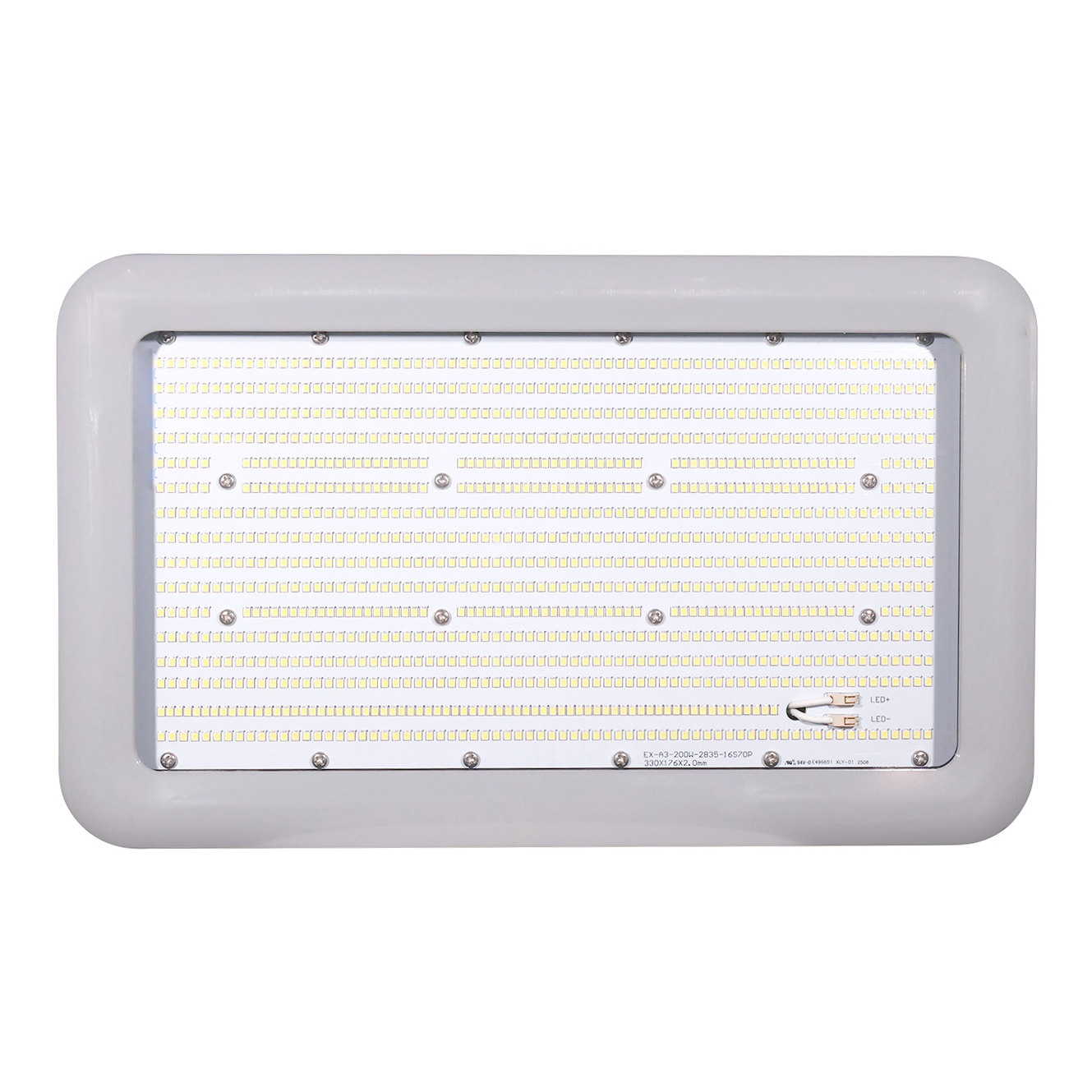

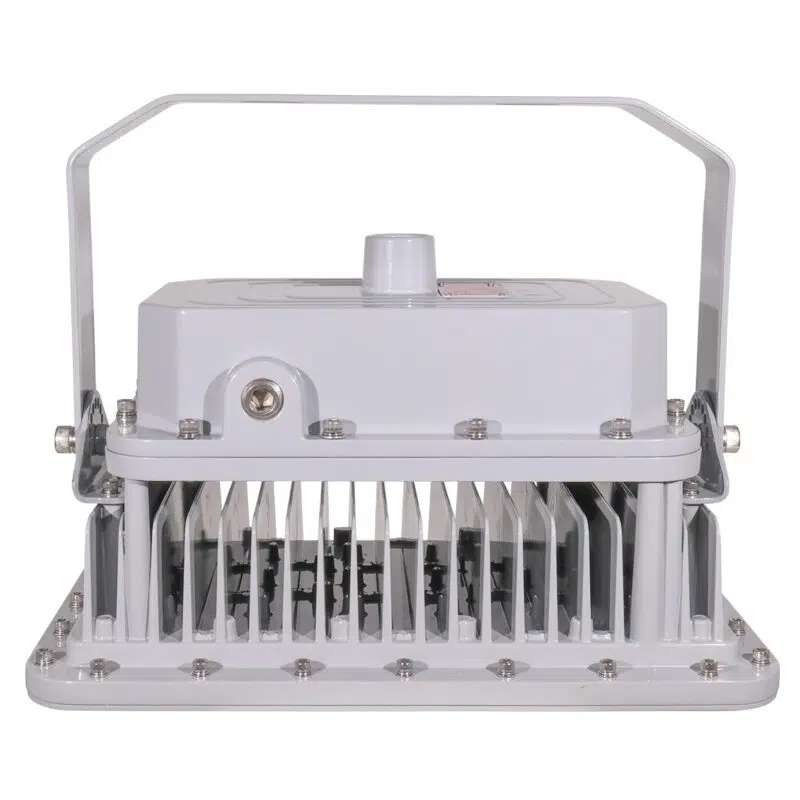

150 Watt Square Explosion Proof LED Light | 21000 Lumens | Class 1 Div 2 | 5000K | 100V-277V or 277V-480V
This 150W square explosion proof LED fixture is a strong choice for hazardous and industrial sites requiring reliable, high-output lighting with minimal maintenance. Its 21000 lumen output at 5000K supports clear visibility, while selectable beam angles allow tailored distribution for different tasks or layouts. The copper-free aluminum housing, tempered glass lens, IP66, and IK10 ratings ensure durability against corrosion, water, dust, and impact. Certified for Class I, II, and III hazardous locations, UL 844, UL 1598A, and ABS, it is well-suited for chemical plants, refineries, paint shops, grain processing, and marine facilities where safety and compliance are critical.
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
ATEX Marking
| II 2 G Ex eb mb IIC T5…T6 Gb | |
| II 2 D Ex tb IIIC T80°C…T100°C Db |
IECEx Marking
| Ex eb mb IIC T5…T6 Gb | |
| Ex tb IIIC T80°C…T100°C Db |
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 21000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V or 277V-480V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Beam Angles (Opt) | 40° or 60° or 90° |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 122°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14.9 X 9.1 X 10.6 |
| Weight (lbs) | 26 |
Product SKU Variations
- SKU: MLLG-E-LED-EXPLA-150-50-C1D2
- SKU: MLLG-E-LED-EXPLA-150-50-HV-C1D2
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data for the fixture count estimate, estimated average foot-candles, and visual floor-level distribution. In that case, the separate beam angle selector is hidden because the selected IES file already defines the light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
The 150 Watt Square Explosion Proof LED Light is engineered for environments where safety and reliability are paramount. Designed to deliver 21,000 lumens at a color temperature of 5000K, this fixture is suitable for hazardous locations, including paint booths and chemical processing facilities. It operates efficiently across a voltage range of 100V-277V or 277V-480V, making it adaptable to various electrical systems.
This explosion-proof light is built to withstand challenging conditions, featuring a robust construction with a tempered glass lens and a copper-free aluminum housing. It is certified for use in Class I, Division 2, and Class II, Division 1 and 2 environments, ensuring compliance with stringent safety standards.
Core Performance and Output
With an output of 21,000 lumens and an efficacy of 140 lumens per watt, this fixture provides powerful illumination suitable for replacing 400-watt metal halide lights. The standard 120° beam angle ensures broad coverage, while optional beam angles of 40°, 60°, or 90° allow for tailored light distribution based on specific needs.
The fixture’s electrical performance is optimized with a power factor greater than 0.95 and a total harmonic distortion of less than 10%. It is important to note that excessive output may occur at low mounting heights, and uniformity can be reduced at higher mounting heights.
Adjustability and Control Options
This explosion-proof LED light offers flexibility in installation with yoke or 3/4 inch NPT pendant mounting options. It supports 1-10V dimming, allowing for adjustable light levels to suit different tasks and environments. This feature is particularly useful in settings where varying light intensity is required.
The fixture’s design facilitates easy integration into existing lighting control systems, enhancing operational efficiency and energy savings.
Longevity and Reliability
Designed for durability, this LED fixture boasts a lifespan of 50,000 hours (L70), ensuring long-term performance with minimal maintenance. The robust construction and high-quality components contribute to its reliability in demanding environments.
With an operating temperature range of -40°F to 122°F, this light is suitable for a wide range of industrial and commercial applications, maintaining performance in both extreme cold and heat.
Build Quality and Physical Characteristics
The fixture is constructed from copper-free aluminum, providing excellent corrosion resistance and durability. It features an IP66 rating for protection against dust and water ingress, and an IK10 rating for impact resistance, making it suitable for harsh environments.
Surge protection up to 10kV is included, safeguarding the fixture against electrical surges and ensuring consistent operation. The fixture’s dimensions are 14.9 x 9.1 x 10.6 inches, and it weighs 26 pounds.
Where This Product Fits Best
This explosion-proof LED light is ideal for hazardous locations where safety and compliance are critical. It is commonly used in environments that require robust and reliable lighting solutions.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
The fixture’s certifications and ratings make it suitable for use in environments with explosive gases, dust, and fibers. Its robust construction ensures performance in marine and offshore settings as well.
Installation and Long-Term Use
Installation is straightforward with yoke or pendant mounting options, allowing for flexibility in placement. The fixture’s design accommodates both new installations and retrofits, making it a versatile choice for various applications.
Long-term use is supported by the fixture’s durable construction and high-quality components, which minimize maintenance requirements and ensure consistent performance over time.
How This Fixture Is Commonly Used
This fixture is typically mounted at heights suitable for its output, ensuring optimal light distribution and coverage. In hazardous locations, it is often used in conjunction with other explosion-proof equipment to maintain safety standards.
Spacing and layout patterns depend on the specific application and environment, with higher output reducing the number of fixtures needed but potentially increasing glare. Careful planning is recommended to achieve the desired lighting levels and uniformity.
Safety, Certifications, and Warranty
This LED light is certified under UL 844 for hazardous locations, with Class I, II, and III ratings. It also holds ATEX and IECEx certifications, ensuring compliance with international safety standards. The fixture is suitable for wet locations and marine environments, as indicated by its UL 1598 and UL 1598A ratings.
A 5-year warranty is provided, covering defects in materials and workmanship. This warranty underscores the fixture’s reliability and the manufacturer’s commitment to quality.
Frequently Asked Questions
Q: What is the beam angle of this fixture?
A: The standard beam angle is 120°, with optional angles of 40°, 60°, or 90° available.
Q: Can this fixture be used in marine environments?
A: Yes, it is UL 1598A Marine Outside Type certified, making it suitable for marine environments.
Q: What is the operating temperature range?
A: The fixture operates effectively between -40°F and 122°F.
Q: Is dimming supported?
A: Yes, the fixture supports 1-10V dimming for adjustable light levels.
Q: What mounting options are available?
A: The fixture can be mounted using a yoke or a 3/4 inch NPT pendant.
Application Questions and Clarification
Q: What are the primary applications for this explosion-proof light?
A: Primary applications include hazardous location lighting, explosion-proof lighting, paint booth lighting, and chemical processing facility lighting.
Q: Can this fixture be used in oil and gas facilities?
A: Yes, it is suitable for oil and gas facility lighting, as well as refinery lighting.
Q: Is this fixture appropriate for marine environments?
A: Yes, it is designed for marine environment lighting and offshore rig lighting.
Q: What secondary applications are supported?
A: Secondary applications include marine environment lighting, offshore rig lighting, wastewater treatment lighting, and solvent storage area lighting.
