150 Watt Round Explosion Proof LED Light | 21000 Lumens | Class 1 Div 1 | 5000K | 100-277V
The 150 Watt Round Explosion Proof LED Light is an excellent choice for hazardous locations, offering 21,000 lumens at 5000K with a robust IP66 and IK08 rating, ensuring durability in challenging environments. Its UL 844 and Class I/II/III certifications make it ideal for paint booths and industrial settings. With a lifespan of 150,000 hours and versatile mounting options, this fixture provides reliable, efficient lighting, replacing 400W metal halides while operating across a wide voltage range.
Cory Peterson | VP of Marketing and Sales Operations
45 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups B, C, D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 21000 |
| Lumens Per Watt | 140 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 10kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11.2 X 13.5 D |
| Weight (lbs) | 45.3 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 150 watt round explosion proof LED light delivers 21,000 lumens at 5000K for hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting. It operates on 100-277V and uses a 120 degree beam distribution.
The fixture replaces a 400 watt metal halide fixture where the existing hazardous-location classification, mounting arrangement, and light layout support the conversion. Yoke and 3/4 inch NPT pendant mounting are available.
Core Performance and Output
The fixture produces 21,000 lumens at 140 lumens per watt. The 5000K color temperature and 70+ CRI support high-output general illumination where visibility and broad distribution are required.
A standard 120 degree beam angle provides wide coverage from pendant or yoke-mounted positions. At lower mounting heights, 21,000 lumens may create excessive brightness if fixture locations are too close together. Higher mounting heights require layout review to maintain uniformity between fixtures.
Electrical operation is 100-277V, 50-60Hz, with power factor greater than 0.95 and THD below 10%. The fixture includes 10kV surge protection.
Adjustability and Control Options
The supplied product data identifies a fixed 150 watt output and fixed 5000K color temperature. No field wattage selection, color adjustment, or dimming capability is specified.

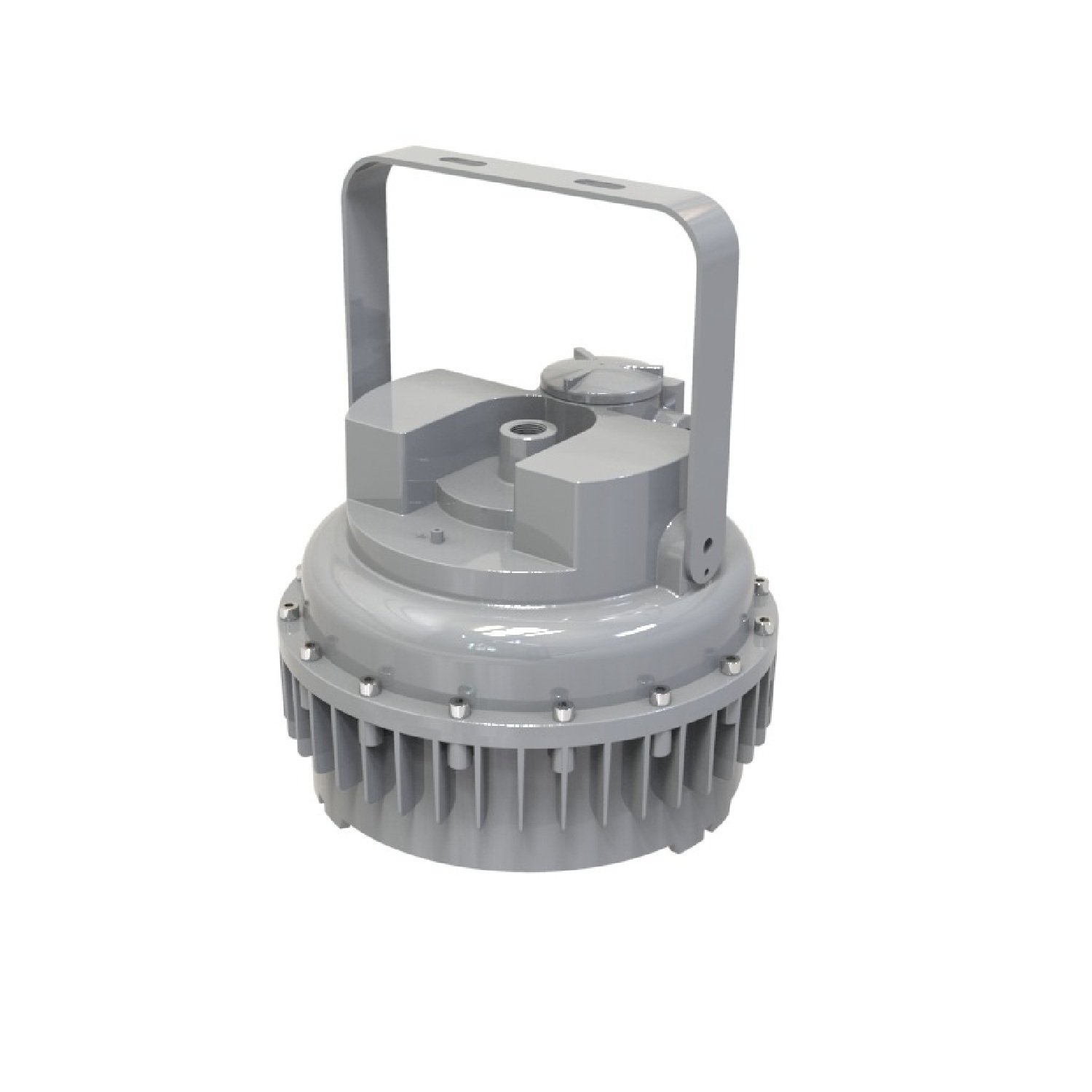

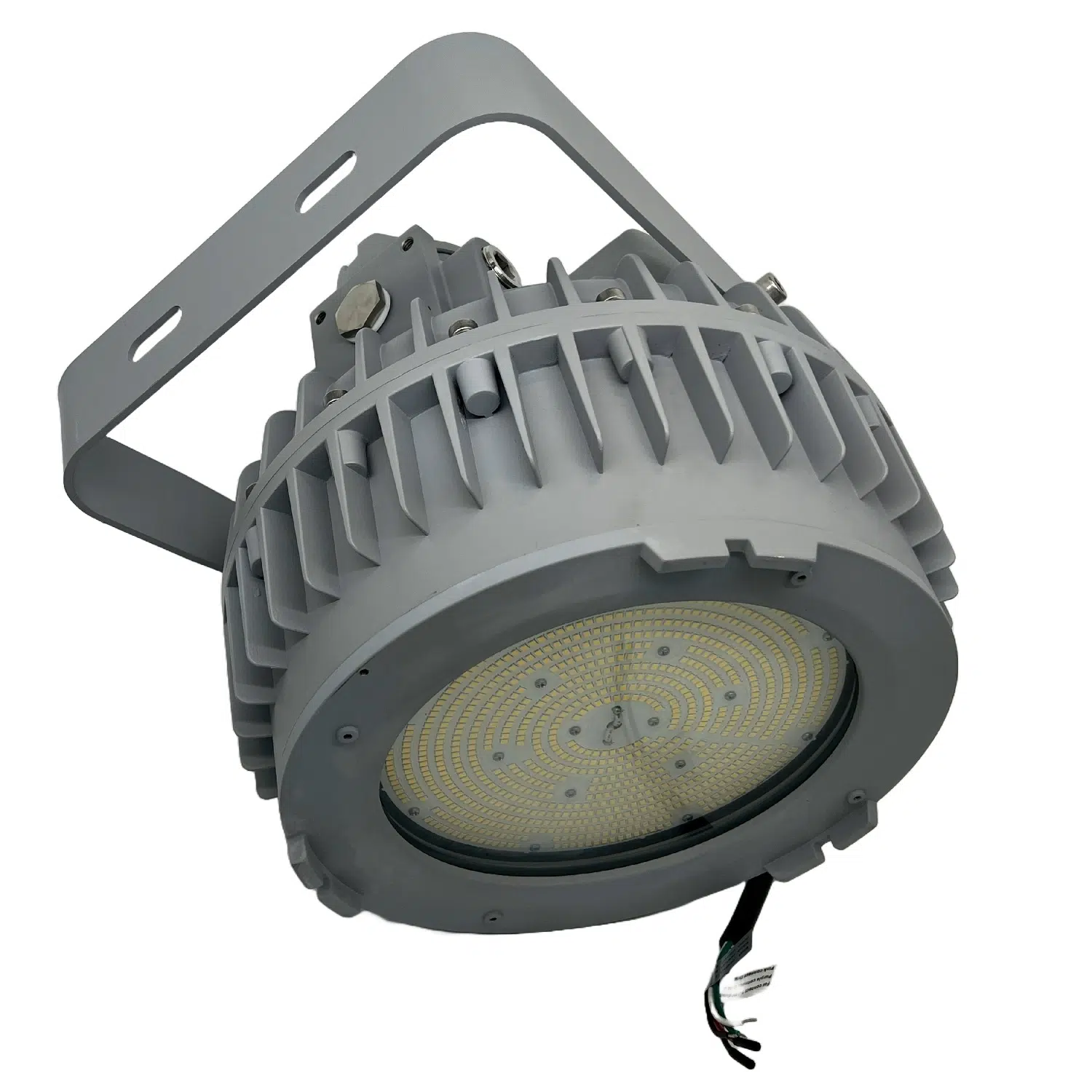

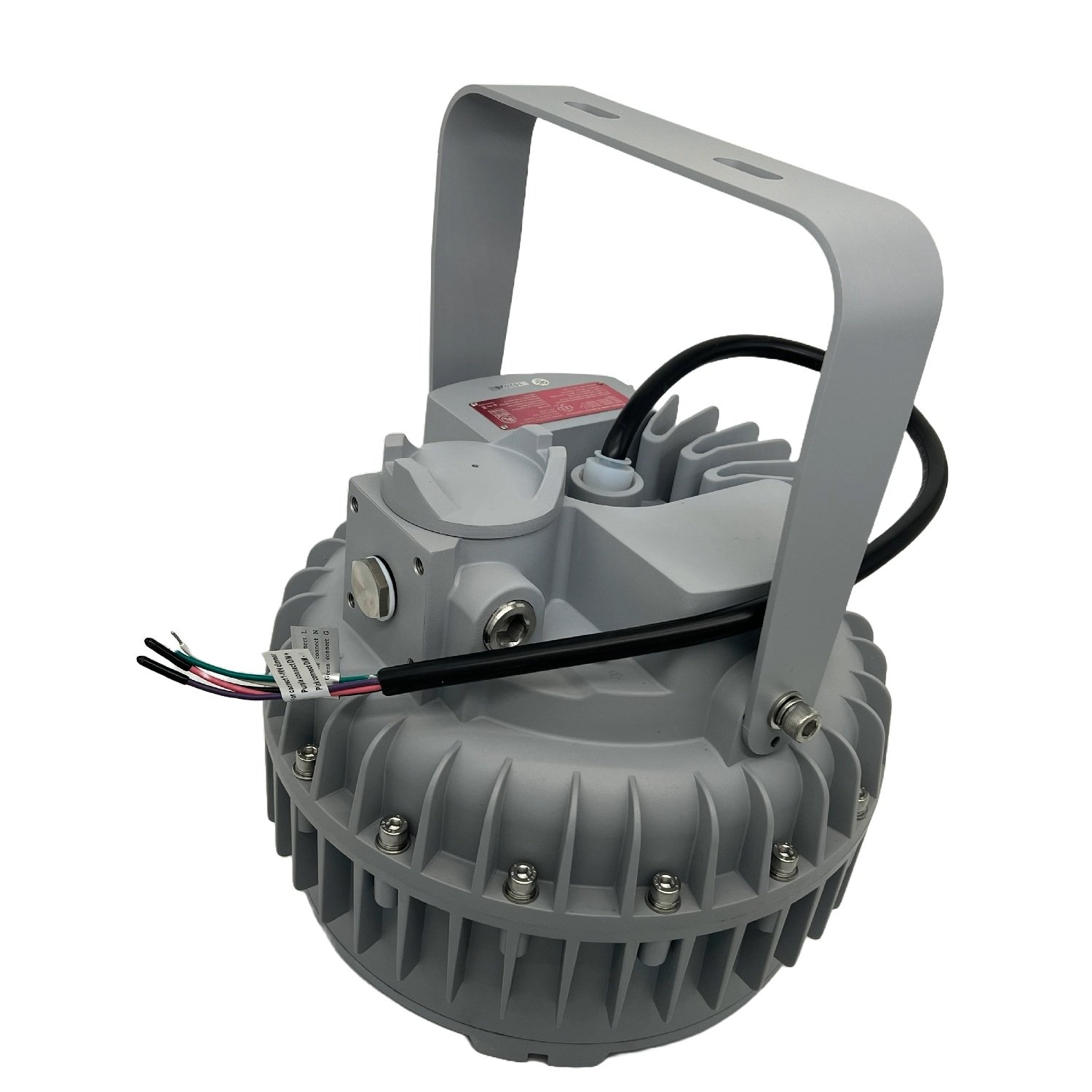

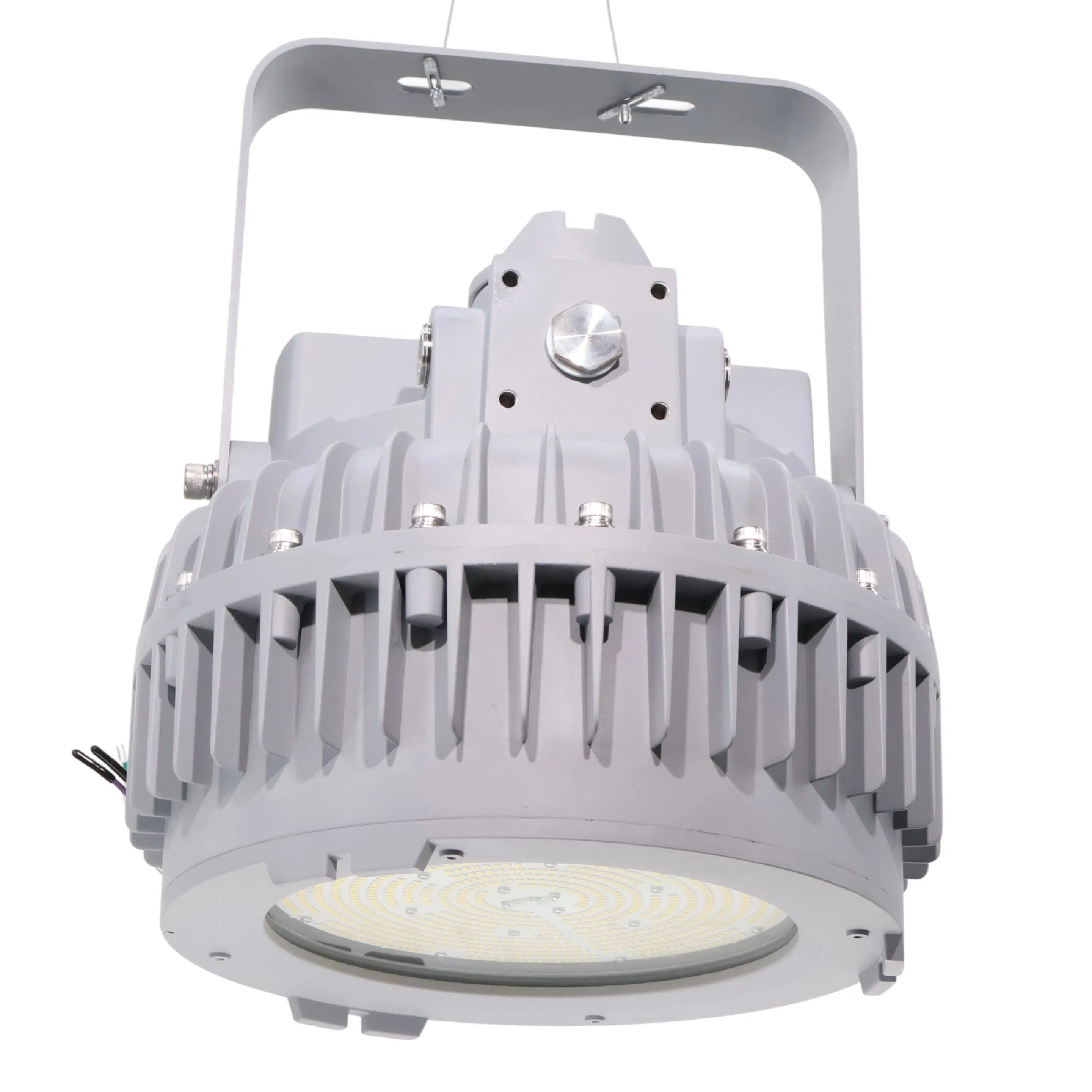

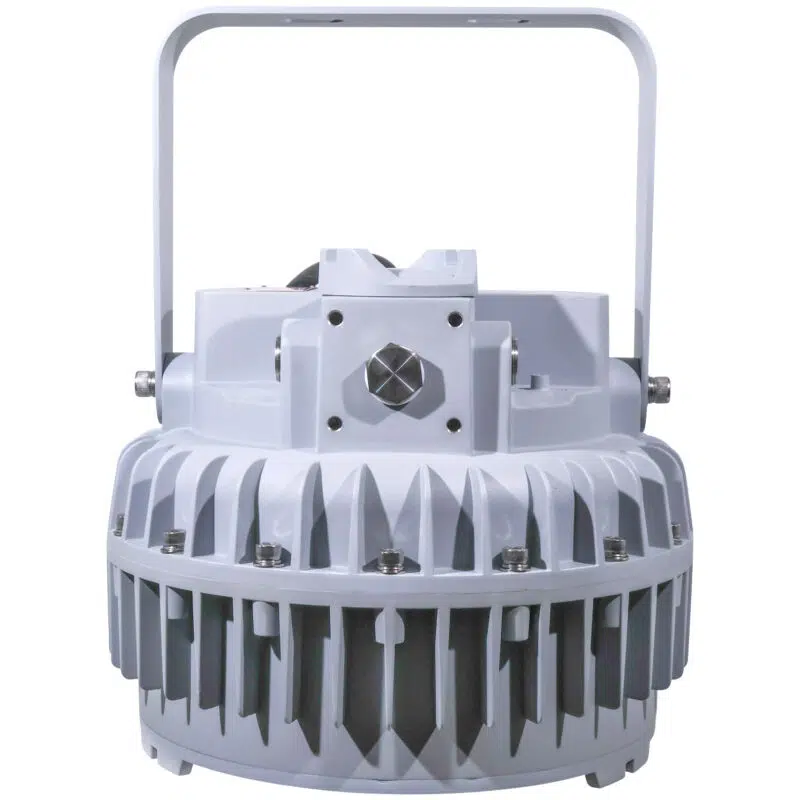

Fixture aim can be adjusted when using the yoke mount. Pendant-mounted fixtures remain dependent on the installed NPT position and final fixture orientation.
Longevity and Reliability
The LED system is rated for 150,000 L70 hours. This rating supports long operating intervals in hazardous location lighting and other classified installations where maintenance access can be limited.
The operating temperature range is -22 degrees F to 122 degrees F. A 5 year warranty is included.
Build Quality and Physical Characteristics

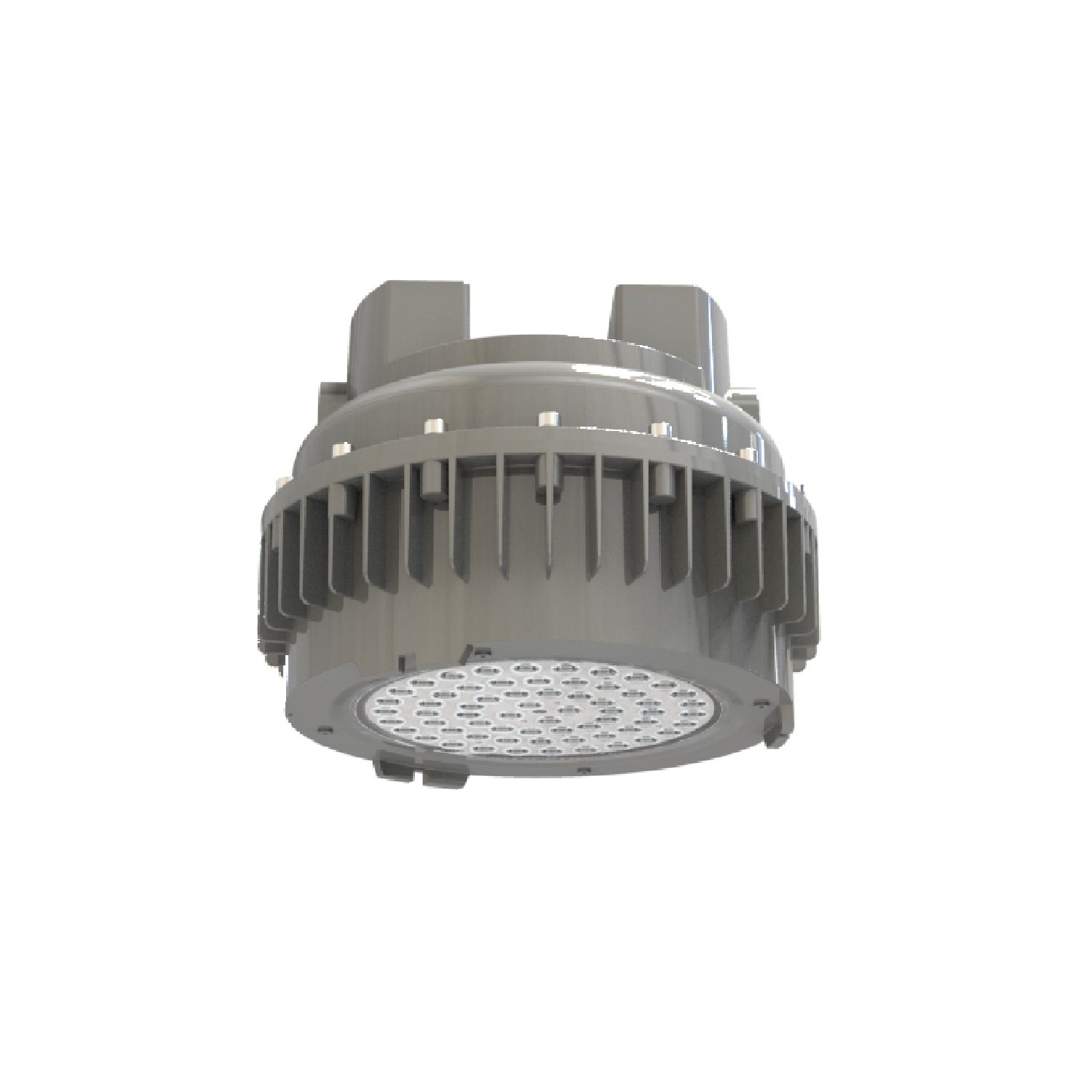

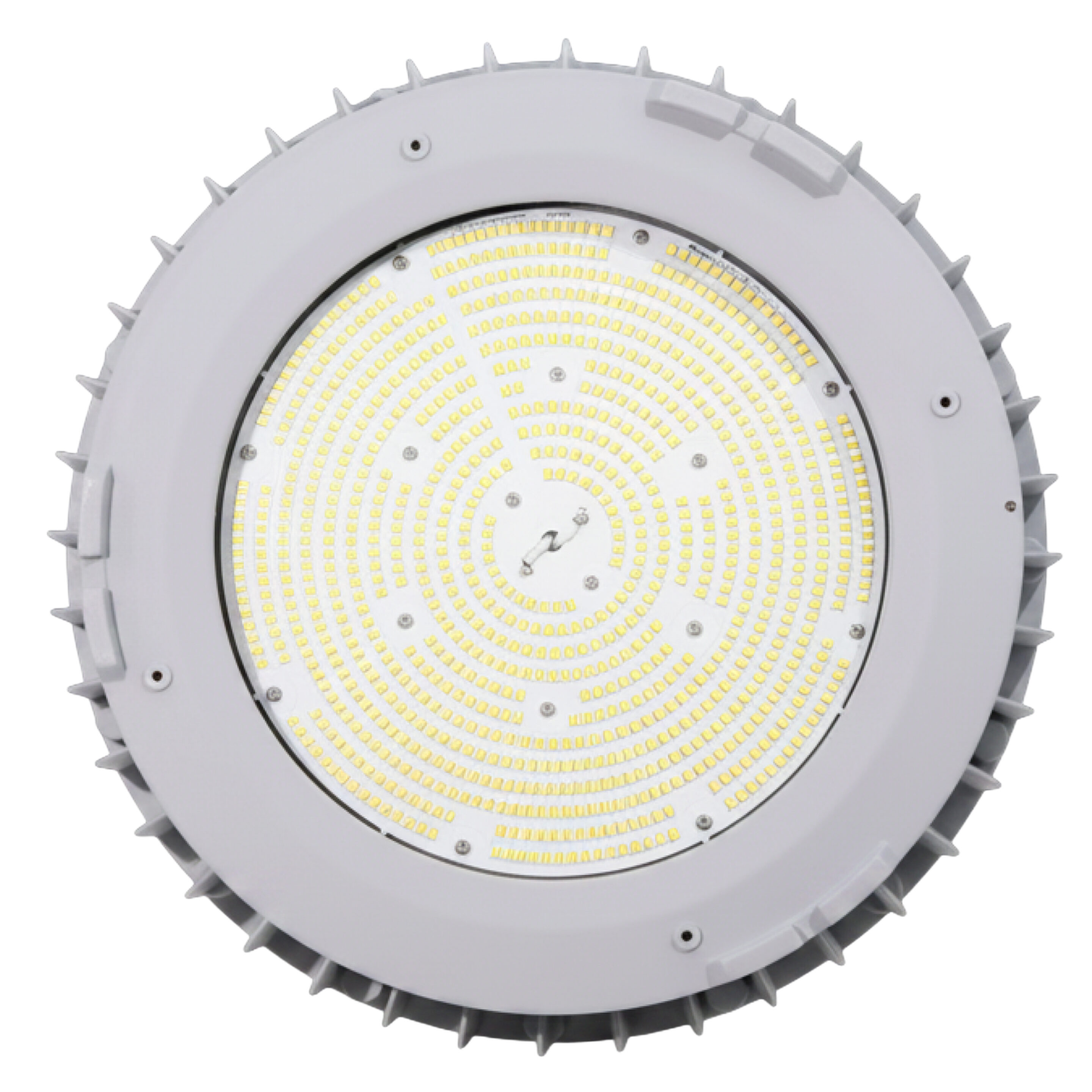

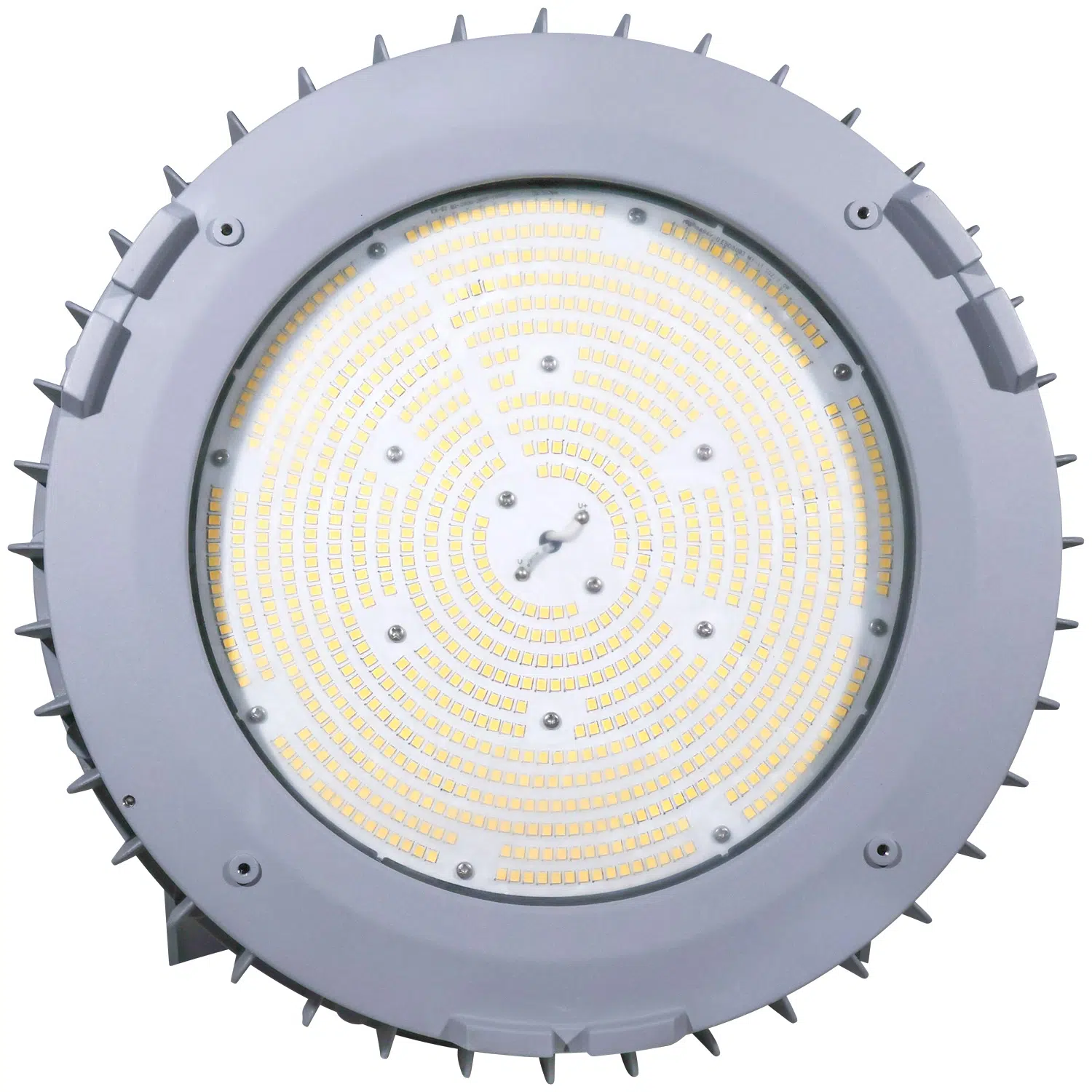

The housing is copper-free aluminum with a gray finish. A tempered glass lens protects the optical assembly.
The fixture is IP66 rated and IK08 rated. It measures 11.2 inches by 13.5 inches deep and weighs 45.3 pounds.
Yoke mounting requires a suitable structural mounting surface. The 3/4 inch NPT pendant connection requires a compatible installed mounting point.
Where This Product Fits Best
This fixture fits classified environments requiring a 150 watt, 21,000 lumen explosion proof light with wet-location, marine outside type, and impact-resistance ratings. Its listed classifications support hazardous location conditions identified in the product data.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
UL 844 hazardous-location classifications include Class I, Division 1 Groups B, C, D; Class I, Division 2 Groups A, B, C, D; Class II, Division 1 Groups E, F, G; Class II, Division 2 Groups F, G; and Class III. UL 1598, UL 1598A Marine Outside Type, ABS, IP66, and IK08 ratings are stated for this fixture.
Installation and Long-Term Use
Installation requires selection of either the yoke mount or 3/4 inch NPT pendant mount. The 45.3 pound fixture weight must be accounted for in the supporting structure and mounting method.
Confirm the installed voltage is within the 100-277V input range. Confirm the hazardous-location classification at the installation point matches the fixture listing before installation.
Long-term service access should account for the selected mounting arrangement, fixture weight, and installed location. The tempered glass lens and copper-free aluminum housing are part of the fixture assembly.
How This Fixture Is Commonly Used
In hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting, fixtures are placed according to the required mounting height, target light level, and available mounting structure. Pendant mounting is used where a 3/4 inch NPT connection is present, while yoke mounting allows fixture aiming from a suitable support surface.
The 120 degree distribution supports broad-area layouts using overlapping light patterns. Spacing varies with mounting height, target light levels, and the 21,000 lumen output; higher output can reduce fixture count but requires control of brightness and uniformity.
For oil and gas facility lighting, refinery lighting, and marine environment lighting, the installation must match the fixture’s stated classification and environmental ratings. The supplied data does not establish a specific mounting height or spacing distance.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 1, Groups B, C, D. Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. UL. Rebate eligible.
The fixture includes a 5 year warranty.
Frequently Asked Questions
Q: What is the light output of this explosion proof LED fixture?
A: The fixture produces 21,000 lumens at 150 watts, or 140 lumens per watt.
Q: What voltage does this fixture operate on?
A: It operates on 100-277V at 50-60Hz.
Q: What mounting options are available?
A: The fixture is available with yoke mounting or 3/4 inch NPT pendant mounting.
Q: What beam angle is provided?
A: The standard beam angle is 120 degrees.
Q: What is the rated operating temperature range?
A: The operating temperature range is -22 degrees F to 122 degrees F.
Application Questions and Clarification
Q: Can this fixture be considered for paint booth lighting?
A: Paint booth lighting is a valid application in the supplied application data. Final fit requires confirmation that the installation-point classification matches the fixture listing.
Q: What should be reviewed when planning fixture placement?
A: Mounting height, target light levels, mounting arrangement, and the 120 degree beam angle affect placement. The supplied data does not establish a specific spacing distance or mounting height.
Q: Is this fixture listed for marine environment lighting?
A: Marine environment lighting is a valid application in the supplied application data. The fixture is UL 1598A Marine Outside Type, ABS, and IP66 rated.
