100 Watt Explosion Proof LED Light | 15000 Lumens | Class 1 Div 2 | Class 2 Div 2 | 5000K | 100-277V
The 100 Watt Explosion Proof LED Light is an excellent choice for hazardous industrial environments, offering 15,000 lumens of ultra-bright illumination while replacing 400W metal halide fixtures for superior efficiency. Its Class 1 Div 2 and Class 2 Div 2 ratings, along with an IP66 rating, ensure safe operation in explosive atmospheres and wet locations. With a robust 244,000-hour lifespan and a wide operating temperature range, this fixture is ideal for oil refineries, chemical plants, and outdoor hazardous areas, providing reliable performance and significant energy savings.
Dwayne Kula | President, CTO and Founder
11 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 15000 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Trunnion |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| IP Rating | IP66 |
| IK Rating | IK08 |
| Operating Temperature | -40°F to 140°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 22 x 18 |
| Weight (lbs) | 32 lbs |
Notes
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- Wet Locations (UL 1598 / UL1598A)
- UL844
- CSA
- ATEX
- IECEX
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

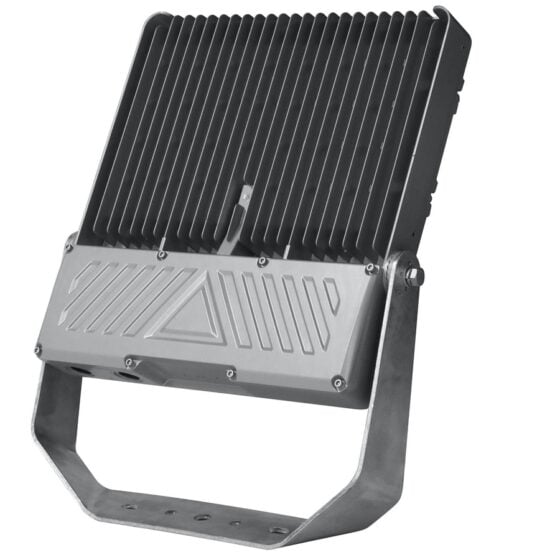

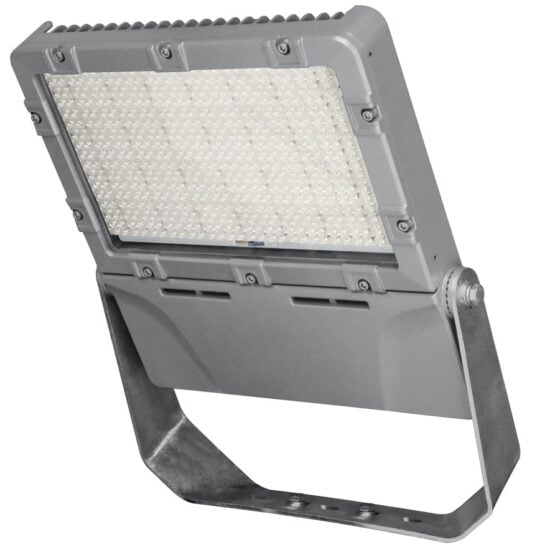

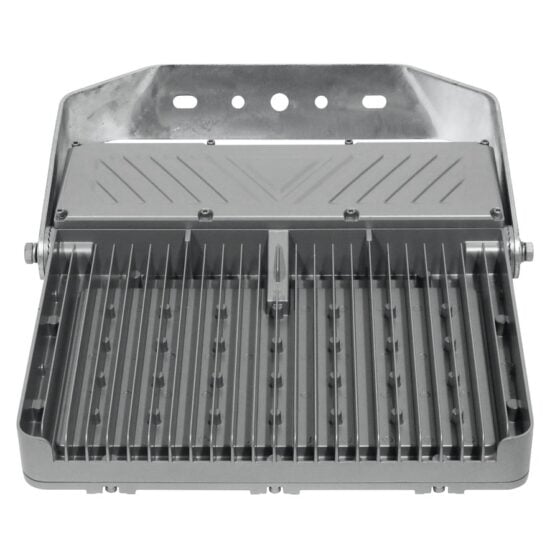

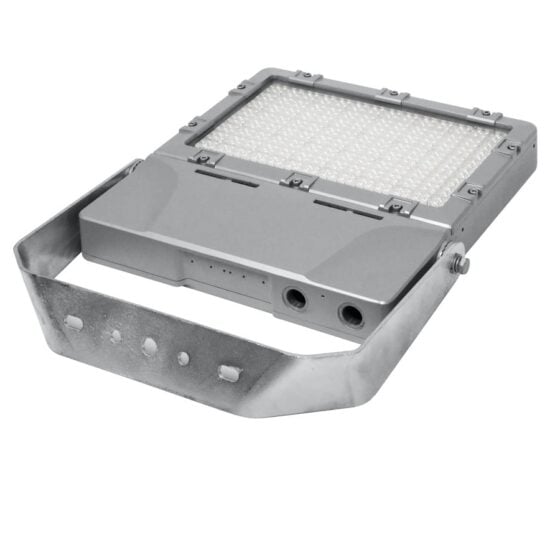

This 100 watt explosion proof LED flood light produces 15,000 lumens at 5000K through a tempered glass lens. It is built for hazardous location lighting where a broad 120 degree distribution and adjustable trunnion aiming are required.
The fixture operates on 100-277V and replaces 400 watt metal halide fixtures. Its Class 1 Division 2, Class 2 Division 1 and 2, and Class 3 ratings support use in classified industrial areas.
Core Performance and Output
This fixture delivers 15,000 lumens at 150 lumens per watt. The 120 degree beam angle provides wide flood coverage, while the 70+ CRI and 5000K color temperature produce a daylight appearance.
Electrical performance includes 100-277V input, 50-60Hz operation, power factor greater than 0.90, and THD below 10 percent. The 15,000-lumen output can be excessive where the mounting elevation is low or the aimed area is limited.
Adjustability and Control Options
The trunnion mount allows the fixture to be aimed to match the coverage area and mounting position. This is useful where light must be directed across equipment areas, processing zones, or exterior classified locations.
This fixture is non-dimming. Lighting control requirements should be reviewed before installation where dimming is part of the project scope.
Longevity and Reliability
The rated L70 life is 244,000 hours. This rating supports long operating intervals in locations where fixture access can require shutdown procedures or controlled entry.
The operating temperature range is -40F to 140F. The fixture is covered by a 5-year warranty.
Build Quality and Physical Characteristics
The fixture has an IP66 rating, IK08 impact rating, and tempered glass lens. It is rated for wet locations.
The housing measures 22 by 18 inches and weighs 32 pounds. The trunnion mounting surface and supporting structure must accommodate the fixture weight and aimed position.
Where This Product Fits Best
This fixture fits classified industrial locations that require explosion proof lighting, broad flood distribution, and wet-location construction. Its output and trunnion aiming support both indoor and outdoor hazardous area layouts.
- hazardous location lighting
- explosion proof lighting
- chemical processing facility lighting
- paint booth lighting
- oil and gas facility lighting
- refinery lighting
Classified area requirements, ambient temperature, mounting structure, voltage, and required aiming direction should align with the fixture ratings before installation.
Installation and Long-Term Use
The trunnion mount provides a fixed mounting method with adjustable aiming. Installers should set the fixture angle after confirming the intended coverage direction and mounting elevation.
Fixture placement should account for the 120 degree beam angle, 15,000-lumen output, and the surrounding hazardous location layout. The 32-pound fixture requires a mounting surface that supports the fixture and trunnion assembly.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, the fixture is mounted at an elevation that allows the broad beam to cover the required work or process area. The trunnion is then aimed to direct output where it is needed.
Paint booth lighting, chemical processing facility lighting, oil and gas facility lighting, and refinery lighting layouts use fixture positioning based on the classified area boundaries and required light direction. Wider spacing can reduce fixture count, but it can also reduce uniformity across the illuminated area.
Safety, Certifications, and Warranty
This fixture is ETL listed. It is rated Class 1 Division 2, Groups A, B, C, and D; Class 2 Division 1, Groups E, F, and G; Class 2 Division 2, Groups F and G; and Class 3.
Additional certifications and ratings include UL 844, CSA, ATEX, IECEX, UL 1598, and UL 1598A. The warranty is 5 years.
Frequently Asked Questions
Q: What is the light output of this explosion proof fixture?
A: The fixture produces 15,000 lumens while consuming 100 watts.
Q: What voltage does this fixture use?
A: The fixture operates on 100-277V at 50-60Hz.
Q: Can this fixture be dimmed?
A: No. This fixture is non-dimming.
Q: What mounting method is provided?
A: The fixture uses a trunnion mount that allows aiming adjustment.
Q: What should be reviewed when planning fixture layout?
A: Review the 15,000-lumen output, 120 degree beam angle, mounting elevation, trunnion aiming direction, and required coverage area. The supplied product data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this fixture rated for hazardous location lighting?
A: Yes. It is rated Class 1 Division 2, Groups A, B, C, and D; Class 2 Division 1, Groups E, F, and G; Class 2 Division 2, Groups F and G; and Class 3.
Q: Can this fixture be used for paint booth lighting?
A: Paint booth lighting is a valid application. The classified area requirements, mounting location, voltage, and required aiming direction must match the supplied fixture ratings and specifications.
Q: What environmental conditions are supported by this fixture?
A: The fixture is IP66 rated, rated for wet locations, and operates from -40F to 140F.
