2 Head 10 Watt Explosion Proof LED Emergency Light | Class 1 Div 1
This 10-watt LED wall-mounted fixture stands out in hazardous and demanding environments due to its UL 844, UL 924, UL 1598A, and IP66 ratings, robust die-cast aluminum housing, and IK10 impact protection. Its 1300 lumen output at 5000K ensures reliable, neutral white illumination for safety and visibility, while the 50,000 hour lifespan and 10kV surge protection minimize maintenance and downtime. Ideal for chemical plants, refineries, grain processing, wastewater treatment, and marine facilities, it is well-suited for wet, dusty, or corrosive locations.
Dwayne Kula | President, CTO and Founder
99 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C, D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 924 Emergency Lighting
- UL 1598A Marine Outside Type
- UL 1598 Wet Locations
- UL 8750 LED Safety
Key Features
| Brand | LED Lighting Supply |
| Watts | 10 |
| Lumens | 1300 |
| Lumens Per Watt | 130 |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| Dimming | No |
| Lifespan | 50,000 (L70) hours |
| Mounting | Wall |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 140°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 15.6 L x 14.7 W x 5.76 D |
| Weight (lbs) | 17.6 |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

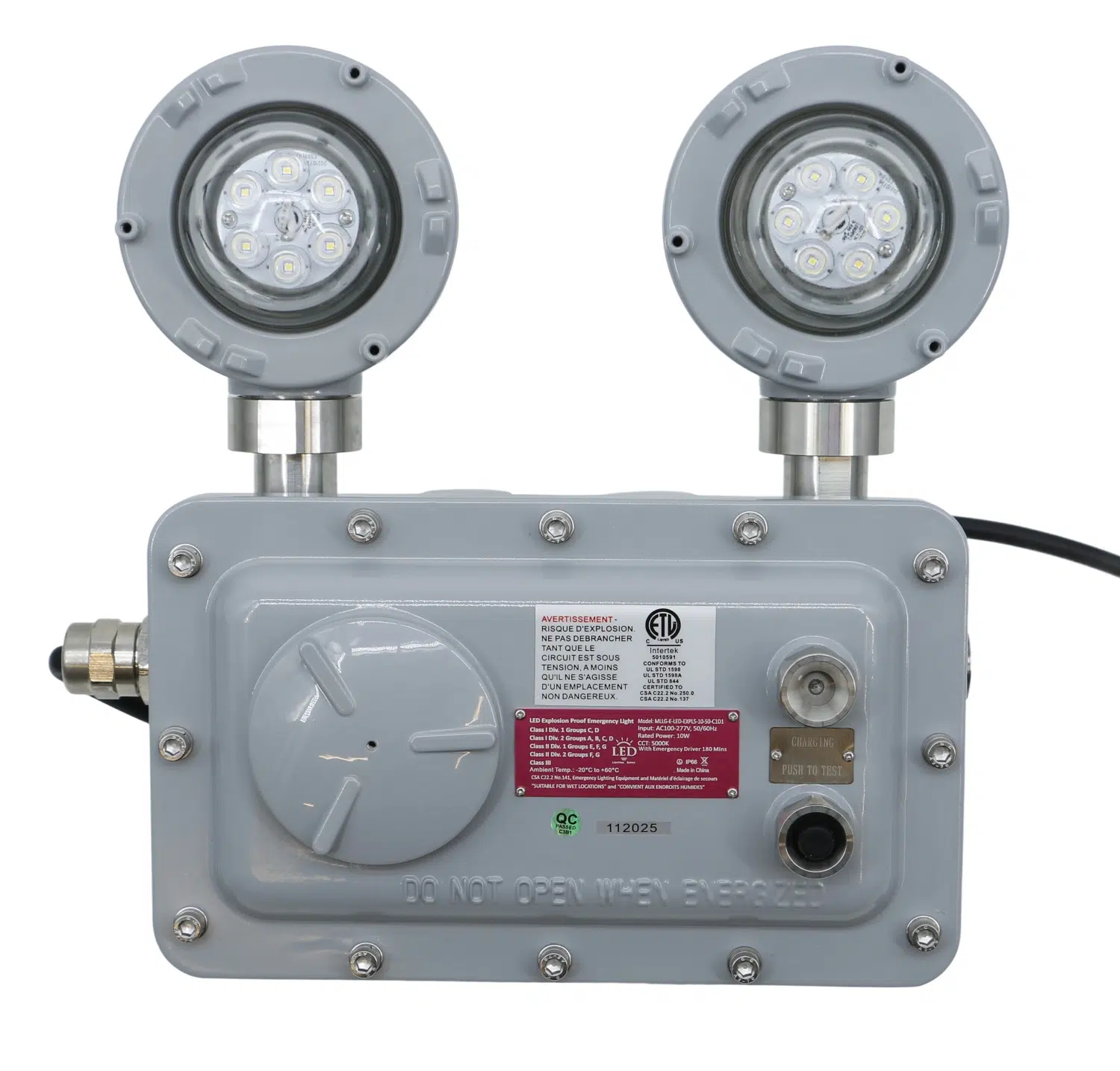

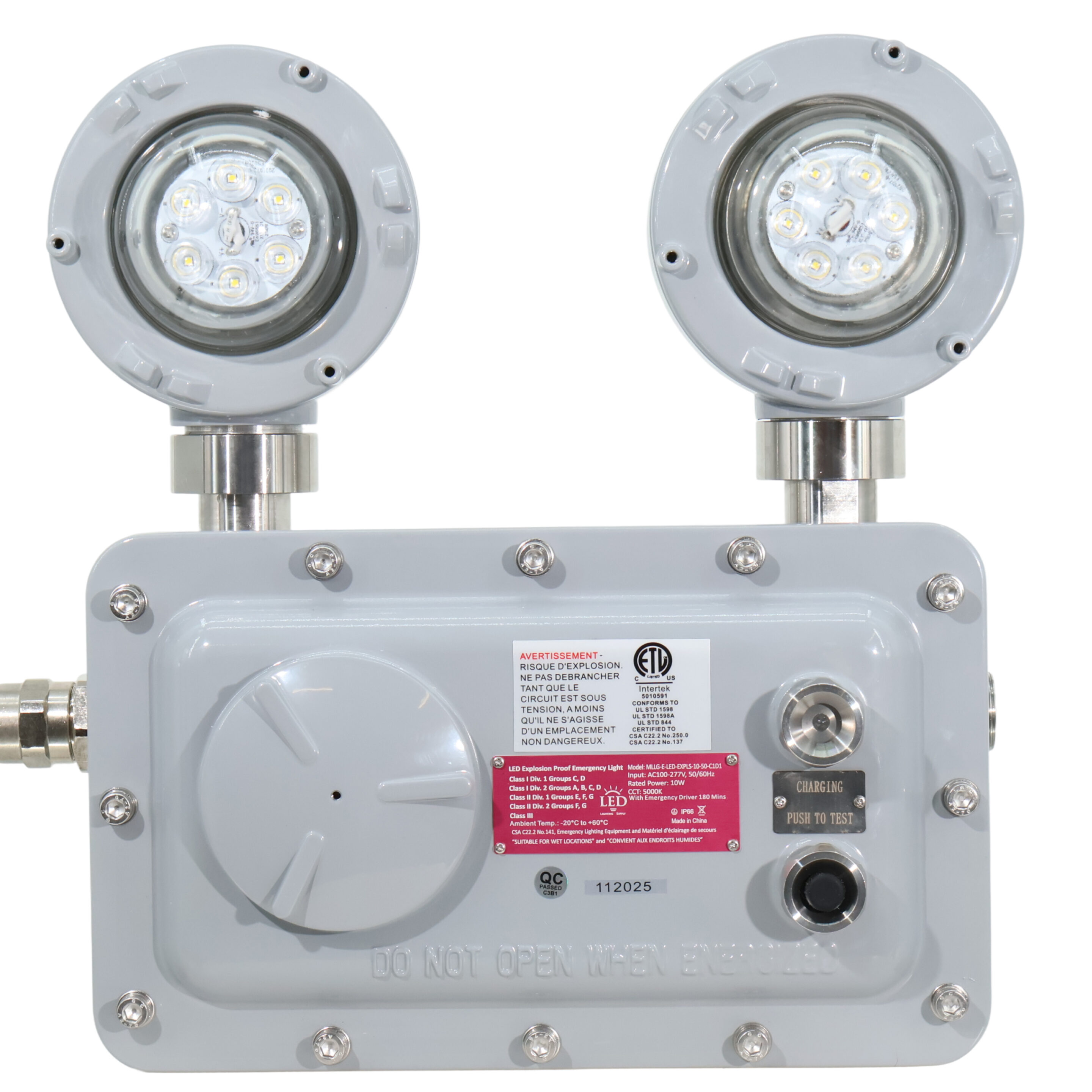

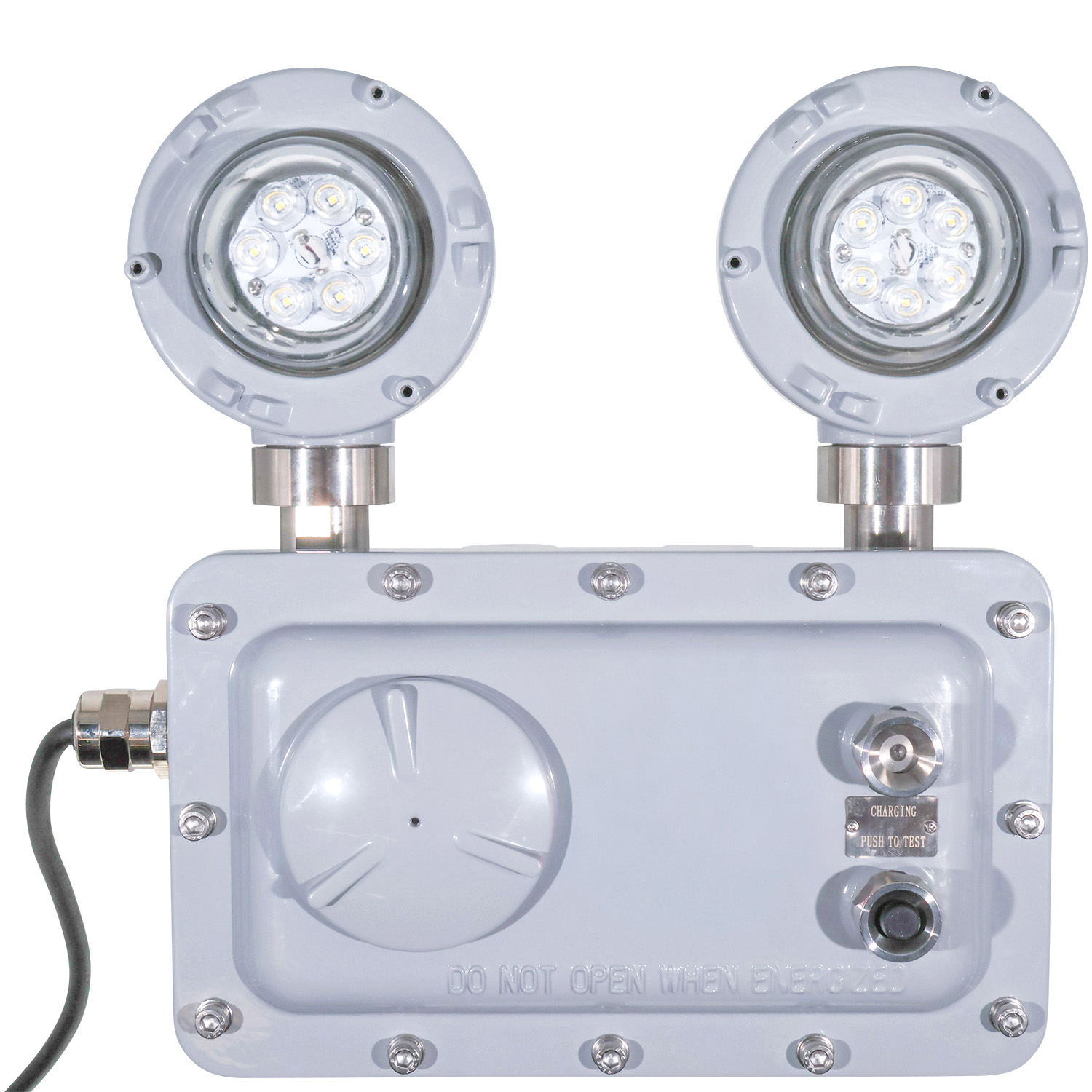

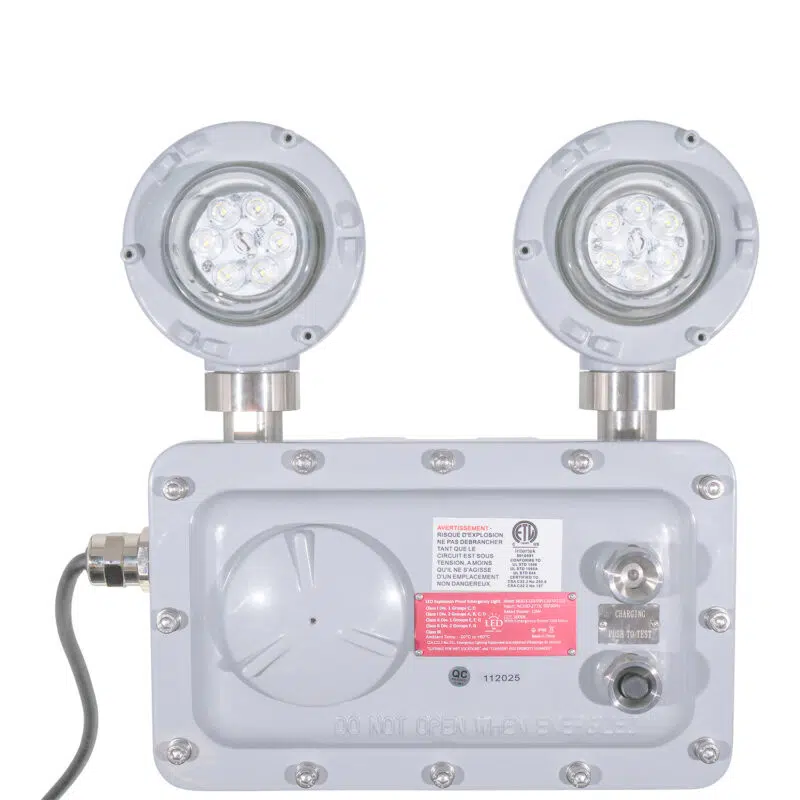

This 2-head 10-watt explosion proof LED emergency light provides 1,300 lumens at 5000K for hazardous location lighting and other classified environments. It uses a die-cast aluminum housing with wall mounting.
The fixture is rated for Class I, II, and III hazardous locations and carries UL 924 emergency lighting certification. Its two-head configuration provides directed emergency illumination from a fixed wall-mounted position.
Core Performance and Output
This fixture operates at 10 watts and produces 1,300 lumens, delivering 130 lumens per watt. It operates on 100-277V, 50-60Hz power with a power factor above 0.95 and THD below 10%.
Light output is fixed at 5000K. Beam distribution details are not provided in the supplied product data.
The 1,300-lumen output is intended for emergency lighting duties rather than broad general illumination. Final fixture placement must account for mounting height, required light levels, and the emergency lighting layout.
Adjustability and Control Options
This emergency light is not dimmable. It operates on 100-277V input voltage.
The fixture has a fixed 5000K color temperature and fixed two-head configuration. No field-adjustable output, color temperature, or optical settings are listed.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. The fixture includes 10kV surge protection.
Operating temperature range is -40F to 140F. Long-term service conditions should remain within this temperature range.
Build Quality and Physical Characteristics
The gray die-cast aluminum housing measures 15.6 inches long, 14.7 inches wide, and 5.76 inches deep. Fixture weight is 17.6 pounds.
The enclosure is rated IP66 and IK10. Wall mounting is the listed installation method.
Where This Product Fits Best
This fixture fits classified locations requiring wall-mounted emergency lighting with Class I, II, and III ratings. Its UL 1598A Marine Outside Type listing also supports listed marine environment lighting applications.
- hazardous location lighting
- explosion proof lighting
- marine environment lighting
- oil and gas facility lighting
- refinery lighting
- chemical processing facility lighting
The IP66 enclosure, IK10 impact rating, die-cast aluminum construction, and -40F to 140F operating range support demanding environmental conditions covered by the fixture ratings.
Installation and Long-Term Use

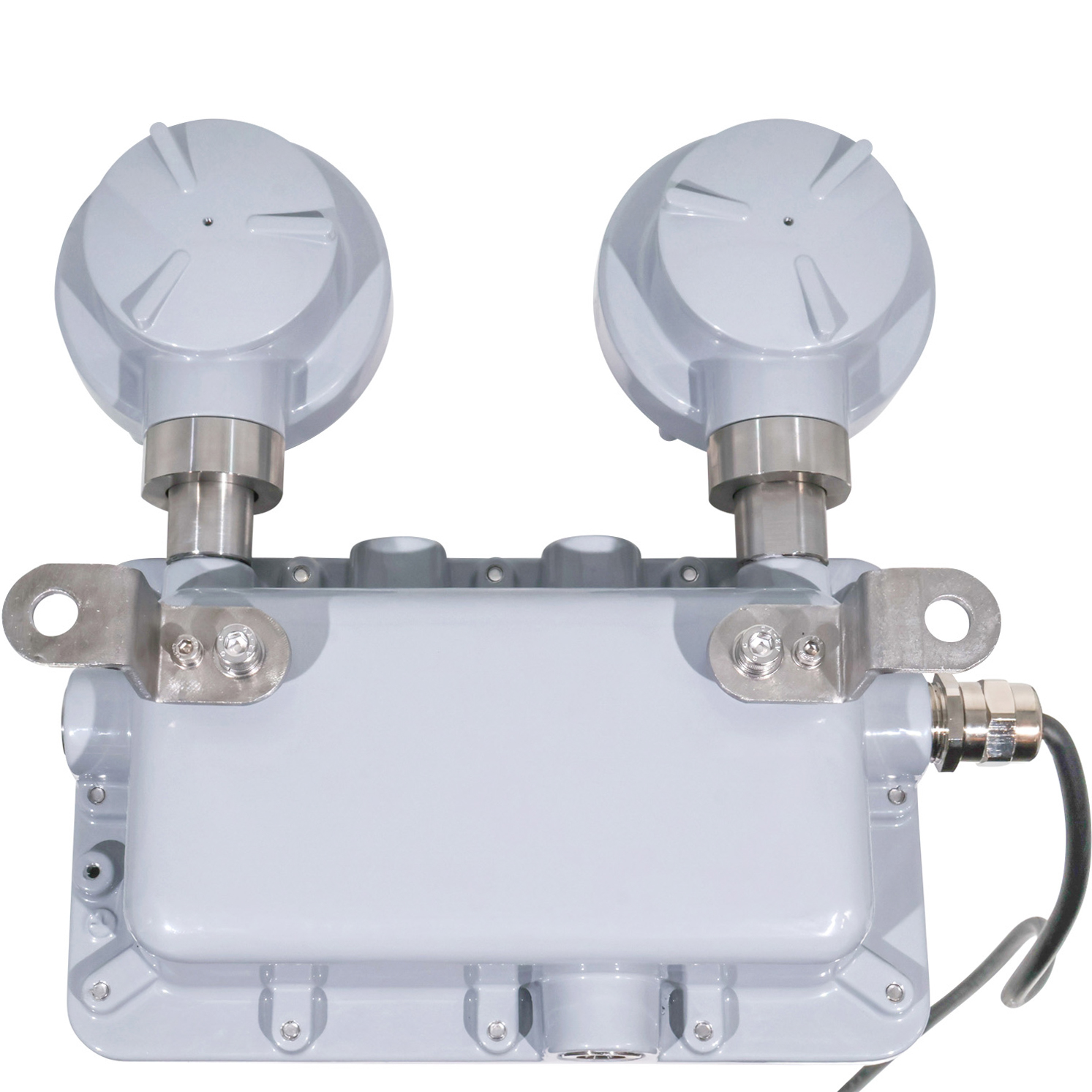

Install this fixture on a wall using the listed wall-mount configuration. The mounting surface must support the 17.6-pound fixture weight and maintain the intended aiming position for both heads.
Verify the available supply voltage is within 100-277V before installation. Fixture location should be coordinated with the emergency lighting layout and the applicable classified-area requirements.
How This Fixture Is Commonly Used
In hazardous location lighting and explosion proof lighting layouts, the fixture is wall mounted where emergency illumination is required. Mounting height is determined by the site emergency lighting plan and the wall location available in the classified area.
For marine environment lighting, refinery lighting, and chemical processing facility lighting, fixture placement is typically coordinated around access routes and equipment areas requiring emergency coverage. Spacing varies with mounting height, target light levels, and the overall emergency lighting layout.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 1, Groups C and D. Class I, Division 2, Groups A, B, C, and D. Class II, Division 1, Groups E, F, and G. Class II, Division 2, Groups F and G. Class III.
UL 924 Emergency Lighting. UL 1598A Marine Outside Type. UL 1598 Wet Locations. UL 8750 LED Safety. ETL. IP66. IK10. Five-year warranty.
Frequently Asked Questions
Q: What is the light output of this explosion proof emergency light?
A: This fixture produces 1,300 lumens at 10 watts with a 5000K color temperature.
Q: What input voltage does this fixture accept?
A: The fixture operates on 100-277V, 50-60Hz power.
Q: Can this emergency light be dimmed?
A: No. Dimming is not available.
Q: What should be considered when planning fixture placement?
A: Mounting height, target light levels, wall location, and the emergency lighting layout affect fixture placement. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture listed for hazardous location lighting?
A: Yes. It is listed under UL 844 for the stated Class I, Class II, and Class III classifications.
Q: Can this fixture be used for marine environment lighting?
A: The fixture is listed UL 1598A Marine Outside Type and UL 1598 Wet Locations.
Q: What mounting method is available for this fixture?
A: The listed mounting method is wall mounting.
