200 Watt LED High Temperature Light | 30000 Lumens | 5000K | 100-277V | Rated to 302F
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 |
| Lumens | 30000 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 75+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting | Pendant |
| Fixture Color | Silver |
| Frequency (Hz) | 50/60 hz |
| Power Factor | > .95 |
| THD | < 15% |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP66 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 302°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 22 X 19 X4 |
| Weight (lbs) | 38 lbs |
Options
LLS-LS-HT150-10M: 32 foot (10 meter) cord for remote driver installation
LLS-LS-HT150-15M: 49 foot (15 meter) cord for remote driver installation
LLS-LS-HT150-20M: 68 foot (20 meter) cord for remote driver installation
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

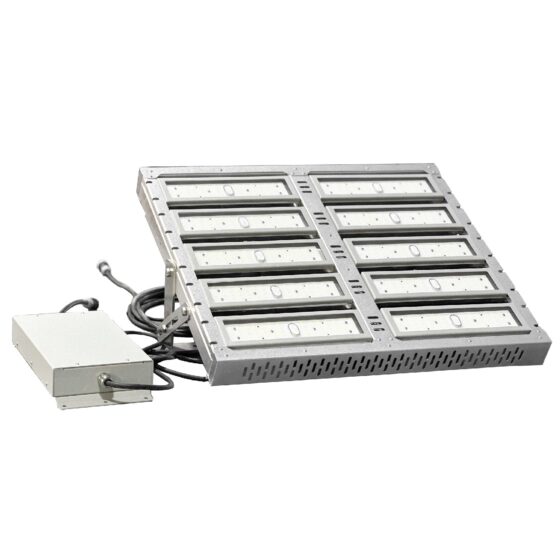

This 200-watt LED high temperature light delivers 30,000 lumens at 5000K for facilities with elevated ambient temperatures. It is built for pendant-mounted installations where conventional high bay fixtures cannot operate at the required temperature.
The fixture operates from -40F to 302F and is commonly used around furnaces, boilers, kilns, and process equipment. Its 400-watt metal halide replacement rating supports energy upgrades in existing high temperature lighting systems.
Core Performance and Output
The fixture produces 30,000 lumens at 150 lumens per watt. Its 5000K color temperature and 75+ CRI provide a cool white output for industrial task visibility.
A standard 120-degree beam distribution provides broad coverage from pendant mounting locations. The 100-277V input range, power factor greater than 0.95, THD below 15%, and 50/60 Hz operation support common commercial and industrial electrical systems.
The 30,000-lumen output can be excessive at lower mounting heights. Layouts at higher mounting elevations should account for the broad 120-degree distribution and required light levels at the work plane.
Adjustability and Control Options
This fixture is not dimmable. Output remains fixed at the 200-watt, 30,000-lumen configuration.
The fixture uses a standard 120-degree beam angle. Alternate beam angles and optical adjustments are not specified.
Longevity and Reliability
The LED system is rated for 100,000 hours at L70. This rating supports long operating intervals in high temperature areas where fixture access may be limited.
Integrated 6kV surge protection helps protect the fixture from electrical surge events. High temperature operation remains within the stated -40F to 302F operating range.
Build Quality and Physical Characteristics
The fixture uses an aluminum alloy housing, tempered glass lens, and silver finish. It measures 22 x 19 x 4 inches and weighs 38 pounds.
IP66 rated construction supports use in demanding industrial conditions. The pendant mounting arrangement requires a mounting point capable of supporting the fixture weight.
Where This Product Fits Best
This fixture fits high ambient temperature industrial areas that require a pendant-mounted LED lighting system rated through 302F. It is intended for locations where heat exposure is a primary fixture selection factor.
- power plant and energy site lighting
- industrial furnace area lighting
- steel mill lighting and foundry lighting
- nuclear facility lighting
- boiler room lighting
- kiln lighting
- heat treatment facility lighting
The aluminum alloy housing, tempered glass lens, IP66 rating, and high temperature operating range suit industrial environments with heat, dust, and demanding service conditions. Application fit still depends on actual ambient temperature at the fixture location.
Installation and Long-Term Use
Pendant mounting places the fixture below structural steel, equipment supports, or other approved overhead mounting points. The 38-pound fixture weight should be included in the mounting support review.
Installers should verify the available 100-277V supply voltage and confirm that ambient temperature at the fixture remains within the -40F to 302F operating range. The fixture is non-dimming, so control planning should not depend on dimming operation.
Long-term service planning should allow access to the pendant-mounted fixture and tempered glass lens. The five-year warranty applies to the fixture.
How This Fixture Is Commonly Used
This fixture is commonly mounted above high temperature process areas where lighting must remain outside immediate equipment interference while staying within the stated operating temperature range. Pendant location is determined by available structure, equipment clearances, and required illumination on the work area.
Layouts typically use broad overlapping coverage from the 120-degree beam angle rather than narrow directional aiming. Spacing varies with mounting height, target light levels, and the location of heat-generating equipment.
Higher output can reduce the number of fixture locations in a layout, but the 30,000-lumen output requires attention to glare and light distribution at lower mounting heights.
Safety, Certifications, and Warranty
ETL listed. IP66 rated.
The fixture includes 6kV surge protection and operates from -40F to 302F. It carries a five-year warranty.
Frequently Asked Questions
Q: What is the output of this high temperature light?
A: The fixture uses 200 watts and delivers 30,000 lumens at 150 lumens per watt.
Q: What ambient temperature range is this fixture rated for?
A: The stated operating temperature range is -40F to 302F.
Q: What voltage does this fixture use?
A: The fixture operates on 100-277V, 50/60 Hz power.
Q: Is this fixture dimmable?
A: No. This fixture is not dimmable.
Q: What beam angle does the fixture have?
A: The standard beam angle is 120 degrees.
Q: What mounting method is provided?
A: The fixture is designed for pendant mounting.
Application Questions and Clarification
Q: Is this fixture appropriate for high temperature facility lighting?
A: The fixture is rated to operate from -40F to 302F and is intended for high temperature facility lighting applications.
Q: Can this fixture be used for industrial furnace area lighting or boiler room lighting?
A: These are valid applications when the ambient temperature at the fixture location remains within the stated -40F to 302F operating range.
Q: What should be reviewed when planning fixture placement?
A: Mounting location, ambient temperature, target light levels, equipment clearances, and the 120-degree beam distribution affect fixture placement. A specific spacing value is not established by the supplied product data.
Q: What should be confirmed before pendant installation?
A: Confirm the mounting structure can support the 38-pound fixture and that the available electrical supply is within the 100-277V input range.
