200 Watt High Temperature LED Light | 30000 Lumens | 5000K | 100-277V | Rated to 212F
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 |
| Lumens | 30000 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 90° |
| Beam Angles (Opt) | 25° or 40° or 60° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Eye-Hook or Pendant or Trunnion |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 hz |
| Power Factor | > .95 |
| THD | < 15% |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP66 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 212°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 24 x 22.4 x 4.3 |
| Weight (lbs) | 40 lbs |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 200-watt high temperature LED light is a UFO-style fixture designed for continuous operation in areas with ambient temperatures up to 212F. It produces 30,000 lumens at 5000K and operates on 100-277V.
The aluminum alloy housing, polycarbonate lens, and IP66 rating support use in demanding high temperature lighting environments. It can replace a 400-watt metal halide fixture where the existing light level, mounting arrangement, and operating conditions are appropriate.
Core Performance and Output
This fixture delivers 30,000 lumens at 150 lumens per watt. The standard 90-degree beam angle provides broad distribution, while 25-degree, 40-degree, and 60-degree optics are available for more controlled distribution patterns.
Electrical performance includes 100-277V operation, 50/60 Hz frequency, power factor above 0.95, and total harmonic distortion below 15 percent. The 30,000-lumen output can be excessive at lower mounting heights, while higher mounting heights may require narrower optics or a revised layout to maintain uniformity.
Adjustability and Control Options
This fixture is non-dimming. It operates at full output when energized.
Optic selection is the primary adjustment available for directing light. The standard 90-degree optic suits broad coverage, while optional 25-degree, 40-degree, and 60-degree optics provide more concentrated beam control.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. L70 indicates the point at which light output is expected to reach 70 percent of its initial level.
The fixture includes 6kV surge protection. Its rated operating temperature range is -40F to 212F.
Build Quality and Physical Characteristics

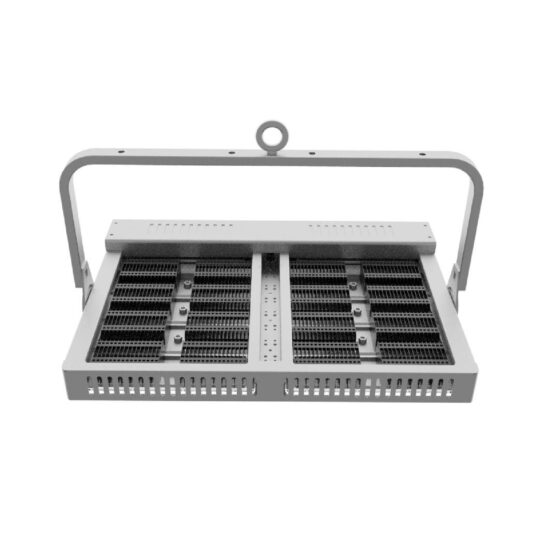

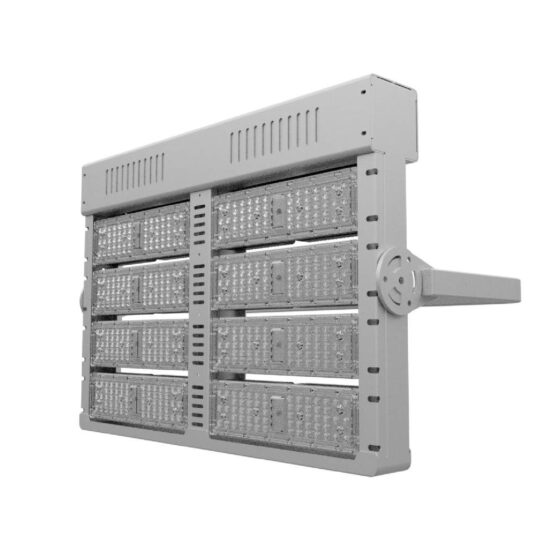

The fixture uses an aluminum alloy housing with a gray finish and a polycarbonate lens. It measures 24 by 22.4 by 4.3 inches and weighs 40 pounds.
IP66 construction protects the fixture enclosure from dust and powerful water jets. The physical size and weight should be considered when evaluating the mounting structure and installation access.
Where This Product Fits Best
This fixture is intended for high temperature facility lighting where elevated ambient temperatures are part of normal operation. Its 212F operating rating supports installation in industrial heat-intensive areas.
- industrial furnace area lighting
- steel mill lighting
- foundry lighting
- power plant and energy site lighting
- nuclear facility lighting
- boiler room lighting
These environments require evaluation of ambient temperature at the fixture location, mounting access, available voltage, and the required beam distribution. The IP66 enclosure rating and aluminum alloy housing support installations exposed to dust and water jets.
Installation and Long-Term Use
Eye-hook, pendant, and trunnion mounting options are available. The selected mounting method must support the 40-pound fixture weight and maintain a secure installation under site conditions.
Installation planning should confirm 100-277V supply voltage, fixture orientation, optic selection, and service access. Long-term maintenance should account for lens condition, mounting hardware inspection, and fixture operation in elevated ambient temperatures.
How This Fixture Is Commonly Used
In industrial furnace area lighting, steel mill lighting, foundry lighting, and boiler room lighting, fixtures are positioned around the available mounting height and the location of heat-producing equipment. Eye-hook or pendant mounting is commonly used where overhead support points are available, while trunnion mounting allows directional aiming.
For power plant and energy site lighting and nuclear facility lighting, layout planning accounts for mounting height, equipment obstructions, and required beam control. Narrower optics can concentrate light over a specific area, while wider optics reduce fixture-to-fixture contrast across broader layouts.
Safety, Certifications, and Warranty
This fixture is ETL listed. It is rated IP66 and includes 6kV surge protection.
The operating temperature range is -40F to 212F. The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What is the light output of this high temperature LED light?
A: This fixture produces 30,000 lumens while using 200 watts.
Q: What voltage does this fixture use?
A: This fixture operates on 100-277V at 50/60 Hz.
Q: Is this fixture dimmable?
A: No. This fixture is non-dimming.
Q: What mounting options are available?
A: Eye-hook, pendant, and trunnion mounting options are available.
Q: How do the available optics affect layout planning?
A: The standard optic is 90 degrees. Optional 25-degree, 40-degree, and 60-degree optics provide more concentrated distribution for layouts requiring tighter beam control.
Application Questions and Clarification
Q: Is this fixture rated for high temperature facility lighting?
A: Yes. The fixture has an operating temperature range of -40F to 212F.
Q: What should be reviewed for industrial furnace area lighting or foundry lighting?
A: Confirm the ambient temperature at the fixture location, available mounting structure, supply voltage, and required beam distribution.
Q: Can the fixture be aimed for power plant and energy site lighting?
A: Trunnion mounting is available, and optional 25-degree, 40-degree, and 60-degree optics provide controlled beam distribution.
