150 Watt High Temperature LED Light | 22500 Lumens | 5000K | 100-277V | Rated to 212F
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 22500 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 90° |
| Beam Angles (Opt) | 40° or 60° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Eye-Hook or Pendant or Trunnion |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 hz |
| Power Factor | > .95 |
| THD | < 15% |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP66 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 212°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12.2 x 22 x 4.3 |
| Weight (lbs) | 19.8 lbs |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 150-watt high temperature LED light is a UFO-style fixture designed for high temperature facility lighting where conventional high bays are exposed to sustained heat. It produces 22,500 lumens at 5000K and operates on 100-277V.
The fixture is rated for operation from -40F to 212F. It is configured for industrial furnace area lighting, steel mill lighting, foundry lighting, power plant and energy site lighting, and nuclear facility lighting.
Core Performance and Output
This fixture delivers 22,500 lumens at 150 lumens per watt. It is listed as a replacement for 400-watt metal halide fixtures and uses a 5000K color temperature with 70+ CRI.
The standard beam angle is 90 degrees. Optional 40-degree and 60-degree beam angles provide narrower distributions where the fixture layout requires more concentrated output.
Input voltage is 100-277V at 50/60 Hz. Power factor exceeds 0.95, and total harmonic distortion is less than 15 percent.
The 22,500-lumen output can be excessive at lower mounting heights. Narrower optics require layout review to maintain uniform coverage between fixtures.
Adjustability and Control Options
This fixture is non-dimming. It operates at full output when energized.
Beam distribution can be selected as a 90-degree standard optic or a 40-degree or 60-degree optional optic. The polycarbonate lens is part of the optical system.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. This rating supports long-term operation in high temperature facility lighting where fixture access may be limited.
Surge protection is rated at 6kV. The fixture includes a 5-year warranty.
Build Quality and Physical Characteristics
The housing is aluminum alloy with a gray finish. The fixture uses a polycarbonate lens and carries an IP66 rating.
Overall dimensions are 12.2 x 22 x 4.3 inches. Fixture weight is 19.8 pounds.

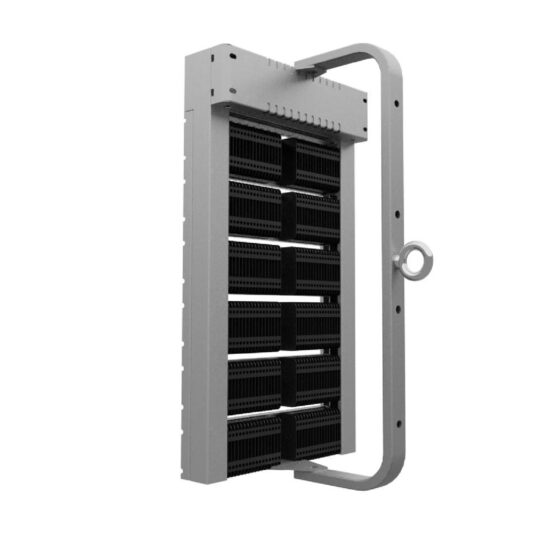

Available mounting methods are eye-hook, pendant, and trunnion mounting. The mounting structure must support the fixture weight and selected mounting arrangement.
Where This Product Fits Best
This fixture fits high heat industrial environments where the operating temperature can reach 212F. Its output, high temperature rating, and mounting options support fixed overhead lighting layouts.
- industrial furnace area lighting
- steel mill lighting
- foundry lighting
- power plant and energy site lighting
- nuclear facility lighting
- boiler room lighting
- heat treatment facility lighting
The aluminum alloy housing, polycarbonate lens, and IP66 rating support use where equipment is exposed to demanding industrial conditions. Final fixture placement must account for the actual heat exposure at the mounting location.
Installation and Long-Term Use
Install the fixture using the eye-hook, pendant, or trunnion mounting option specified for the layout. Verify mounting support for the 19.8-pound fixture before installation.
Use the 100-277V input range and non-dimming operating configuration when planning electrical connections. Confirm that ambient temperature at the fixture location remains within the -40F to 212F operating range.
How This Fixture Is Commonly Used
In industrial furnace area lighting, steel mill lighting, and foundry lighting, fixtures are mounted above equipment and work zones where heat exposure is a primary design condition. Mounting height and beam angle are coordinated with the required light distribution.
For power plant and energy site lighting, nuclear facility lighting, boiler room lighting, and heat treatment facility lighting, fixtures are arranged in rows or grouped around defined operating areas. Spacing varies with mounting height, selected beam angle, and target light levels.
Safety, Certifications, and Warranty
This fixture is ETL listed. It is IP66 rated.
The operating temperature range is -40F to 212F. The fixture includes 6kV surge protection and a 5-year warranty.
Frequently Asked Questions
Q: What light output does this high temperature LED light provide?
A: It produces 22,500 lumens while using 150 watts. Efficacy is 150 lumens per watt.
Q: What operating temperature range is listed for this fixture?
A: The listed operating temperature range is -40F to 212F.
Q: Which beam angles are available?
A: The standard beam angle is 90 degrees. Optional beam angles are 40 degrees and 60 degrees.
Q: What should be reviewed when planning the fixture layout?
A: Review mounting height, selected beam angle, and target light levels. The supplied product data does not establish a specific fixture spacing value.
Q: Which mounting methods are available?
A: Available mounting methods are eye-hook, pendant, and trunnion mounting.
Application Questions and Clarification
Q: Is this fixture configured for power plant and energy site lighting?
A: Yes. Power plant and energy site lighting is a listed primary application for this high temperature light category.
Q: Can this fixture be considered for boiler room lighting?
A: Boiler room lighting is a listed secondary application. Confirm the actual fixture-location temperature remains within the -40F to 212F operating range.
Q: What should be confirmed for industrial furnace area lighting?
A: Confirm the mounting method, voltage, fixture-location temperature, beam angle, and required layout before final selection.
