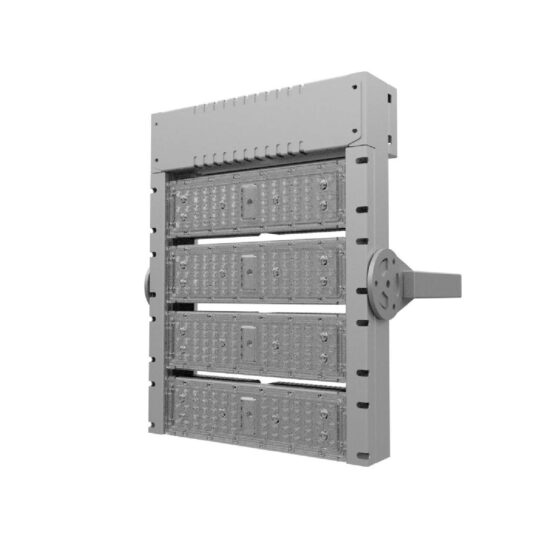

100 Watt High Temperature LED Light | 15000 Lumens | 5000K | 100-277V | Rated to 212F
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 15000 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 90° |
| Beam Angles (Opt) | 25° or 40° or 60° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Eye-Hook or Pendant or Trunnion |
| Fixture Color | Gray |
| Frequency (Hz) | 50/60 hz |
| Power Factor | > .95 |
| THD | < 15% |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | IP66 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 212°F |
| Certifications | ETL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 12.5 X 12.2 X 2.4 |
| Weight (lbs) | 7.7 lbs |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 100-watt high temperature LED light delivers 15,000 lumens at 5000K for facilities with elevated ambient temperatures. It is built with an aluminum alloy housing, polycarbonate lens, and an IP66 rating.
The fixture operates from 100-277V and is rated for ambient temperatures from -40F to 212F. Eye-hook, pendant, and trunnion mounting support different structural mounting conditions.
Core Performance and Output
This fixture produces 15,000 lumens at 150 lumens per watt. The standard 90-degree beam angle provides broad distribution, with 25-degree, 40-degree, and 60-degree optical options available for more controlled layouts.
Electrical performance includes 50/60 Hz operation, power factor above 0.95, THD below 15%, and 6kV surge protection. The 15,000-lumen output can be excessive where mounting heights are low or task areas are close to the fixture.
Adjustability and Control Options
This fixture is non-dimming. Light output remains at its rated operating level when energized.
Beam distribution can be configured with 25-degree, 40-degree, 60-degree, or standard 90-degree optics. Mounting can be set with an eye-hook, pendant, or trunnion configuration.
Longevity and Reliability
The rated lifespan is 50,000 L70 hours. The fixture is designed for continuous operation in ambient temperatures up to 212F.
The aluminum alloy housing, polycarbonate lens, IP66 rating, and 6kV surge protection support operation in demanding high-temperature facility conditions. Long-term performance depends on maintaining the fixture within its stated temperature range.
Build Quality and Physical Characteristics
The gray fixture housing is constructed from aluminum alloy and uses a polycarbonate lens. It measures 12.5 x 12.2 x 2.4 inches and weighs 7.7 pounds.
Its compact UFO form factor supports eye-hook, pendant, and trunnion mounting. The IP66-rated enclosure is intended to protect the fixture in exposed industrial conditions.
Where This Product Fits Best
This fixture fits high-temperature industrial environments where ambient conditions can exceed the operating limits of standard high bay fixtures. Its 212F maximum operating temperature rating is relevant where heat exposure is a continuing facility condition.
- power plant and energy site lighting
- steel mill lighting
- foundry lighting
- nuclear facility lighting
- boiler room lighting
- kiln lighting
The IP66 rating, aluminum alloy housing, and polycarbonate lens support use in industrial areas with heat, dust, and demanding operating conditions. Final placement must keep the fixture within its rated ambient temperature range.
Installation and Long-Term Use
Confirm the mounting structure, fixture orientation, voltage, and ambient temperature before installation. Eye-hook and pendant mounting suit suspended installations, while trunnion mounting provides a fixed directional position.
The fixture operates on 100-277V and does not include dimming. Service access should account for the 7.7-pound fixture weight and the conditions present around the installation point.
How This Fixture Is Commonly Used
In power plant and energy site lighting, steel mill lighting, foundry lighting, and nuclear facility lighting, fixture mounting height is determined by the equipment layout, structural supports, and required light distribution. The selected optic controls how the 15,000-lumen output is directed across the work area.
Layouts typically use the 90-degree optic for broad coverage or narrower optics where light needs to be directed more tightly. Narrower beam angles can increase light concentration but require closer attention to fixture placement and uniformity.
Safety, Certifications, and Warranty
This fixture is ETL listed. It has an IP66 rating and 6kV surge protection.
The operating temperature range is -40F to 212F. The warranty is 5 years.
Frequently Asked Questions
Q: What is the output of this high temperature LED light?
A: The fixture uses 100 watts and produces 15,000 lumens at 5000K.
Q: What voltage does this fixture require?
A: The fixture operates on 100-277V at 50/60 Hz.
Q: Can this fixture be dimmed?
A: No. This fixture is non-dimming.
Q: What beam angles are available for layout planning?
A: The standard beam angle is 90 degrees. Optional 25-degree, 40-degree, and 60-degree beam angles are available.
Q: What mounting methods are available?
A: Eye-hook, pendant, and trunnion mounting are available.
Application Questions and Clarification
Q: Is this fixture intended for high temperature facility lighting?
A: Yes. The fixture is rated for operation from -40F to 212F and is intended for high temperature facility lighting applications.
Q: What should be confirmed for power plant and energy site lighting or boiler room lighting?
A: Confirm ambient temperature, available 100-277V power, mounting method, and required beam distribution. The supplied product data does not establish a specific fixture spacing value.
Q: Which optic should be considered for steel mill lighting or foundry lighting?
A: The fixture is available with 25-degree, 40-degree, 60-degree, and standard 90-degree beam angles. Optic selection depends on the required light direction and layout.
