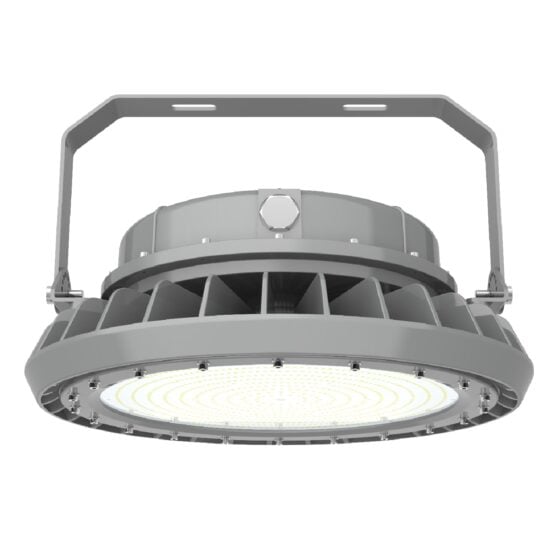

100 Watt High Temperature Explosion Proof LED Light | 10000 Lumens | Class 1 Div 2 | 5000K | 120V | Rated to 194F
This 100 Watt High Temperature Explosion Proof LED fixture is a strong choice for hazardous locations requiring Class I Division 2, Class II Division 1 or 2, and Class III protection, especially where high ambient temperatures up to 194°F are present. Its 10,000 lumen output, multiple beam angle options, and robust copper-free aluminum housing with tempered glass lens ensure reliable, consistent illumination in demanding environments. The IP66 and IK10 ratings, along with UL and ABS certifications, make it well-suited for chemical plants, refineries, grain processing, and marine or offshore sites.
Dwayne Kula | President, CTO and Founder
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 10000 |
| Lumens Per Watt | 100 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 120V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Beam Angles (Opt) | 40° or 60° or 90° |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 194°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14 D X 11.3 H |
| Weight (lbs) | 26 lbs |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 100-watt high temperature explosion proof LED light delivers 10,000 lumens at 5000K from a compact 14-inch diameter fixture. It operates on 120V and is rated for ambient temperatures from -40F to 194F.
The fixture is built for high temperature facility lighting where heat, hazardous-location classifications, moisture, and physical impact are operating concerns. It replaces a 400-watt metal halide fixture.
Core Performance and Output
The fixture produces 10,000 lumens at 100 lumens per watt with a 70+ CRI. Standard distribution is 120 degrees, with 40-degree, 60-degree, and 90-degree optical options available.
Electrical performance includes 120V operation, 50-60Hz frequency, power factor greater than 0.95, and THD below 10 percent. The 120-degree optic provides broad distribution, while narrower optics control light direction in layouts requiring more concentrated output.
At lower mounting heights, 10,000 lumens can create excessive brightness if fixture placement is not coordinated with the work area. Wider spacing may reduce uniformity when the fixture is mounted higher or used with a narrow beam angle.
Adjustability and Control Options
This fixture is non-dimming. Control planning should account for fixed full-output operation.
Optical selection provides the primary adjustment method. The standard 120-degree beam supports broad coverage, while 40-degree, 60-degree, and 90-degree optics change the distribution pattern.
Longevity and Reliability
Rated life is 50,000 L70 hours. The fixture includes 10kV surge protection for electrical transient resistance.
The operating temperature range extends from -40F to 194F. This temperature rating is a defining factor for installations exposed to sustained high ambient heat.
Build Quality and Physical Characteristics
The housing is copper-free aluminum with a gray finish. A tempered glass lens protects the optical assembly.
The fixture is IP66 rated and IK10 rated. It measures 14 inches in diameter by 11.3 inches high and weighs 26 pounds.
Where This Product Fits Best
This fixture fits high temperature industrial environments where the supplied temperature rating and hazardous-location classifications align with site conditions. Its 100-watt output supports focused high-temperature lighting layouts rather than low-output local lighting.
- industrial furnace area lighting
- steel mill lighting
- foundry lighting
- power plant and energy site lighting
- boiler room lighting
- heat treatment facility lighting
The IP66 rating, IK10 rating, copper-free aluminum housing, tempered glass lens, and 194F maximum operating temperature support demanding operating conditions. UL 844, UL 1598, UL 1598A, ABS, ETL, Class I Division 2, Class II Division 1, Class II Division 2, and Class III apply.
Installation and Long-Term Use
The fixture mounts by yoke or 3/4-inch NPT pendant. The mounting structure must support the 26-pound fixture and maintain the intended aiming position.
Yoke mounting allows directional aiming, while pendant mounting places the fixture below the mounting surface. Long-term access should account for fixture weight, mounting method, ambient temperature, and the condition of wiring and mounting hardware.
How This Fixture Is Commonly Used
In industrial furnace area lighting, steel mill lighting, foundry lighting, and heat treatment facility lighting, mounting height is established by the available structure, heat exposure, and required light placement. Yoke-mounted fixtures are aimed toward the active area, while pendant-mounted fixtures are positioned below overhead structure.
Layouts commonly use the standard wide beam where broad distribution is needed and narrower optics where light must be directed into a defined area. Spacing varies with mounting height, selected optic, target light level, and obstructions within the layout.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. ETL. Rebate Eligible.
The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What output does this high temperature LED light provide?
A: The fixture uses 100 watts and delivers 10,000 lumens at 5000K with 70+ CRI.
Q: What beam angles are available?
A: The standard beam angle is 120 degrees. Optional beam angles are 40 degrees, 60 degrees, and 90 degrees.
Q: Can this fixture be dimmed?
A: No. This fixture is non-dimming.
Q: What mounting methods are available?
A: The fixture is available with yoke mounting or 3/4-inch NPT pendant mounting.
Q: What should be considered when planning fixture spacing?
A: Mounting height, selected beam angle, target light level, and layout requirements affect spacing. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture appropriate for high temperature facility lighting?
A: The fixture is rated for operation from -40F to 194F and is intended for high temperature facility lighting.
Q: What should be confirmed for industrial furnace area lighting or boiler room lighting?
A: Confirm ambient temperature, mounting method, available 120V power, required beam distribution, and the applicable hazardous-location classification.
