100 Watt Round High Temperature Explosion Proof LED Light | 10000 Lumens | Class 1 Div 1 | 5000K | 120V | Rated to 194F
This 100 Watt round explosion proof LED fixture is a strong choice for hazardous locations requiring Class I Division 1 or Class II Division 1 protection, especially where high ambient temperatures or exposure to water, dust, or impacts are concerns. Its 10,000 lumen output at 5000K ensures clear visibility for tasks in industrial environments, while the IP66 and IK10 ratings, copper free aluminum housing, and tempered glass lens provide durability in corrosive, wet, or marine settings. Ideal for foundries, steel mills, offshore platforms, and similar demanding spaces up to 194F.
Dwayne Kula | President, CTO and Founder
20 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 1, Groups C,D
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ABS
Key Features
| Brand | LED Lighting Supply |
| Watts | 100 |
| Lumens | 10000 |
| Lumens Per Watt | 100 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 120V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Yoke or 3/4 in NPT Pendant |
| Fixture Color | Gray |
| Frequency (Hz) | 50-60Hz |
| Power Factor | >.95 |
| THD | < 10% |
Durable Construction
| Housing | Copper Free Aluminum |
| IP Rating | IP66 |
| IK Rating | IK10 |
| Surge Protection | 10kV |
| Operating Temperature | -40°F to 194°F |
| Certifications | ETL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 16 X 13.5 |
| Weight (lbs) | 39 lbs |
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

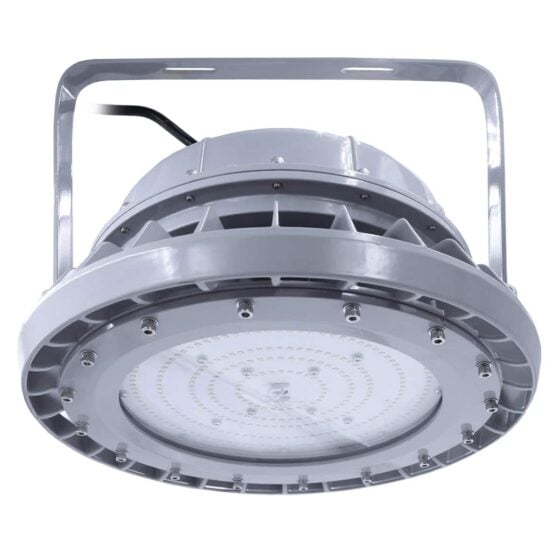

This 100-watt round high temperature explosion proof LED light delivers 10,000 lumens at 5000K on 120V power. It is built for high-heat industrial areas where fixture temperature limits, hazardous-location classifications, and physical durability must be considered together.
The fixture operates in ambient temperatures from -40F to 194F and provides a 120-degree distribution through a tempered glass lens. It is a 400-watt metal halide replacement option where existing lighting operates in high-temperature conditions.
Core Performance and Output
This fixture produces 10,000 lumens at 100 lumens per watt. The 120-degree beam angle provides broad illumination from a round fixture body, with a 70+ CRI and 5000K color temperature.
Electrical operation is 120V, 50-60Hz, with power factor greater than 0.95 and THD below 10 percent. The 10,000-lumen output can be excessive at lower mounting heights where broad distribution places light close to work areas.
The 120-degree distribution supports wide-area layouts, but mounting height and fixture placement affect uniformity. Higher mounting positions may require closer fixture spacing to maintain consistent coverage.
Adjustability and Control Options
This fixture is not dimmable. Output remains fixed at 100 watts and 10,000 lumens during operation.
Mounting is available through a yoke or 3/4-inch NPT pendant connection. The selected mounting method affects fixture orientation and final aiming position.
Longevity and Reliability
The LED system is rated for 50,000 L70 hours. This rating identifies the point at which light output is expected to remain at 70 percent of initial output.
Integrated 10kV surge protection supports electrical durability. The fixture is covered by a 5-year warranty.
Build Quality and Physical Characteristics
The housing is copper-free aluminum with a gray finish. The fixture measures 16 by 13.5 inches and weighs 39 pounds.
A tempered glass lens protects the optical system. The enclosure is rated IP66 and IK10.
Where This Product Fits Best
This fixture fits high-temperature industrial locations with ambient temperatures up to 194F and areas requiring the listed hazardous-location classifications. Its copper-free aluminum housing, tempered glass lens, and IP66 construction support demanding operating conditions.
- steel mill lighting
- foundry lighting
- industrial furnace area lighting
- power plant and energy site lighting
- kiln lighting
- glass manufacturing lighting
It is rated for Class I, Division 1 Groups C and D; Class I, Division 2 Groups A, B, C, and D; Class II, Division 1 Groups E, F, and G; Class II, Division 2 Groups F and G; and Class III locations. UL 844, UL 1598, UL 1598A Marine Outside Type, ABS, ETL, IP66, and IK10 apply.
Installation and Long-Term Use
The fixture can be installed with the yoke mount or through a 3/4-inch NPT pendant connection. The 39-pound fixture weight must be accounted for when preparing the mounting structure and connection point.
Installation should account for the 120V supply requirement and the selected mounting method. Long-term access for inspection and maintenance should be considered before final fixture placement.
How This Fixture Is Commonly Used
In steel mill lighting, foundry lighting, industrial furnace area lighting, and kiln lighting, fixtures are positioned to keep the housing within its -40F to 194F operating range. Yoke mounting allows directional positioning, while pendant mounting places the fixture below the mounting structure.
In power plant and energy site lighting and glass manufacturing lighting, layouts use the 120-degree beam pattern to cover broad work zones. Fixture spacing varies with mounting height, target light levels, and layout requirements.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. Class I, Division 1, Groups C and D. Class I, Division 2, Groups A, B, C, and D. Class II, Division 1, Groups E, F, and G. Class II, Division 2, Groups F and G. Class III.
UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type. ABS. ETL. Rebate eligible. IP66. IK10.
The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What output does this high temperature explosion proof light provide?
A: It operates at 100 watts and produces 10,000 lumens at 5000K.
Q: What voltage does this fixture require?
A: This fixture operates on 120V power at 50-60Hz.
Q: Can this fixture be dimmed?
A: No. This fixture is not dimmable.
Q: What mounting options are available?
A: The fixture supports yoke mounting or 3/4-inch NPT pendant mounting.
Q: What is the maximum operating temperature?
A: The operating temperature range is -40F to 194F.
Application Questions and Clarification
Q: Is this fixture appropriate for steel mill lighting and foundry lighting?
A: The fixture is rated for ambient temperatures up to 194F and carries the listed Class I, Class II, and Class III classifications. Final application fit depends on the actual ambient temperature and location classification.
Q: What should be considered when planning fixture placement in industrial furnace area lighting?
A: Mounting height, target light levels, fixture orientation, and ambient temperature affect placement. A specific spacing value is not established by the supplied product data.
Q: Which mounting method should be considered for kiln lighting or glass manufacturing lighting?
A: The available options are yoke mounting and 3/4-inch NPT pendant mounting. The mounting structure, fixture orientation, and access requirements determine the appropriate method.
