200 Watt LED Food Grade Light | 30400 Lumens | 5000K | 100-277V | NSF Rated
200 Watt NSF LED fixture has an easy-to-clean, corrosion-resistant aluminum fixture housing and stainless steel Eye-Hook to make the installation process easier. A 5 foot cord is included. This light offers protection against water pressure of 100 bar (1450 psi) and temperatures of 45C.
Certified by the National Sanitation Foundation (NSF) as safe for food service processing facilities that require a higher level of sanitation. By NSF certification, these fixtures are certified shatterproof.
Neil Peterson | CEO and Chief Lighting Specialist
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 |
| Lumens | 30400 |
| Lumens Per Watt | 152 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 60,000 (L70) hours |
| Mounting | Eye-Hook |
| Fixture Color | White |
| Frequency (Hz) | 50 / 60 hz |
| Power Factor | .93 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 17 X 7.7 Inches |
| Weight (lbs) | 18 lbs |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 200 watt LED food grade high bay provides 30,400 lumens at 5000K for food processing facility lighting, food production lighting, and other controlled indoor food environments. The white UFO fixture uses a die-cast aluminum housing and polycarbonate lens.
NSF rated construction, IP66 protection, and an IK08 impact rating support use where fixture cleanliness and enclosure durability are important. It replaces a 400 watt metal halide fixture.
Core Performance and Output
The fixture delivers 30,400 lumens at 152 lumens per watt. Its standard 120 degree beam distribution provides broad downward coverage from an overhead eye-hook mounting position.
It operates on 100-277V, 50/60 Hz power with a 0.93 power factor and 20% maximum THD. The 30,400-lumen output can be excessive at low mounting heights, while mounting height and layout affect uniformity across larger food production lighting areas.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming allows output adjustment where the lighting design includes compatible 1-10V controls.
The standard optic is a fixed 120 degree polycarbonate lens. No alternate beam angles or field-adjustable wattage settings are identified in the supplied product data.
Longevity and Reliability
The rated L70 lifespan is 60,000 hours. The fixture is rated for operation from -40 degrees F to 113 degrees F.
A five-year warranty is included. Long-term performance depends on maintaining the fixture, lens, mounting connection, and electrical connections within the stated operating conditions.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. The polycarbonate lens protects the optical assembly.
This fixture measures 17 by 7.7 inches and weighs 18 pounds. Eye-hook mounting is the stated mounting method and requires support suitable for the fixture weight.
Where This Product Fits Best
This food grade high bay fits controlled food-related facilities requiring high-output overhead lighting, NSF rated construction, and IP66 enclosure protection.
- food processing facility lighting
- food production lighting
- meat processing lighting
- beverage production lighting
- packaging facility lighting
- USDA facility lighting
The IP66 rating supports environments exposed to dust and water ingress. The -40 degrees F to 113 degrees F operating range applies to locations within that stated temperature range.
Installation and Long-Term Use
Install the fixture using its eye-hook mounting point and provide structural support for its 18-pound weight. Confirm the available supply voltage is within the 100-277V range before connection.
Use compatible 1-10V control wiring when dimming is required. Maintain access for lens cleaning, inspection, and electrical service over the fixture life.
How This Fixture Is Commonly Used

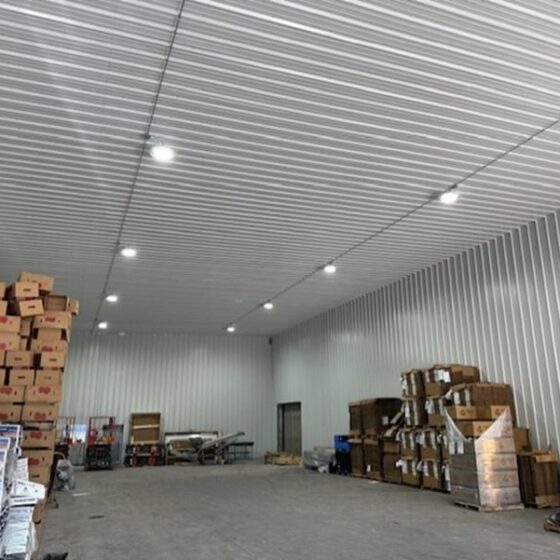

In food processing facility lighting and food production lighting layouts, fixtures are suspended from overhead structure using the eye-hook mount. Mounting height should be coordinated with the 120 degree beam distribution and required light level.
Layouts are typically arranged in repeated overhead rows to distribute light across the work area. Spacing varies with mounting height, target light levels, and the required uniformity; higher output can reduce fixture count but may increase glare if the fixture is mounted too low.
Safety, Certifications, and Warranty
This fixture is UL listed, DLC Premium, and NSF rated. It is rated IP66 and IK08.
The warranty term is five years. The stated operating temperature range is -40 degrees F to 113 degrees F.
Frequently Asked Questions
Q: What is the light output of this food grade high bay?
A: The fixture produces 30,400 lumens while operating at 200 watts.
Q: What voltage does this fixture use?
A: It operates on 100-277V, 50/60 Hz power.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: What should be considered when planning fixture layout?
A: Mounting height, target light levels, and required uniformity affect layout. The supplied product data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this fixture intended for food processing facility lighting?
A: Yes. Food processing facility lighting is a listed primary application, and the fixture is NSF rated.
Q: Can this fixture be considered for washdown lighting?
A: Washdown lighting is a listed secondary application. The fixture is rated IP66.
