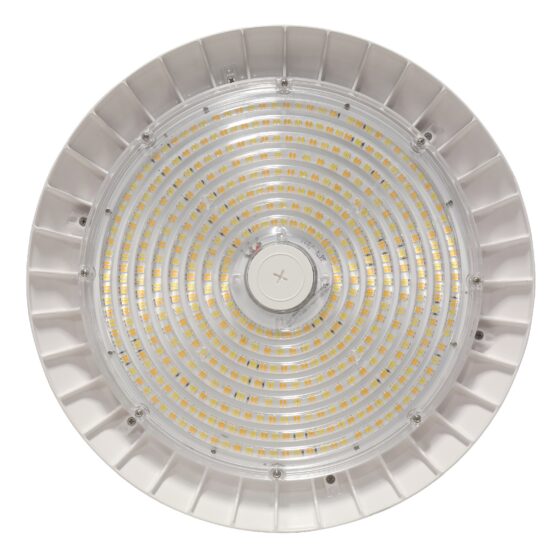

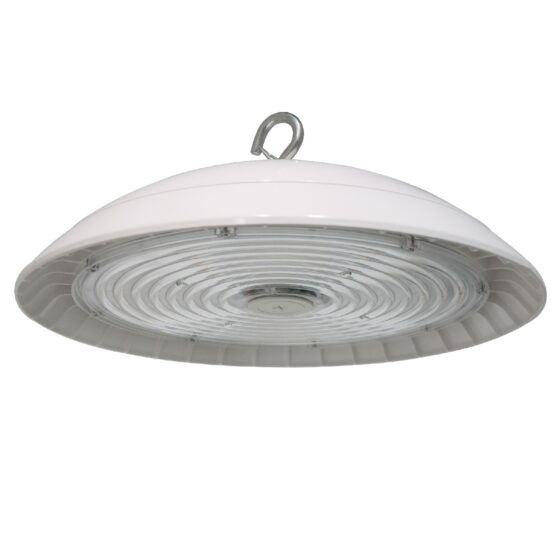

200 / 240 / 300 Watt LED Food Grade UFO Light | 30000 to 45000 Lumens | 3000K / 4000K / 5000K | 100-277V | NSF Rated
This NSF-rated LED UFO fixture is a strong choice for food processing plants, commercial kitchens, and other environments requiring shatterproof, easy-to-clean lighting with rigorous sanitation standards. Its IP69K rating ensures reliable operation during high-pressure washdowns, while selectable wattage (200/240/300W) and color temperature (3000K/4000K/5000K) allow adaptation to changing needs. The fixture’s 150 lumens per watt output, 90-degree beam angle, and 150,000-hour L70 rating support efficient, long-term use in demanding, food-grade spaces. It is not intended for hazardous locations or applications lacking a need for food safety or washdown-rated fixtures.
Dwayne Kula | President, CTO and Founder
12 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 | 240 | 300 |
| Lumens | 30000 | 36000 | 45000 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Eye-Hook |
| Fixture Color | White |
| Frequency (Hz) | 50 / 60 hz |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP69K |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 140°F |
| Certifications | UL | Rebate Eligible | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 17 x 5.6 in |
| Weight (lbs) | 9.5 lbs |
| Cord Length | 4 Feet |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
- NSF Rated Food Grade
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This NSF rated LED food grade UFO light provides selectable 200W, 240W, or 300W output for food processing facility lighting, food production lighting, and commercial kitchen lighting. It uses a white die-cast aluminum housing, polycarbonate lens, and eye-hook mounting.
The fixture produces up to 45,000 lumens and can replace a 400W metal halide fixture. Selectable 3000K, 4000K, and 5000K color temperatures allow the fixture to align with existing lighting conditions.
Core Performance and Output
Output settings are 30,000 lumens at 200W, 36,000 lumens at 240W, and 45,000 lumens at 300W. Fixture efficacy is 150 lumens per watt, with an 80+ CRI and a standard 90-degree beam angle.
The fixture operates on 100-277V, 50/60 Hz power and supports 0-10V dimming. Higher output settings reduce fixture count in a layout, but can produce excessive light at lower mounting heights.
Adjustability and Control Options
Wattage is adjustable between 200W, 240W, and 300W. Color temperature is adjustable between 3000K, 4000K, and 5000K.
A motion sensor is available. The fixture also supports 0-10V dimming for installations using compatible dimming controls.
Longevity and Reliability
The rated lifespan is 150,000 hours L70. This rating supports long service intervals where fixture access requires lift equipment or scheduled shutdowns.
Integrated 6kV surge protection helps protect the fixture from electrical surge events. The operating temperature range is -40F to 140F.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. A polycarbonate lens protects the optical system.
The fixture measures 17 x 5.6 inches and weighs 9.5 pounds. It includes a 4-foot cord and uses an eye-hook mounting point.
Where This Product Fits Best
This fixture fits food-grade lighting projects requiring high output, selectable wattage, and an IP69K-rated housing. Its NSF rating supports use within the listed food and clean-area applications.
- food processing facility lighting
- food production lighting
- commercial kitchen lighting
- meat processing lighting
- beverage production lighting
- packaging facility lighting
- washdown lighting
The IP69K rating, polycarbonate lens, and die-cast aluminum housing support demanding cleaning and operating conditions. The fixture operates from -40F to 140F.
Installation and Long-Term Use
Eye-hook mounting suits suspended fixture layouts where a secure overhead mounting point is available. Confirm the mounting structure can support the 9.5-pound fixture and associated wiring.
Set wattage and color temperature before final commissioning. The 4-foot cord, 100-277V input range, dimming connection, and motion sensor option should be coordinated with the installation layout.
How This Fixture Is Commonly Used
In food processing facility lighting and food production lighting layouts, the fixture is suspended above work and production areas using the eye-hook mount. The 90-degree beam distribution supports repeated fixture rows where broad downward coverage is needed.
Commercial kitchen lighting, packaging facility lighting, and beverage production lighting layouts typically use the selected wattage setting to match required light levels. Higher output can reduce fixture count, while final spacing depends on mounting height, target light levels, and layout requirements.
Safety, Certifications, and Warranty
This fixture is UL listed, NSF rated, IP69K rated, and rebate eligible. It includes 6kV surge protection.
The warranty is 5 years. The stated operating temperature range is -40F to 140F.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture is adjustable to 200W and 30,000 lumens, 240W and 36,000 lumens, or 300W and 45,000 lumens.
Q: What color temperatures are available?
A: The fixture is color adjustable between 3000K, 4000K, and 5000K.
Q: How is this food grade UFO light mounted?
A: The fixture uses eye-hook mounting and weighs 9.5 pounds.
Q: What should be established before planning the fixture layout?
A: Establish the selected wattage, color temperature, mounting height, target light levels, and layout requirements. The supplied product data does not establish a specific fixture spacing value.
Application Questions and Clarification
Q: Is this fixture listed for food processing facility lighting?
A: Food processing facility lighting is a listed primary application. The fixture is NSF rated and IP69K rated.
Q: Can this fixture be used for washdown lighting?
A: Washdown lighting is a listed secondary application. The fixture has an IP69K rating.
Q: What electrical range should be confirmed for installation?
A: The fixture operates on 100-277V, 50/60 Hz power. Confirm the available voltage before installation.
