150 Watt LED Food Grade Light | 22500 Lumens | 5000K | 100-277V | NSF Rated
This 150W NSF-rated LED high bay suits food-grade warehouses and manufacturing areas needing broad 120 degree illumination. It delivers 22,500 lumens at 150 lm/W, replacing 400W metal halide while supporting 1-10V dimming and 100-277V operation. The die-cast aluminum housing, polycarbonate lens, IP66 and IK08 ratings, and -40F to 113F operating range support demanding indoor industrial environments. Eye-hook mounting is standard, with pendant mounting available.
Neil Peterson | CEO and Chief Lighting Specialist
51 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 22500 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Polycarbonate Lens |
| Lifespan | 60,000 (L70) hours |
| Mounting | Hook |
| Mounting (Opt) | Pendant |
| Fixture Color | White |
| Frequency (Hz) | 50 / 60 hz |
| Power Factor | .93 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium | NSF Rated |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 7.7 H x 17.1 D in |
| Weight (lbs) | 18 |
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

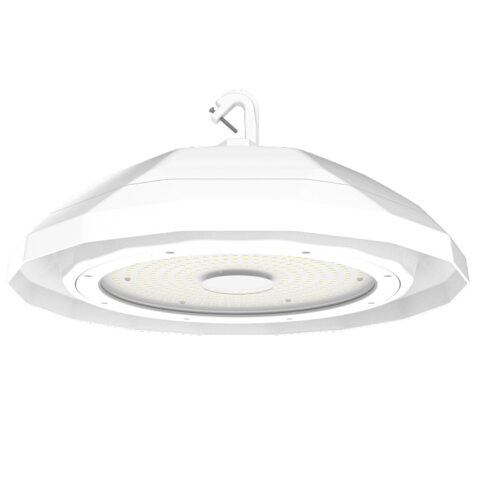

This 150 watt LED food grade UFO high bay produces 22,500 lumens at 5000K for food processing facility lighting, commercial kitchen lighting, and other food-related interior applications listed for this product family.
The fixture uses a white die-cast aluminum housing, polycarbonate lens, and NSF rated construction. It is configured for hook mounting, with pendant mounting available as an option.
This model replaces a 400 watt metal halide fixture where the existing layout, mounting position, and light levels support the change.
Core Performance and Output
The fixture delivers 22,500 lumens from 150 watts for an efficacy of 150 lumens per watt. It operates on 100-277V, 50/60 Hz power, with a 0.93 power factor and maximum 20% THD.
A 120 degree standard beam angle provides broad downward distribution. The 5000K color temperature and 80+ CRI support high-output general illumination.
At lower mounting heights, 22,500 lumens can create excessive light levels. Layout uniformity at higher mounting heights depends on fixture placement and the 120 degree distribution.
Adjustability and Control Options
This fixture supports 1-10V dimming. Dimming allows output adjustment where operating light levels need to be reduced from full output.
Hook mounting is standard. Pendant mounting is available for installations that require a suspended fixture position.
Longevity and Reliability
The LED system is rated for 60,000 hours L70 life. The fixture is rated for operation from -40F to 113F.
The power factor is 0.93, and total harmonic distortion is rated at 20% maximum. These electrical characteristics apply across the 100-277V input range.
Build Quality and Physical Characteristics
The housing is die-cast aluminum with a white finish. A polycarbonate lens protects the optical assembly.
The fixture is rated IP66 and IK08. It measures 7.7 inches high by 17.1 inches in diameter and weighs 18 pounds.
Where This Product Fits Best
This fixture fits food-related interior applications requiring a suspended, high-output NSF rated light. Its IP66 rating and die-cast aluminum housing support applications where fixture durability and enclosure protection are required.
- food processing facility lighting
- commercial kitchen lighting
- food production lighting
- clean room lighting
- washdown lighting
- beverage production lighting
- packaging facility lighting
The IP66 rating, IK08 impact rating, NSF rating, and -40F to 113F operating range define its environmental characteristics. Final fit depends on the actual mounting location, cleaning process, fixture layout, and required light levels.
Installation and Long-Term Use
Install the fixture using the standard hook mount or the available pendant mount. Verify that the mounting structure supports the 18 pound fixture weight and that the supply voltage is within the 100-277V range.
Use the 1-10V dimming leads when dimming control is part of the installation. Maintain access for inspection, cleaning, and future fixture service.
How This Fixture Is Commonly Used
For food processing facility lighting, food production lighting, and beverage production lighting, the fixture is commonly suspended in repeating overhead layouts. Mounting height is project-specific because the supplied product data does not establish a mounting-height range.
In commercial kitchen lighting, clean room lighting, washdown lighting, and packaging facility lighting, fixture placement should follow the required light levels and the physical layout of the space. Wider spacing can reduce fixture count, but it can also reduce uniformity between fixtures.
Safety, Certifications, and Warranty
This fixture is UL listed, DLC Premium, and NSF rated.
It carries a 5 year warranty. The fixture is rated IP66 and IK08.
Frequently Asked Questions
Q: What is the light output of this food grade fixture?
A: The fixture produces 22,500 lumens while consuming 150 watts.
Q: What input voltage does this fixture use?
A: The fixture operates on 100-277V, 50/60 Hz power.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: What mounting method is included?
A: Hook mounting is standard. Pendant mounting is available as an option.
Q: What are the fixture environmental ratings?
A: The fixture is rated IP66 and IK08 and has an operating temperature range of -40F to 113F.
Application Questions and Clarification
Q: Is this fixture applicable to washdown lighting?
A: Washdown lighting is a listed secondary application. The fixture is rated IP66 and NSF rated.
Q: What should be reviewed when planning the fixture layout?
A: Mounting height, target light levels, fixture placement, and the 120 degree beam angle affect the layout. The supplied product data does not establish a specific spacing value or fixture quantity.
Q: Can this fixture be used for commercial kitchen lighting?
A: Commercial kitchen lighting is a listed primary application. The fixture provides 22,500 lumens at 5000K and is NSF rated.
