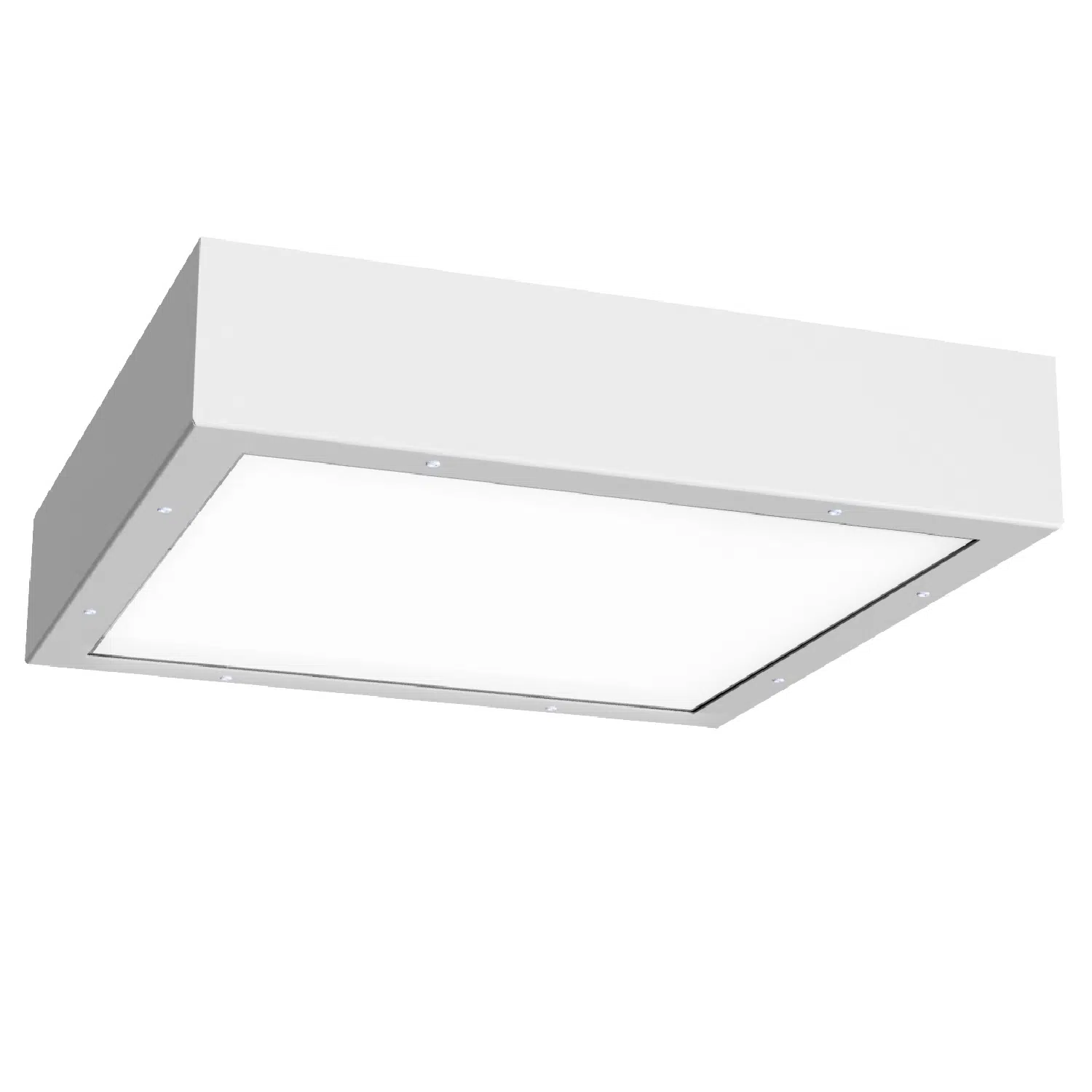

45 Watt Detention Grade Surface Mount 2x2 LED Panel | 7000 Lumens | 4000K | 100-277V

Product Overview

The 45 Watt Detention Grade Surface Mount 2x2 LED Panel is designed for environments requiring high durability and tamper resistance. This fixture delivers 7000 lumens at a color temperature of 4000K, operating efficiently within a voltage range of 100-277V. Its robust construction makes it suitable for detention facilities and other secure areas where vandal resistance is critical. The panel is surface-mounted, making it ideal for low-ceiling applications where space is limited and security is paramount.

Core Performance and Output

This LED panel provides a high lumen output of 7000 lumens with an efficiency of 156 lumens per watt. The fixture's optics include a .125 prismatic acrylic inner layer and a .156 clear polycarbonate outer layer, ensuring even light distribution and minimizing glare. The panel operates on a 100-277V system with a power factor greater than 0.9, ensuring reliable performance across various electrical environments. It is important to note that excessive output may occur if installed at very low mounting heights, potentially leading to increased glare.

Adjustability and Control Options

The fixture supports 0-10V dimming, allowing for adjustable light levels to suit different security and operational needs. This feature provides flexibility in managing energy consumption and adapting to varying lighting requirements within secure environments. The dimming capability is particularly useful in detention facilities where lighting conditions may need to be adjusted for different activities or security protocols.

Longevity and Reliability

With a lifespan of 100,000 hours (L70), this LED panel offers long-term reliability, reducing the need for frequent maintenance and replacements. The fixture's robust design, including tamper-resistant T25 TORX screws, ensures it withstands harsh conditions and potential vandalism. This durability is essential for maintaining consistent lighting in secure and high-risk environments.

Build Quality and Physical Characteristics

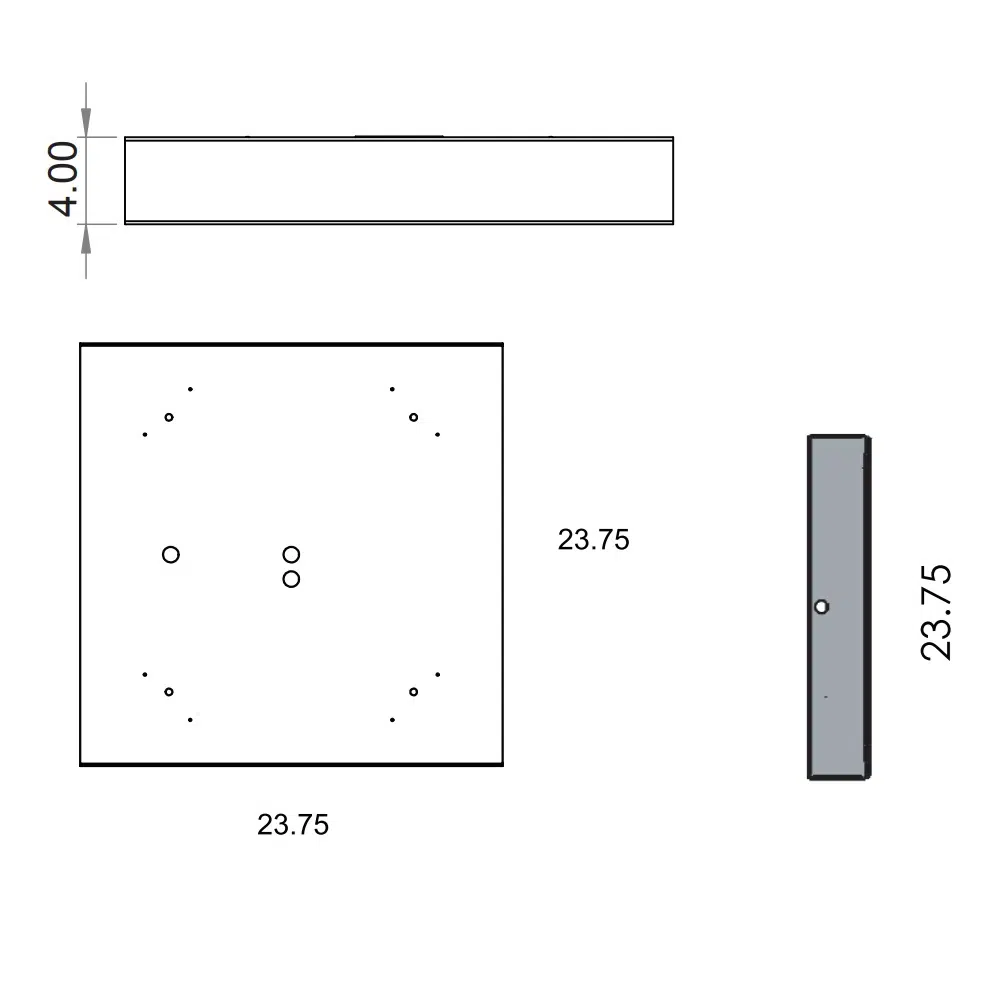

Constructed from 16-gauge cold roll steel, the panel is designed to endure physical impacts and tampering. The fixture's IK07 rating confirms its resistance to mechanical impact, making it suitable for high-security applications. The panel's dimensions are 23.75 inches in length and width, with a height of 4 inches, allowing for compact installation in confined spaces.

Where This Product Fits Best

This LED panel is best suited for environments requiring high security and vandal resistance. It is ideal for use in facilities where lighting fixtures must withstand tampering and physical abuse.

• detention facility lighting
• correctional facility lighting
• secure area lighting
• vandal resistant lighting
• psychiatric facility lighting
• holding cell lighting
• secure corridor lighting
• tamper resistant lighting

The fixture's robust construction and tamper-resistant features make it suitable for environments with high security demands and potential exposure to vandalism.

Installation and Long-Term Use

The surface mount design of this LED panel allows for straightforward installation on ceilings, particularly in areas with limited space. Its tamper-resistant fasteners ensure the fixture remains securely in place, even in high-risk environments. Over time, the fixture's durable construction minimizes maintenance needs, providing reliable lighting without frequent interventions.

How This Fixture Is Commonly Used

Commonly installed at low to medium mounting heights, this fixture is often used in secure corridors and holding cells where tamper resistance is crucial. The spacing of fixtures may vary based on the specific security requirements and desired light levels. While higher output can reduce the number of fixtures needed, it may also increase glare, necessitating careful planning of fixture placement.

Safety, Certifications, and Warranty

This LED panel is ETL certified, ensuring compliance with safety standards. Its IK07 rating confirms its resistance to mechanical impacts, making it suitable for high-security applications. The fixture is rebate eligible, providing potential cost savings. A 5-year warranty supports its long-term reliability, offering peace of mind for facility operators.

Frequently Asked Questions

Q: What is the voltage range for this LED panel?

A: The panel operates within a voltage range of 100-277V.

Q: Can this fixture be dimmed?

A: Yes, it supports 0-10V dimming for adjustable light levels.

Q: What is the expected lifespan of this LED panel?

A: The fixture has a lifespan of 100,000 hours (L70).

Q: What type of fasteners are used for installation?

A: Tamper-resistant T25 TORX screws are used for secure installation.

Q: Is this fixture suitable for outdoor use?

A: This fixture is designed for indoor use in secure environments and is not intended for outdoor applications.

Application Questions and Clarification

Q: What environments are most suitable for this LED panel?

A: This panel is ideal for detention facilities, correctional facilities, secure areas, and other environments requiring vandal-resistant lighting.

Q: How should I plan the layout for these fixtures?

A: Layout planning should consider the specific security requirements and desired light levels, with attention to minimizing glare and ensuring even light distribution.
