75 Watt Explosion Proof LED Light | 11250 Lumens | Class 1 Div 2 | 5000K | 100-277V
The 75 Watt Explosion Proof LED Light is an excellent choice for hazardous and marine environments, offering 11250 lumens and a 5000K color temperature for bright, clear illumination. Its robust certifications, including UL 844 and ATEX, ensure safety in Class I, II, and III hazardous locations. With an IP66 and IK08 rating, it withstands harsh conditions, while its 244,000-hour lifespan and efficient 150 lumens per watt make it a cost-effective replacement for 400W metal halides. Ideal for chemical plants, oil refineries, and marine applications, this fixture provides reliable performance and durability.
Dwayne Kula | President, CTO and Founder
60 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ATEX / IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 75 |
| Lumens | 11250 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Yoke |
| Mounting (Opt) | Slip Fitter |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| IP Rating | IP66 |
| IK Rating | IK08 |
| Operating Temperature | -40°F to 140°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements

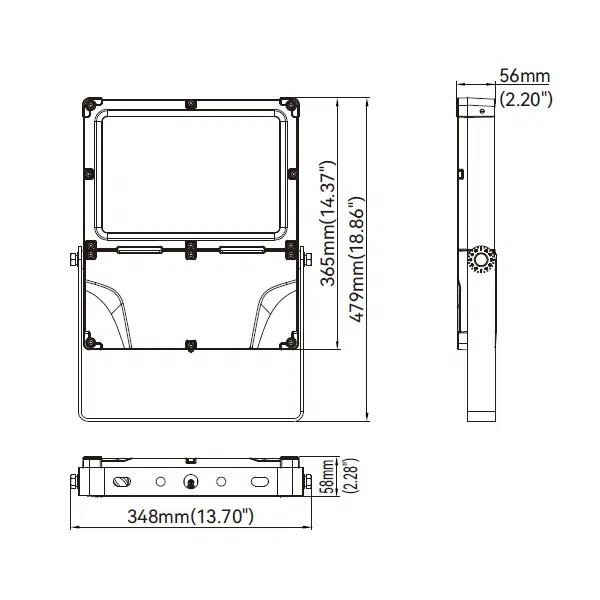

| Dimensions (in) | 13.7 x 18.86 x 2.2 |
| Weight (lbs) | 14 |
Notes
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- Wet Locations (UL 1598 / UL1598A)
- UL844
- CSA
- ATEX
- IECEX
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

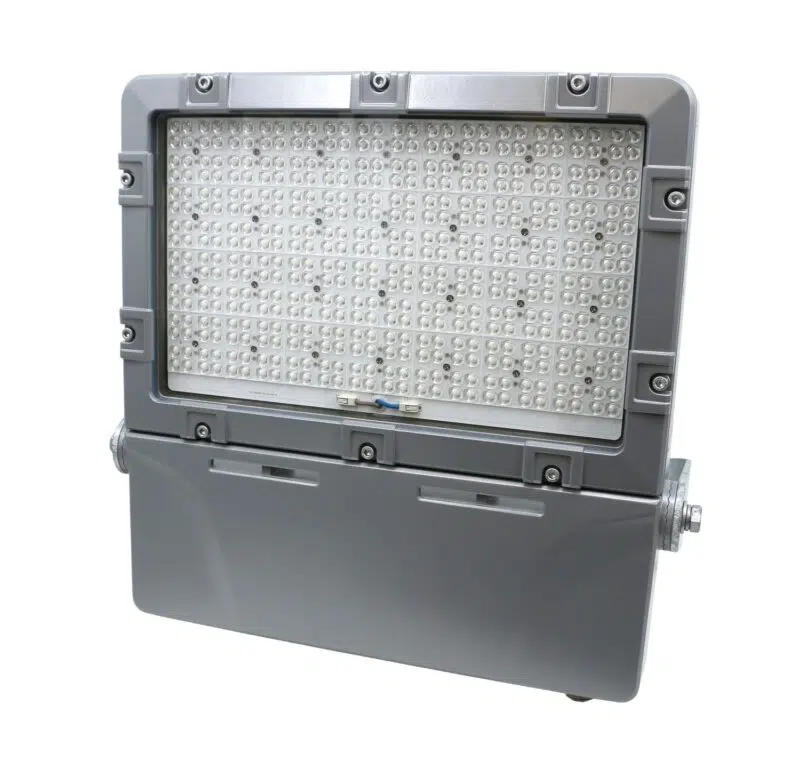

This 75 watt explosion proof LED light delivers 11,250 lumens at 5000K through a 120 degree beam distribution. It is configured for hazardous location lighting where Class I, II, or III classifications apply.
The fixture operates on 100-277V and uses a tempered glass lens, yoke mount, and IP66 enclosure. A slip fitter mount is available as an option.
Core Performance and Output
The fixture produces 11,250 lumens at 150 lumens per watt. Its 120 degree beam angle provides broad light distribution for area coverage, and the 5000K color temperature provides a cool white appearance.
Electrical performance includes 100-277V input, 50/60Hz operation, power factor above 0.90, and THD below 10 percent. The 75 watt output replaces a 400 watt metal halide fixture.
The wide beam pattern requires layout review where controlled directional light is needed. Output can be excessive where mounting height is low or fixture spacing is tight.
Adjustability and Control Options
This fixture is not dimmable. It operates from 100-277V input without a listed control option.
The standard yoke mount allows directional aiming during installation. The optional slip fitter mount provides an alternate mounting configuration where that mounting method is required.
Longevity and Reliability
The LED system is rated for 244,000 L70 hours. This rating identifies the point at which light output is expected to reach 70 percent of its original output.
The fixture is rated for operation from minus 40 degrees F to 140 degrees F. Its five-year warranty supports long-term service planning.
Build Quality and Physical Characteristics
This explosion proof LED light uses a tempered glass lens and measures 13.7 by 18.86 by 2.2 inches. Fixture weight is 14 pounds.
The enclosure is rated IP66 and IK08. The housing and lens assembly are intended for wet locations and marine outside type conditions identified in the listed certifications.
Where This Product Fits Best
This fixture fits classified and hazardous environments that require listed hazardous-location equipment, broad light distribution, and wet-location protection.
- hazardous location lighting
- explosion proof lighting
- chemical processing facility lighting
- paint booth lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
Classifications include Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; and Class III. The fixture is UL 1598 suitable for wet locations and UL 1598A marine outside type.
Installation and Long-Term Use
Confirm the site classification, group, voltage, mounting method, and fixture orientation before installation. The yoke mount requires a suitable mounting surface, while the optional slip fitter requires the appropriate supporting structure.
Maintain access for lens cleaning, mounting inspection, and electrical service. Fixture weight and mounting orientation should be accounted for during support design.
How This Fixture Is Commonly Used
In hazardous location lighting, explosion proof lighting, paint booth lighting, and chemical processing facility lighting, the fixture is aimed from its yoke mount to direct the 120 degree distribution across the required work area. Mounting height is determined by the project layout and required light distribution.
Oil and gas facility lighting, refinery lighting, and marine environment lighting installations use fixture placement patterns that account for mounting location, aiming direction, and equipment access. Higher output can reduce fixture count, but layout and mounting height affect uniformity and glare.
Safety, Certifications, and Warranty
UL 844 hazardous locations. UL 1598 suitable for wet locations. UL 1598A marine outside type. CSA. ATEX. IECEx.
Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
The fixture has an IP66 rating, IK08 rating, and five-year warranty.
Frequently Asked Questions
Q: What is the output of this explosion proof LED light?
A: The fixture uses 75 watts and produces 11,250 lumens at 150 lumens per watt.
Q: What voltage does this fixture require?
A: The fixture operates on 100-277V at 50/60Hz.
Q: Is this fixture dimmable?
A: No. This fixture is not dimmable.
Q: What mounting options are available?
A: The standard mounting option is a yoke mount. A slip fitter mount is available as an option.
Q: What should be considered when planning fixture layout?
A: The 120 degree beam angle, mounting height, aiming direction, and required light distribution affect fixture layout. Specific spacing values are not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture appropriate for hazardous location lighting?
A: The fixture is listed for Class I, Division 2, Groups A, B, C, and D; Class II, Division 1, Groups E, F, and G; Class II, Division 2, Groups F and G; and Class III.
Q: Can this fixture be used for marine environment lighting?
A: The fixture is UL 1598A marine outside type and has an IP66 rating.
Q: What should be confirmed for paint booth lighting or chemical processing facility lighting?
A: Confirm the applicable hazardous location classification, group, voltage, mounting method, and required fixture orientation.
