150 Watt Explosion Proof LED Light | 22500 Lumens | Class 1 Div 2 | 5000K | 100-277V
This 150 watt explosion proof LED fixture is a strong choice for hazardous locations requiring reliable, high-output lighting, as it delivers 22,500 lumens at 5000K with a broad 120 degree beam angle for even area coverage. Its Class I Division 2, Class II Division 1 and 2, and Class III ratings, along with UL, CSA, ATEX, and IECEX certifications, ensure suitability for environments with flammable gases, vapors, or dust. The IP66 and IK08 ratings, tempered glass lens, and -40°F to 140°F operating range support use in demanding indoor or outdoor settings such as chemical plants, refineries, and grain processing facilities.
Dwayne Kula | President, CTO and Founder
96 in stock
Product Specifications
UL Specs
- UL 844 Hazardous Locations
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
- UL 1598 Suitable for Wet Locations
- UL 1598A Marine Outside Type
- ATEX / IECEX
Key Features
| Brand | LED Lighting Supply |
| Watts | 150 |
| Lumens | 22500 |
| Lumens Per Watt | 150 |
| Replaces | 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | No |
| Beam Angles (Std) | 120° |
| Optics | Tempered Glass Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Yoke |
| Mounting (Opt) | Slip Fitter |
| Frequency (Hz) | 50/60 |
| Power Factor | >.90 |
| THD | < 10% |
Durable Construction
| IP Rating | IP66 |
| IK Rating | IK08 |
| Operating Temperature | -40°F to 140°F |
| Certifications | UL |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 22 x 18 |
| Weight (lbs) | 32 |
Notes
- Class 1 Division 2, Group A,B,C,D
- Class 2, Division 1, Groups E,F,G
- Class 2, Division 2, Groups F,G
- Class 3
- Wet Locations (UL 1598 / UL1598A)
- UL844
- CSA
- ATEX
- IECEX
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 150 watt explosion proof LED flood light delivers 22,500 lumens at 5000K for hazardous location lighting where classified-area requirements and broad-area illumination are both factors. It operates on 100-277V and uses a 120 degree beam distribution.
The fixture is rated for Class I, Division 2 Groups A, B, C, and D; Class II, Division 1 Groups E, F, and G; Class II, Division 2 Groups F and G; and Class III locations. It is commonly used as a 400 watt metal halide replacement where the existing lighting layout supports a flood-style fixture.
Core Performance and Output
The fixture produces 22,500 lumens at 150 lumens per watt. The 5000K color temperature and 70+ CRI support visibility-focused lighting in classified work areas.
A standard 120 degree beam angle provides broad distribution. At lower mounting heights, 22,500 lumens may produce more light than required; at higher mounting heights, layout and target light levels affect uniformity.
Electrical performance includes 100-277V operation, 50/60 Hz frequency, power factor greater than 0.90, and total harmonic distortion below 10 percent. This fixture is not dimmable.
Adjustability and Control Options

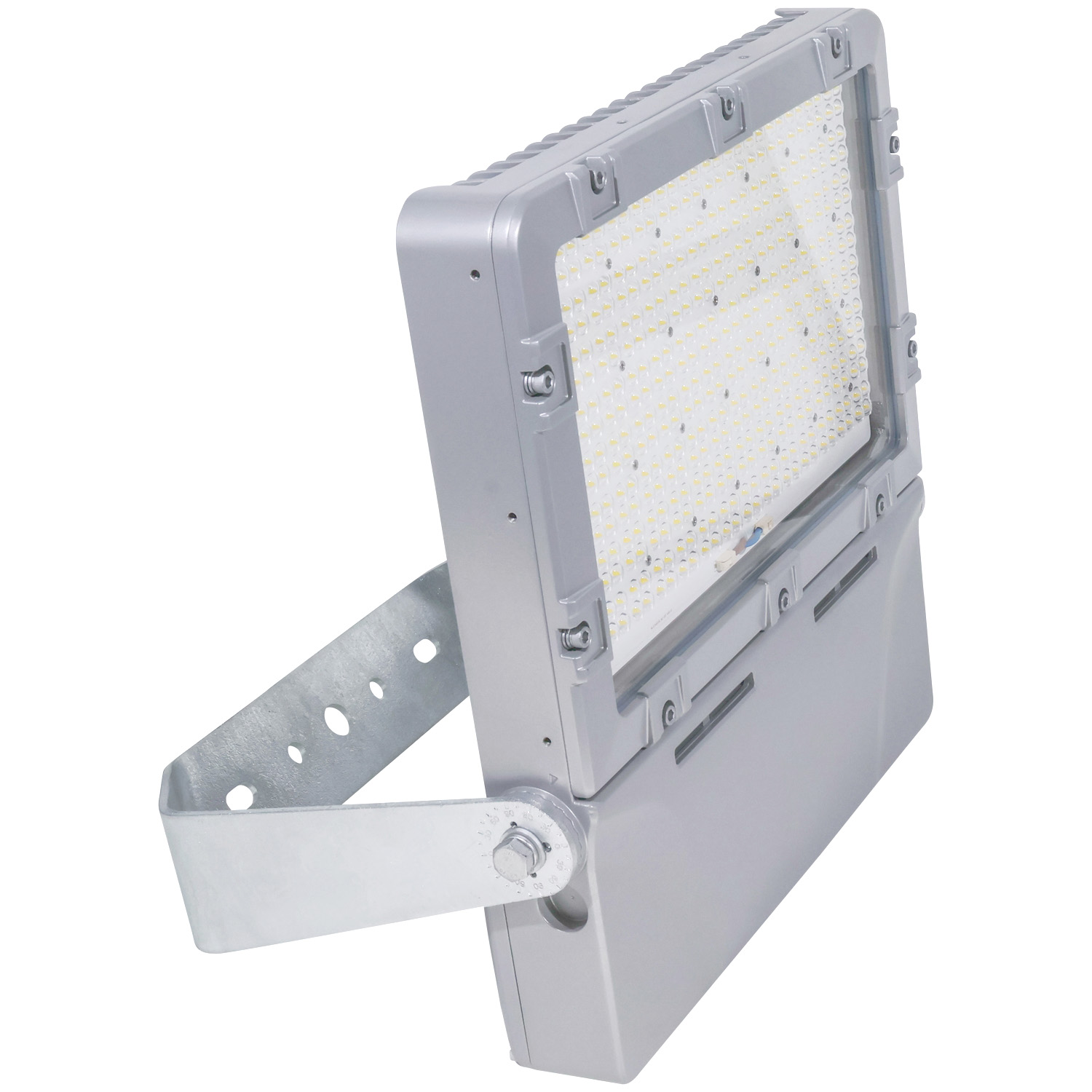

The standard yoke mount allows fixture aiming during installation. This supports adjustment of the flood pattern toward the intended work area or equipment zone.
An optional slip fitter mount is available. The mounting method should be selected around the support structure and the required aiming direction.
No dimming capability is provided. Control planning should account for fixed-output operation.
Longevity and Reliability
The rated L70 lifespan is 244,000 hours. This rating identifies the point at which light output is expected to reach 70 percent of initial output.
The fixture is rated for operation from -40 degrees F to 140 degrees F. Its five-year warranty supports long-term maintenance planning.

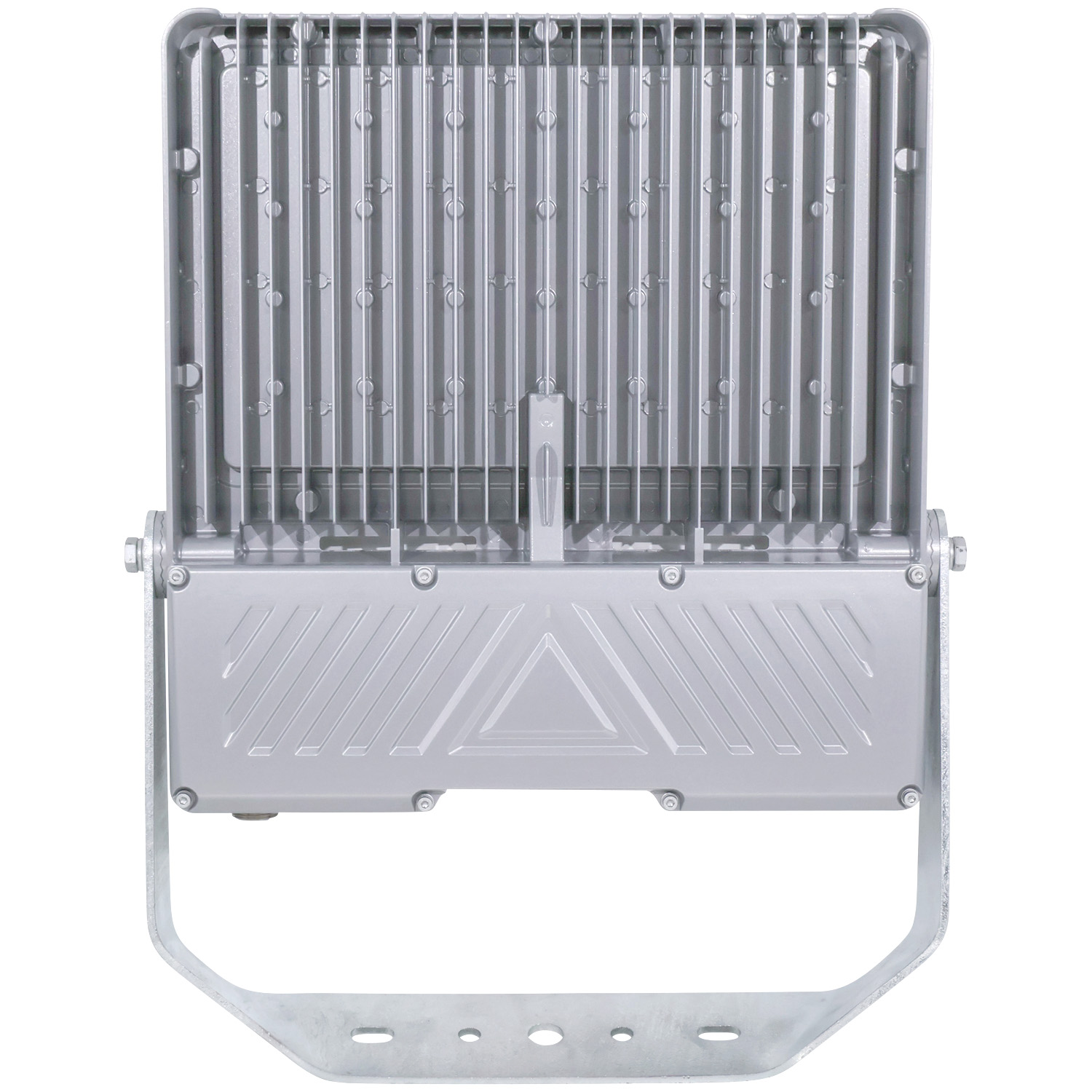

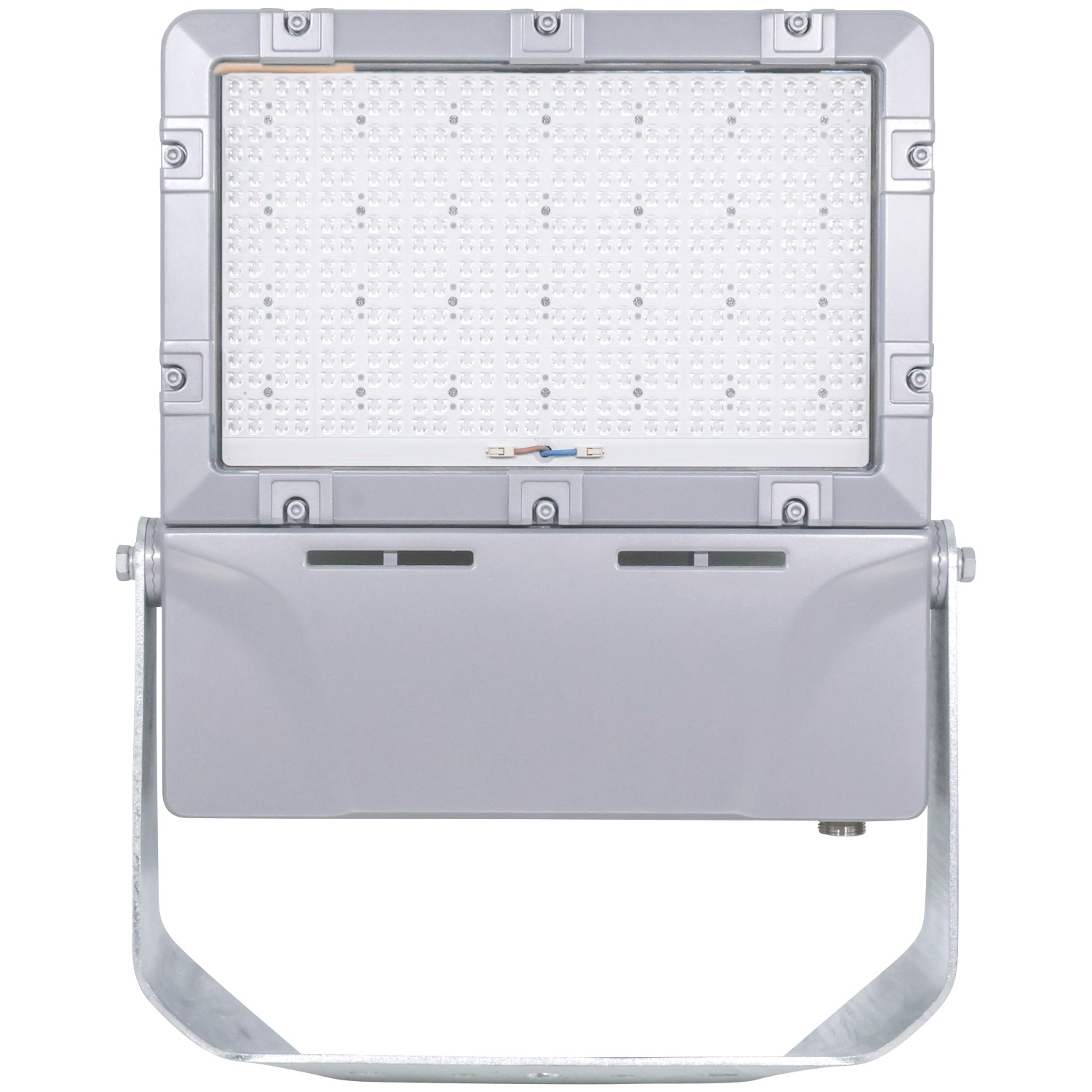

Build Quality and Physical Characteristics
This explosion proof flood light uses a tempered glass lens and is rated IP66 and IK08. The enclosure is suited to wet-location conditions identified in its UL listings.
The fixture measures 22 by 18 inches and weighs 32 pounds. The mounting structure and attachment method need to support the fixture weight and maintain the required aiming position.
Where This Product Fits Best
This fixture fits classified and hazardous operating areas that need a broad flood distribution, wet-location capability, and listed hazardous-location ratings. Its classification coverage supports several industrial and marine-related environments.
- hazardous location lighting
- explosion proof lighting
- paint booth lighting
- chemical processing facility lighting
- oil and gas facility lighting
- refinery lighting
- marine environment lighting
- wastewater treatment lighting
IP66, UL 1598 wet-location suitability, UL 1598A Marine Outside Type suitability, ATEX, and IECEx support use where exposure conditions and hazardous-location classifications must be reviewed together.
Installation and Long-Term Use
Install the fixture with the yoke mount or optional slip fitter mount based on the available support and aiming requirement. The 32 pound fixture weight should be considered when evaluating the mounting structure.
Confirm the location classification against the listed Class, Division, and Group ratings before installation. Supply voltage must be within the 100-277V range.
The tempered glass lens should remain clean and intact to maintain the intended light distribution. Maintenance access should allow inspection of the fixture, mount, and lens condition.
How This Fixture Is Commonly Used
In hazardous location lighting, explosion proof lighting, and paint booth lighting, the fixture is mounted and aimed to direct its 120 degree distribution across the required task or work zone. Mounting height is determined by the installed structure and the required light level.
Chemical processing facility lighting, oil and gas facility lighting, and refinery lighting layouts typically use fixture aiming to control where the broad beam is directed. Higher output can reduce fixture count, but final placement still depends on mounting height, target light levels, and layout requirements.
Marine environment lighting and wastewater treatment lighting installations should maintain access for lens cleaning and mounting inspection over the service life of the fixture.
Safety, Certifications, and Warranty
UL 844 Hazardous Locations. UL 1598 Suitable for Wet Locations. UL 1598A Marine Outside Type.
Class I, Division 2, Groups A, B, C, D. Class II, Division 1, Groups E, F, G. Class II, Division 2, Groups F, G. Class III.
UL, CSA, ATEX, and IECEx. IP66. IK08. Five-year warranty.
Frequently Asked Questions
Q: What light output does this explosion proof fixture provide?
A: The fixture delivers 22,500 lumens at 150 watts, or 150 lumens per watt.
Q: What voltage does the fixture require?
A: The fixture operates on 100-277V at 50/60 Hz.
Q: Can this fixture be dimmed?
A: No. This fixture is not dimmable.
Q: What beam angle is provided for layout planning?
A: The standard beam angle is 120 degrees. Mounting height, target light levels, and layout requirements affect final fixture placement.
Q: What mounting options are available?
A: The standard mounting method is a yoke mount. A slip fitter mount is available as an option.
Application Questions and Clarification
Q: Is this fixture suitable for paint booth lighting?
A: Paint booth lighting is a listed primary application. The installation location must match the fixture’s applicable Class, Division, and Group ratings.
Q: Can this fixture be used for marine environment lighting?
A: Marine environment lighting is a listed secondary application. The fixture is UL 1598A Marine Outside Type suitable and rated IP66.
Q: What should be reviewed for hazardous location lighting placement?
A: Review the location classification, supply voltage, mounting structure, mounting height, target light levels, and required fixture aiming. The supplied data does not establish a specific spacing value.
