24 Foot HVLS Ceiling Fan | 5 Blades | 14,400 Square Foot Coverage
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Diameter | 24 ft |
| Speed | Variable |
| Phase | 1P |
| Color | Black | Silver |
| Blade Material | Aluminum |
| Controller | Wall Mounted VFD with Remote Control |
| Blades | 5 |
| AMPs | 3.8 A at 220V |
| Frequency (hz) | 50/60Hz |
| Coverage Area (sq ft) | 14,400 |
| RPM | 25-55 |
| Sound Level (db) | <40 |
| Fan Weight (lbs) | 153 |
| Motor Size | 800 Watt PMSM Direct Drive |
| IP Rating | IP57 |
| Downrod (in) | 59 |
| Mounting | I-Beam Standard |
| Voltage | 208V-240V | 277V-480V Optional |
| Warranty | 15-year mechanical | 5-year motor | 3-year electrical |

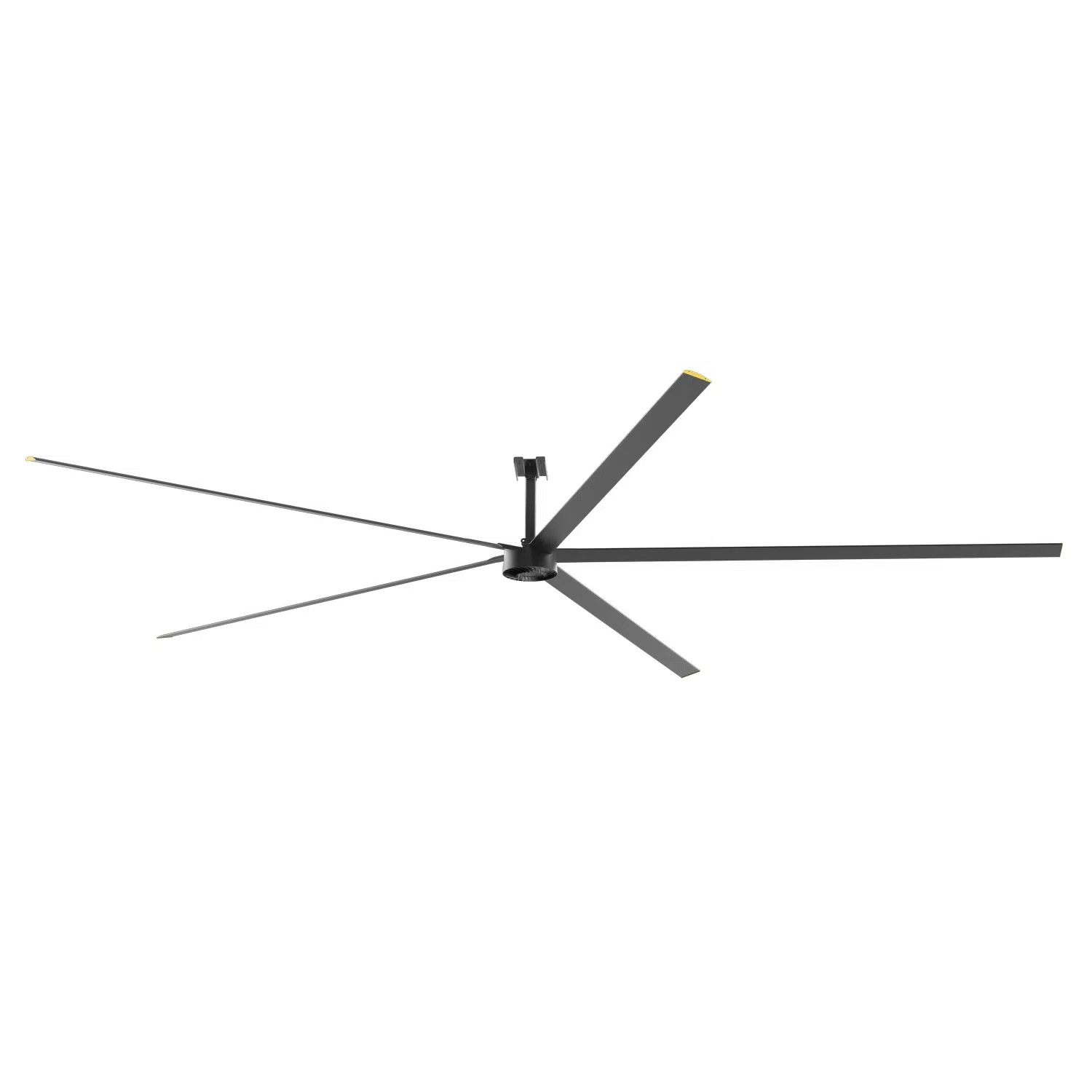

Product Overview
This 24-foot HVLS ceiling fan is designed to move air across large interior floor areas with a five-blade aluminum assembly and direct-drive PMSM motor. It operates at variable speed through a wall-mounted VFD controller with remote control.
The fan covers up to 14,400 square feet and uses a standard I-beam mounting arrangement with a 59-inch downrod. Its 24-foot diameter and 153-pound fan weight require a verified structural mounting location.
Core Performance and Output
The 800-watt direct-drive PMSM motor operates from 25 to 55 RPM. The fan is single phase and operates on 208V-240V, with 277V-480V available as an option.
At 220V, the fan draws 3.8 amps. Sound output is below 40 dB.
The 14,400-square-foot coverage value supports planning for large open areas. Actual air movement across the space depends on mounting height, obstructions, fan placement, and operating speed.
Adjustability and Control Options
Speed is variable through the wall-mounted VFD controller. The controller includes remote control operation.
The VFD allows operators to adjust fan speed within the 25 to 55 RPM operating range. Final controller placement should allow access for normal operation and maintenance.
Longevity and Reliability
The fan includes a 15-year mechanical warranty, a 5-year motor warranty, and a 3-year electrical warranty. The direct-drive motor design does not use a belt drive.

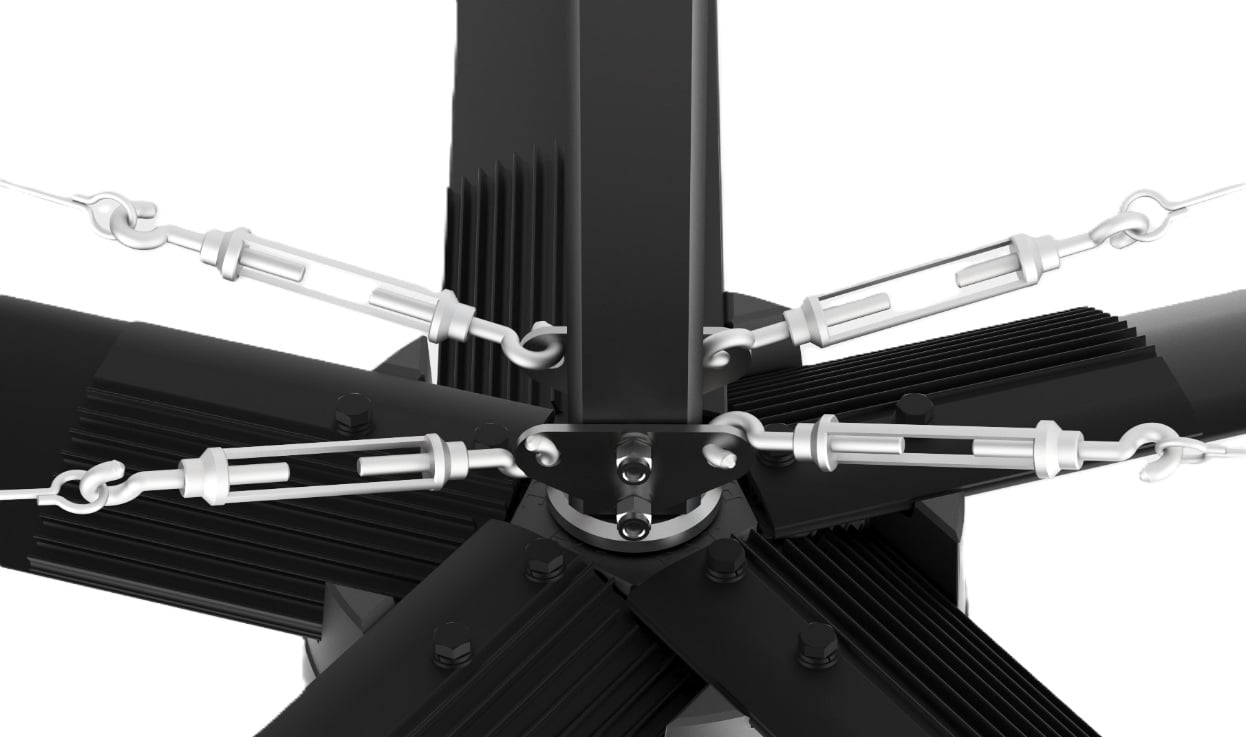

The fan is rated IP57. Regular inspection should include the blade assembly, I-beam mounting connection, downrod, electrical connections, and controller.

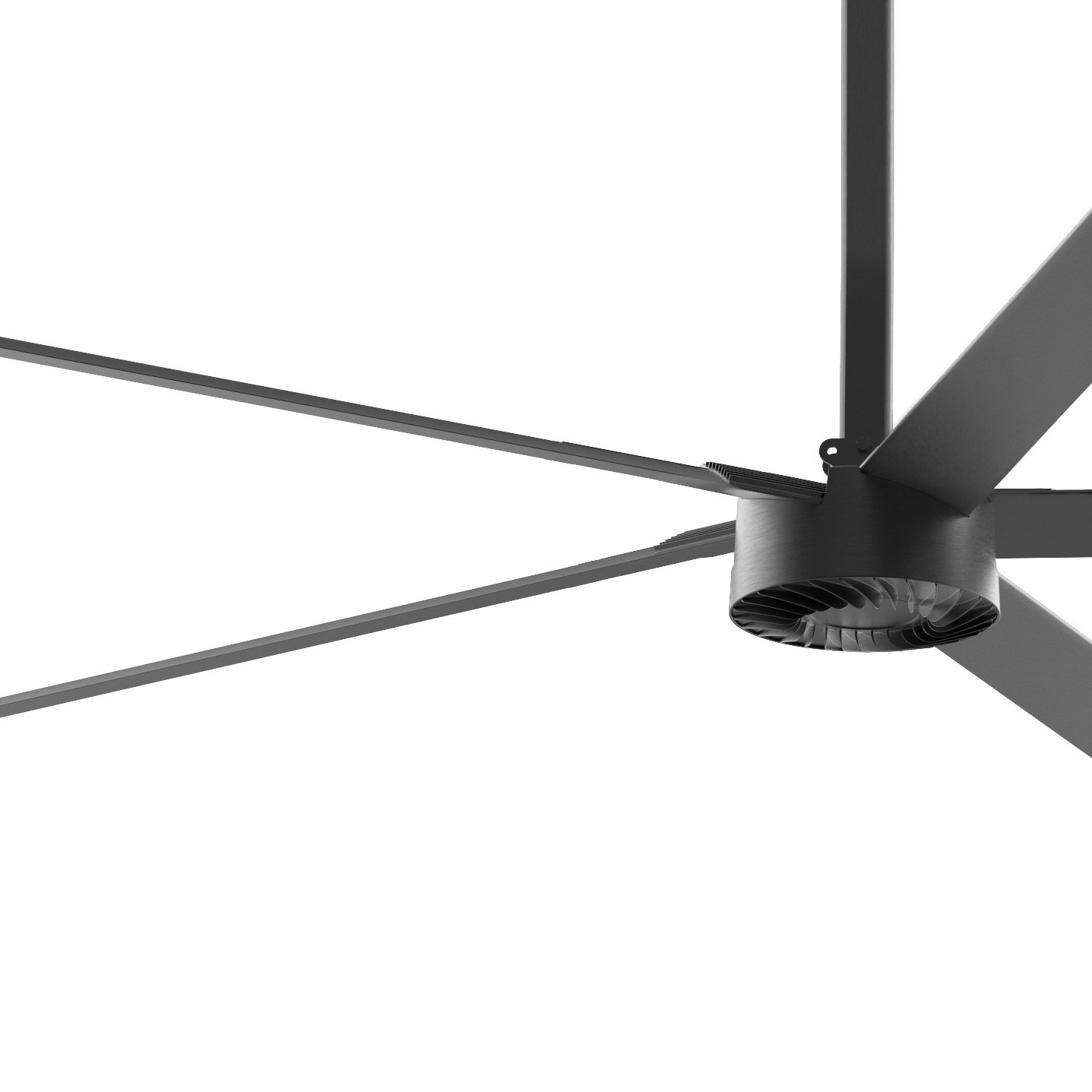

Build Quality and Physical Characteristics
This fan uses five aluminum blades in a 24-foot diameter configuration. Available finishes are black and silver.
The complete fan weight is 153 pounds. The standard 59-inch downrod establishes the suspended fan position below the mounting structure.
Where This Product Fits Best
This HVLS fan fits large interior areas that need broad air movement from a ceiling-mounted fan. Its 24-foot diameter, 14,400-square-foot coverage area, and I-beam mounting arrangement align with open commercial and industrial spaces.
- manufacturing facility ventilation
- warehouse ventilation
- distribution center ventilation
- aircraft hangar ventilation
- agricultural building ventilation
- convention center ventilation
The IP57 rating supports use where environmental exposure requires that rating. Structural capacity, available ceiling clearance, and mounting member configuration must be confirmed before installation.

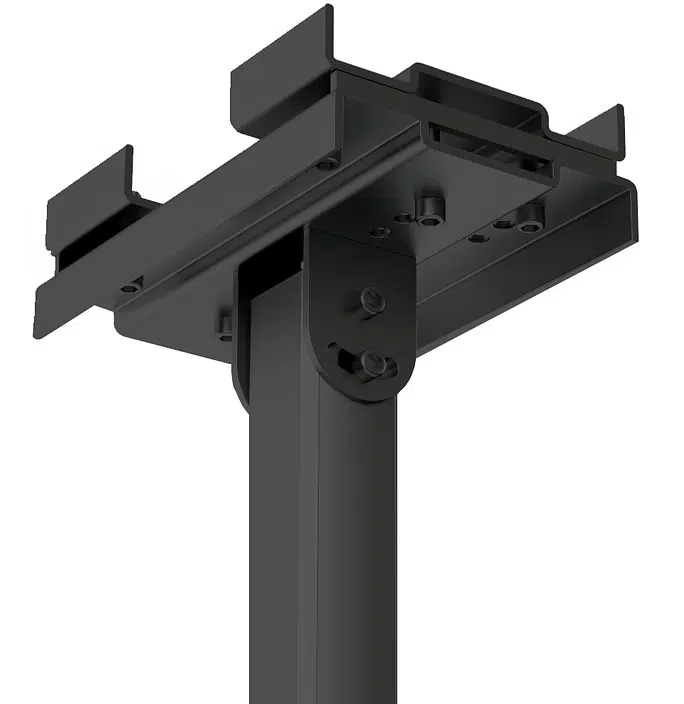

Installation and Long-Term Use
The fan mounts to an I-beam and uses a 59-inch downrod. The mounting structure must support the 153-pound fan assembly and the operating loads created by the rotating blades.
Installation requires the selected supply voltage, a wall-mounted VFD controller location, and access for future service. The controller and remote should remain accessible after the fan is commissioned.
Long-term maintenance should focus on fastener condition, blade condition, electrical connections, controller operation, and mounting integrity. Blade clearance must be maintained around the full 24-foot diameter.
How This Fixture Is Commonly Used

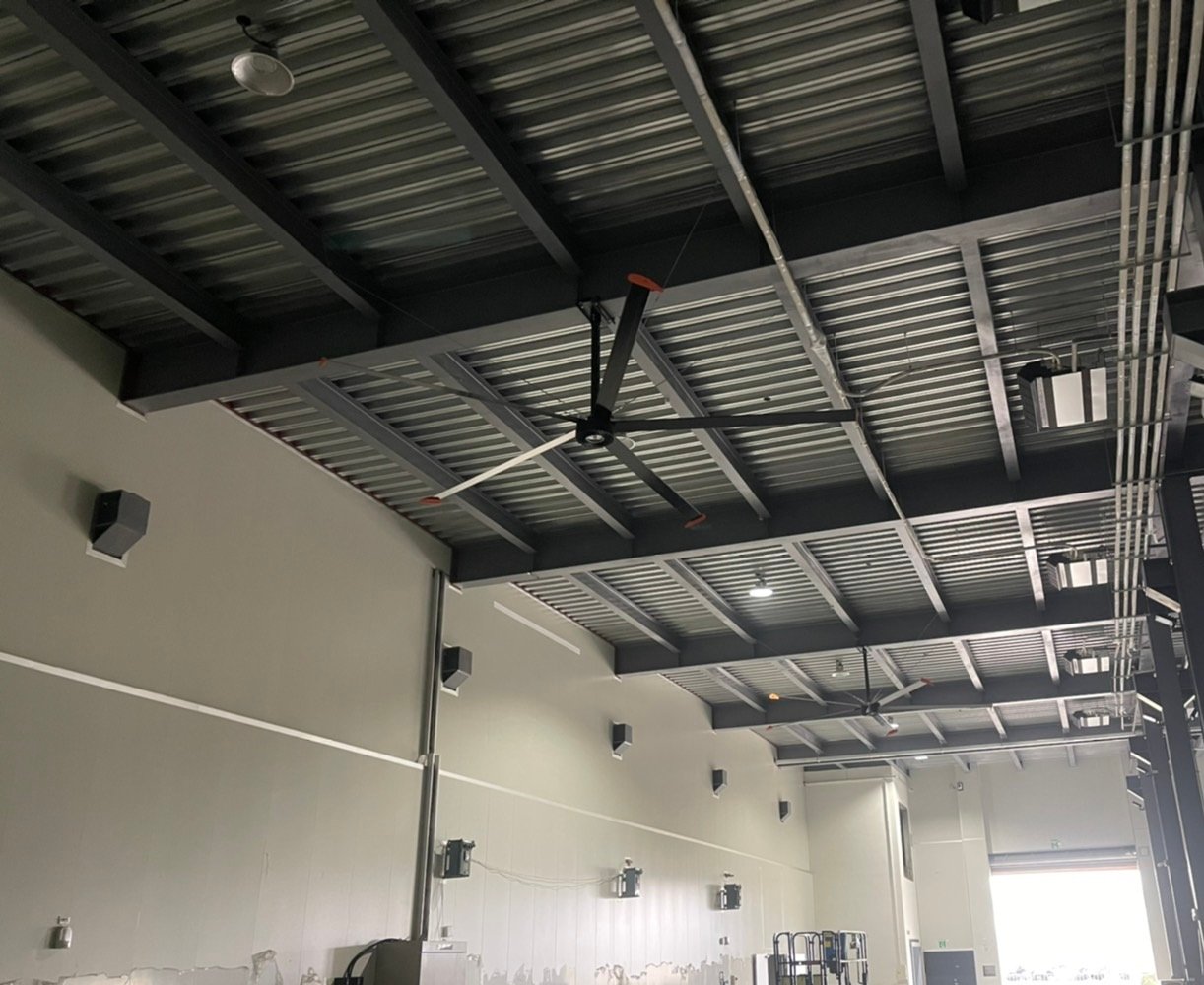

In warehouse ventilation, manufacturing facility ventilation, and distribution center ventilation layouts, the fan is positioned over open floor areas where its 14,400-square-foot coverage can be used effectively. Mounting height must provide clearance for the 24-foot blade diameter and the 59-inch downrod.
For aircraft hangar ventilation, agricultural building ventilation, and convention center ventilation, placement is coordinated around structural members and overhead obstructions. Fan layout depends on the target coverage pattern and available mounting locations.
Higher fan speed changes air movement across the coverage area, while lower speed reduces rotation within the available 25 to 55 RPM range. Final placement should account for the actual building layout rather than coverage area alone.
Safety, Certifications, and Warranty
The fan is rated IP57. No certification information is listed in the supplied product specifications.
The electrical configuration is single phase, 50/60Hz, with 208V-240V operation and an optional 277V-480V version. The fan includes a 15-year mechanical warranty, 5-year motor warranty, and 3-year electrical warranty.
Frequently Asked Questions
Q: What area does this 24-foot HVLS fan cover?
A: The listed coverage area is 14,400 square feet.
Q: What mounting method does this fan use?
A: The standard mounting method is I-beam mounting with a 59-inch downrod.
Q: What voltage does the fan require?
A: The standard voltage is 208V-240V single phase. A 277V-480V option is available.
Application Questions and Clarification
Q: What should be reviewed when laying out this fan for warehouse ventilation or manufacturing facility ventilation?
A: Review the 14,400-square-foot coverage area, 24-foot fan diameter, mounting height, overhead obstructions, I-beam location, and required blade clearance.

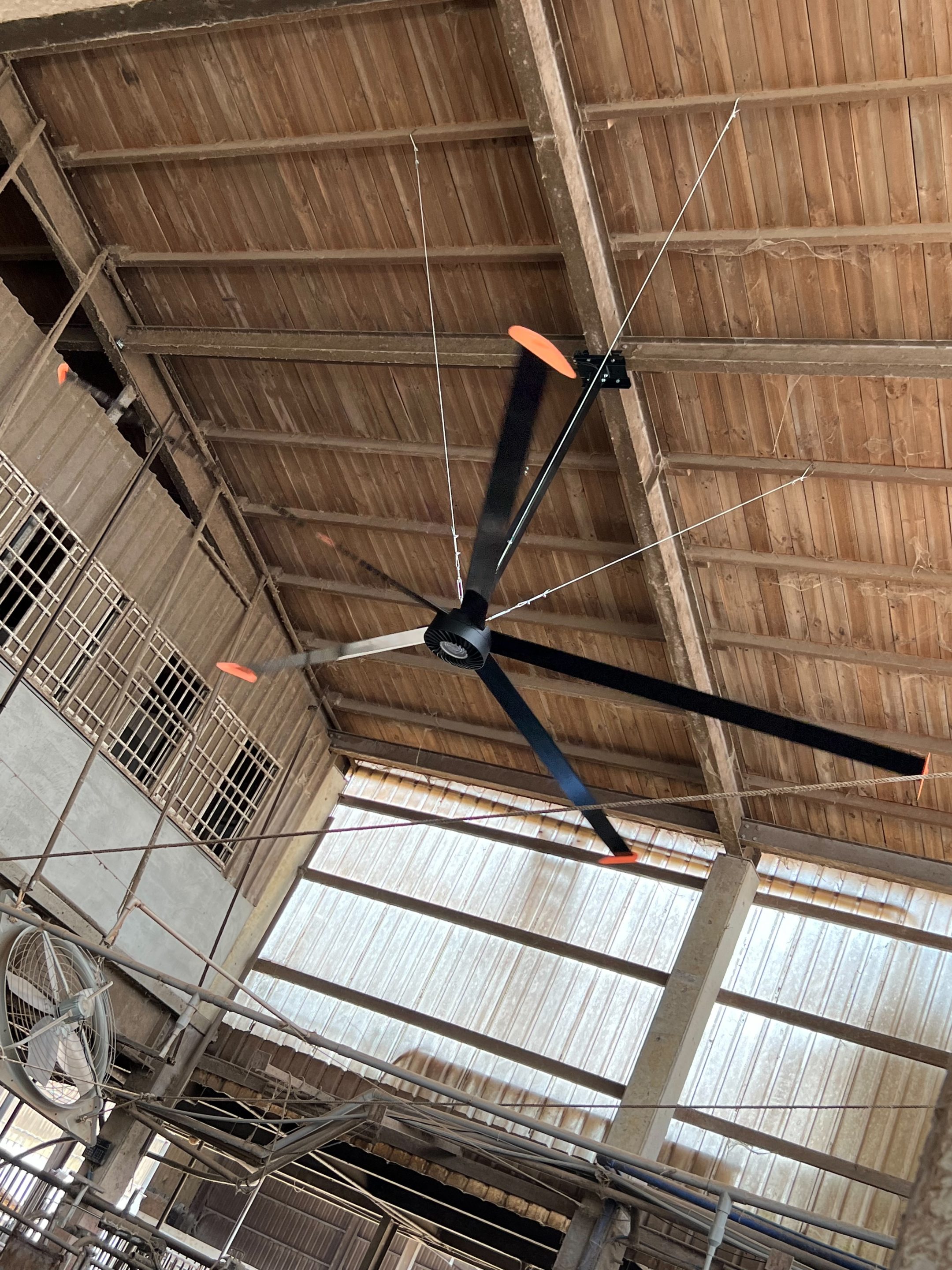

Q: Can this fan be used for agricultural building ventilation?
A: Agricultural building ventilation is a listed application. The installation must use an appropriate I-beam mounting location and provide clearance for the 24-foot blade diameter.
