10 Foot HVLS Ceiling Fan | 5 Blades | 2,600 Square Foot Coverage | 208-240V or 380-480V

Product Overview

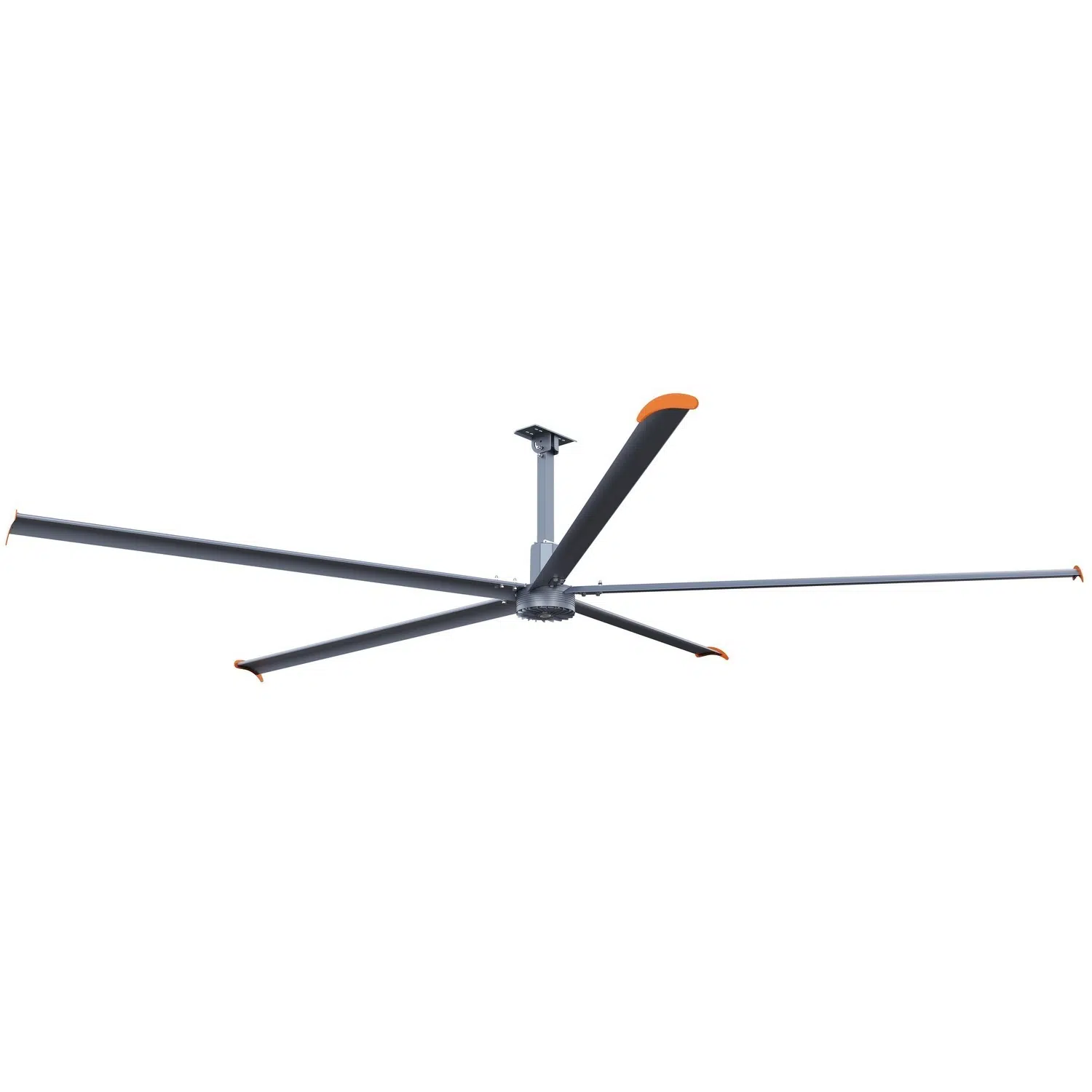

This 10 Foot HVLS Ceiling Fan is designed for large-scale air movement in commercial and industrial environments. It features a 5-blade aluminum design with a 10 ft diameter, delivering high-volume, low-speed airflow for effective ventilation and occupant comfort. Typical installations include warehouses, manufacturing facilities, and agricultural buildings with open floor plans and high ceilings.

The fan operates on either 208-240V or 380-480V, supporting both single and three-phase power. A wall-mounted VFD controller provides variable speed adjustment. The fan is suitable for spaces up to 2,600 square feet, with a maximum airflow of 141,259 CFM. The IP55 fan and IP66 controller ratings allow for installation in demanding environments where dust and moisture are present.

Core Performance and Output

This HVLS fan is rated for 141,259 CFM at a maximum speed of 120 RPM, providing consistent air movement across large open areas. The 10 ft diameter and 5-blade configuration optimize coverage and minimize dead zones. The 370W PMSM motor delivers efficient performance with low sound output, measured at 38 dB under typical operation.

Coverage is rated for up to 2,600 square feet per fan, depending on ceiling height and obstructions. Excessive output may occur in low-ceiling spaces or when installed below 16 feet, potentially causing discomfort or excessive air movement. Uniform airflow is best achieved in open layouts without significant partitions or racking.

Adjustability and Control Options

The included wall-mounted VFD controller allows for variable speed adjustment to match seasonal or operational needs. Speed can be set from low to maximum RPM, supporting both comfort and energy management strategies. The controller is rated IP66 for protection against dust and water ingress.

Control wiring is routed to the wall-mounted VFD, which should be installed in an accessible location for facility staff. The fan supports both 208-240V and 380-480V input, accommodating a range of electrical systems. No integrated network or BMS interface is included as standard.

Longevity and Reliability

The fan uses a 0.5 HP PMSM motor designed for continuous operation in commercial and industrial settings. The aluminum blades resist corrosion and deformation under normal use. The IP55 fan rating protects against dust and water spray, supporting long-term reliability in challenging environments.

Routine maintenance is limited to periodic inspection of mounting hardware and cleaning of blades. The fan is covered by a 2-year warranty. The VFD controller is sealed to IP66, minimizing risk of failure due to environmental exposure.

Build Quality and Physical Characteristics

The fan assembly weighs 135 lbs and uses a 2-inch downrod for secure mounting to structural ceiling supports. The five aluminum blades are finished in silver and engineered for optimal airflow and low noise. The motor and drive system are enclosed for safety and durability.

All exposed components are rated for industrial use. The fan is designed for fixed installation and is not intended for portable or temporary mounting. The 10 ft diameter requires adequate clearance from walls, lights, and overhead obstructions.

Where This Product Fits Best

This HVLS fan is intended for large, open spaces where high-volume air movement is required for occupant comfort, ventilation, or process support. It is commonly installed in:

• warehouse ventilation
• manufacturing facility ventilation
• agricultural building ventilation
• gymnasium ventilation
• distribution center ventilation
• aircraft hangar ventilation
• convention center ventilation
• large retail ventilation

The fan is suitable for environments with moderate dust or moisture exposure. It is not intended for hazardous locations or spaces with low ceiling heights. Adequate structural support and electrical service are required for safe installation.

Installation and Long-Term Use

Installation requires secure mounting to a structural ceiling member capable of supporting 135 lbs plus dynamic load. The 2-inch downrod provides clearance for optimal airflow. Electrical connection must match the selected voltage (208-240V or 380-480V) and phase configuration.

Routine inspection of mounting hardware and periodic cleaning of blades are recommended. The fan is designed for continuous operation and can be adjusted for seasonal changes or occupancy patterns. The wall-mounted VFD controller should remain accessible for speed adjustments and maintenance.

How This Fixture Is Commonly Used

Typical mounting heights range from 18 to 30 feet, depending on ceiling structure and desired airflow. Fans are spaced to provide overlapping coverage, with one fan per 2,000 to 2,600 square feet in open layouts. In larger facilities, multiple fans are installed in a grid pattern for uniform air movement.

Higher output allows for wider spacing but may increase perceived airflow at occupant level. Adjusting speed settings can help balance comfort and energy use. Layouts should account for obstructions such as racking, lighting, or overhead equipment.

Safety, Certifications, and Warranty

The fan is rated IP55 for dust and water resistance. The wall-mounted VFD controller is rated IP66. The fan is designed for fixed installation in commercial and industrial environments. All electrical and mechanical components meet standard safety requirements for this product class.

A 2-year warranty covers the fan and controller. Installation must comply with local codes and structural requirements. No additional certifications are claimed beyond IP ratings.

Frequently Asked Questions

Q: What is the recommended mounting height for this 10 ft HVLS fan?

A: Recommended mounting height is 18 to 30 feet to ensure optimal airflow and occupant comfort.

Q: Can this fan be installed in environments with moderate dust or moisture?

A: Yes, the fan is rated IP55 and the controller is rated IP66, supporting use in environments with moderate dust or moisture exposure.

Q: What is the maximum area this fan can effectively cover?

A: The fan is designed to cover up to 2,600 square feet in open, unobstructed spaces.

Q: Is the speed adjustable and how is it controlled?

A: Speed is fully adjustable using the included wall-mounted VFD controller.

Q: What electrical service is required for installation?

A: The fan supports 208-240V or 380-480V, single or three-phase power.

Q: How should fans be spaced in large facilities?

A: Fans are typically spaced to provide one unit per 2,000 to 2,600 square feet, with adjustments based on ceiling height and obstructions.

Application Questions and Clarification

Q: Is this fan suitable for livestock facility ventilation?

A: Yes, this fan is commonly used for livestock facility ventilation where high-volume air movement is required.

Q: Can this fan be used in aircraft hangar ventilation applications?

A: Yes, the fan is suitable for aircraft hangar ventilation, provided mounting height and structural support are adequate.

Q: Is this fan appropriate for use in large retail ventilation?

A: Yes, this fan is used in large retail ventilation applications where open floor plans and high ceilings are present.

Q: Are there any environments where this fan should not be installed?

A: This fan is not intended for hazardous locations or spaces with low ceiling heights below 16 feet.
