48 / 68 / 90 Watt Adjustable Shop Light | 6768 to 12690 Lumens | 3500K / 4000K / 5000K Adjustable | 8 Foot | Emergency Backup (Optional)
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 48 | 68 | 90 |
| Lumens | 6768 | 9588 | 12690 |
| Lumens Per Watt | 141 |
| Replaces | Fluorescent Strip |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Lens |
| Lifespan | 50,000 (L70) hours | 50,000 (L70) hours |
| Mounting | Surface or V-Hooks |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Galvanized Steel |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 93 1/8 X 2 1/2 X 2 11/16 in |
| Weight (lbs) | 9 lbs |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Standard (No EMB)
- Emergency Backup Battery
- Motion Sensor
Product SKU Variations
- SKU: MLLG-AL-LED-LIN-SL2-90-CC
- SKU: MLLG-AL-LED-LIN-SL2-90-CC-EM
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

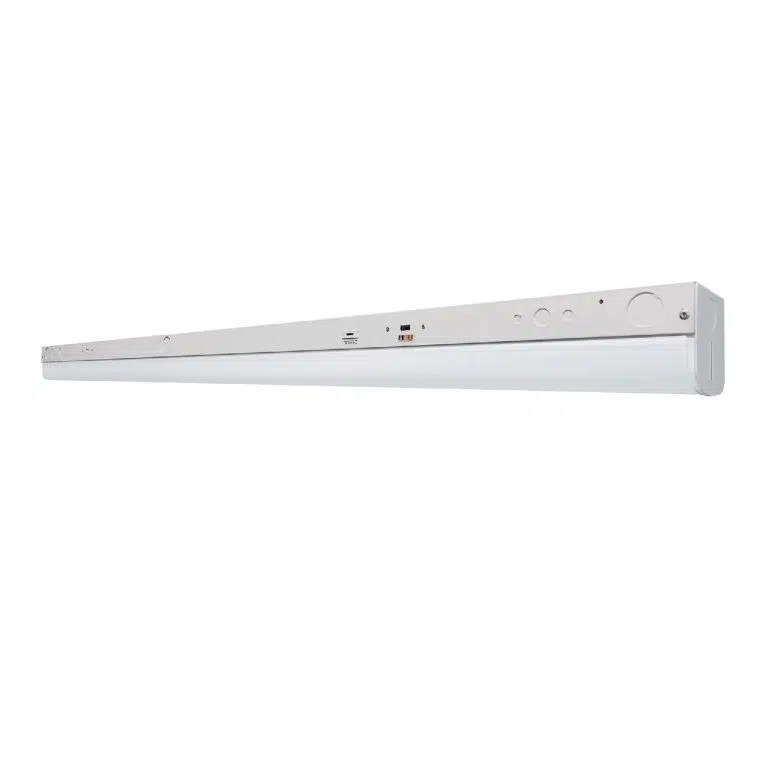

This 8-foot LED shop light is a linear strip fixture with selectable 48W, 68W, and 90W output settings and selectable 3500K, 4000K, and 5000K color temperatures. It is built for surface mounting or V-hook suspension where long, continuous fixture rows are needed.

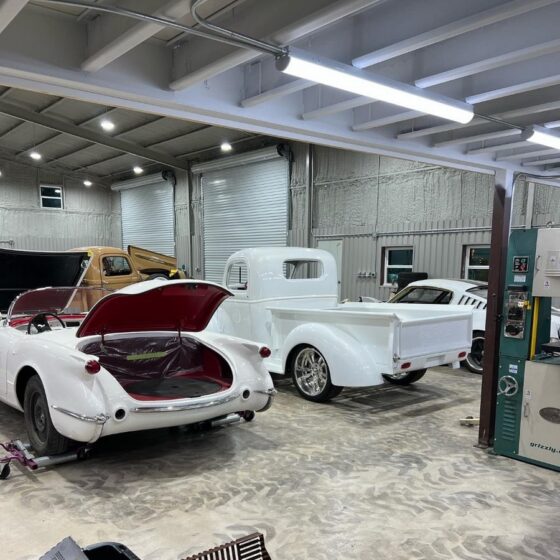

The fixture replaces fluorescent strip lighting in workshop lighting, maintenance shop lighting, garage lighting, and service bay lighting. Its 8-foot form factor works well where existing fluorescent strip fixtures follow equipment bays, work areas, or wall-to-wall lighting rows.
Core Performance and Output
Selectable output provides 6,768, 9,588, or 12,690 lumens at 141 lumens per watt. The 120-degree distribution and frosted lens provide broad general illumination across the fixture length.
The fixture operates on 100V-277V, 50/60Hz power and has a power factor above 0.90. The 90W setting can produce excessive output in lower-ceiling work areas when fixture spacing is not adjusted for the selected wattage.
Adjustability and Control Options
Field-selectable wattage allows the fixture output to be set at 48W, 68W, or 90W. Field-selectable color temperature provides 3500K, 4000K, or 5000K operation from the same fixture.
1-10V dimming is supported. A motion sensor option is available, along with an optional emergency backup battery configuration.
Longevity and Reliability
The rated L70 life is 50,000 hours. This rating supports long operating periods in workshop lighting, garage lighting, and maintenance shop lighting where fixtures may operate for extended shifts.
The fixture uses a galvanized steel housing and a frosted lens. Routine maintenance should include checking mounting points, lens condition, and control or emergency backup components when installed.
Build Quality and Physical Characteristics
The white galvanized steel fixture measures 93 1/8 inches long by 2 1/2 inches wide by 2 11/16 inches high. It weighs 9 pounds and is supplied without a cord.
Surface mounting supports direct attachment to the mounting surface. V-hooks support suspended installation where the fixture needs to align with work areas, service bays, or equipment repair lighting layouts.
Where This Product Fits Best
This fixture fits enclosed work and service spaces that use linear fluorescent strip lighting or need broad, even light from an 8-foot fixture. Its selectable output supports different lighting levels within the same shop-light application group.
- maintenance shop lighting
- service bay lighting
- workshop lighting
- garage lighting
- tool room lighting
- equipment repair lighting
- automotive shop lighting
Surface and V-hook mounting allow the fixture to suit direct-mounted ceilings or suspended linear rows. Final wattage and color-temperature selection should match the ceiling condition, task visibility needs, and existing fixture layout.
Installation and Long-Term Use
Install the fixture using the selected surface-mount or V-hook method. Confirm that the mounting surface or suspension arrangement supports the 9-pound fixture and maintains straight alignment across multi-fixture rows.
The fixture operates on 100V-277V and uses 1-10V dimming when a compatible dimming arrangement is installed. Units with the optional emergency backup battery or motion sensor require those components to be included in the installation plan.
How This Fixture Is Commonly Used
In maintenance shop lighting and service bay lighting, fixtures are commonly arranged in linear runs over work zones and vehicle or equipment positions. In workshop lighting and tool room lighting, rows are typically aligned with benches, aisles, and work surfaces.
Mounting height affects light distribution, glare, and row spacing. Higher output can reduce the number of fixtures in a layout, but spacing and selected wattage must be coordinated to maintain uniform light across the work area.
Safety, Certifications, and Warranty
UL listed. Rebate eligible.
The fixture includes a 5-year warranty. An emergency backup battery is available as an optional configuration.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 48W, 68W, and 90W settings producing 6,768, 9,588, and 12,690 lumens respectively.
Q: What color temperatures can be selected?
A: The selectable color temperatures are 3500K, 4000K, and 5000K.
Q: Can this shop light be surface mounted or suspended?
A: Yes. The fixture supports surface mounting or V-hook mounting.
Q: What should be considered when planning fixture layout?
A: Selected wattage, mounting height, fixture row alignment, and required light levels affect layout. The supplied product data does not establish a specific fixture spacing or fixture count.
Application Questions and Clarification
Q: Is this fixture appropriate for service bay lighting?
A: Service bay lighting is a listed primary application. The selectable output, 120-degree distribution, and surface or V-hook mounting options support different service bay layouts.
Q: What should be reviewed for equipment repair lighting?
A: Equipment repair lighting is a listed secondary application. Review the mounting arrangement, selected wattage, selected color temperature, and work-area layout before installation.
Q: Is emergency backup included with every fixture?
A: No. The standard configuration has no emergency backup battery. An emergency backup battery is available as an option.
