32 / 40 / 48 Watt Adjustable LED Wraparound Light | 3840 to 5760 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | 4 Foot
This adjustable LED wraparound fixture is a strong choice for indoor commercial and light industrial spaces needing reliable, efficient lighting with flexibility. Its selectable wattage (32, 40, or 48 watts) and color temperature (3500K, 4000K, or 5000K) allow adaptation to changing requirements, while the frosted lens and wide beam angle ensure even, low-glare illumination – ideal for corridors, storage rooms, utility areas, and back-of-house locations. The galvanized steel housing and UL listing support durability and code compliance. With an IP20 rating, it is not suitable for wet or damp environments, but excels in dry, indoor settings.
Dwayne Kula | President, CTO and Founder
364 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 32 | 40 | 48 |
| Lumens | 3840 | 4800 | 5760 |
| Lumens Per Watt | 120 |
| Replaces | 100 or 150 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Lens |
| Lifespan | 150,000 (L70) hours |
| Mounting | Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Galvanized Steel |
| IP Rating | IP20 |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 47.6 L x 5.3 W x 2.2 H |
| Weight (lbs) | 4.7 lbs |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

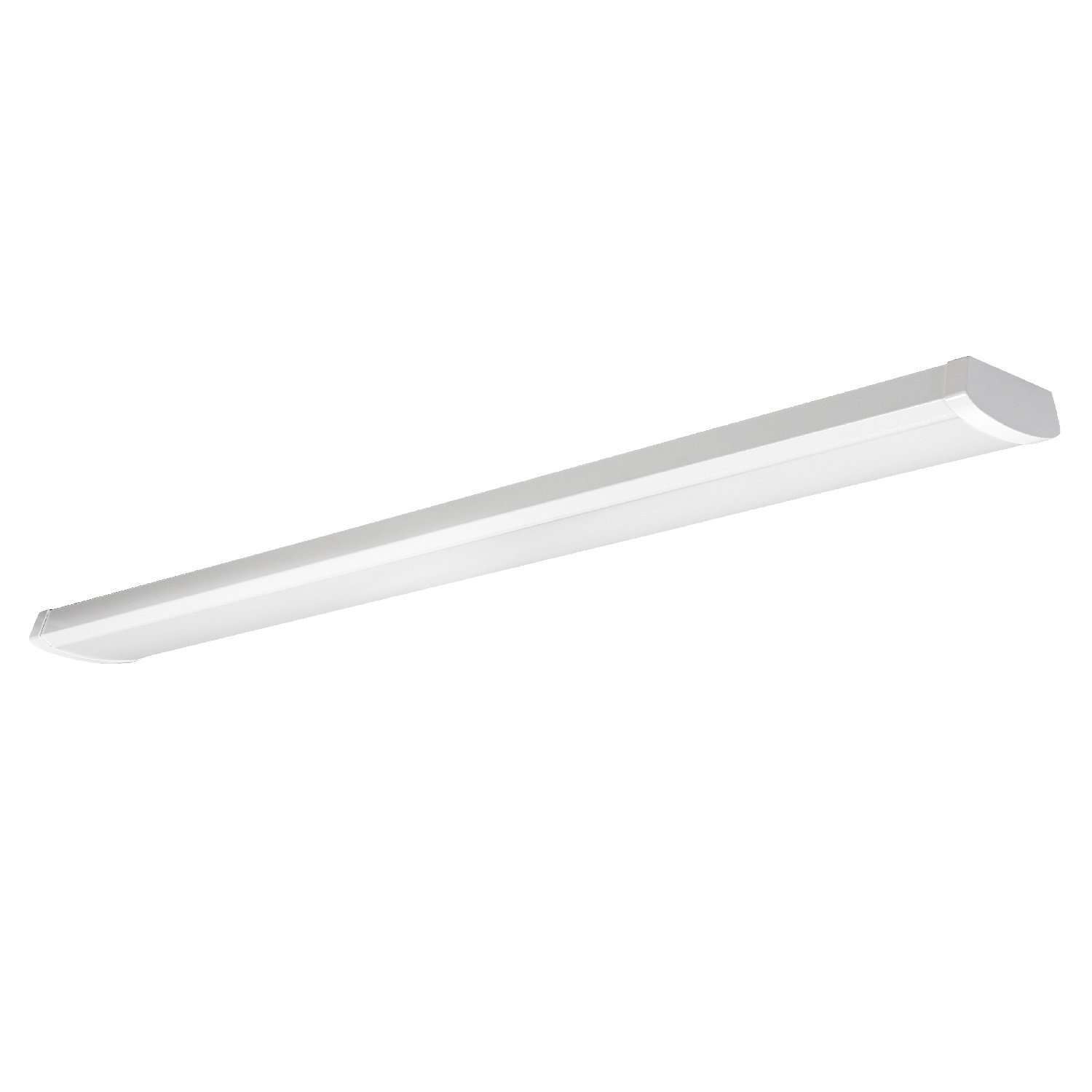

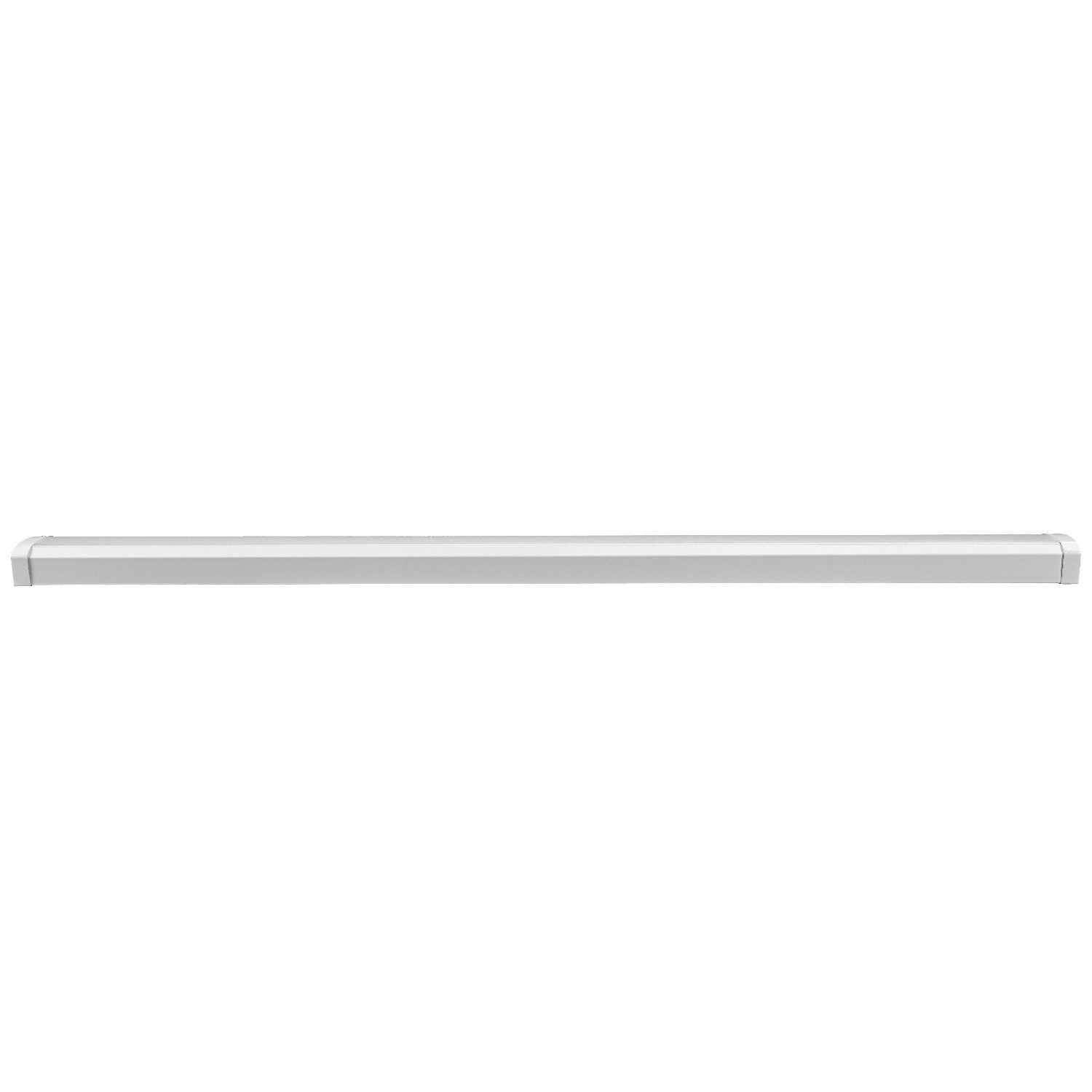

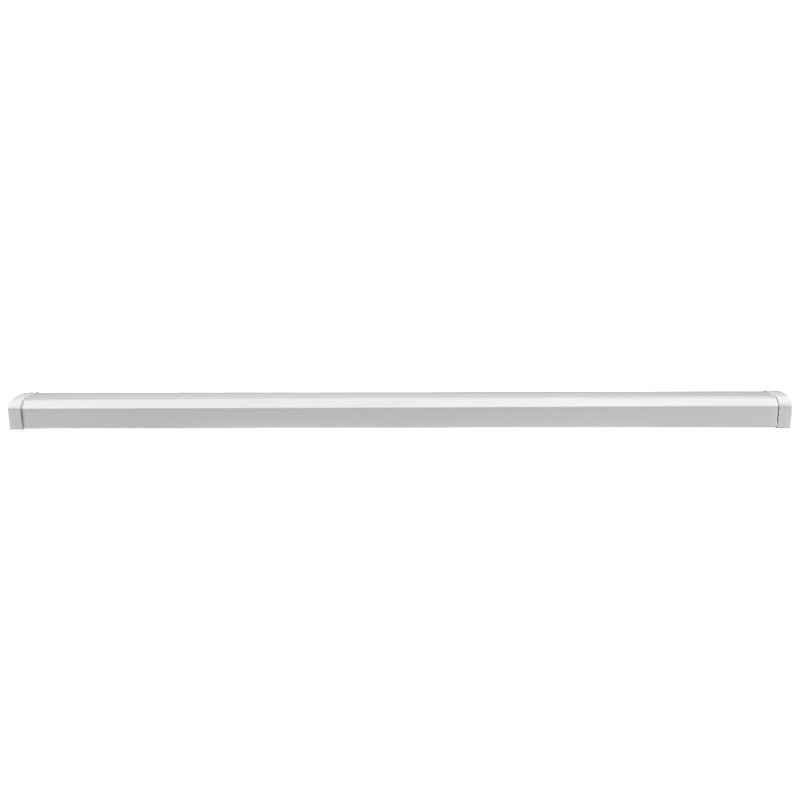

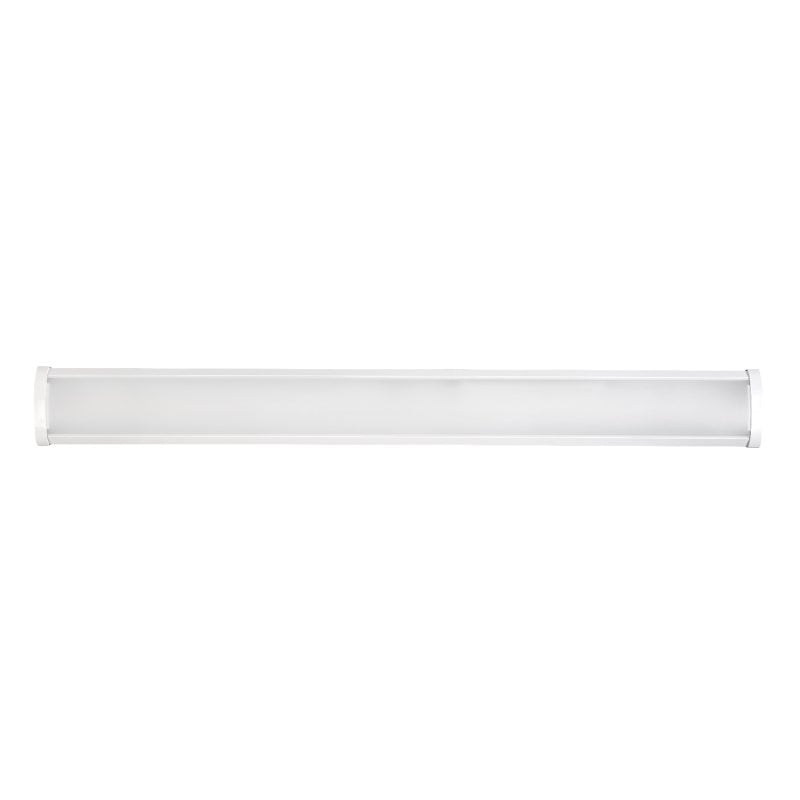

This 4-foot adjustable LED wraparound light is a surface-mounted linear fixture for indoor shop and service areas. It provides selectable wattage and color temperature from one housing.
The fixture operates on 100-277V and uses a frosted lens to distribute light across a 120-degree beam pattern. Its output range supports replacements of 100W or 150W metal halide fixtures where the existing layout and light level requirements are suitable.
Core Performance and Output
Selectable wattage settings of 32W, 40W, and 48W produce 3840, 4800, and 5760 lumens. Fixture efficacy is 120 lumens per watt, with an 80+ CRI.
The 120-degree distribution provides broad coverage from a surface-mounted position. Higher output can reduce fixture count in a layout, but may produce excessive brightness in smaller or lower-ceiling areas.
The fixture operates at 100-277V, 50/60Hz, with a power factor greater than 0.90. Color temperature is selectable between 3500K, 4000K, and 5000K.
Adjustability and Control Options

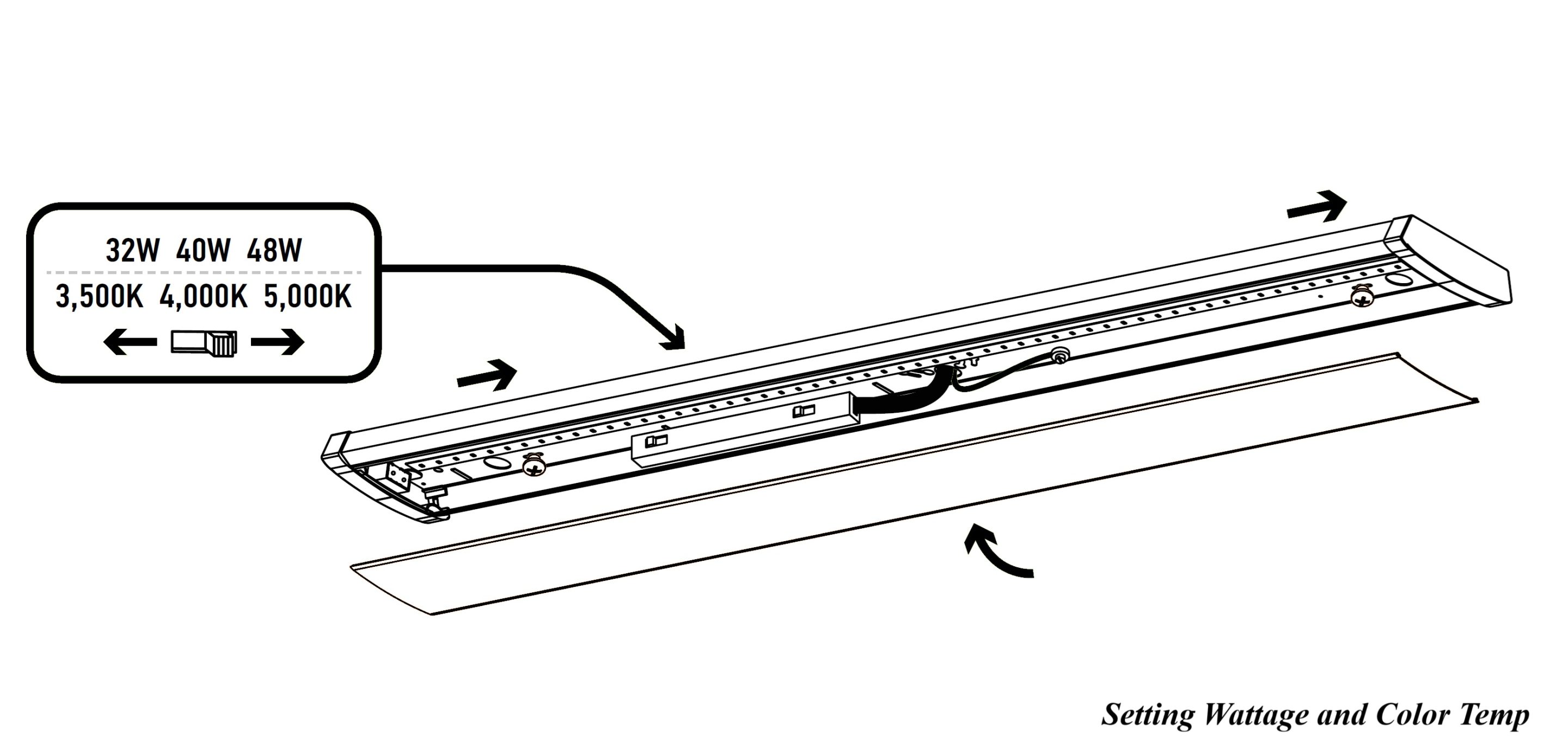

Wattage adjustment allows the fixture to operate at 32W, 40W, or 48W. This supports output matching where existing fixture locations remain in place.
Color temperature adjustment provides 3500K, 4000K, and 5000K settings. The selected setting should be consistent across a completed area to avoid visible differences between fixtures.
0-10V dimming is included. Control wiring and dimming compatibility should be confirmed before installation.
Longevity and Reliability
The rated L70 life is 150,000 hours. L70 indicates the point at which light output reaches 70 percent of initial output.
The fixture has a 5-year warranty. Long-term service access should account for the surface-mounted installation position and branch-circuit arrangement.
Build Quality and Physical Characteristics
The housing is galvanized steel with a white finish. The frosted lens softens the appearance of the light source while maintaining a broad 120-degree distribution.
Fixture dimensions are 47.6 inches long, 5.3 inches wide, and 2.2 inches high. Weight is 4.7 pounds.
This fixture is IP20 rated and has no cord. It is intended for surface mounting.
Where This Product Fits Best
This wraparound fixture fits indoor workshop, maintenance, garage, and service environments where a 4-foot surface-mounted fixture is appropriate. Its adjustable output supports different task and general lighting needs within these spaces.
- maintenance shop lighting
- service bay lighting
- workshop lighting
- garage lighting
- tool room lighting
- equipment repair lighting
IP20 construction is suited to indoor locations that do not require an ingress-protected fixture. Surface mounting works where a finished ceiling or mounting surface is available.
Installation and Long-Term Use

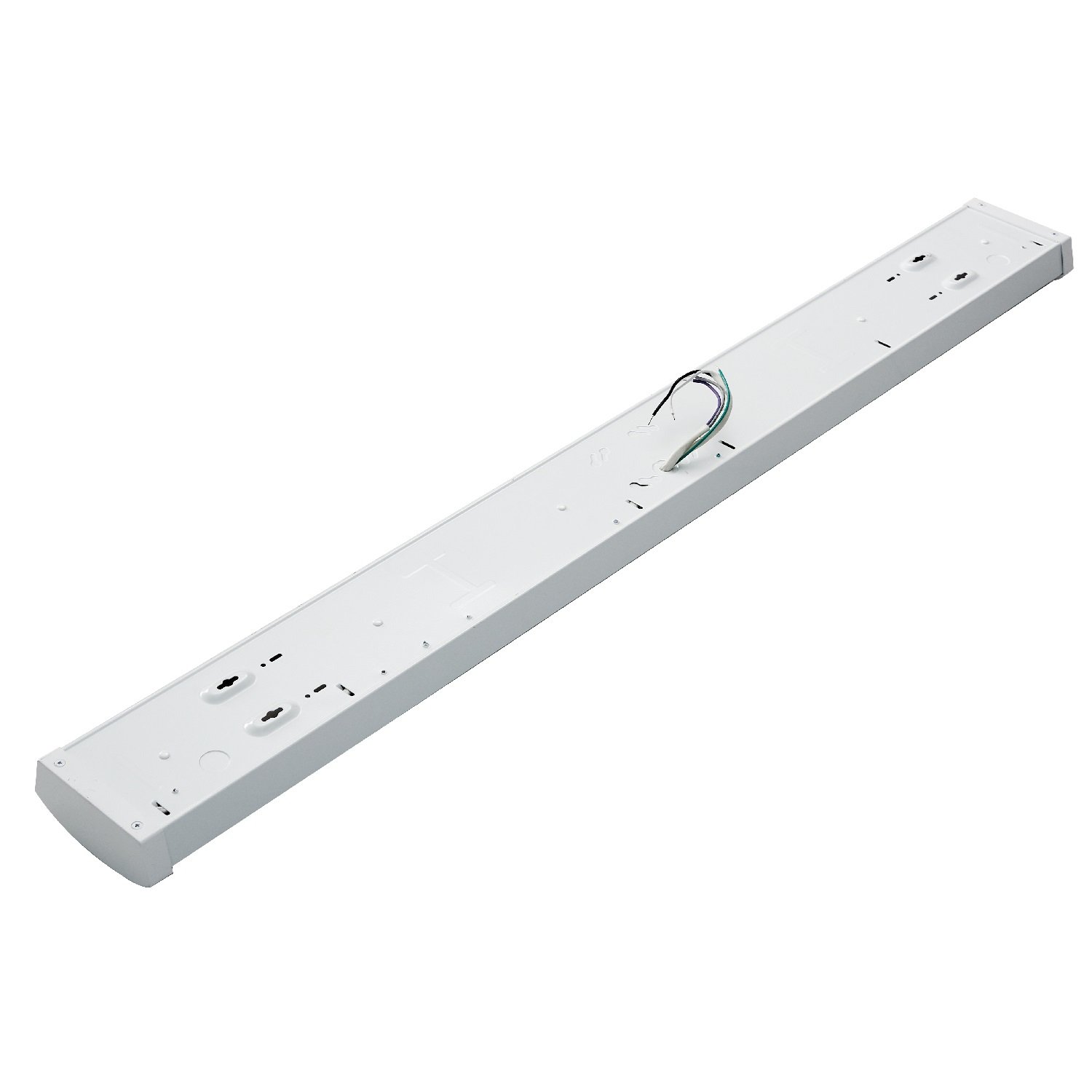

The fixture mounts directly to a surface and requires field electrical connection because it has no cord. Confirm the mounting surface, supply voltage, and 0-10V control wiring requirements before installation.
Its 4-foot length should be considered when aligning fixtures over work areas, bays, or aisles within the selected applications. Keep fixture rows consistent where uniform appearance and coverage are required.
For long-term maintenance, retain access to the fixture body and electrical connections. Wattage and color temperature settings should be documented after commissioning.
How This Fixture Is Commonly Used
In workshop lighting and maintenance shop lighting, these fixtures are surface mounted in rows or placed over active work areas. Mounting height is determined by the existing ceiling or mounting surface and the required light level.
For garage lighting, service bay lighting, and equipment repair lighting, fixture placement is typically arranged around work zones and vehicle or equipment positions. Layouts should avoid placing the fixture where its broad distribution creates unwanted shadowing from overhead obstructions.
Spacing varies with the selected wattage, mounting height, target light level, and layout requirements. Higher output may allow wider fixture spacing, but final placement should be based on the required coverage pattern.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The fixture is IP20 rated. It carries a 5-year warranty.
Frequently Asked Questions
Q: What wattage settings are available?
A: The fixture has selectable 32W, 40W, and 48W settings.
Q: What light output does each wattage setting provide?
A: The 32W setting produces 3840 lumens, the 40W setting produces 4800 lumens, and the 48W setting produces 5760 lumens.
Q: Can the color temperature be adjusted?
A: Yes. The fixture has selectable 3500K, 4000K, and 5000K color temperature settings.
Q: Does this wraparound light support dimming?
A: Yes. It supports 0-10V dimming.
Q: How is the fixture mounted?
A: The fixture is designed for surface mounting.
Application Questions and Clarification
Q: Is this fixture appropriate for service bay lighting?
A: Service bay lighting is a valid application. Final fixture placement depends on the mounting surface, selected wattage, target light level, and layout requirements.
Q: What should be confirmed for workshop lighting layouts?
A: Confirm the mounting height, fixture locations, selected wattage, target light level, and required coverage pattern. The supplied product data does not establish a specific spacing value.
Q: Can this fixture be used where an IP-rated fixture is required?
A: This fixture is IP20 rated. Confirm the environmental requirements of the installation location before selecting the fixture.
