30 / 40 / 50 Watt Adjustable LED Shop Light | 4200 to 7000 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | 4 Foot
This linear LED strip fixture is a strong choice for commercial and industrial spaces needing a reliable, adaptable replacement for fluorescent strips. Its selectable wattage (30/40/50W) and color temperature (3500K/4000K/5000K) allow precise tuning for visual comfort and energy management, while the 120° beam and frosted lens deliver broad, low-glare illumination – ideal for warehouses, manufacturing areas, utility rooms, and back-of-house corridors. The galvanized steel housing and UL listing support durability and code compliance. Note that it is not rated for wet or outdoor locations, so it is best suited for dry, indoor environments.
Dwayne Kula | President, CTO and Founder
292 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 | 40 | 50 |
| Lumens | 4200 | 5600 | 7000 |
| Lumens Per Watt | 140 |
| Replaces | Fluorescent Strip |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Chain-Cable or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Galvanized Steel |
| Operating Temperature | -4°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 48 L x 3 W x 3 H |
| Weight (lbs) | 4.3 |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Internal Sensor Receptacle
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

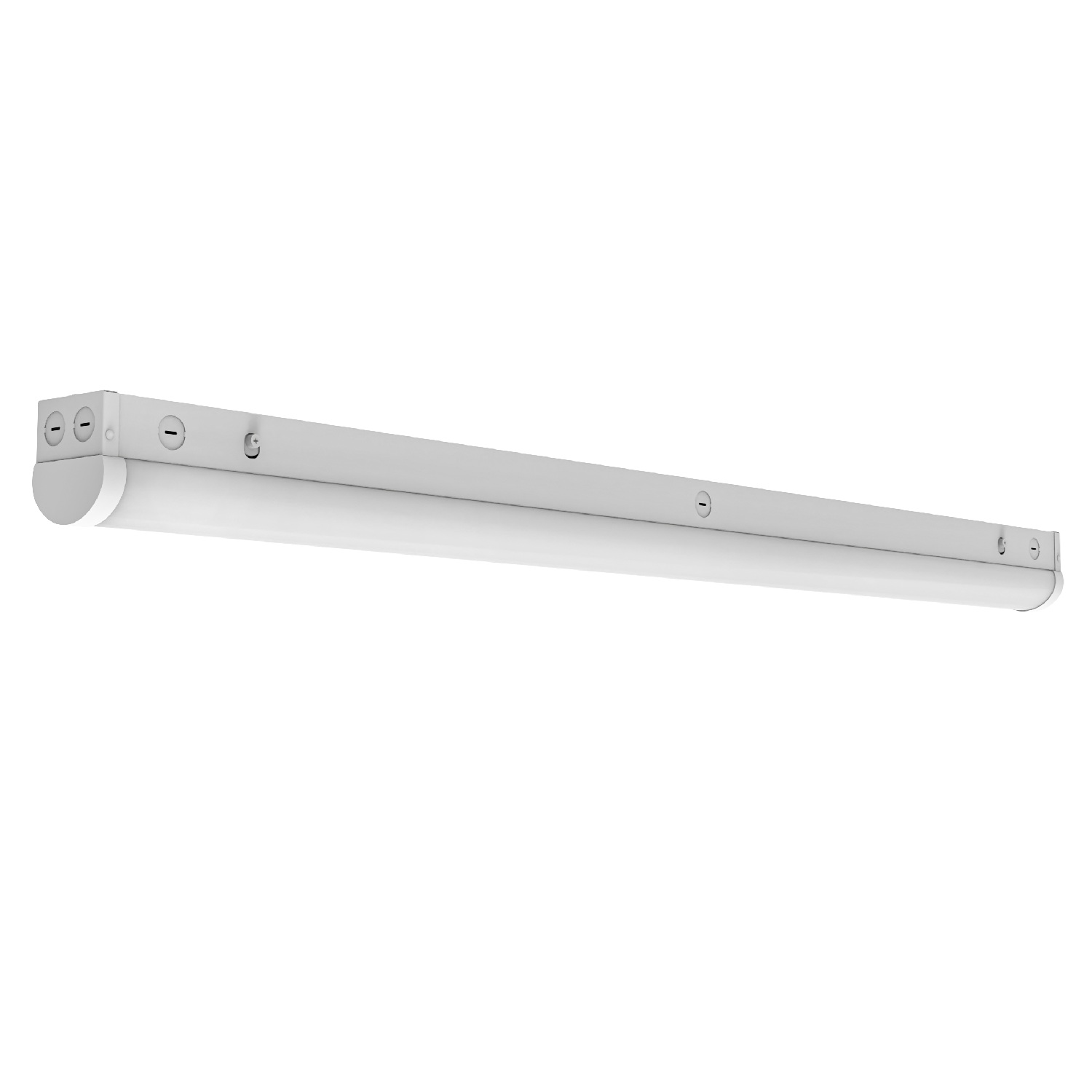

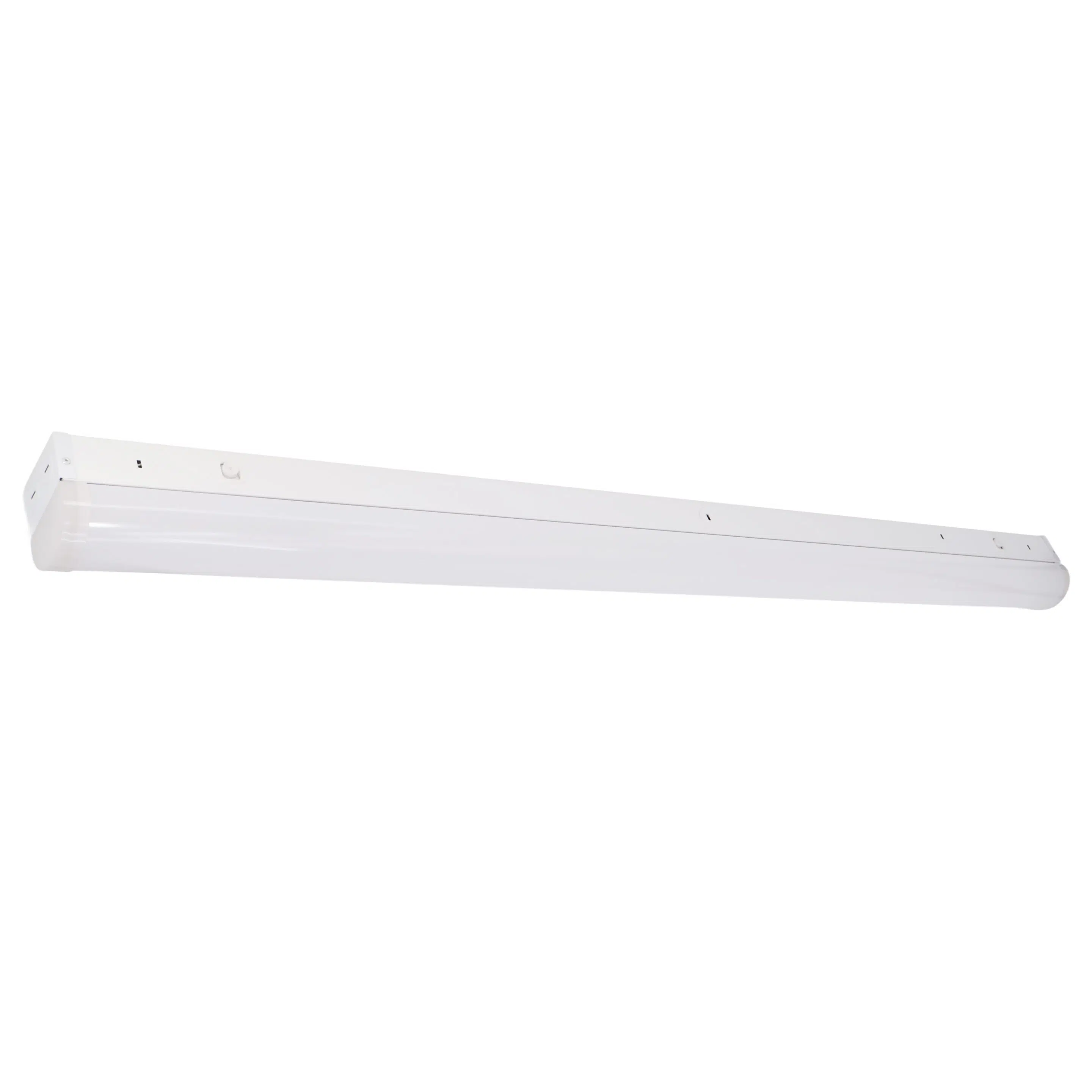

This 4-foot adjustable LED shop light is a linear fixture for workshop lighting, maintenance shop lighting, garage lighting, and service bay lighting. It provides selectable wattage and color temperature settings in one fixture.
The fixture replaces fluorescent strip lighting where a compact surface-mounted or chain-cable-mounted light is needed. Its frosted lens provides a broad 120-degree distribution for general work-area illumination.
Core Performance and Output
Selectable wattage settings of 30W, 40W, and 50W produce 4,200, 5,600, and 7,000 lumens. Fixture efficacy is 140 lumens per watt, with an 80+ CRI and selectable 3500K, 4000K, or 5000K color temperature.
The 120-degree beam angle distributes light broadly across the work area. Higher output can reduce fixture count in a layout, but may produce excessive brightness when installed at low mounting heights.
The fixture operates on 100-277V, 50/60Hz power and has a power factor above 0.90. Output selection should match mounting height, target light level, and layout requirements.
Adjustability and Control Options
Wattage and color temperature are adjustable at the fixture. The three wattage settings allow output to be set from 4,200 to 7,000 lumens.
Color temperature can be set to 3500K, 4000K, or 5000K. This allows consistent color appearance when matching existing lighting within the same application.
1-10V dimming is supported. The fixture also includes an internal sensor receptacle.
Longevity and Reliability
The LED system is rated for 50,000 hours at L70. The stated operating temperature range is -4F to 122F.
Long-term performance depends on maintaining suitable electrical connections and keeping the frosted lens free of accumulated debris. The fixture has no attached cord.
Build Quality and Physical Characteristics
The housing is galvanized steel with a white finish. A frosted polycarbonate lens covers the light source and helps distribute output across the 120-degree beam pattern.
The fixture measures 48 inches long by 3 inches wide by 3 inches high and weighs 4.3 pounds. Its 4-foot form factor aligns with common fluorescent strip replacement layouts.
Where This Product Fits Best
This fixture fits indoor work and service areas that use linear general lighting and have mounting locations for chain-cable or surface installation. Its adjustable output supports layouts with different light-level requirements.
- workshop lighting
- maintenance shop lighting
- garage lighting
- service bay lighting
- small warehouse lighting
- tool room lighting
- automotive shop lighting
- equipment repair lighting
The galvanized steel housing, polycarbonate lens, and stated -4F to 122F operating range support installations within the fixture’s listed environmental limits. Select output based on mounting height and the required work-plane brightness.
Installation and Long-Term Use

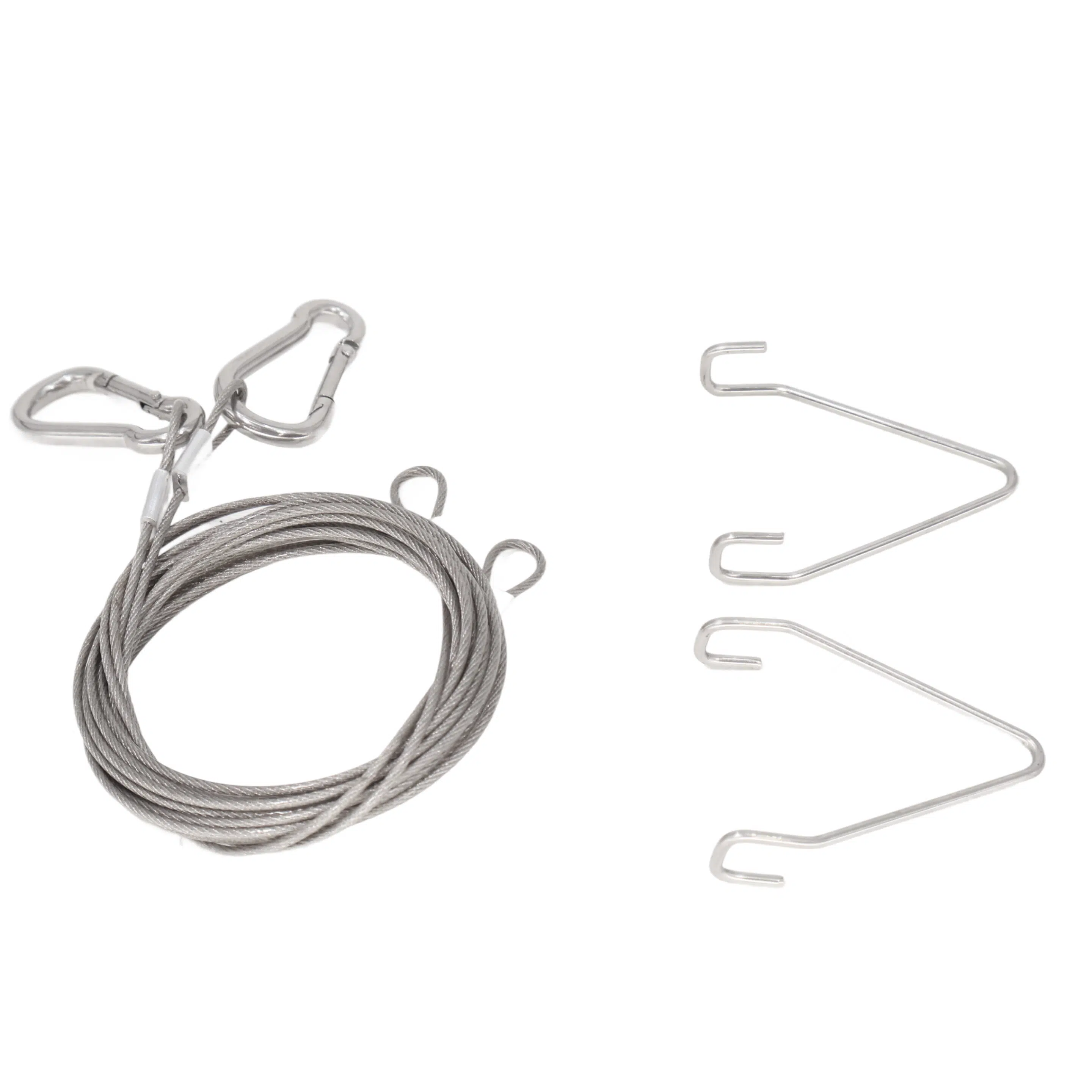

The fixture mounts by chain-cable suspension or direct surface mounting. Confirm the mounting method, fixture location, supply voltage, and dimming wiring before installation.
Surface mounting keeps the fixture close to the ceiling or structure. Chain-cable mounting allows the fixture to be positioned below the mounting surface where the layout requires it.
For long-term service, inspect mounting hardware, wiring connections, lens condition, and fixture settings during routine maintenance. Wattage and color temperature settings should remain consistent across fixtures serving the same area.
How This Fixture Is Commonly Used
In workshop lighting, maintenance shop lighting, and equipment repair lighting layouts, fixtures are typically arranged in rows over work zones and circulation paths. Mounting height affects both light spread and perceived brightness at the work area.
Garage lighting, service bay lighting, and automotive shop lighting layouts often use fixture rows aligned with bays or work positions. Spacing varies with the selected wattage, mounting height, target light level, and layout requirements.
Safety, Certifications, and Warranty
This fixture is UL certified. It is rebate eligible.
The fixture includes a 5-year warranty. Installation must use the listed 100-277V electrical input range.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture has selectable 30W, 40W, and 50W settings that produce 4,200, 5,600, and 7,000 lumens.
Q: What color temperatures can be selected?
A: The fixture can be set to 3500K, 4000K, or 5000K.
Q: Does this shop light support dimming?
A: Yes. The fixture supports 1-10V dimming.
Q: What mounting methods are available?
A: The fixture can be installed by chain-cable mounting or surface mounting.
Q: What is the fixture lifespan rating?
A: The LED system is rated for 50,000 hours at L70.
Application Questions and Clarification
Q: Is this fixture suitable for workshop lighting and maintenance shop lighting?
A: Workshop lighting and maintenance shop lighting are primary applications for this product family. Select the wattage setting based on the required output and project layout.
Q: What should be considered when planning a garage lighting or service bay lighting layout?
A: Mounting height, selected wattage, target light levels, and fixture layout affect placement. The supplied product data does not establish a specific spacing value.
Q: Can the fixture be used for small warehouse lighting?
A: Small warehouse lighting is a secondary application for this product family. Confirm that the selected output and mounting arrangement meet the lighting requirements for the space.
