30 / 40 / 50 Watt Adjustable Shop Light | 4200 to 6500 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | 4 Foot | Optional Motion Sensor
This 4-foot LED shop strip light is a strong choice for indoor commercial and industrial spaces needing reliable, adaptable linear lighting. Its selectable wattage (30/40/50W) and color temperature (3500K/4000K/5000K) allow you to tailor output and appearance to specific tasks or preferences, while the 120-degree beam angle ensures broad, even coverage. Ideal for workshops, utility rooms, storage areas, and light manufacturing. The galvanized steel housing and polycarbonate lens offer durability, and UL listing with DLC Premium qualification supports code compliance and utility rebates. Note that this fixture is not intended for outdoor or wet locations.
Dwayne Kula | President, CTO and Founder
Out of stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 | 40 | 50 |
| Lumens | 4200 | 5300 | 6500 |
| Lumens Per Watt | 133 |
| Replaces | Fluorescent Strip |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface |
| Mounting (Opt) | Chain-Cable |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Galvanized Steel |
| Operating Temperature | -4°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 47 L x 2.5 W x 2.5 H |
| Weight (lbs) | 4.3 lbs |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable

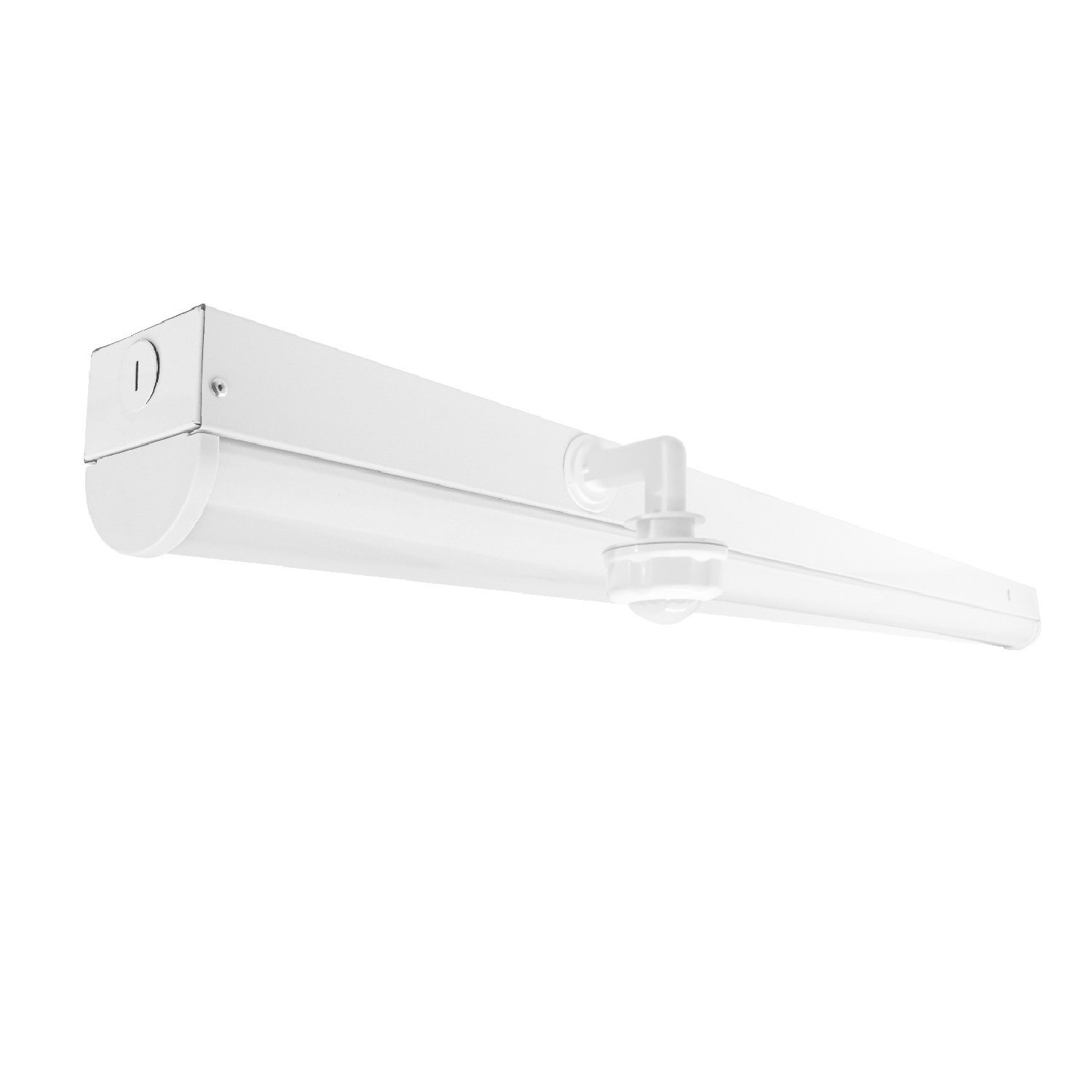

- Motion Sensor
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview

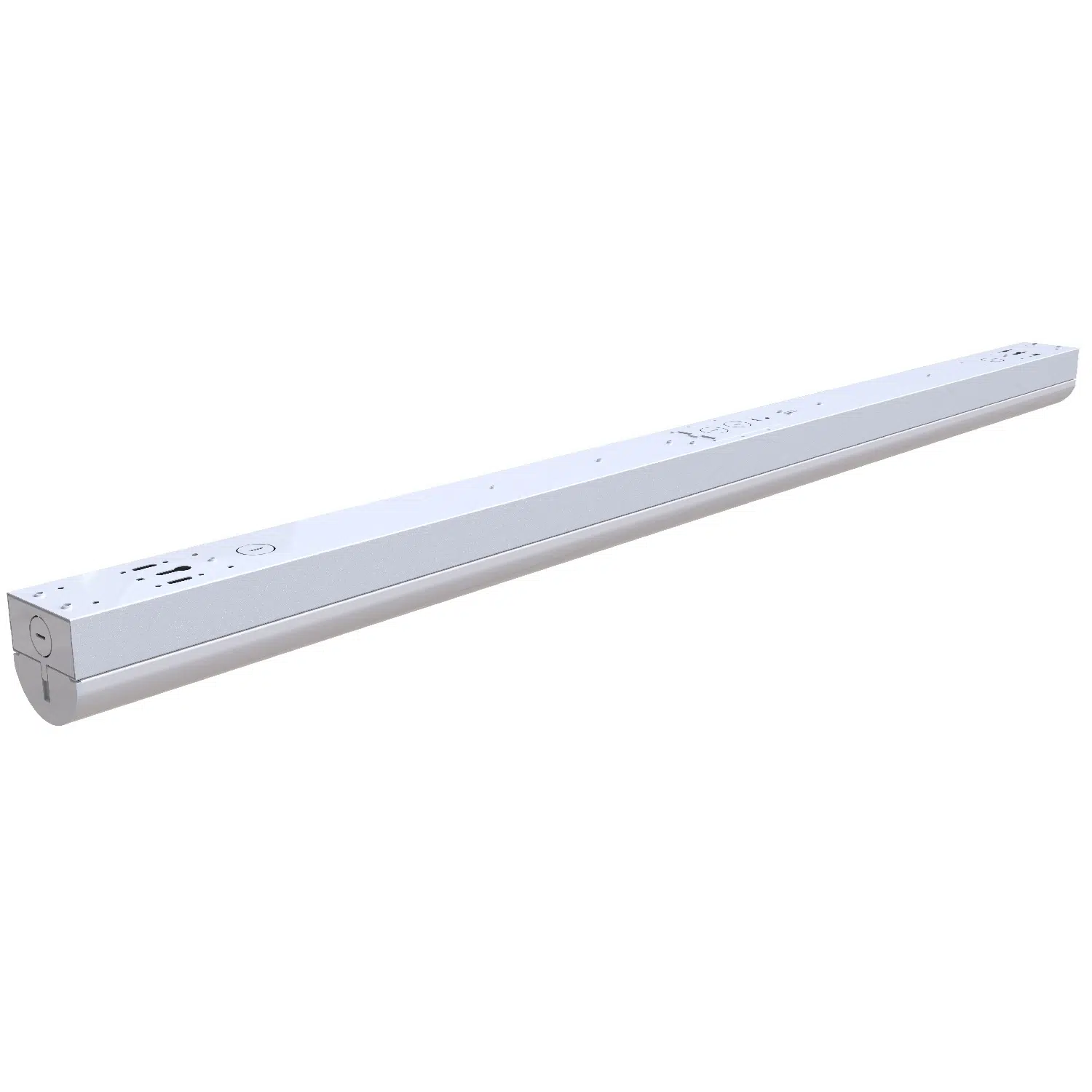

This 4-foot LED shop light is an adjustable linear strip fixture for workshop lighting, maintenance shop lighting, garage lighting, and service bay lighting. It provides selectable wattage and color temperature settings in a compact surface-mounted housing.
The fixture replaces fluorescent strip lighting with 30W, 40W, or 50W output settings. It can also be chain-cable mounted where a suspended installation is required.
Core Performance and Output
The selectable output settings provide 4,200, 5,300, or 6,500 lumens at 133 lumens per watt. The 120 degree distribution and frosted polycarbonate lens provide broad light distribution across work surfaces and open interior areas.
This fixture operates on 100-277V, 50/60Hz power and has a power factor above 0.90. The 6,500-lumen setting can be excessive in small enclosed areas where lower output is sufficient.
Adjustability and Control Options
Field-selectable wattage settings allow the fixture to operate at 30W, 40W, or 50W. Field-selectable color temperature settings include 3500K, 4000K, and 5000K.

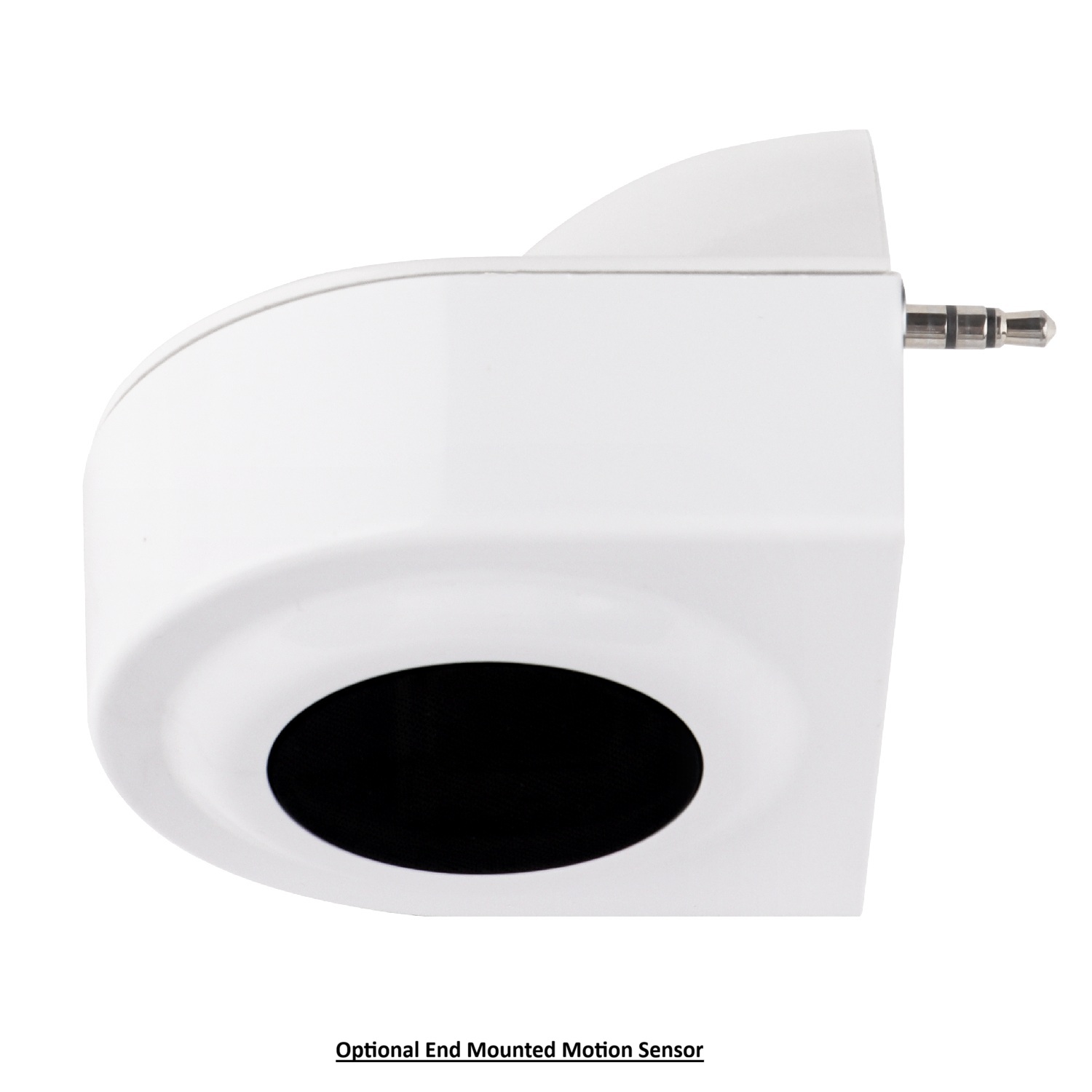

1-10V dimming is included. An optional motion sensor is available for installations that require occupancy-based operation.
Longevity and Reliability
The fixture is rated for 50,000 hours L70 life. This rating supports long-term operation in regularly used workshop lighting, garage lighting, and maintenance shop lighting installations.
The listed operating temperature range is -4F to 113F. Long-term performance depends on maintaining operation within this range.
Build Quality and Physical Characteristics
The housing is galvanized steel with a white finish. The frosted polycarbonate lens protects the LED components while diffusing the 120 degree distribution.
The fixture measures 47 inches long by 2.5 inches wide by 2.5 inches high and weighs 4.3 pounds. It has no cord and requires connection during installation.
Where This Product Fits Best
This fixture fits interior work areas that need linear overhead lighting with selectable output and color temperature. Its 4-foot form factor is consistent with fluorescent strip replacement layouts.
- workshop lighting
- maintenance shop lighting
- garage lighting
- service bay lighting
- tool room lighting
- small warehouse lighting
Surface mounting works where the ceiling provides a direct attachment location. Optional chain-cable mounting supports suspended layouts where surface mounting is not practical.
Installation and Long-Term Use
The fixture mounts directly to the surface or uses the optional chain-cable mounting method. Confirm the mounting surface, fixture location, voltage, and control wiring before installation.
Use the wattage and color temperature selectors consistently across fixtures in the same lighting area. Access for future cleaning, adjustment, and replacement should remain available after installation.
How This Fixture Is Commonly Used
In workshop lighting and maintenance shop lighting layouts, fixtures are commonly arranged in rows over work areas and circulation paths. Garage lighting and service bay lighting layouts typically follow the shape and working zones of the space.
Mounting height and spacing depend on the selected wattage, target light level, and work area layout. Higher output can reduce fixture count, but it can also produce more light than needed in smaller work zones.
Safety, Certifications, and Warranty
This fixture is UL certified and DLC Premium certified.
The fixture includes a 5-year warranty.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 30W, 40W, and 50W settings producing 4,200, 5,300, and 6,500 lumens.
Q: What color temperature settings are available?
A: The selectable color temperature settings are 3500K, 4000K, and 5000K.
Q: Can this shop light be dimmed?
A: Yes. The fixture supports 1-10V dimming.
Q: What mounting methods are available?
A: Surface mounting is standard. Chain-cable mounting is optional.
Q: How should fixture layout be planned for workshop lighting?
A: Mounting height, selected wattage, target light levels, and the workshop lighting layout affect fixture placement. The supplied product data does not establish a specific spacing value or fixture quantity.
Application Questions and Clarification
Q: Is this fixture appropriate for small warehouse lighting?
A: Small warehouse lighting is a listed secondary application. Final fixture placement depends on the selected output, mounting height, and layout requirements.
Q: What should be checked when using the optional motion sensor?
A: Confirm that the optional motion sensor is included and that the planned control arrangement matches the fixture installation.
Q: Which output setting should be used for a service bay lighting layout?
A: The fixture provides 30W, 40W, and 50W settings. The appropriate setting depends on the service bay lighting layout and required light level.
