60 / 70 / 80 Watt Adjustable Shop Light | 8500 to 11000 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | 8 Foot
This 8-foot adjustable strip is a practical fluorescent replacement for shipping containers and commercial spaces needing flexible light levels and color temperatures. Select 60, 70, or 80W and 3500K, 4000K, or 5000K to suit the installation, with 120-degree distribution and 1-10V dimming for broad, controllable coverage. Surface mounting is standard, with chain-cable mounting available. Galvanized steel housing, UL and DLC Premium listings, and a 5-year warranty support long-term use.
Dwayne Kula | President, CTO and Founder
570 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 60 | 70 | 80 |
| Lumens | 8500 | 9500 | 11000 |
| Lumens Per Watt | 135 |
| Replaces | Fluorescent Strip |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface |
| Mounting (Opt) | Chain-Cable |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Galvanized Steel |
| Operating Temperature | -4°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 94 L X 2.5 W X 2.5 H |
| Weight (lbs) | 8 lbs |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 8-foot LED shop light is a wattage- and color-adjustable linear strip fixture for workshop lighting, maintenance shop lighting, garage lighting, and service bay lighting. It operates from 100-277V and replaces fluorescent strip fixtures.
The fixture provides three selectable wattage settings and three selectable color temperatures in one housing. Surface mounting is standard, with chain-cable mounting available where a suspended installation is needed.
Core Performance and Output
Selectable output includes 8,500 lumens at 60 watts, 9,500 lumens at 70 watts, and 11,000 lumens at 80 watts. Fixture efficacy is 135 lumens per watt with an 80+ CRI.
A 120-degree beam distribution and frosted polycarbonate lens provide broad linear illumination. The fixture operates at 50/60Hz with a power factor above 0.90 and supports 1-10V dimming.
The 80-watt setting can be excessive where mounting heights are low or existing light levels are already sufficient. Fixture output and spacing should be coordinated with the selected wattage setting and required light levels.
Adjustability and Control Options
The fixture has selectable 60W, 70W, and 80W output settings. This allows output to be set during installation based on the lighting layout and required illumination level.
Selectable 3500K, 4000K, and 5000K color temperatures allow the fixture appearance to be matched across an installation. Color temperature and wattage should be set before final commissioning.
1-10V dimming is supported for installations using compatible dimming controls. The fixture operates across a 100-277V voltage range.
Longevity and Reliability
This shop light is rated for 50,000 L70 hours. The L70 rating identifies the point at which light output is expected to reach 70 percent of initial output.
The operating temperature range is -4 degrees F to 113 degrees F. Long-term performance depends on maintaining suitable ambient temperature conditions and using an appropriate electrical installation.
Build Quality and Physical Characteristics
The housing is galvanized steel with a white finish. A frosted polycarbonate lens protects the light source and softens the 120-degree distribution.
The fixture measures 94 inches long by 2.5 inches wide by 2.5 inches high and weighs 8 pounds. No cord is included.
Surface mounting is standard. Chain-cable mounting is available for installations where the fixture needs to be suspended from the structure.
Where This Product Fits Best
This fixture fits indoor work and service areas that use long linear fluorescent strip fixtures or require continuous linear illumination. Its selectable output supports layouts with different light level requirements.
- workshop lighting
- maintenance shop lighting
- service bay lighting
- garage lighting
- tool room lighting
- equipment repair lighting
The galvanized steel housing, frosted lens, and -4 degrees F to 113 degrees F operating range support enclosed work areas within those operating conditions. Surface mounting works well where a direct ceiling-mounted fixture layout is required.
Installation and Long-Term Use
Installers can use the standard surface mount arrangement or the optional chain-cable mounting method. Confirm that the mounting surface or suspension structure supports the fixture and selected mounting method.
Set wattage and color temperature consistently across fixtures serving the same lighting area. For dimmed installations, connect the fixture to a compatible 1-10V dimming control system.
The fixture has no attached cord, so field wiring is required. Maintain access for future cleaning, inspection, and replacement work.
How This Fixture Is Commonly Used

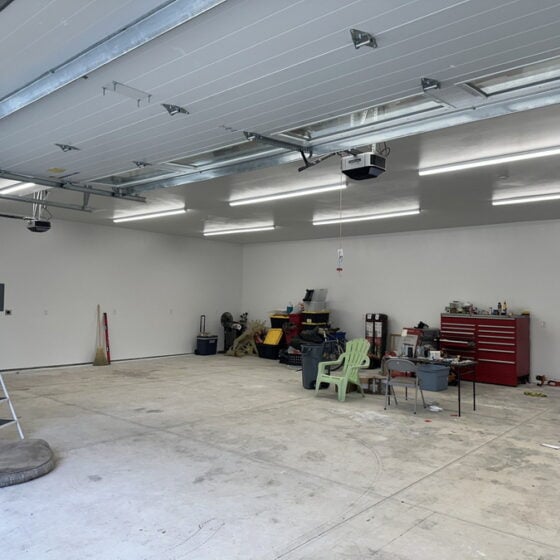

In workshop lighting, maintenance shop lighting, and tool room lighting, fixtures are commonly arranged in straight rows to follow work surfaces, equipment locations, and circulation paths. Surface mounting keeps the fixture close to the ceiling where suspended mounting is not needed.
For garage lighting, service bay lighting, and equipment repair lighting, rows are typically aligned with vehicle bays or repair positions. Mounting height, selected wattage, and target light levels determine the final layout.
Higher output can reduce the number of fixtures in a layout, but it can also increase brightness directly below the fixture. The frosted lens helps provide a broad distribution across the work area.
Safety, Certifications, and Warranty
This fixture is UL listed and DLC Premium listed.
The fixture carries a 5-year warranty. Installation must remain within the 100-277V input range and -4 degrees F to 113 degrees F operating temperature range.
Frequently Asked Questions
Q: What wattage and lumen settings are available?
A: The fixture has selectable 60W, 70W, and 80W settings producing 8,500, 9,500, and 11,000 lumens.
Q: Can the color temperature be changed?
A: Yes. The fixture has selectable 3500K, 4000K, and 5000K color temperatures.
Q: What mounting options are available?
A: Surface mounting is standard. Chain-cable mounting is available as an option.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: What should be considered when planning fixture layout?
A: Mounting height, selected wattage, target light levels, and the required fixture arrangement affect the final layout. The supplied product data does not establish a specific spacing value or fixture count.
Application Questions and Clarification
Q: Is this fixture appropriate for service bay lighting?
A: Service bay lighting is a listed application. The 60W, 70W, and 80W selectable output settings allow output to be matched to the project lighting layout.
Q: Can this fixture be used for maintenance shop lighting with suspended mounting?
A: Maintenance shop lighting is a listed application, and chain-cable mounting is available as an option. The mounting structure and final suspension arrangement must be determined for the installation.
Q: What environmental condition should be checked for garage lighting?
A: Garage lighting is a listed application. Confirm that the installation ambient temperature remains within the -4 degrees F to 113 degrees F operating range.
