22 / 28 / 36 / 44 Watt Adjustable Shop Light | 3102 / 3948 / 5076 / 6204 Lumens | 3500K / 4000K / 5000K Adjustable | 100-277V | 4 Foot
Dwayne Kula | President, CTO and Founder
4516 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 22 | 28 | 36 | 44 |
| Lumens | 3102 | 3948 | 5076 | 6204 |
| Lumens Per Watt | 141 |
| Replaces | Fluorescent Strip |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface or V-Hooks |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Galvanized Steel |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 46 7/8 X 2 1/2 X 2 11/16 |
| Weight (lbs) | 4.6 lbs |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 4-foot LED shop light is a wattage- and color-adjustable linear strip fixture for workshop lighting, maintenance shop lighting, garage lighting, and service bay lighting. It operates from 100-277V and replaces fluorescent strip fixtures.
The fixture provides four selectable output settings and three selectable color temperatures. Surface mounting and V-hook mounting support fixed ceiling layouts and suspended installations.
Core Performance and Output
Selectable wattage settings are 22W, 28W, 36W, and 44W, producing 3102, 3948, 5076, and 6204 lumens. Efficacy is 141 lumens per watt.
A 120-degree beam distribution and frosted lens provide broad light distribution across work areas. The fixture has an 80+ CRI, 50/60 Hz operation, and a power factor above 0.90.
Higher output settings can create excessive light at lower mounting heights. Mounting height, work surface requirements, and fixture layout should be reviewed before selecting the wattage setting.
Adjustability and Control Options
Field-selectable wattage allows the fixture output to be set at 22W, 28W, 36W, or 44W. This supports different light levels within the same installation.
Color temperature is selectable at 3500K, 4000K, or 5000K. The selected color temperature should remain consistent across connected work areas.
1-10V dimming is included. Dimming controls must be compatible with the fixture’s 1-10V dimming input.
Longevity and Reliability
The rated lifespan is 50,000 L70 hours. L70 indicates the point at which light output is maintained at 70 percent of initial output.
The fixture is covered by a 5-year warranty. Long-term performance depends on proper mounting, electrical connections, and operating conditions.
Build Quality and Physical Characteristics
The housing is galvanized steel with a white finish. The frosted lens reduces direct view of the LED source while maintaining a wide 120-degree distribution.
Fixture dimensions are 46 7/8 inches long by 2 1/2 inches wide by 2 11/16 inches high. Fixture weight is 4.6 pounds.
There is no factory-installed cord. The fixture is intended for direct wiring with either surface mounting or V-hook mounting.
Where This Product Fits Best
This fixture fits enclosed work and service areas where a 4-foot linear strip layout is appropriate. Its selectable output supports lower and higher light level requirements within the listed applications.
- workshop lighting
- maintenance shop lighting
- service bay lighting
- garage lighting
- tool room lighting
- automotive shop lighting
The galvanized steel housing, frosted lens, and broad beam pattern suit interior work areas with conventional ceiling structures. Surface and V-hook mounting allow the fixture to follow the ceiling and work-area layout.
Installation and Long-Term Use
Set the wattage and color temperature before finalizing the installation. Confirm the 100-277V supply voltage and 1-10V control wiring requirements when dimming is used.
Surface mounting keeps the fixture close to the ceiling. V-hook mounting allows a suspended linear arrangement where the ceiling structure supports that mounting method.
Maintain access to wiring connections and the selectable settings for future service. Fixture layout should account for mounting height, work surfaces, and required light levels.
How This Fixture Is Commonly Used

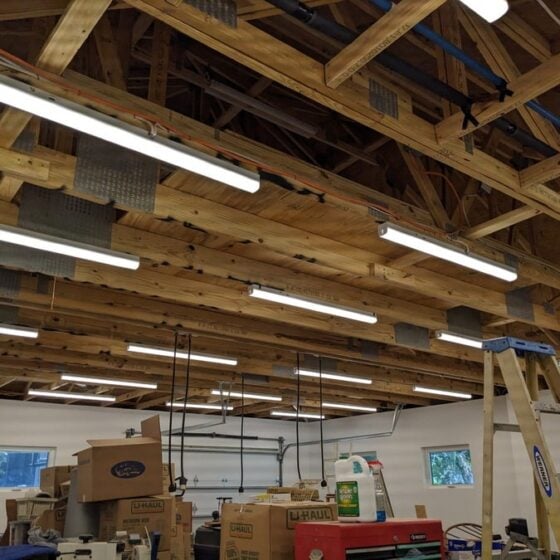

In workshop lighting, maintenance shop lighting, and tool room lighting, fixtures are commonly arranged in rows over work zones and circulation paths. Surface mounting is typically used where the ceiling position supports direct attachment.
In service bay lighting, garage lighting, and automotive shop lighting, V-hook mounting can position the fixture below the ceiling structure when the installation requires a suspended layout. Mounting height affects light distribution at the work area.
Spacing varies with the selected wattage, mounting height, target light levels, and layout requirements. Higher output settings may reduce fixture count but can increase brightness directly below each fixture.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The fixture is rated for 100-277V operation and uses a galvanized steel housing. Direct wiring must be completed in accordance with the installation requirements.
The warranty period is 5 years.
Frequently Asked Questions
Q: What wattage settings are available?
A: The selectable wattage settings are 22W, 28W, 36W, and 44W.
Q: What light output is available at each wattage setting?
A: Light output is 3102 lumens at 22W, 3948 lumens at 28W, 5076 lumens at 36W, and 6204 lumens at 44W.
Q: Can the color temperature be adjusted?
A: Yes. The fixture has selectable 3500K, 4000K, and 5000K color temperatures.
Q: What mounting methods are available?
A: The fixture can be surface mounted or installed with V-hooks.
Q: What should be considered when planning fixture spacing?
A: Mounting height, selected wattage, target light levels, and layout requirements affect fixture spacing. The supplied product data does not establish a specific spacing value.
Application Questions and Clarification
Q: Is this fixture appropriate for workshop lighting and maintenance shop lighting?
A: Workshop lighting and maintenance shop lighting are listed applications for this LED shop light. Final fixture placement depends on mounting height, selected wattage, and layout requirements.
Q: Can this fixture be used for service bay lighting?
A: Service bay lighting is a listed application. Surface mounting and V-hook mounting are available for the fixture.
Q: What should be confirmed before using 1-10V dimming?
A: Confirm that the planned control system is compatible with the fixture’s 1-10V dimming input.
