22 / 28 / 36 / 44 Watt Adjustable Shop Light | 4 Foot | 3102 / 3948 / 5076 / 6204 Lumens | 3500K / 4000K / 5000K | 100-277V | Battery Backup

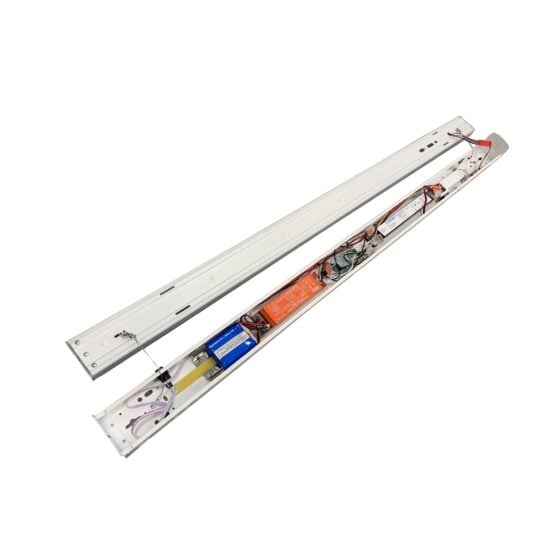

These strip lights have a unique 2 piece design enables the installer to quickly mount the fixture, connect the wires, and then snap the lens into place. Onboard toggle switches allow you to pick color and wattage – and has an emergency backup battery as well!
Dwayne Kula | President, CTO and Founder
1022 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 22 | 28 | 36 | 44 |
| Lumens | 3102 | 3948 | 5076 | 6204 |
| Lumens Per Watt | 141 |
| Replaces | Fluorescent Strip |
| Voltage | 100V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 120° |
| Optics | Frosted Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Surface or V-Hooks |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
| Power Factor | > .90 |
Durable Construction
| Housing | Galvanized Steel |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 46 7/8 X 2 1/2 X 2 11/16 |
| Weight (lbs) | 4.6 lbs |
| Cord Length | No Cord |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Emergency Backup Battery
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 4-foot LED shop light is a linear strip fixture for workshop lighting, maintenance shop lighting, garage lighting, and service bay lighting. It replaces fluorescent strip fixtures with selectable wattage and color temperature settings.
The fixture provides surface mounting or V-hook mounting for layouts where direct ceiling mounting or suspended rows are required. An emergency backup battery is available for installations that require backup operation.
Core Performance and Output
Selectable wattage settings include 22W, 28W, 36W, and 44W. Output ranges from 3102 to 6204 lumens, with 141 lumens per watt efficiency.
A 120-degree beam distribution and frosted lens provide broad linear illumination. The fixture operates on 100-277V, 50/60Hz power and has a power factor above 0.90.
The 44W setting can produce excessive light in small work areas when fixtures are closely spaced. Lower wattage settings allow output to be reduced where ceiling height and task requirements do not require maximum lumen output.
Adjustability and Control Options
Wattage is adjustable across four output settings. Color temperature is selectable between 3500K, 4000K, and 5000K.
The fixture supports 1-10V dimming. Color and wattage settings should be established before finalizing the lighting layout.
Longevity and Reliability
This shop light is rated for 50,000 L70 hours. The five-year warranty applies to the fixture.
The emergency backup battery is available where backup operation is needed. Confirm the selected configuration includes the required emergency backup feature.
Build Quality and Physical Characteristics
The housing is galvanized steel with a white finish. The fixture measures 46 7/8 inches long by 2 1/2 inches wide by 2 11/16 inches high.
Fixture weight is 4.6 pounds. No cord is included.
Where This Product Fits Best
This fixture fits indoor work and support areas that use linear strip lighting and require broad general illumination. Its selectable output supports smaller spaces and work areas with different lighting needs.
- workshop lighting
- maintenance shop lighting
- service bay lighting
- garage lighting
- tool room lighting
- automotive shop lighting
- equipment repair lighting
- small warehouse lighting
Surface mounting suits direct attachment to a ceiling or structure. V-hook mounting supports suspended fixture rows where the installation uses hanging hardware.
Installation and Long-Term Use
Install the fixture using the specified surface-mount or V-hook method. The mounting method should match the existing ceiling structure and fixture layout.
Use the 100-277V input rating when confirming available branch voltage. Since no cord is included, field wiring is required.
How This Fixture Is Commonly Used
In workshop lighting, maintenance shop lighting, and service bay lighting, these fixtures are commonly arranged in rows over work areas and travel paths. Surface mounting is typically used where the ceiling structure allows direct attachment, while V-hooks are used for suspended rows.
In garage lighting, tool room lighting, and equipment repair lighting, mounting height and fixture spacing are set around the work area layout and selected wattage. Higher output can reduce fixture count, but close spacing at higher wattage can increase light levels beyond what the area requires.
Safety, Certifications, and Warranty
This fixture is UL listed. It is rebate eligible.
The fixture has a five-year warranty. Emergency backup battery availability depends on the selected configuration.
Frequently Asked Questions
Q: What wattage settings are available?
A: The fixture is adjustable to 22W, 28W, 36W, or 44W.
Q: What light output does this shop light provide?
A: Output is 3102 lumens at 22W, 3948 lumens at 28W, 5076 lumens at 36W, and 6204 lumens at 44W.
Q: Can the color temperature be changed?
A: Yes. The fixture has selectable 3500K, 4000K, and 5000K color temperatures.
Q: What mounting options are available?
A: The fixture supports surface mounting or V-hook mounting.
Q: Does this fixture support dimming?
A: Yes. It supports 1-10V dimming.
Q: Is emergency backup available?
A: An emergency backup battery is available.
Application Questions and Clarification
Q: Is this fixture appropriate for small warehouse lighting?
A: Small warehouse lighting is a supported application. The selected wattage and fixture layout should match the required light level and mounting conditions.
Q: What should be reviewed when planning fixture placement in a maintenance shop?
A: Mounting method, selected wattage, mounting height, and the work area layout affect fixture placement. The supplied product data does not establish a specific spacing value.
Q: Can the fixture be used for automotive shop lighting?
A: Automotive shop lighting is a supported application. Surface mounting or V-hook mounting can be selected based on the installation structure.
