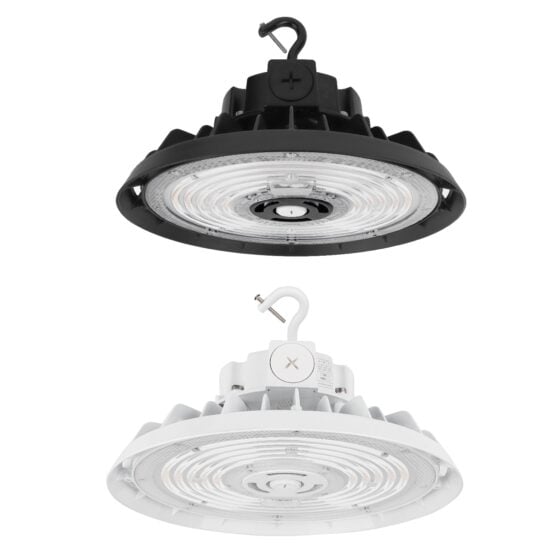

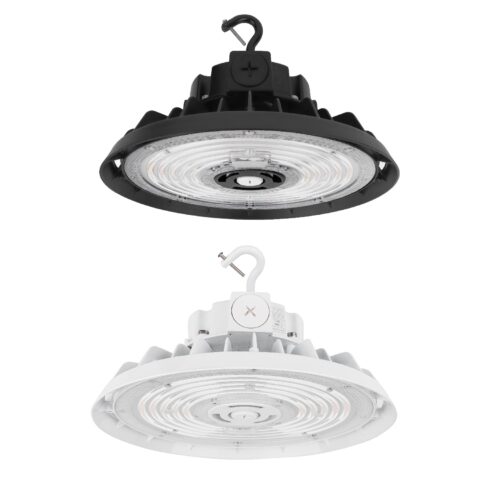

80 / 100 / 150 Watt Adjustable LED UFO High Bay | 12000 to 22500 Lumens | 4000K / 5000K Adjustable | 100-277V | Black or White Housing
The adjustable LED UFO High Bay fixture is an excellent choice for warehouse and manufacturing facility lighting due to its versatile wattage and color temperature options, delivering up to 22,500 lumens. Its IP65 rating and die-cast aluminum housing ensure durability in challenging environments, while the UL and DLC Premium certifications guarantee reliability and efficiency. With flexible mounting options and a 50,000-hour lifespan, this fixture is ideal for high-ceiling applications requiring robust, energy-efficient lighting solutions.
Neil Peterson | CEO and Chief Lighting Specialist
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 | 100 | 150 |
| Lumens | 12000 | 15000 | 22500 |
| Lumens Per Watt | 150 |
| Replaces | 250 or 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Hook |
| Mounting (Opt) | Surface |
| Fixture Color | Black or White |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 10.8 W X 7.7 H |
| Weight (lbs) | 4.5 |
| Cord Length | 5 Feet |
| Dimming Cord Length | 8 Inches |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Notes
| NEMA4X |
Product SKU Variations
- SKU: LLS-X-HB9-150A-CC
- SKU: LLS-X-HB9-150A-CC-W
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This is a simplified room utilization factor. It accounts for room reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data to improve the visual floor-level light distribution. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces. Actual light levels may vary based on fixture optics, mounting conditions, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
The 80 / 100 / 150 Watt Adjustable LED UFO High Bay is designed for high-efficiency lighting in large indoor spaces. This fixture provides adjustable wattage and color temperature options, making it versatile for various lighting needs. It is suitable for replacing traditional 250 to 400 Watt metal halide fixtures, offering a modern solution for energy savings and improved lighting quality. With its IP65 rating, this fixture is well-suited for environments where dust and moisture are present, such as warehouses and manufacturing facilities.Core Performance and Output
This LED UFO High Bay delivers between 12,000 and 22,500 lumens, depending on the selected wattage setting of 80, 100, or 150 watts. With a lumens per watt efficiency of 150, it ensures optimal energy use. The fixture offers a standard 90° beam angle, providing broad and even light distribution. It operates on a voltage range of 100-277V, making it compatible with various electrical systems. At lower mounting heights, the high output may result in excessive brightness, so careful consideration of installation height is recommended.Adjustability and Control Options
This fixture features both wattage and color temperature adjustability, allowing for customization based on specific lighting requirements. The color temperature can be set to either 4000K or 5000K, providing flexibility in achieving the desired ambiance. Additionally, it supports 0-10V dimming, enabling further control over light levels to suit different tasks or times of day. An optional motion sensor can be integrated for enhanced energy efficiency by reducing light output when the area is unoccupied.Longevity and Reliability
With a lifespan of 50,000 hours (L70), this LED UFO High Bay is designed for long-term use, minimizing maintenance and replacement costs. The fixture includes a 5-year warranty, providing assurance of its durability and performance. Its robust construction and IP65 rating ensure reliable operation in environments where exposure to dust and moisture is common.Build Quality and Physical Characteristics
Constructed from die-cast aluminum, this fixture offers durability and effective heat dissipation. It is available in black or white housing, allowing for aesthetic flexibility. The fixture measures 10.8 inches in width and 7.7 inches in height, weighing 4.5 pounds, making it manageable for installation. It includes a 5-foot power cord and an 8-inch dimming cord for ease of connection.Where This Product Fits Best
This LED UFO High Bay is ideal for large indoor spaces requiring efficient and adjustable lighting solutions. It is particularly suited for environments where high ceilings and wide areas are common.- warehouse lighting
- manufacturing facility lighting
- distribution center lighting
- gymnasium lighting
- aircraft hangar lighting
- indoor sports facility lighting
- basketball court lighting
- pickleball court lighting
Installation and Long-Term Use
The fixture supports both hook and surface mounting, providing flexibility in installation methods. It is designed for use in environments with operating temperatures ranging from -40°F to 113°F. The fixture’s lightweight design facilitates easy handling during installation. For optimal performance, consider the mounting height and spacing to ensure uniform light distribution and avoid excessive brightness.How This Fixture Is Commonly Used
Commonly installed at heights ranging from 15 to 30 feet, this fixture is suitable for large open spaces. Typical spacing between fixtures can vary based on the desired light levels and specific application requirements. Higher output settings can reduce the number of fixtures needed but may increase glare if not properly managed. Adjusting the wattage and color temperature allows for tailored lighting solutions to meet specific needs.Safety, Certifications, and Warranty
This LED UFO High Bay is UL and DLC Premium listed, ensuring compliance with safety and performance standards. It features a 6kV surge protection, safeguarding against electrical surges. The fixture is backed by a 5-year warranty, providing confidence in its long-term reliability and performance.Frequently Asked Questions
Q: What is the maximum mounting height for this fixture?
A: The fixture is typically installed at heights ranging from 15 to 30 feet, depending on the application and desired light levels.
Q: Can the color temperature be adjusted after installation?
A: Yes, the color temperature can be adjusted between 4000K and 5000K, even after installation.
Q: Is this fixture suitable for outdoor use?
A: While it is IP65 rated for dust and moisture resistance, it is primarily designed for indoor use in large spaces.
Q: How does the motion sensor integration work?
A: The optional motion sensor reduces light output when the area is unoccupied, enhancing energy efficiency.
Application Questions and Clarification
Q: What are the primary applications for this LED UFO High Bay?
A: Primary applications include warehouse lighting, manufacturing facility lighting, distribution center lighting, and gymnasium lighting.
Q: Can this fixture be used in sports facilities?
A: Yes, it is suitable for indoor sports facility lighting, including basketball and pickleball courts.
Q: Is this fixture appropriate for agricultural buildings?
A: Yes, it can be used in agricultural building lighting, providing efficient illumination in such environments.
Q: What are the secondary applications for this fixture?
A: Secondary applications include aircraft hangar lighting, indoor sports facility lighting, and agricultural building lighting.
