80 / 100 / 150 Watt Adjustable LED UFO High Bay | 12000 to 22500 Lumens | 4000K / 5000K Adjustable | 100-277V | Black or White Housing
This adjustable UFO high bay suits warehouses and manufacturing facilities needing flexible light levels and color temperature choices. Select 80, 100, or 150W for 12,000 to 22,500 lumens at 150 lumens per watt, with 4000K or 5000K output. Its IP65 die-cast aluminum housing, 6kV surge protection, -40F to 113F operation, and 50,000-hour L70 life support demanding installations. Hook mounting is standard, with surface mounting available.
Neil Peterson | CEO and Chief Lighting Specialist
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 80 | 100 | 150 |
| Lumens | 12000 | 15000 | 22500 |
| Lumens Per Watt | 150 |
| Replaces | 250 or 400 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 90° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 (L70) hours |
| Mounting | Hook |
| Mounting (Opt) | Surface |

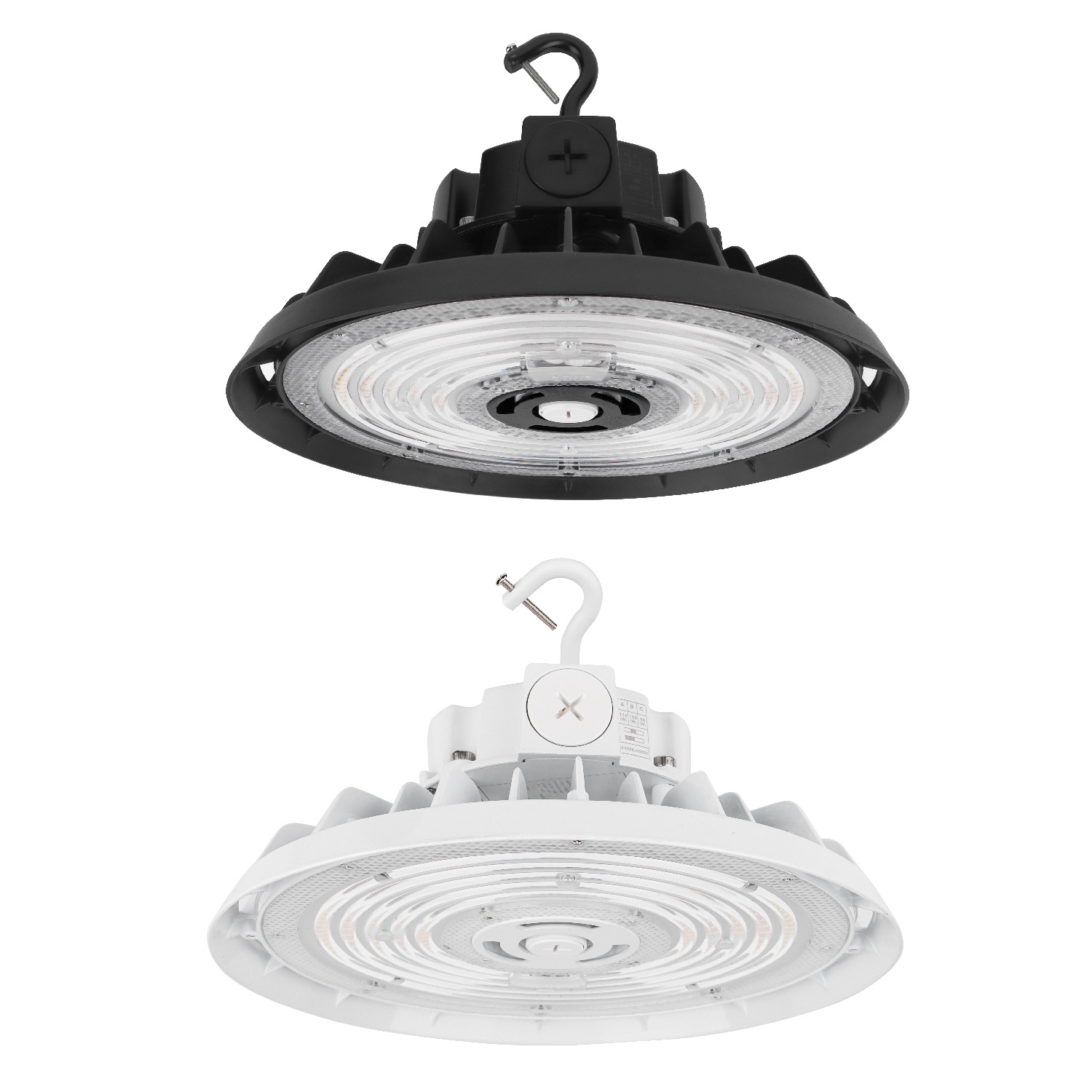

| Fixture Color | Black or White |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| Surge Protection | 6kV |
| Operating Temperature | -40°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 10.8 W X 7.7 H |
| Weight (lbs) | 4.5 |
| Cord Length | 5 Feet |
| Dimming Cord Length | 8 Inches |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Motion Sensor
Notes
- NEMA4X
Product SKU Variations
- SKU: LLS-X-HB9-150A-CC
- SKU: LLS-X-HB9-150A-CC-W
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable LED UFO high bay provides 80W, 100W, or 150W output settings with corresponding light output of 12,000, 15,000, or 22,500 lumens. It is designed for high-ceiling interior lighting and uses a compact round die-cast aluminum housing with hook mounting.
The fixture offers selectable 4000K or 5000K color temperature settings, 0-10V dimming, and 100-277V operation. Black and white housing finishes are available.
Core Performance and Output
The 90 degree beam angle directs light downward from elevated mounting positions. With 150 lumens per watt and an 80+ CRI, this UFO high bay is available for replacing 250W or 400W metal halide fixtures.
Adjustability and Control Options
Selectable wattage and color temperature allow the fixture to be configured for 80W, 100W, or 150W operation and either 4000K or 5000K light color. The fixture also supports 0-10V dimming.
Longevity and Reliability
This high bay is rated for 50,000 hours L70 life and operates in ambient temperatures from -40 degrees F to 113 degrees F. It includes 6kV surge protection.
Build Quality and Physical Characteristics
The die-cast aluminum housing is IP65 rated and NEMA 4X. A polycarbonate lens protects the optical assembly. The fixture measures 10.8 inches wide by 7.7 inches high and weighs 4.5 pounds.
Where This Product Fits Best
The round UFO form factor, hook mounting, selectable output, and 90 degree beam angle make this fixture suited to open high-bay layouts.
- warehouse lighting
- manufacturing facility lighting
- distribution center lighting
- gymnasium lighting
- aircraft hangar lighting
- commercial shop lighting
Installation and Long-Term Use
The fixture is supplied with hook mounting and a 5-foot cord. An 8-inch dimming cord is provided for 0-10V dimming connections. Surface mounting is available as an option.
Safety, Certifications, and Warranty
This LED UFO high bay is UL listed and DLC Premium listed. It is backed by a 5-year warranty.
Frequently Asked Questions
Q: What voltage does this LED UFO high bay use?
A: This LED UFO high bay operates on 100-277V, 50/60 Hz power.
Q: Is surface mounting available for this high bay?
A: Surface mounting is available as an option for this LED UFO high bay.
