600 Watt LED UFO High Bay | 96000 Lumens | 5000K | 100-277V
This 600 Watt LED UFO High Bay is a strong choice for large commercial and industrial spaces requiring high mounting heights and robust illumination, delivering 96,000 lumens at 160 lumens per watt. Its IP66 and IK08 ratings ensure reliable operation in dusty, wet, or physically demanding environments, while the -22°F to 113°F temperature range supports use in both cold storage and high-heat settings. The fixture's 1-10V dimming, multiple beam angle options, and surge protection add flexibility and resilience. It is particularly well-suited for warehouses, manufacturing plants, and distribution centers, but may not be ideal for hazardous locations without specific ratings.
Cory Peterson | VP of Marketing and Sales Operations
14 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 600 |
| Lumens | 96000 |
| Lumens Per Watt | 160 |
| Replaces | 2000 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 5000K |
| CRI | 70+ |
| Dimming | 1-10V |
| Beam Angles (Std) | 60° |
| Beam Angles (Opt) | 10° or 30° |
| Optics | Polycarbonate Lens |
| Lifespan | 244,000 (L70) hours |
| Mounting | Eye-Hook |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | .93 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Surge Protection | 6kV |
| Operating Temperature | -22°F to 113°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 17.7 W X 10.2 H |
| Weight (lbs) | 28.4 |
| Cord Length | 5 Feet |
| Dimming Cord Length | 8 Inches |
Download IES Files
Additional Resources
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This 600 watt LED UFO high bay produces 96,000 lumens at 5000K for high-output interior lighting. Its round UFO form factor, eye-hook mount, and 60 degree standard beam support open-area high bay layouts.
The fixture is commonly used for warehouse lighting, manufacturing facility lighting, and distribution center lighting where existing high-intensity fixtures need replacement. It is rated as a replacement for 2000 watt metal halide lighting.
Core Performance and Output
The fixture delivers 96,000 lumens at 160 lumens per watt. The standard 60 degree beam provides a broad distribution, while 10 degree and 30 degree optics are available for more focused layouts.
It operates on 100-277V, 50/60 Hz power with a 0.93 power factor and 20 percent maximum THD. The fixture supports 1-10V dimming.
This output level can be excessive at low mounting heights. Higher mounting positions and wider fixture spacing require layout review to maintain light distribution across the work area.
Adjustability and Control Options
1-10V dimming allows the fixture output to be adjusted through a compatible control system. The fixture includes an 8 inch dimming cord.
The standard optic is 60 degrees. Optional 10 degree and 30 degree beam angles allow the fixture distribution to be matched to the lighting layout.
Longevity and Reliability
The listed L70 life is 244,000 hours. The fixture includes 6kV surge protection for electrical transient protection.
Operating temperature is -22F to 113F. The die-cast aluminum housing, IP66 rating, and IK08 impact rating support operation in demanding interior high bay conditions.
Build Quality and Physical Characteristics

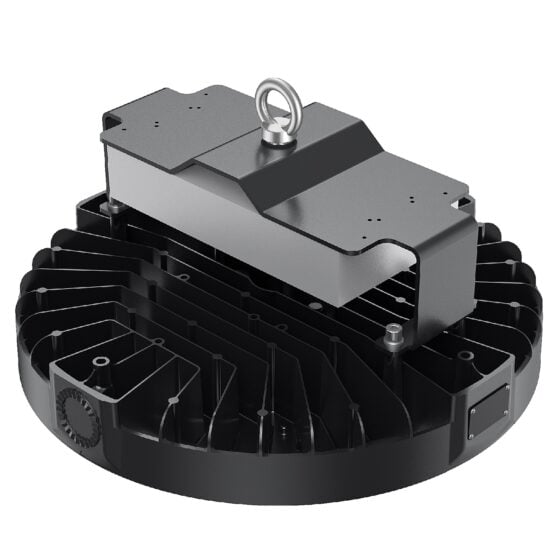

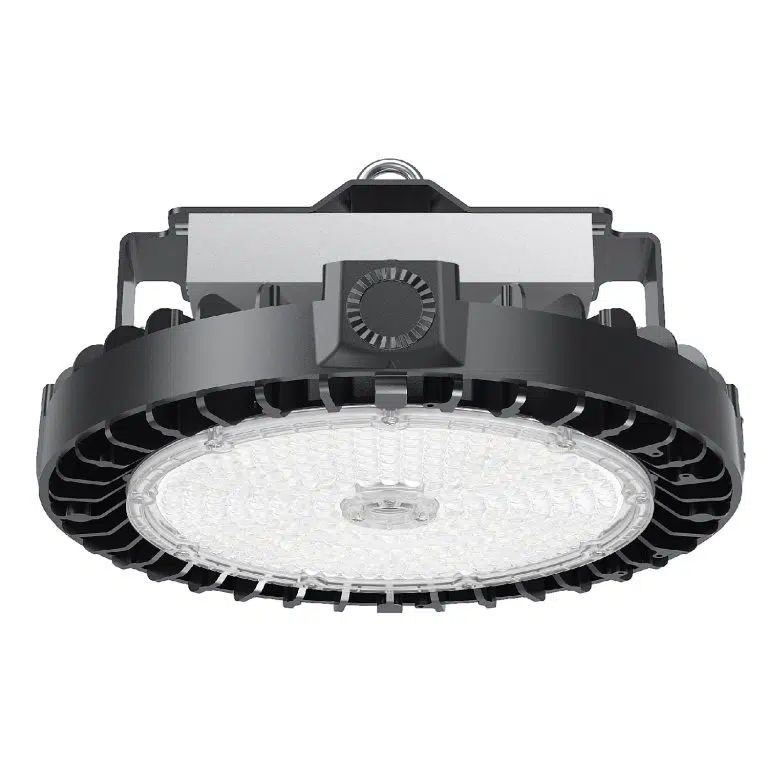

The fixture uses a die-cast aluminum housing with a polycarbonate lens. It has a black finish and measures 17.7 inches wide by 10.2 inches high.
Fixture weight is 28.4 pounds. Eye-hook mounting is provided, with a 5 foot power cord for connection at the mounting location.
Where This Product Fits Best
This high-output UFO fixture fits open high bay interiors that require concentrated light output from suspended fixtures. Its IP66 and IK08 ratings also support locations where fixture durability is a project consideration.
- warehouse lighting
- distribution center lighting
- manufacturing facility lighting
- aircraft hangar lighting
- gymnasium lighting
- indoor sports facility lighting
The 60 degree standard optic suits broad overhead coverage, while the optional narrow optics support layouts requiring tighter beam control. Confirm mounting structure capacity for the 28.4 pound fixture and associated wiring.
Installation and Long-Term Use
The fixture installs by eye-hook suspension. The mounting point must support the fixture weight and allow the 5 foot power cord and 8 inch dimming cord to be routed without strain.
Set fixture locations around the required mounting height, beam angle, target light level, and layout pattern. The 100-277V operating range and 1-10V dimming connection should be verified before installation.
For long-term operation, keep the polycarbonate lens clean and inspect mounting hardware, wiring, and cord condition during routine maintenance. The fixture operates within a -22F to 113F ambient temperature range.
How This Fixture Is Commonly Used
In warehouse lighting and distribution center lighting, the fixture is typically suspended in open areas with mounting heights and rows established by the building layout. The 60 degree beam is used where broad downward distribution is needed from each fixture location.
Manufacturing facility lighting and aircraft hangar lighting layouts often use fixture rows aligned with the primary floor arrangement. Beam angle selection and mounting height affect the overlap between adjacent fixtures.
Gymnasium lighting and indoor sports facility lighting layouts require attention to fixture position and beam direction. Narrower optics can concentrate output, while the standard optic provides wider distribution.
Safety, Certifications, and Warranty
This fixture is UL listed and DLC Premium listed.
It is IP66 rated and IK08 rated. The warranty is 5 years.
Frequently Asked Questions
Q: What light output does this 600 watt UFO high bay produce?
A: The fixture produces 96,000 lumens at 160 lumens per watt.
Q: What beam angles are available?
A: The standard beam angle is 60 degrees. Optional 10 degree and 30 degree beam angles are available.
Q: Does this fixture support dimming?
A: Yes. The fixture supports 1-10V dimming and includes an 8 inch dimming cord.
Q: What should be considered when planning the fixture layout?
A: Mounting height, beam angle, target light levels, and the required layout pattern affect fixture placement. The supplied product data does not establish a specific spacing value or fixture quantity.
Q: What mounting method is provided?
A: The fixture uses eye-hook mounting. It weighs 28.4 pounds and includes a 5 foot power cord.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse lighting and distribution center lighting?
A: The fixture is specified for warehouse lighting and distribution center lighting. Final placement depends on mounting height, beam angle, target light levels, and layout requirements.
Q: Can the fixture be used for manufacturing facility lighting?
A: Manufacturing facility lighting is a listed primary application. Confirm that the 100-277V operating range, eye-hook mounting method, and selected optic match the project conditions.
Q: What should be reviewed for gymnasium lighting or indoor sports facility lighting?
A: Review mounting height, fixture placement, beam angle, and target light levels. The product data provides 60 degree standard optics and optional 10 degree or 30 degree optics.
Q: Can this fixture operate in aircraft hangar lighting layouts?
A: Aircraft hangar lighting is a listed secondary application. The fixture operates from 100-277V and is rated for ambient temperatures from -22F to 113F.
Web ID: 2027
