60 / 105 / 140 / 210 Wattage Adjustable Linear LED High Bay | 11000 to 33600 Lumens | 4000K / 5000K Adjustable | 277-480V | 1 Foot 2 Inches

SKU: LLS-X-HBLIN9-210A-CC-HV Web ID: 2796
Starting at: $214.17
Availability: 582 In Stock Ships 3-5 Days

This adjustable linear high bay suits warehouses and gymnasiums needing flexible output, with 60 to 210W settings delivering 11,000 to 33,600 lumens. Selectable 4000K or 5000K, 0-10V dimming, and a 90 degree beam support practical lighting design. Its die-cast aluminum housing, 10kV surge protection, UL listing, 50,000-hour L70 life, and 5-year warranty support dependable high-bay installations.

Cory Peterson | VP of Marketing and Sales Operations

Prefer to Order Online?

582 in stock

Product total

Options total

Sub-Total

Product Specifications

UL Listed - Verified for Electrical Safety and PerformanceRebate Eligible - Qualifies for Energy Incentive Programs5 Year Unlimited Usage Warranty

Key Features

BrandLED Lighting Supply
Watts60 | 105 | 140 | 210
Lumens11000 | 18700 | 24500 | 33600
Lumens Per Watt160
Replaces400 Watt Metal Halide
Voltage277V-480V
Color Temperature4000K or 5000K
CRI80+
Dimming0-10V
Beam Angles (Std)90°
OpticsPolycarbonate Lens
Lifespan50,000 (L70) hours
MountingChain-Cable
Mounting (Opt)Pendant or Surface
Fixture ColorWhite
Frequency (Hz)50/60
Power Factor.90
THD20% Max

Durable Construction

HousingDie-Cast Aluminum
Surge Protection10kV
CertificationsUL | Rebate Eligible
Warranty5 years

Measurements

Dimensions (in)14.4 L X 11.5 W X 2.1 H
Weight (lbs)7
Cord LengthNo Cord

Features/Accessories

  • Color Adjustable
  • Wattage Adjustable

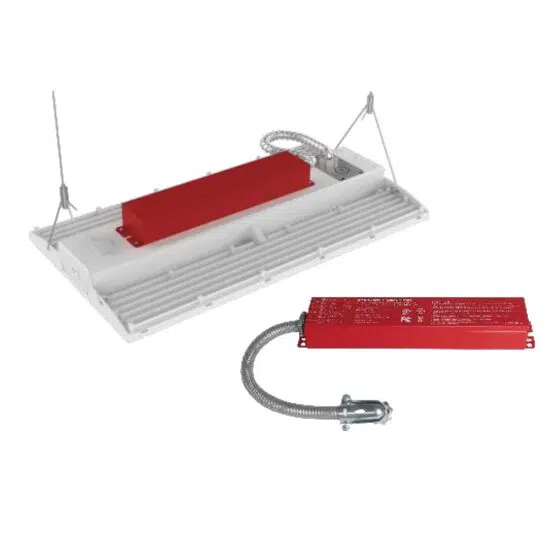

  • Optional Emergency Backup

Options:

Emergency Battery Backup - call us for details and pricing

Product Lighting Layout Estimator

Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.

Project Inputs

Loading fixture information...

Estimated Results

Fixtures --
Layout --
Estimated Avg FC --
Approx. Spacing --
Fixture Offset --
Calculation Method: --
Top-Down Fixture Layout Fixture positions and estimated floor light levels
Lower estimated FC Near target Higher estimated FC

Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.

Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.

Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.

Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.

Need Verified Light Levels?

This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.

Estimator Version 2.9.21

Product Overview

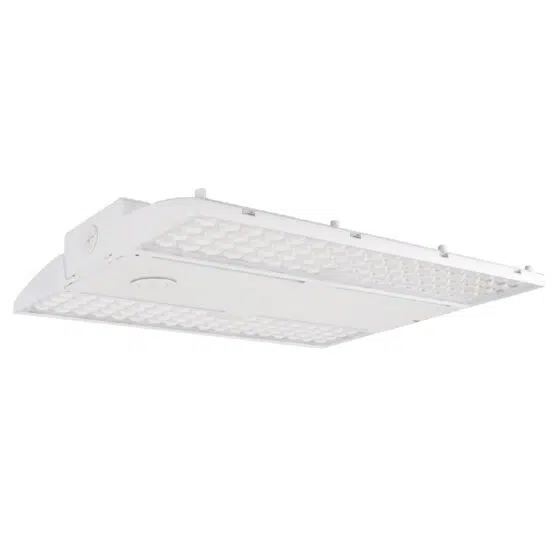

This linear LED high bay provides selectable 60W, 105W, 140W, or 210W output settings with 11,000 to 33,600 lumens. It is designed for 277-480V commercial and industrial high-ceiling lighting systems and uses a 90 degree beam distribution.

The fixture offers selectable 4000K or 5000K color temperature, 80+ CRI, and 0-10V dimming. Chain-cable mounting is provided, with pendant and surface mounting options available.

Core Performance and Output

Output settings range from 11,000 lumens at 60W to 33,600 lumens at 210W, with efficacy rated at 160 lumens per watt. The polycarbonate lens and 90 degree beam angle support directed downward illumination from a linear high bay form factor.

Longevity and Reliability

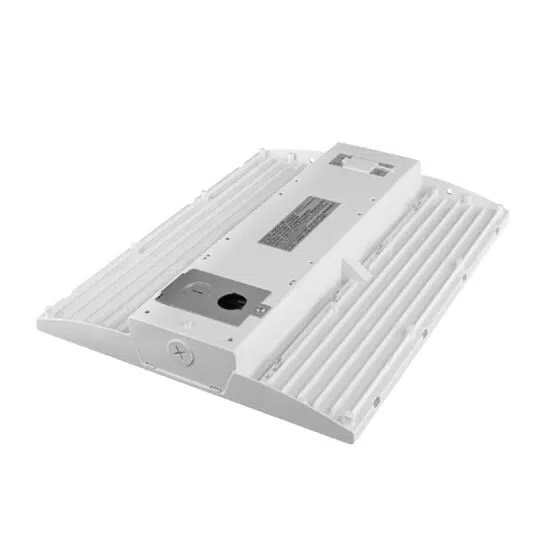

The fixture is rated for 50,000 L70 hours and includes 10kV surge protection. Its die-cast aluminum housing provides a durable fixture body for commercial interior high-ceiling installations.

Build Quality and Physical Characteristics

This white linear high bay measures 14.4 inches long by 11.5 inches wide by 2.1 inches high and weighs 7 pounds. It does not include a cord.

Where This Product Fits Best

The adjustable output and color temperature settings make this linear fixture suited to high-ceiling commercial and industrial interiors where fixture settings can be selected for the lighting layout.

  • warehouse aisle lighting
  • manufacturing facility lighting
  • distribution center lighting
  • retail warehouse lighting
  • storage facility lighting
  • commercial interior high ceiling lighting

Safety, Certifications, and Warranty

This linear LED high bay is UL listed, rebate eligible, and backed by a 5-year warranty.

Frequently Asked Questions

Q: What mounting options are available for this linear LED high bay?

A: This linear LED high bay includes chain-cable mounting and offers pendant or surface mounting options.

Q: Is emergency backup available for this high bay?

A: An optional emergency backup is available for this linear LED high bay.

Q: What voltage does this linear LED high bay require?

A: This linear LED high bay operates on 277V-480V power.
