60 / 80 / 100 Watt Adjustable UFO High Bay | 9000 to 15000 Lumens | 3500K / 4000K / 5000K | 120-277V
The adjustable UFO High Bay LED fixture is an excellent choice for warehouse and manufacturing facility lighting due to its versatile wattage and color temperature options, delivering 9000 to 15000 lumens with high efficiency. Its robust die-cast aluminum housing, IP65 rating, and 6kV surge protection ensure durability in demanding environments. The fixture’s UL and DLC Premium certifications guarantee reliability, while the 0-10V dimming and adjustable optics provide flexibility in lighting distribution, making it ideal for varied industrial applications.
Dwayne Kula | President, CTO and Founder
592 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 60 | 80 | 100 |
| Lumens | 9000 | 12000 | 15000 |
| Lumens Per Watt | 150 |
| Replaces | 250 Watt Metal Halide |
| Voltage | 100V-277V or 120V-277V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 60° or 90° or 110° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours |
| Mounting | Hook |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 6kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 11 W X 5 H |
| Weight (lbs) | 3.5 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Optic Adjustable
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 3 minutes
- Standby period: 5 minutes
- Standby Dimming Level: 50% brightness
Motion Sensor Operation : If purchasing a motion sensor please note that remote control is also required. This will allow you to change the operation of the motion sensor to suit your needs.
Download IES Files
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable UFO high bay provides 9,000 to 15,000 lumens from selectable 60W, 80W, and 100W settings. It is configured for warehouse lighting, manufacturing facility lighting, distribution center lighting, and gymnasium lighting.

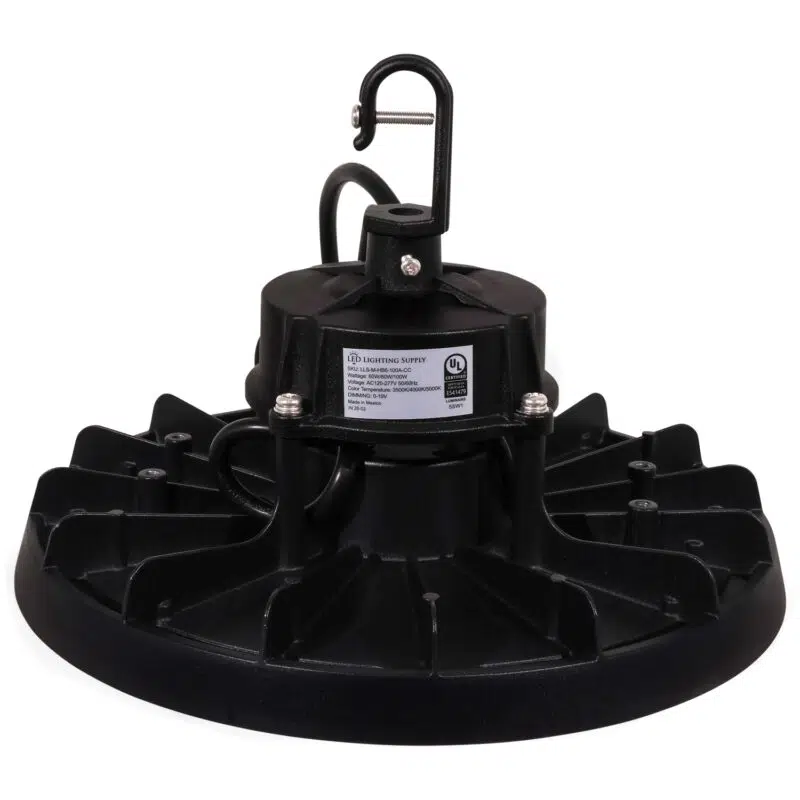

The round die-cast aluminum fixture uses hook mounting and measures 11 inches wide by 5 inches high. It is commonly used as a replacement for 250W metal halide fixtures where selectable output, color temperature, and beam angle are needed.
Core Performance and Output
Output is selectable at 9,000, 12,000, or 15,000 lumens with 150 lumens per watt performance. Available color temperatures are 3500K, 4000K, and 5000K, with 80+ CRI.
Selectable 60 degree, 90 degree, and 110 degree beam angles allow the fixture to match different layout requirements. The 15,000-lumen setting can be excessive at lower mounting heights, while wider beam settings require layout review where mounting heights are higher.
The fixture operates on 100-277V or 120-277V, 50/60Hz power. Power factor is 0.90 and THD is 20 percent maximum.
Adjustability and Control Options
Wattage, color temperature, and optic settings are adjustable at the fixture. This allows output, light color, and beam distribution to be selected for the installed layout.
0-10V dimming is included. Default motion sensor settings are 100 percent detection area, a 3-minute hold time, a 5-minute standby period, and 50 percent standby dimming level.
A motion sensor remote control is required to change the default sensor settings. One remote is required per project.
Longevity and Reliability
This UFO high bay is rated for a 50,000-hour lifespan and includes 6kV surge protection. The operating temperature range is -22 degrees F to 122 degrees F.
The fixture is rated IP65 and IK08. These ratings support installations where dust, moisture exposure, and incidental impact resistance are relevant operating conditions.
Build Quality and Physical Characteristics

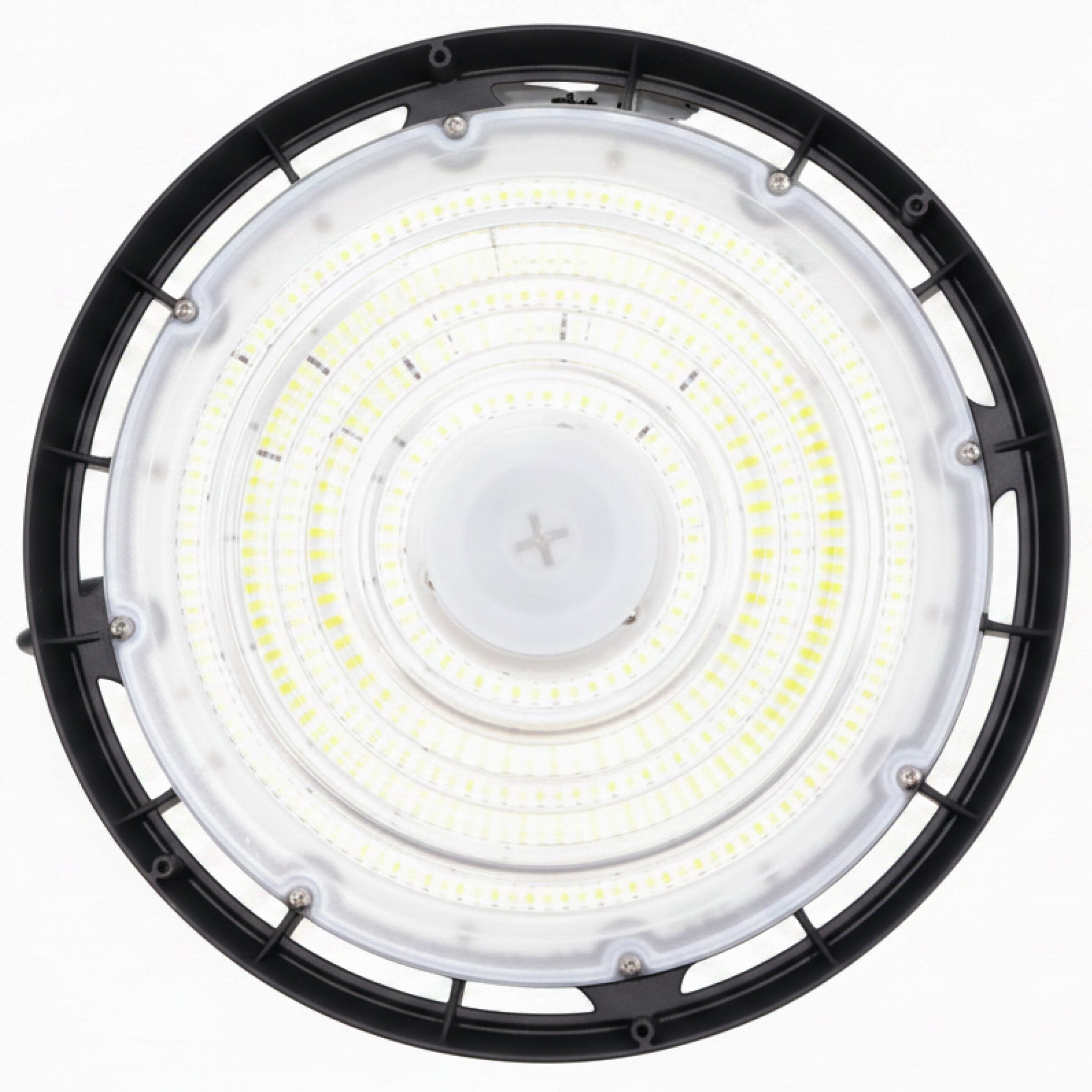

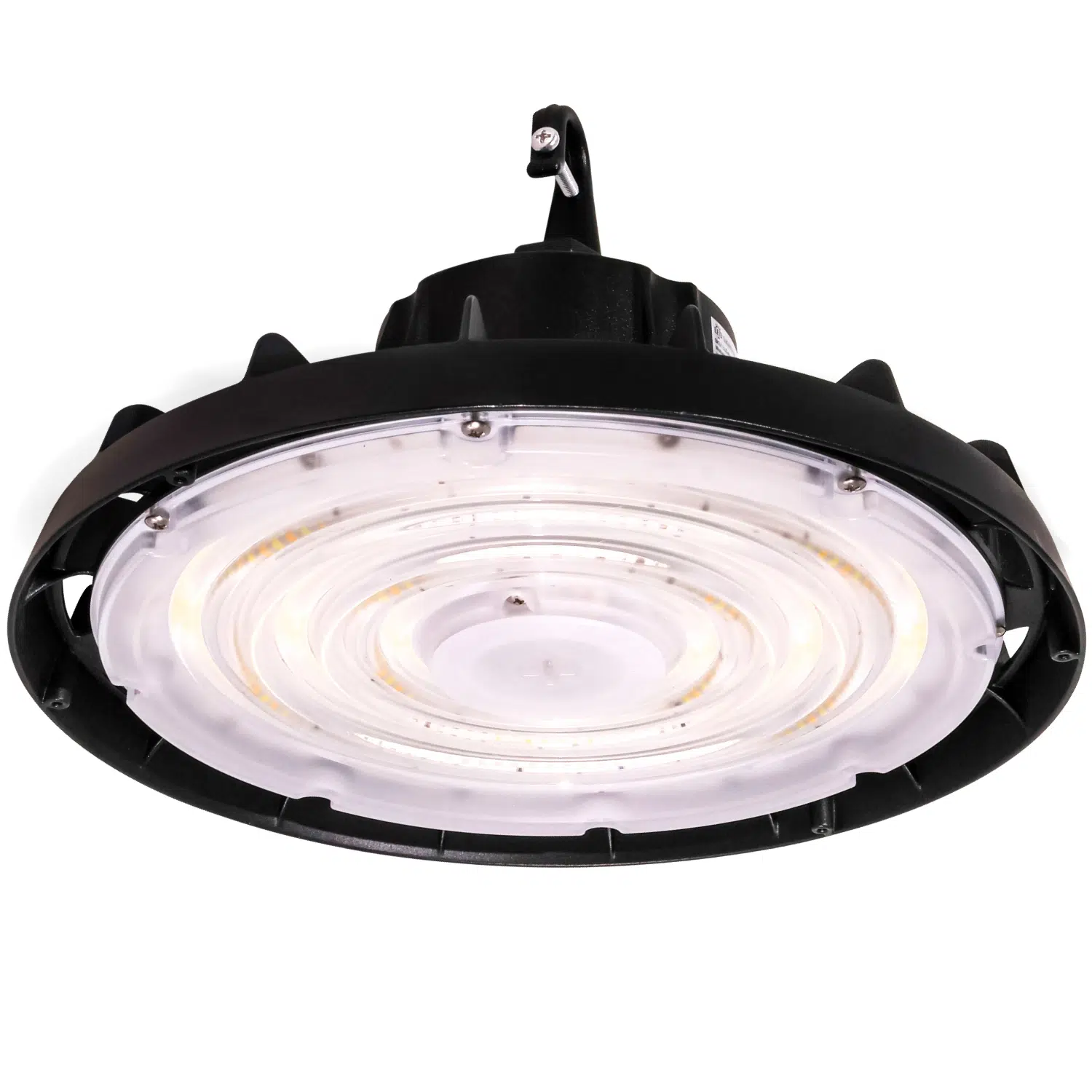

The housing is die-cast aluminum with a black finish. A polycarbonate lens protects the optical system.

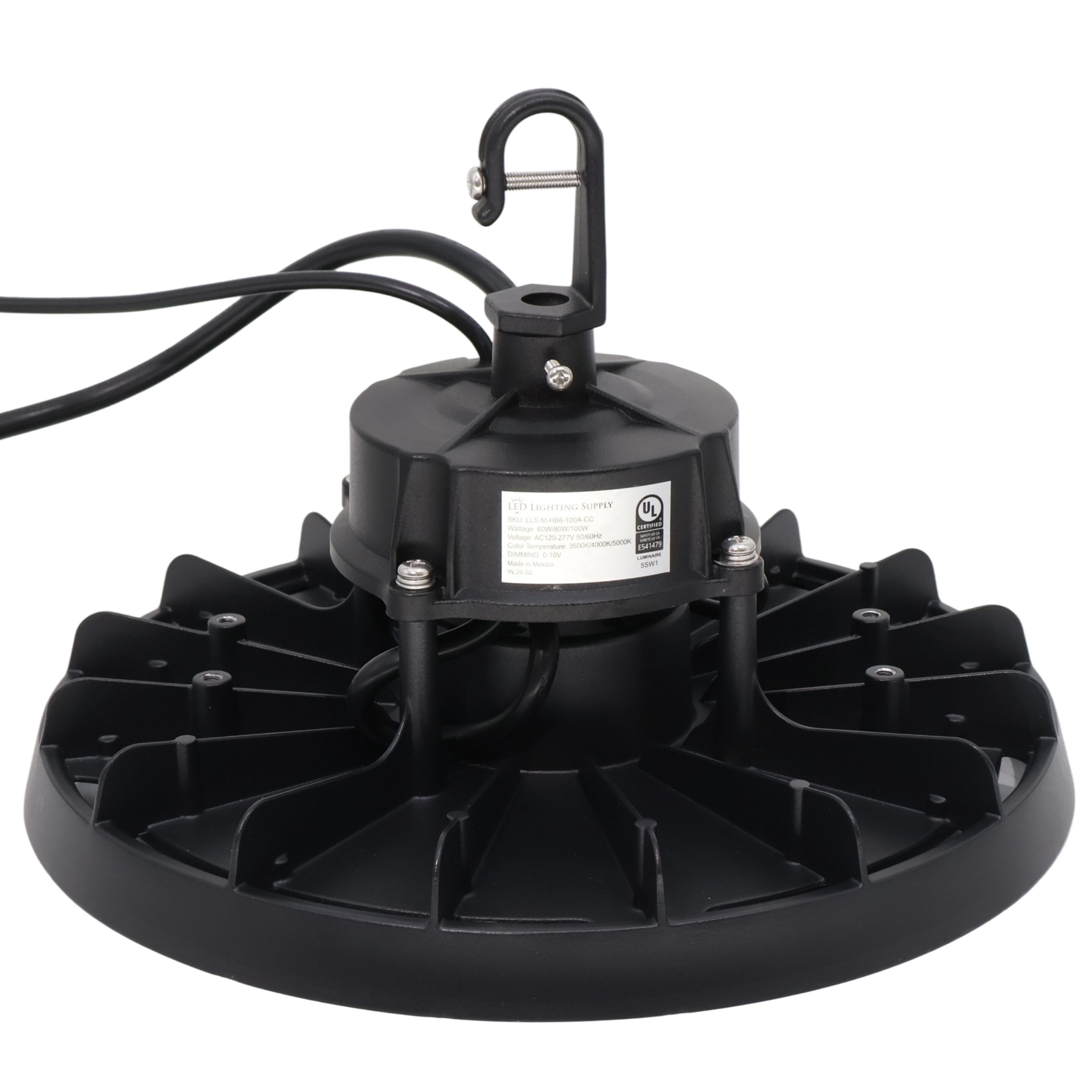

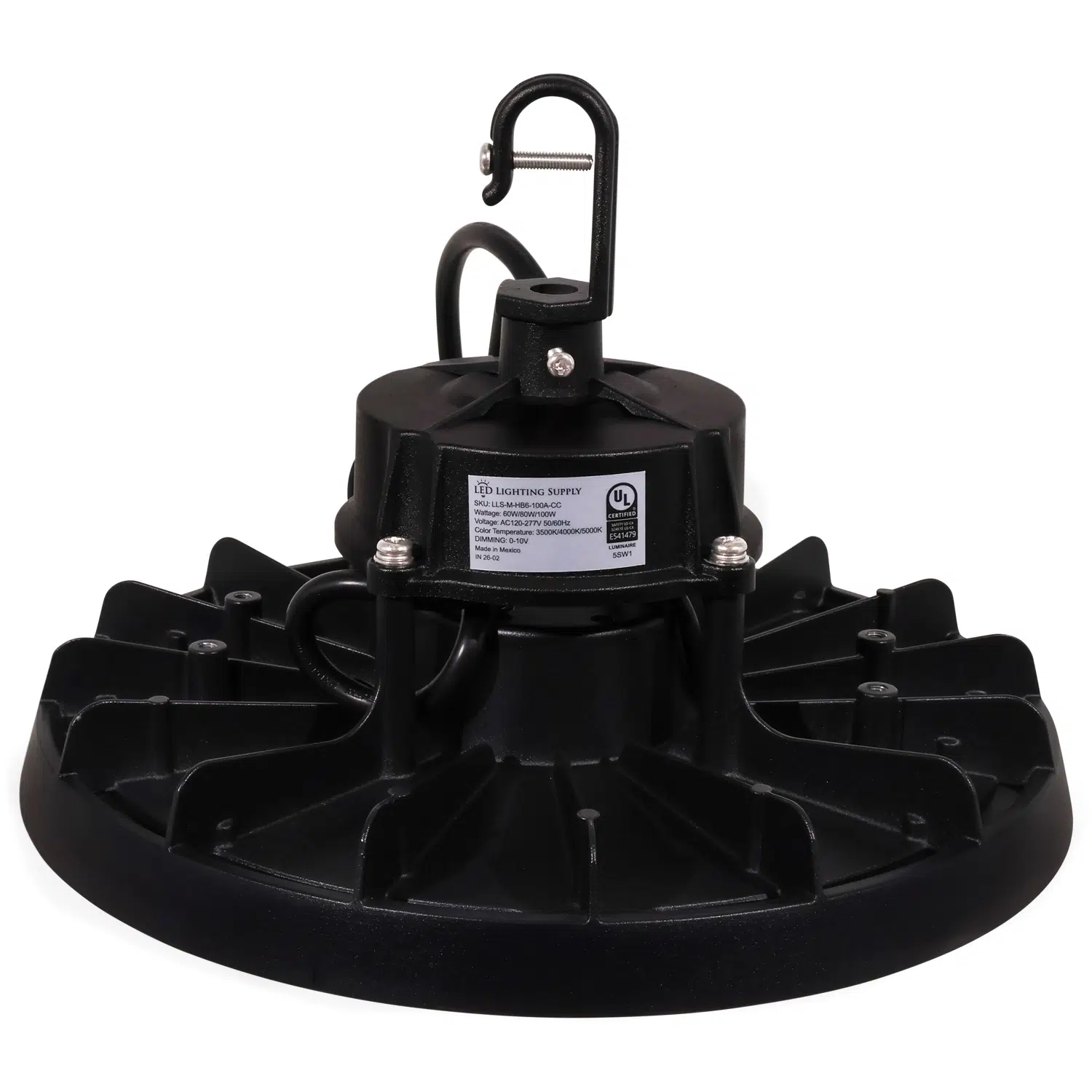

Fixture dimensions are 11 inches wide by 5 inches high. Fixture weight is 3.5 pounds, with hook mounting provided for suspended installation.
Where This Product Fits Best
This fixture fits medium-output indoor high bay layouts requiring selectable wattage, color temperature, and beam angle. Its hook mount and compact UFO form factor suit suspended fixture layouts.
- warehouse lighting
- manufacturing facility lighting
- distribution center lighting
- gymnasium lighting
- aircraft hangar lighting
- commercial shop lighting
The IP65 rating, IK08 rating, die-cast aluminum housing, and -22 degrees F to 122 degrees F operating range support locations with dust, moisture exposure, and changing ambient conditions.
Installation and Long-Term Use
Hook mounting requires a suitable suspended support point and fixture access for setup and maintenance. Confirm the available input voltage, mounting arrangement, and selected wattage before energizing the fixture.
Wattage, color temperature, and beam angle should be set consistently across fixtures serving the same layout. Access to the fixture is required when changing these settings or using the motion sensor remote control.
How This Fixture Is Commonly Used
In warehouse lighting, manufacturing facility lighting, and distribution center lighting layouts, fixtures are suspended at project-specific mounting heights and arranged in rows or grid patterns. Beam angle selection is coordinated with mounting height and the required light distribution.
For gymnasium lighting, aircraft hangar lighting, and commercial shop lighting, fixture placement is generally arranged around the ceiling structure and available hook mounting points. Higher output can reduce fixture count, but layout requirements and beam angle selection still control uniformity.
The selected wattage setting is typically kept consistent within a defined lighting area. Different settings can be used only where the layout requires different output levels.
Safety, Certifications, and Warranty
This fixture is UL certified and DLC Premium certified.
It is rated IP65 and IK08 and includes 6kV surge protection. The warranty period is 5 years.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture has selectable 60W, 80W, and 100W settings producing 9,000, 12,000, and 15,000 lumens.
Q: What color temperatures are available?
A: Color temperature is selectable at 3500K, 4000K, or 5000K.
Q: Can the beam angle be adjusted?
A: Yes. The fixture has selectable 60 degree, 90 degree, and 110 degree beam angles.
Q: What should be considered when planning fixture layout?
A: The selected wattage, lumen output, beam angle, mounting height, and layout requirements affect fixture placement. A specific spacing value is not established by the supplied product data.
Q: How are the motion sensor settings changed?
A: A motion sensor remote control is required to change the default sensor settings. One remote is required per project.
Application Questions and Clarification
Q: Is this fixture appropriate for warehouse lighting and distribution center lighting?
A: The fixture is configured for warehouse lighting and distribution center lighting with selectable 60W, 80W, and 100W output settings, selectable beam angles, and hook mounting.
Q: What should be reviewed for manufacturing facility lighting?
A: Review the available input voltage, mounting arrangement, selected wattage, beam angle, color temperature, and required layout. The fixture operates on 100-277V or 120-277V.
Q: Can the fixture be configured differently across gymnasium lighting areas?
A: Wattage, color temperature, and beam angle are adjustable. Configuration should follow the layout requirements for the defined gymnasium lighting area.
