200 / 240 / 300 Watt Adjustable UFO High Bay | 30000 to 45000 Lumens | 3500K / 4000K / 5000K | 120-277V or 277-480V
The adjustable UFO high bay LED fixture is an excellent choice for warehouse and manufacturing facility lighting due to its versatile wattage and color temperature options, delivering 30,000 to 45,000 lumens with high efficiency. Its robust die-cast aluminum housing, IP65, and IK08 ratings ensure durability in demanding environments. With 0-10V dimming and multiple beam angles, it offers precise lighting control. The fixture’s UL certification and wide voltage range enhance reliability, making it ideal for large-scale industrial applications.
Cory Peterson | VP of Marketing and Sales Operations
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 200 | 240 | 300 |
| Lumens | 30000 | 36000 | 45000 |
| Lumens Per Watt | 150 |
| Replaces | 400 or 1000 Watt Metal Halide |
| Voltage | 120V-277V or 277V-480V |
| Color Temperature | 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 60° or 90° or 110° |
| Optics | Polycarbonate Lens |
| Lifespan | 50,000 hours |
| Mounting | Hook |
| Mounting (Opt) | Pendant |
| Fixture Color | Black |
| Frequency (Hz) | 50/60 |
| Power Factor | .90 |
| THD | 20% Max |
Durable Construction
| Housing | Die-Cast Aluminum |
| IP Rating | IP65 |
| IK Rating | IK08 |
| Surge Protection | 6kV |
| Operating Temperature | -22°F to 122°F |
| Certifications | UL | DLC Premium |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 14 W X 6 H |
| Weight (lbs) | 3.5 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Optic Adjustable
Notes
Motion sensor remote control is required to change the default sensor settings. 1 remote per project.
Default Motion Sensor Configuration
- Detection Area: 100%
- Hold Time: 3 minutes
- Standby period: 5 minutes
- Standby Dimming Level: 50% brightness
Motion Sensor Operation : If purchasing a motion sensor please note that remote control is also required. This will allow you to change the operation of the motion sensor to suit your needs.
Product SKU Variations
- SKU: LLS-M-HB6-300A-CC
- SKU: LLS-M-HB6-300A-CC-HV
Product Lighting Layout Estimator
Use this estimator to calculate approximate fixture count, spacing, and average foot-candles for a simple rectangular space using the selected LED fixture. Enter your room dimensions, mounting height, target foot-candles, light loss factor, and room/layout condition to generate a preliminary lighting layout. When IES photometry is available, workplane height and room reflectance controls are shown.
Project Inputs
Estimated Results
Estimated average foot-candles are preliminary and should be verified with a lighting plan for project-critical applications.
Room / Layout Condition: This field is used only when usable IES photometry is not available. In fallback mode, it acts as a simplified room utilization factor for reflectance, fixture distribution, racking, obstructions, and how much fixture light reaches the work area. Open / light-colored spaces use 0.90, typical warehouses or shops use 0.75, racked or obstructed spaces use 0.60, and dark or complex spaces use 0.45. When IES photometry is active, this field is hidden and the estimator uses the selected workplane height, LLF, and simplified reflectance adjustment instead.
Photometry / Simulation Note: When usable IES photometry is available for the selected fixture, this estimator uses the fixture’s IES candela data, selected workplane height, light loss factor, and simplified reflectance adjustment to estimate fixture count, average foot-candles, and visual light distribution. The reflectance adjustment is a conservative approximation and is not a full zonal-cavity, radiosity, or professional photometric room calculation. When IES photometry is not available, the estimator uses a simulated beam model based on lumens, mounting height, room/layout condition, light loss factor, and beam angle.
Preliminary Estimate Only: This estimator is intended for simple square or rectangular spaces and should be used as a planning aid, not a final photometric lighting plan. Actual light levels may vary based on fixture optics, selected IES file, mounting conditions, workplane height, ceiling height, surface reflectance, obstructions, controls, voltage, installation conditions, and site-specific requirements. Project-critical applications should be verified with a formal lighting plan.
This estimate is a starting point. Warehouses, industrial facilities, hazardous locations, sports areas, schools, healthcare spaces, public areas, and code-sensitive projects may require a reviewed lighting layout before purchase or installation.
Product Overview
This adjustable UFO high bay is a round LED fixture for overhead indoor lighting in large open spaces. It provides selectable wattage, color temperature, and beam distribution within one fixture configuration.
The 200W, 240W, and 300W settings produce 30,000, 36,000, or 45,000 lumens. This fixture is commonly used for metal halide replacement projects where existing high-bay locations need higher output with lower connected load.
Core Performance and Output
This UFO high bay delivers 150 lumens per watt at its available 200W, 240W, and 300W settings. Output ranges from 30,000 to 45,000 lumens with 80+ CRI and selectable 3500K, 4000K, or 5000K color temperature.
Selectable 60 degree, 90 degree, and 110 degree beam angles allow the distribution to match mounting height and fixture layout. The 60 degree optic concentrates output for higher mounting locations, while the 110 degree optic provides a wider distribution at lower mounting heights.
The fixture operates on 120-277V or 277-480V, 50/60Hz power. Power factor is 0.90 and THD is 20% maximum.
At lower mounting heights, the 45,000-lumen setting can create excessive brightness unless the beam angle and layout are coordinated. Wider beam angles require appropriate spacing to maintain light levels between fixtures.
Adjustability and Control Options
Wattage is adjustable between 200W, 240W, and 300W. Color temperature is adjustable between 3500K, 4000K, and 5000K.

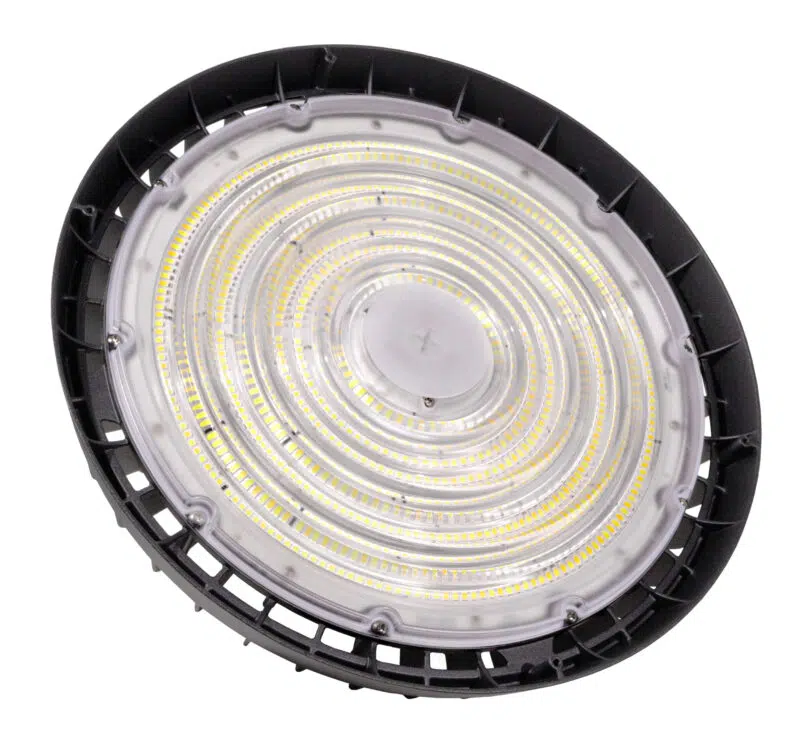

The fixture includes adjustable optics with 60 degree, 90 degree, and 110 degree beam angle options. The polycarbonate lens protects the optical assembly.
0-10V dimming is supported. Default motion sensor settings are 100% detection area, a 3-minute hold time, a 5-minute standby period, and 50% standby dimming level.
A motion sensor remote control is required to change the default sensor settings. One remote control is required per project.
Longevity and Reliability
This fixture is rated for a 50,000-hour lifespan. It includes 6kV surge protection for the electrical system.
The operating temperature range is -22F to 122F. Temperature conditions at the fixture location should remain within this range.
Build Quality and Physical Characteristics

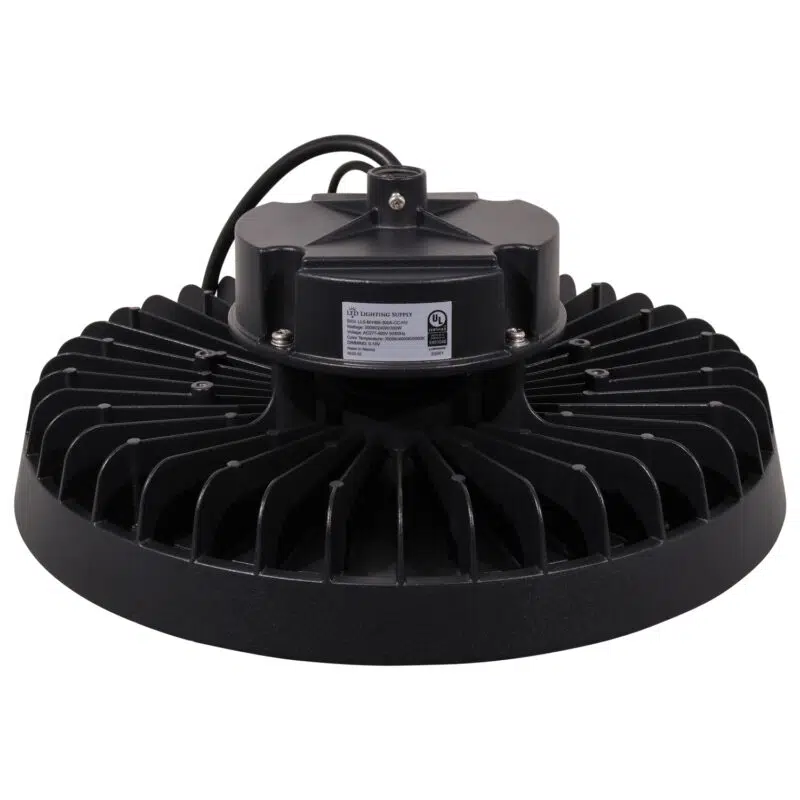

The housing is die-cast aluminum with a black finish. The fixture measures 14 inches wide by 6 inches high and weighs 3.5 pounds.
IP65 and IK08 ratings support use in locations where the fixture may be exposed to dust, moisture, or incidental impact. The standard mounting method is a hook mount.
Pendant mounting is available as an option. The mounting point and supporting structure must accommodate the fixture and selected mounting method.
Where This Product Fits Best
This UFO high bay fits large indoor areas that need concentrated overhead illumination from high-bay mounting positions. The available 30,000 to 45,000 lumen output suits higher-output layouts in open commercial and industrial spaces.
- warehouse lighting
- distribution center lighting
- manufacturing facility lighting
- aircraft hangar lighting
- gymnasium lighting
- indoor sports facility lighting
The IP65 housing, die-cast aluminum construction, and -22F to 122F operating range support demanding indoor conditions. Fixture selection should account for mounting height, beam angle, voltage, and required light levels.
Installation and Long-Term Use
The fixture mounts by hook as standard, with pendant mounting available where the installation requires a fixed drop from the overhead structure. Confirm the available supply voltage before installation because the fixture is offered in 120-277V and 277-480V versions.
Mounting height affects beam angle selection, fixture spacing, and light distribution. Higher mounting positions generally require a more concentrated optic or higher output setting to maintain usable light levels below.
For long-term operation, keep the lens and housing free of accumulated dust or debris. Sensor settings can be adjusted with the required motion sensor remote control.
How This Fixture Is Commonly Used
In warehouse lighting, distribution center lighting, and manufacturing facility lighting, these fixtures are arranged in overhead rows or grid layouts based on the building layout and target light levels. Hook mounting is common where suitable overhead mounting points are available.
For aircraft hangar lighting, gymnasium lighting, and indoor sports facility lighting, beam angle selection is coordinated with mounting height and the area requiring illumination. Higher output can reduce fixture count, but it can also increase brightness and glare if the layout is not controlled.
Wattage selection, mounting height, and selected optic determine spacing between fixtures. A specific spacing value is not established by the supplied product data.
Safety, Certifications, and Warranty
This UFO high bay is UL certified and DLC Premium listed. It has an IP65 rating and IK08 rating.
The fixture includes a 5-year warranty. It includes 6kV surge protection.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture is adjustable between 200W, 240W, and 300W. These settings produce 30,000, 36,000, and 45,000 lumens.
Q: What beam angles are available?
A: The fixture has selectable 60 degree, 90 degree, and 110 degree beam angles.
Q: What mounting methods are available?
A: Hook mounting is standard. Pendant mounting is available as an option.
Q: What should be considered when planning fixture layout?
A: Wattage setting, beam angle, mounting height, and target light levels affect fixture layout. A specific spacing value is not established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture available for warehouse lighting and manufacturing facility lighting?
A: Yes. Warehouse lighting and manufacturing facility lighting are primary applications for this UFO high bay product family.
Q: Can the fixture be used for gymnasium lighting or indoor sports facility lighting?
A: Yes. Gymnasium lighting and indoor sports facility lighting are valid applications for this UFO high bay product family.
Q: What voltage information should be confirmed before installation?
A: Confirm whether the installation uses 120-277V or 277-480V power. The fixture is available in both voltage ranges.
Q: What is needed to change the default motion sensor settings?
A: A motion sensor remote control is required to change the default sensor settings.
