30 Watt LED Outdoor Wall Sconce | 3200 Lumens | 3000K / 4000K / 5000K | 100-277V | Nickel Finish | 3 Foot
Dwayne Kula | President, CTO and Founder
1105 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 30 |
| Lumens | 3200 |
| Lumens Per Watt | 107 |
| Replaces | 50 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | Triac |
| Beam Angles (Std) | 90° |
| Lifespan | 50,000 hours |
| Mounting | Wall |
| Fixture Color | Brushed Nickel |
| Frequency (Hz) | 50/60 |
| Power Factor | > .9 |
| THD | < 20% |
Durable Construction
| Housing | Steel |
| IP Rating | Wet Location Rated |
| Certifications | ETL |
Measurements
| Dimensions (in) | 7 X 3.25 X 36 |
| Weight (lbs) | 6.2 |
Features/Accessories
- Color Adjustable
- Photocell
Download IES Files
Product Overview

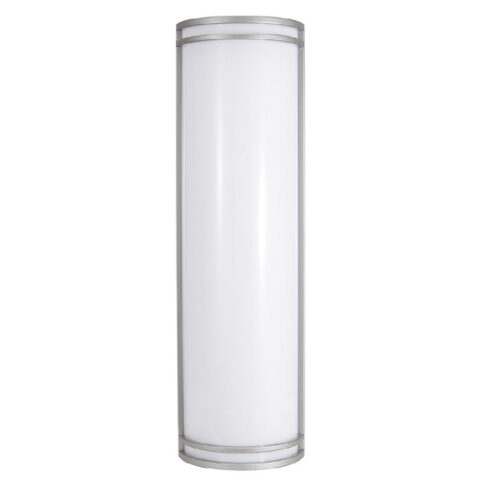

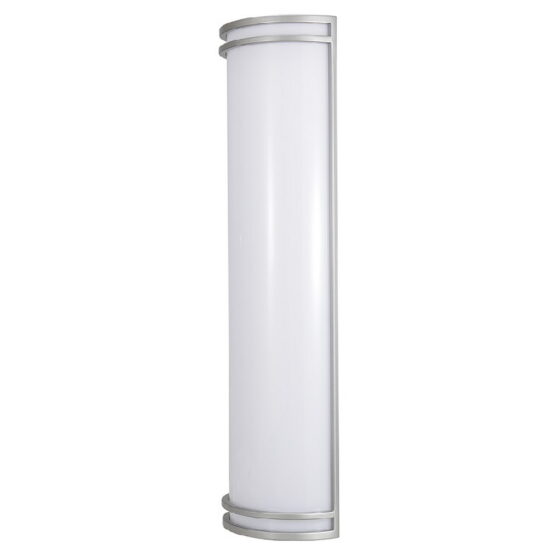

This 30-watt LED outdoor wall sconce is a 3-foot architectural wall fixture for exterior wall illumination. It produces 3200 lumens and provides selectable 3000K, 4000K, or 5000K color temperature.
The brushed nickel steel housing, wall-mounted design, and wet location rating support exterior architectural installations. This fixture is listed as a replacement for 50-watt metal halide lighting.
Core Performance and Output
The fixture delivers 3200 lumens at 107 lumens per watt. Its standard 90-degree beam angle directs light outward from the wall for architectural wall lighting and entry lighting.
It operates on 100-277V, 50/60 Hz power with a power factor above 0.9 and THD below 20%. The 3200-lumen output can be excessive where low-level accent wall lighting is required.
Adjustability and Control Options
Selectable color temperature allows the fixture to be set to 3000K, 4000K, or 5000K before installation. Color selection should remain consistent across connected wall runs and adjacent exterior elevations.
The fixture supports Triac dimming and includes a photocell. Dimming and photocell operation depend on compatible project controls and wiring.
Longevity and Reliability
This wall sconce is rated for 50,000 hours of life. The LED source reduces routine lamp replacement associated with metal halide wall fixtures.
Long-term performance depends on maintaining the wall mounting surface, electrical connections, and exterior seals. Inspect the fixture during normal exterior lighting maintenance.
Build Quality and Physical Characteristics
The fixture uses a steel housing with a brushed nickel finish. It measures 7 x 3.25 x 36 inches and weighs 6.2 pounds.
Its 36-inch linear form is intended for visible architectural wall mounting rather than compact point-source wall lighting. Confirm wall surface condition and fixture location before mounting.
Where This Product Fits Best
This fixture fits exterior architectural walls, building entries, hospitality exteriors, and multifamily exterior areas where a linear brushed nickel wall sconce is appropriate.
- architectural wall lighting
- entry lighting
- hospitality exterior lighting
- multifamily exterior lighting
- decorative facade lighting
- pedestrian entry lighting
The wet location rating supports exposure to exterior moisture. The steel housing and wall-mounted configuration suit finished exterior wall surfaces.
Installation and Long-Term Use
Mount the fixture on a stable wall surface with the required electrical connection available at the installation point. The 100-277V input supports common commercial voltage systems.
Set the color temperature before final commissioning. Verify Triac dimming and photocell wiring when those features are part of the installation.
How This Fixture Is Commonly Used
For architectural wall lighting and decorative facade lighting, fixtures are commonly arranged in consistent horizontal locations across the wall elevation. Mounting height should be determined by the wall design, target illumination, and visible fixture placement.
For entry lighting, pedestrian entry lighting, hospitality exterior lighting, and multifamily exterior lighting, fixture placement follows entrances, wall sections, and pedestrian approaches. Spacing varies with the required light level, wall geometry, and selected color temperature.
Safety, Certifications, and Warranty
This fixture is ETL listed and wet location rated.
Disconnect power before installation or service. The supplied product data does not state a warranty term.
Frequently Asked Questions
Q: What is the light output of this wall sconce?
A: The fixture produces 3200 lumens at 30 watts.
Q: Which color temperatures are available?
A: The selectable color temperatures are 3000K, 4000K, and 5000K.
Q: Does this fixture support dimming?
A: Yes. The fixture supports Triac dimming.
Q: Is the fixture suitable for wet locations?
A: Yes. The fixture is wet location rated.
Q: What should be considered when planning fixture spacing?
A: Wall geometry, mounting height, target light levels, and the 90-degree beam angle affect fixture spacing. The supplied product data does not establish a specific spacing value.
Application Questions and Clarification
Q: Is this fixture intended for architectural wall lighting?
A: Yes. Architectural wall lighting is a primary application for this LED wall sconce.
Q: Can this fixture be used for entry lighting?
A: Yes. Entry lighting and pedestrian entry lighting are valid applications for this fixture family.
Q: What should be confirmed before installing this fixture for hospitality exterior lighting?
A: Confirm the wall mounting location, available 100-277V power, selected color temperature, and any required Triac dimming or photocell wiring.
Web ID: 2329
