10 / 16 / 20 Watt Adjustable LED Outdoor Wall Sconce | 1200 to 2400 Lumens | 3000K / 4000K / 5000K | 100-277V | Photocell | Bronze or Black
This LED outdoor wall sconce is a strong choice for commercial and industrial exterior applications requiring flexibility and durability. Its selectable wattage and color temperature allow precise tuning of light output and appearance to match site needs or existing fixtures, while the adjustable beam angle and up/down light control support both architectural accenting and targeted area illumination. The UL wet location rating and aluminum alloy housing ensure reliable operation in exposed outdoor environments, and the built-in photocell automates dusk-to-dawn operation. Ideal for building perimeters, entryways, walkways, and loading areas.
Dwayne Kula | President, CTO and Founder
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 10 | 16 | 20 |
| Lumens | 1200 | 1920 | 2400 |
| Lumens Per Watt | 120 |
| Replaces | 50 Watt Metal Halide |
| Voltage | 100V-277V |
| Color Temperature | 3000K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | No |
| Lifespan | 50,000 hours |
| Mounting | Wall |

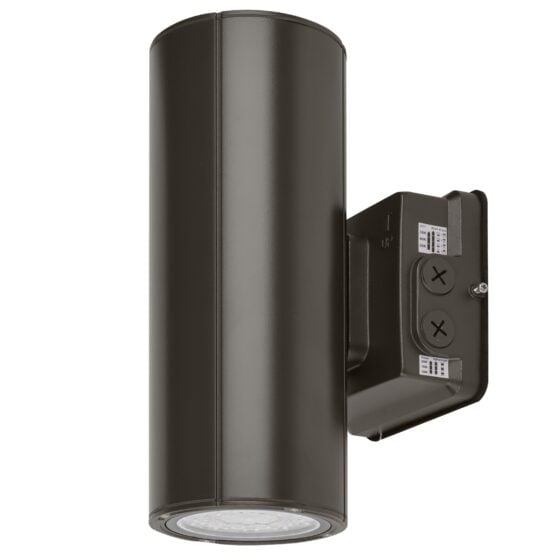

| Fixture Color | Black or Bronze |
Durable Construction
| Housing | Aluminum Alloy |
| IP Rating | Wet Location Rated |
| Certifications | UL | Rebate Eligible |
Measurements
| Dimensions (in) | 11.8 x 5.6 x 7 |
| Weight (lbs) | 5.25 |
Features/Accessories
- Color Adjustable
- Wattage Adjustable
- Optic Adjustable
- Photocell
Product SKU Variations
- SKU: LLS-X-CYL-20A-CC-BZ-PC
- SKU: LLS-X-CYL-20A-CC-BK-PC
Download IES Files
Product Overview
This adjustable LED outdoor wall sconce is a wall-mounted fixture for architectural wall lighting, entry lighting, hospitality exterior lighting, and multifamily exterior lighting. It provides selectable wattage, color temperature, and optic settings in a compact exterior housing.
The fixture operates from 100-277V and replaces a 50 watt metal halide fixture. Black and bronze housing finishes are available for coordination with exterior wall surfaces.
Core Performance and Output
Selectable output settings include 10 watts at 1200 lumens, 16 watts at 1920 lumens, and 20 watts at 2400 lumens. Fixture efficacy is 120 lumens per watt with an 80+ CRI.
Selectable color temperatures include 3000K, 4000K, and 5000K. The adjustable optic allows the distribution to be set for the wall and surrounding area; the 2400-lumen setting can be excessive at low wall mounting heights.

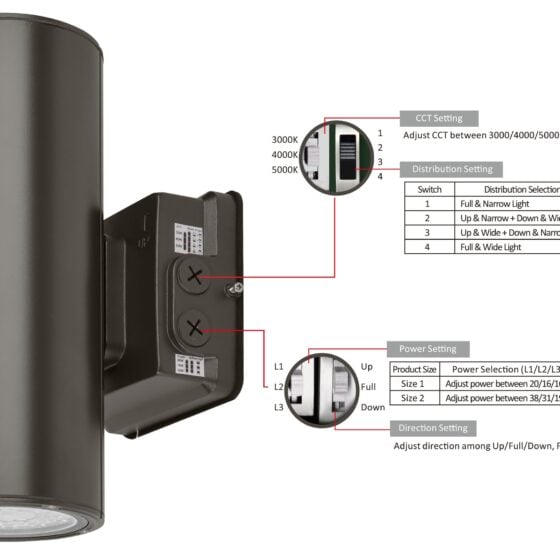

Adjustability and Control Options
This wall sconce includes selectable wattage, color temperature, and optic settings. These adjustments allow the fixture output and appearance to be set before final commissioning.
A photocell is included. The fixture does not provide dimming.
Longevity and Reliability
Rated life is 50,000 hours. This supports long-term exterior operation where wall-mounted fixture access may require scheduled maintenance coordination.
The aluminum alloy housing is wet location rated. Selection of the wattage and color setting should be documented during installation for future maintenance reference.
Build Quality and Physical Characteristics
The housing is aluminum alloy and is available in black or bronze. The fixture measures 11.8 x 5.6 x 7 inches and weighs 5.25 pounds.
Wall mounting is the specified installation method. Confirm the wall surface, junction box condition, and fixture location before installation.
Where This Product Fits Best
This fixture fits exterior wall locations where controlled architectural illumination, entry visibility, and wall-mounted light distribution are required.
- architectural wall lighting
- entry lighting
- hospitality exterior lighting
- multifamily exterior lighting
- decorative facade lighting
- corridor wall lighting
- pedestrian entry lighting
Its wet location rating supports exposed exterior wall installations. The adjustable wattage, color temperature, and optic settings allow the fixture configuration to match the specific wall condition.
Installation and Long-Term Use
Install the fixture on a suitable wall-mounted electrical location with 100-277V input. Set wattage, color temperature, and optic position before final closure and commissioning.
Mounting height should be determined by the wall geometry, required light level, and selected optic. The photocell should be positioned and tested after installation to confirm its operating response.
How This Fixture Is Commonly Used
For architectural wall lighting and decorative facade lighting, fixtures are typically arranged along the wall to maintain a consistent visual pattern. For entry lighting and pedestrian entry lighting, placement is centered or balanced around the approach area.
Corridor wall lighting and multifamily exterior lighting layouts commonly follow building openings, doors, and circulation paths. Spacing varies with mounting height, selected wattage, optic setting, and target light levels.
Safety, Certifications, and Warranty
UL listed. Wet location rated. Rebate eligible.
Warranty details are not provided in the supplied product information.
Frequently Asked Questions
Q: What output settings are available?
A: The fixture is selectable at 10 watts and 1200 lumens, 16 watts and 1920 lumens, or 20 watts and 2400 lumens.
Q: What color temperatures are available?
A: Selectable color temperatures are 3000K, 4000K, and 5000K.
Q: Does this wall sconce include dimming?
A: No. The fixture does not provide dimming.
Q: Is a photocell included?
A: Yes. A photocell is included.
Q: What mounting method is specified?
A: This fixture is designed for wall mounting.
Application Questions and Clarification
Q: Is this fixture suitable for hospitality exterior lighting?
A: Hospitality exterior lighting is a listed primary application for this LED wall sconce.
Q: Can the fixture configuration be adjusted for architectural wall lighting?
A: The fixture has adjustable wattage, color temperature, and optic settings. Architectural wall lighting is a listed primary application.
Q: What should be reviewed before setting fixture placement for entry lighting?
A: Mounting height, wall geometry, selected wattage, optic setting, and required light levels affect fixture placement. The supplied product data does not establish a specific spacing value.
Web ID: 2648
