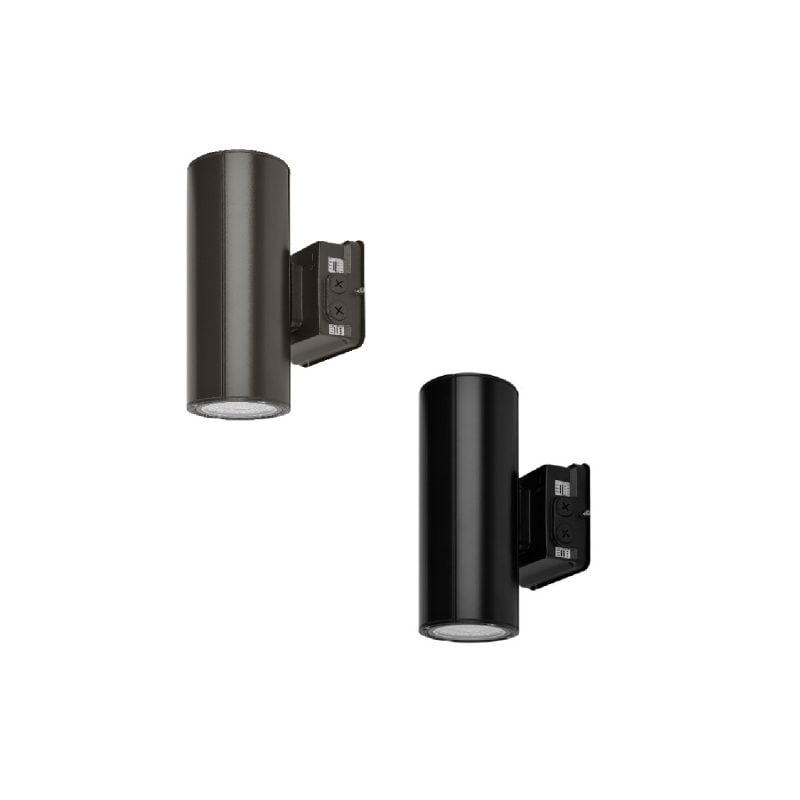

10 / 16 / 20 Watt Adjustable LED Outdoor Wall Sconce | 1200 to 2400 Lumens | 3000K / 4000K / 5000K | 100-277V | Built-In Photocell | Bronze or Black Housing

Product Overview

This adjustable LED outdoor wall sconce delivers 1200 to 2400 lumens across three selectable wattage settings: 10, 16, and 20 watts. Field-adjustable switches allow configuration of color temperature (3000K, 4000K, or 5000K), wattage output, and beam pattern after the fixture is mounted. The built-in photocell enables automatic dusk-to-dawn operation without additional controls.

The fixture replaces 50 watt metal halide wall packs while operating at 120 lumens per watt. Housing is available in bronze or black finish, constructed from aluminum alloy. Dimensions are 11.8 x 5.6 x 7 inches with a weight of 5.25 lbs.

A unique optic adjustment allows selection between narrow and wide beam angles. An additional field switch controls light direction?up only, down only, or both up and down simultaneously. This combination of adjustments supports a range of facade lighting approaches from a single fixture model.

Where This Product Fits Best

This wall sconce is UL wet location rated, making it suitable for fully exposed exterior mounting where rain, snow, and direct water contact occur. Typical locations include building entrances, loading dock doors, exterior stairwells, and perimeter walls on commercial and industrial properties.

The 100-277V input range supports direct connection to common commercial electrical systems without voltage-specific fixtures. The built-in photocell suits applications where automatic nighttime operation is required without integration into a building automation or lighting control system.

The directional adjustment?up, down, or both?fits installations where architectural accent lighting, pathway illumination, or security lighting goals vary by mounting location. Properties with mixed facade requirements can address different areas using the same fixture configured differently at each position.

Performance and Functional Considerations

Output ranges from 1200 lumens at 10 watts to 2400 lumens at 20 watts, with 1920 lumens available at the 16-watt setting. All three wattage levels maintain 120 lumens per watt efficiency. CRI is 80+, which provides accurate color rendering for general exterior applications including signage visibility and entrance identification.

Color temperature selection covers 3000K for warmer appearance, 4000K for neutral white, and 5000K for cooler daylight tones. This allows matching existing site lighting or meeting architectural preferences without fixture substitution.

The optic adjustment between narrow and wide beam angles affects how light is distributed across the mounting surface and adjacent areas. Narrow patterns concentrate output for accent or task purposes; wide patterns spread light for general area coverage. The directional switch further shapes distribution by controlling whether light projects upward, downward, or in both directions.

Installation and Long-Term Use

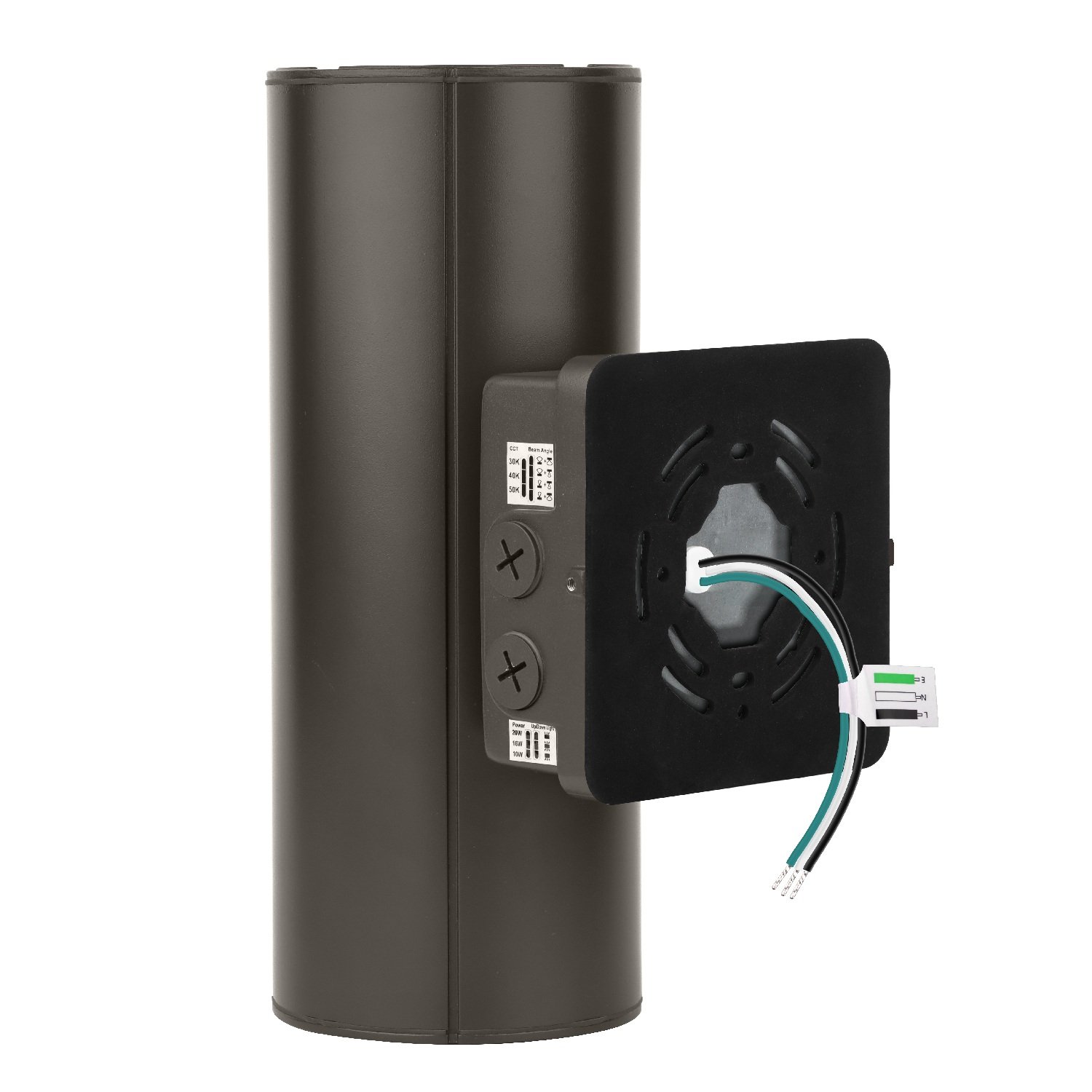

The fixture mounts directly to a wall surface. All adjustments?wattage, color temperature, beam angle, and light direction?are made via switches accessible during or after installation. No tools or disassembly are required to change settings once the fixture is mounted.

Rated lifespan is 50,000 hours. The aluminum alloy housing supports long-term exterior exposure. At 5.25 lbs, the fixture is manageable for single-person installation on standard wall substrates with appropriate fasteners.

The built-in photocell requires no wiring beyond standard line voltage connection. The photocell sensor location should have unobstructed exposure to ambient daylight for accurate on/off response.

How This Fixture Is Commonly Used

After installation, the most frequent interaction involves adjusting the directional switch to match the lighting goal at each location. Entrances often use the down-only setting to illuminate walkways and door areas. Accent applications on architectural facades may use up-only or both directions to wash the wall surface and highlight building features.

The beam angle adjustment is typically set once during commissioning based on the wall height and how far light needs to project from the fixture. Narrow settings work well on taller walls or where light should remain close to the building. Wide settings spread output across broader surfaces or shorter mounting heights.

Wattage and color temperature selections are usually determined during initial setup to match site standards or energy targets. These can be changed later if requirements shift?such as adjusting from 20 watts to 10 watts if output proves excessive, or changing color temperature to match a new tenant''s preferences.

Safety, Certifications, and Warranty

This fixture is UL listed. It is rebate eligible through qualifying utility programs.

The UL wet location rating confirms suitability for direct exposure to weather, including rain and snow contact. The aluminum alloy housing resists corrosion in exterior environments.

LED Lighting Supply provides a 5-year warranty on this fixture.

Frequently Asked Questions

What wattage and lumen options are available?
The fixture offers three settings: 10 watts at 1200 lumens, 16 watts at 1920 lumens, and 20 watts at 2400 lumens. Selection is made via a field-adjustable switch.

What voltage does this fixture require?
The fixture accepts 100-277V input, compatible with most commercial electrical systems.

Is this fixture rated for outdoor use?
Yes. It carries a UL wet location rating and is suitable for fully exposed exterior mounting.

What color temperatures are available?
Three options: 3000K, 4000K, and 5000K. Selection is field-adjustable.

Is this fixture eligible for utility rebates?
Yes. The fixture is rebate eligible.

What is the warranty?
LED Lighting Supply provides a 5-year warranty.

Does this fixture dim?
No. This fixture is not dimmable.

What housing colors are available?
Bronze and black.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
