40 / 48 / 64 / 80 Wattage Adjustable Architectural Linear Light | 4400 to 9200 Lumens | 2700K / 3000K / 3500K / 4000K / 5000K | 100-277V | 8 Foot
This 8-foot architectural linear LED fixture is a strong choice for offices, schools, and commercial interiors needing flexible, efficient lighting. Its selectable wattage (40-80W) and color temperature (2700K-5000K) allow precise adaptation to changing requirements, while output up to 9,200 lumens and 115 lumens per watt supports both general and task lighting. The polycarbonate lens ensures even, low-glare illumination, and 0-10V dimming enables further control. UL listing, a 100,000-hour lifespan, and a 5-year warranty provide reliability for long-term use. It is not intended for outdoor or wet locations, as it is designed for indoor environments only.
Dwayne Kula | President, CTO and Founder
501 in stock
Product Specifications
Key Features
| Brand | LED Lighting Supply |
| Watts | 40 | 48 | 64 | 80 |
| Lumens | 4400 | 5600 | 7200 | 9200 |
| Lumens Per Watt | 115 |
| Replaces | Fluorescent Strip |
| Voltage | 100V-277V |
| Color Temperature | 2700K or 3000K or 3500K or 4000K or 5000K |
| CRI | 80+ |
| Dimming | 0-10V |
| Beam Angles (Std) | 360° |
| Optics | Polycarbonate Lens |
| Lifespan | 100,000 (L70) hours |
| Mounting (Opt) | Chain-Cable or Surface |
| Fixture Color | White |
| Frequency (Hz) | 50/60 |
Durable Construction
| Operating Temperature | -4°F to 122°F |
| Certifications | UL | Rebate Eligible |
| Warranty | 5 years |
Measurements
| Dimensions (in) | 95.7 X 2.1 X 3.2 |
| Weight (lbs) | 13 lbs |
Features/Accessories
- Color Adjustable
Direct / Indirect Light Settings:
100% down 0% up
70% down 30% up
50% down 50% up
Download IES Files
Product Overview
This 8-foot architectural linear light is a wattage-adjustable LED fixture for architectural linear lighting, commercial interior linear lighting, office linear lighting, and retail linear lighting. It operates from 100-277V and provides selectable color temperature from 2700K through 5000K.
The fixture replaces fluorescent strip lighting where a longer linear form factor, adjustable output, and cleaner ceiling appearance are required. Chain-cable and surface mounting support suspended and direct ceiling installations.
Core Performance and Output
Selectable wattage settings of 40W, 48W, 64W, and 80W produce 4,400, 5,600, 7,200, and 9,200 lumens. Fixture efficacy is 115 lumens per watt, with 80+ CRI.
A 360 degree distribution provides broad light around the fixture through a polycarbonate lens. The 100-277V, 50/60Hz electrical range supports common commercial branch circuits.
The 80W setting can be excessive where lower ceilings or lower light levels are required. Higher-output settings can reduce fixture count, but layout still needs to account for uniformity and visual comfort.
Adjustability and Control Options
Wattage is adjustable across four output levels. Color temperature is adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K.
0-10V dimming is included for installations using compatible dimming controls. Output and color settings should be established before final commissioning so fixture groups remain consistent.
Longevity and Reliability
The rated lifetime is 100,000 hours at L70. This rating supports long-term operation where fixture access may require lift equipment or ceiling access coordination.
The fixture is rated for operation from -4F to 122F. Long-term performance depends on maintaining the fixture within this operating temperature range.
Build Quality and Physical Characteristics
The white fixture body measures 95.7 inches long by 2.1 inches wide by 3.2 inches high. Fixture weight is 13 pounds.
A polycarbonate lens protects the light-emitting assembly and distributes output around the linear body. The narrow profile works with both surface-mounted and chain-cable suspended layouts.
Where This Product Fits Best
This fixture fits interior linear lighting layouts that need selectable output, selectable color temperature, and either direct or suspended mounting. Its 8-foot length is suited to organized ceiling rows and longer interior lighting runs.
- architectural linear lighting
- commercial interior linear lighting
- office linear lighting
- retail linear lighting
- corridor linear lighting
- educational facility linear lighting
- continuous row lighting
The fixture is intended for indoor conditions within its listed operating temperature range. Surface mounting suits direct ceiling attachment, while chain-cable mounting supports suspended linear arrangements.
Installation and Long-Term Use

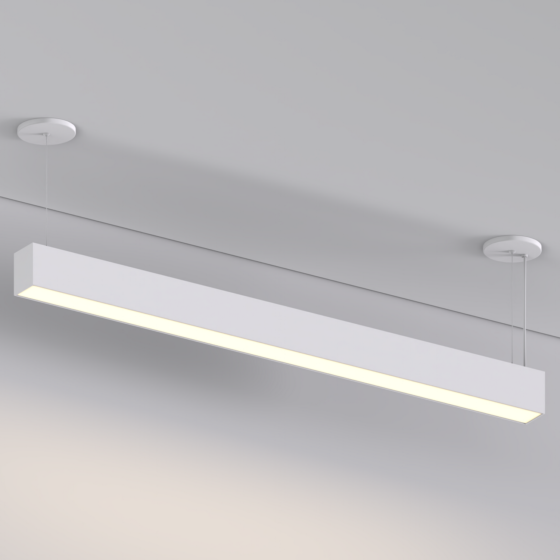

Installation uses either chain-cable or surface mounting. The mounting method should match the ceiling structure, desired fixture elevation, and intended row alignment.
For chain-cable installations, fixture elevation and cable alignment affect the appearance of continuous rows. For surface mounting, verify the mounting surface can support the 13-pound fixture and maintain straight fixture-to-fixture alignment.
Set wattage and color temperature consistently across connected lighting areas before turnover. Access for future cleaning, inspection, and control service should be considered during layout development.
How This Fixture Is Commonly Used
In architectural linear lighting and commercial interior linear lighting, fixtures are commonly arranged in straight runs that follow ceiling geometry and circulation paths. Surface mounting keeps the fixture close to the ceiling, while chain-cable mounting establishes a suspended elevation.
Office linear lighting, retail linear lighting, corridor linear lighting, and educational facility linear lighting commonly use aligned fixture rows for consistent visual direction. Continuous row lighting requires consistent mounting height and fixture alignment across the run.
Mounting height, selected wattage, and target light levels affect spacing and row layout. Higher output can reduce fixture count, but may require more attention to brightness directly below the fixtures.
Safety, Certifications, and Warranty
This fixture is UL certified and rebate eligible.
The warranty is 5 years. The listed operating temperature range is -4F to 122F.
Frequently Asked Questions
Q: What output levels are available?
A: The selectable wattage settings are 40W, 48W, 64W, and 80W. Corresponding output levels are 4,400, 5,600, 7,200, and 9,200 lumens.
Q: What color temperatures can be selected?
A: The fixture provides selectable 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures.
Q: Does this fixture support dimming?
A: Yes. The fixture supports 0-10V dimming.
Q: What mounting options are available?
A: The available mounting options are chain-cable mounting and surface mounting.
Q: How should wattage selection be considered during layout planning?
A: The selected 40W, 48W, 64W, or 80W setting affects fixture output. Mounting height, target light levels, and layout requirements affect final fixture placement, and no specific spacing value is established by the supplied product data.
Application Questions and Clarification
Q: Is this fixture appropriate for continuous row lighting?
A: Yes. Continuous row lighting is a listed application, and the 95.7-inch fixture length supports linear row arrangements. Final row alignment depends on the mounting method and ceiling layout.
Q: What should be reviewed for office linear lighting or educational facility linear lighting?
A: Review the selected wattage, color temperature, mounting method, mounting height, target light levels, and layout requirements. The fixture provides four wattage settings, five color temperature settings, and chain-cable or surface mounting.
Q: Can the fixture operate on different commercial voltages?
A: The fixture operates on 100-277V at 50/60Hz.
