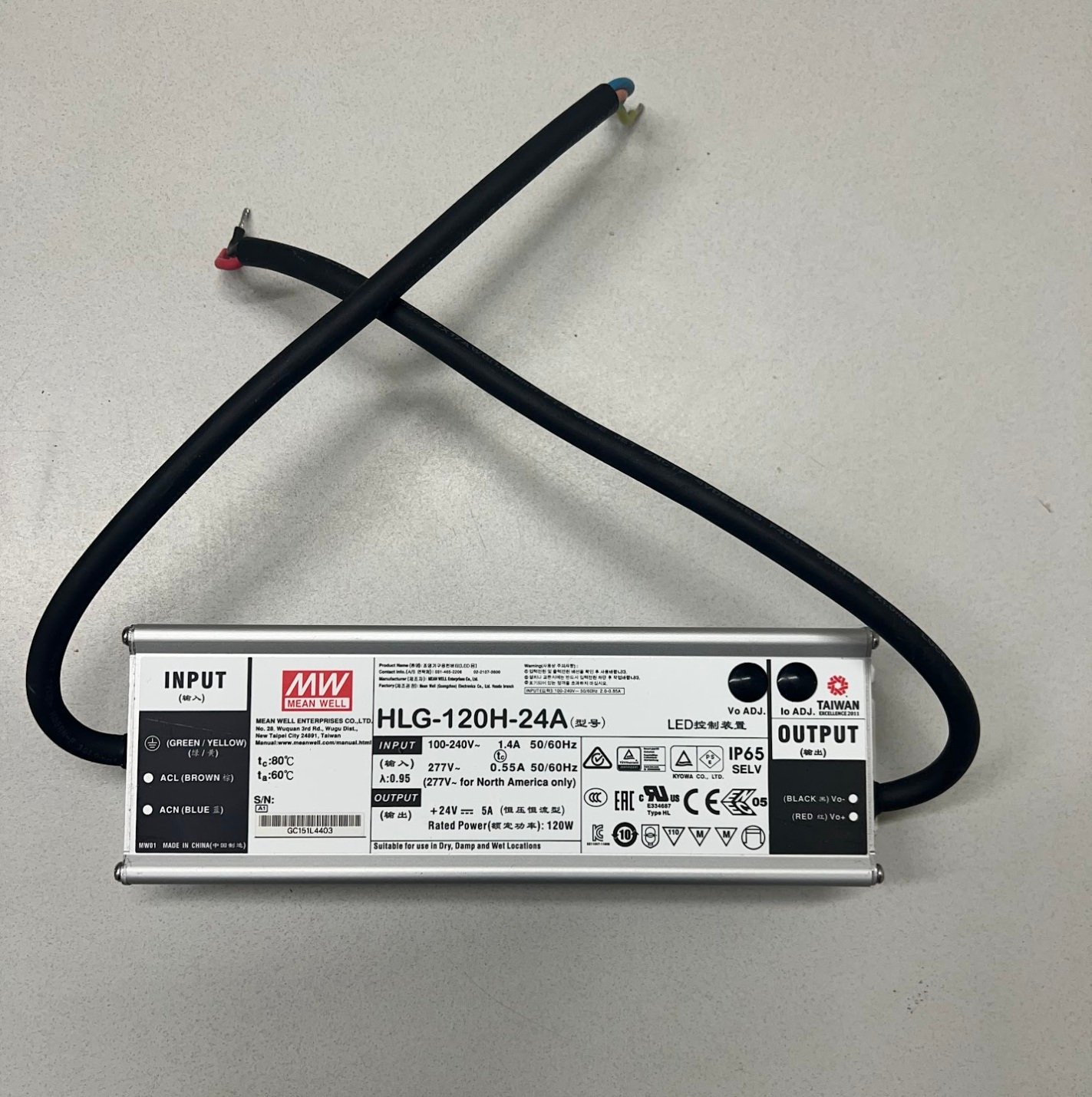

120 Watt Mean Well LED Driver | HLG-120H-24A

Product Overview

The 120 Watt Mean Well LED Driver | HLG-120H-24A is an outdoor-rated constant voltage power supply designed for use with compatible LED fixtures. This unit is suitable for both new installations and field replacements where a 120W, 24V DC output is required. Typical use cases include powering LED luminaires in sports field and stadium environments, as well as supporting emergency backup integration and fixture repair in commercial and industrial settings.

The driver operates on 100-277V input and is built for environments where durability and weather resistance are necessary. The IP65 rating and UL certification allow for installation in outdoor enclosures or exposed locations, provided all connections are properly sealed.

Core Performance and Output

This driver delivers a stable 120W output at 24V DC, supporting consistent performance for LED fixtures requiring this voltage and power level. The unit is compatible with 50/60 Hz input frequencies and is designed for high efficiency and low standby power consumption. Output regulation is tight, minimizing voltage fluctuations that can affect fixture longevity or performance.

The driver?s output is suitable for powering multiple fixtures or a single high-wattage luminaire, depending on system design. Excessive loading beyond 120W will trigger protection circuits. At lower loads, efficiency remains high, but oversizing the driver for small fixtures is not recommended due to cost and enclosure space constraints.

Adjustability and Control Options

The HLG-120H-24A model includes an adjustable output current feature via internal potentiometer, allowing fine-tuning to match fixture requirements. This supports flexibility in retrofit and repair scenarios where exact fixture loads may vary. The driver does not include integrated dimming controls; external dimming or control systems must be compatible with constant voltage drivers if required.

Adjustment access requires removal of the end cap, and all adjustments should be made with power off to ensure safety and maintain UL compliance. No onboard programming or digital interface is provided.

Longevity and Reliability

The driver is engineered for long-term operation in demanding environments. Mean Well?s HLG series is known for robust thermal management and protection features, including over-voltage, over-current, and short-circuit protection. The IP65 enclosure protects against dust and water jets, supporting outdoor and damp location use.

Expected service life exceeds 50,000 hours under typical loading and ambient conditions. Reliability is highest when installed within rated temperature and load limits. Prolonged operation at maximum wattage in high ambient temperatures may reduce lifespan.

Build Quality and Physical Characteristics

The driver housing is constructed from durable materials with a sealed design to prevent ingress of water and contaminants. The unit measures 9.41 inches by 7.13 inches, allowing for mounting in standard electrical enclosures or directly to structural surfaces as needed. All wiring entries are gasketed for weather resistance.

Weight and form factor are suitable for pole, wall, or fixture-mounted installations. The enclosure is non-corrosive and suitable for outdoor use, but should not be submerged or installed in locations with continuous direct water exposure.

Where This Product Fits Best

This driver is intended for use in commercial and industrial lighting systems where fixture repair, emergency backup integration, or retrofit support is required. It is commonly deployed as a replacement or upgrade component in outdoor and indoor environments where 24V DC, 120W power is needed for LED luminaires.

• fixture repair and replacement
• emergency backup integration
• lighting maintenance support
• retrofit support
• code compliance upgrades
• emergency egress support
• service stock for maintenance teams
• field repair projects

Environmental characteristics include IP65 water and dust resistance, UL certification, and suitability for outdoor or damp locations. The driver is not intended for hazardous, submerged, or marine environments.

Installation and Long-Term Use

Installation requires secure mounting to a stable surface or within an enclosure, with all wiring connections sealed to maintain IP65 protection. The driver accepts 100-277V AC input and provides 24V DC output. Proper wire sizing and circuit protection should be observed according to local codes and fixture requirements.

Routine inspection of wiring and enclosure seals is recommended for outdoor installations. The driver is designed for minimal maintenance, but replacement may be required at end of service life or if protection circuits are triggered by abnormal conditions.

How This Fixture Is Commonly Used

This driver is typically installed as a direct replacement for failed or underperforming power supplies in LED fixtures, or as part of a retrofit or emergency backup system. Mounting is usually within a weatherproof enclosure or directly to a structural surface near the fixture. Spacing and layout are determined by fixture locations and wiring constraints.

When used for emergency backup integration, the driver is paired with compatible battery systems and control logic. Tradeoff: Sizing the driver for maximum fixture load ensures reliability, but oversizing may increase enclosure requirements and cost.

Safety, Certifications, and Warranty

This product is UL certified and meets IP65 requirements for water and dust resistance. Electrical and thermal protection features are integrated to prevent damage from overload, short circuit, or over-voltage events. The driver is suitable for use in code-compliant lighting systems and supports emergency egress and retrofit projects where certification is required.

A 3-year warranty covers defects in materials and workmanship under normal operating conditions. Warranty claims require adherence to installation and operating guidelines as specified by the manufacturer.

Frequently Asked Questions

Q: What input voltage range does this driver support?

A: The driver operates on 100-277V AC input at 50/60 Hz.

Q: Is this driver suitable for outdoor installation?

A: Yes, the IP65 rating and sealed enclosure allow for outdoor use when installed according to guidelines.

Q: Can this driver be used with dimming controls?

A: This model does not include integrated dimming; external dimming systems must be compatible with constant voltage drivers.

Q: What is the maximum fixture load this driver can support?

A: The maximum output is 120W at 24V DC. Exceeding this load will activate protection circuits.

Q: How should I plan for driver replacement or service stock?

A: Match the driver?s output voltage and wattage to the fixture requirements and maintain spares for critical locations as part of a maintenance program.

Application Questions and Clarification

Q: Is this driver appropriate for use in emergency backup lighting systems?

A: Yes, it is commonly used for emergency backup integration when paired with compatible battery and control systems.

Q: Can this driver be used for fixture retrofit projects?

A: The driver is suitable for retrofit support where 24V DC, 120W output is required by the fixture.

Q: What maintenance is required for outdoor installations?

A: Periodic inspection of wiring and enclosure seals is recommended to maintain IP65 protection and long-term reliability.

Q: Is this driver suitable for hazardous or marine environments?

A: No, this driver is not rated for hazardous or marine environments. Use only in locations consistent with its certifications and ratings.
