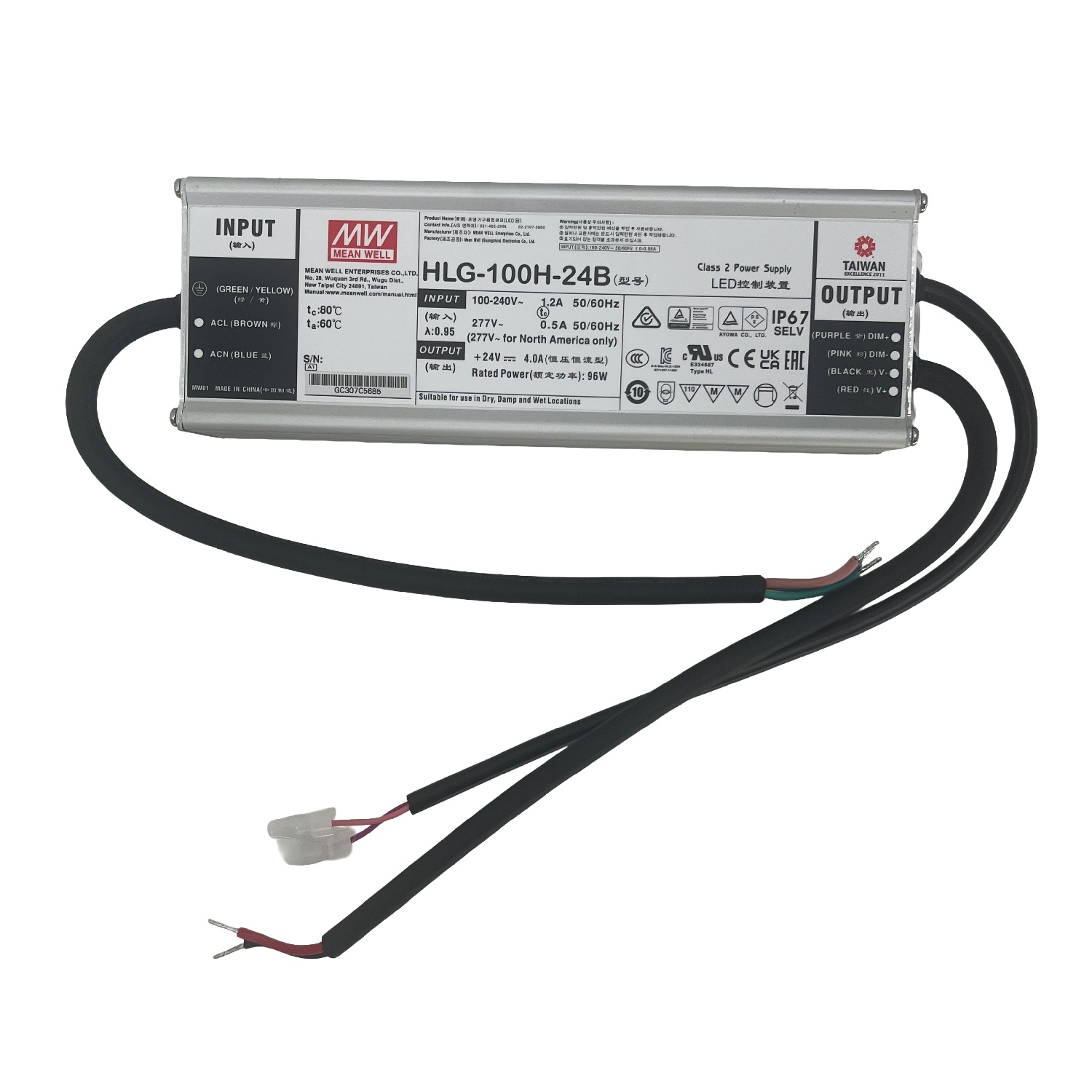

100 Watt Mean Well LED Driver | HLG-100H-24B
The Mean Well HLG-100H-24B LED driver is an excellent choice for stadium and arena lighting due to its robust 100W power output and wide voltage range of 100-277V, ensuring compatibility with various electrical systems. Its UL certification and IP65 rating make it suitable for outdoor installations and harsh environments, providing reliable performance in challenging conditions. The 0-10V dimming capability allows for flexible lighting control, making it ideal for large-scale sports facilities requiring precise illumination management.
Dwayne Kula | President, CTO and Founder
39 in stock
Product Specifications
Key Features
| Brand | Mean Well |
| Watts | 100 |
| Voltage | 100V-277V |
| Output Voltage | 24Vdc |
| Dimensions (in) | 9.41 in X 7.13 |
| Operating Temp | 32°F to +122°F |
| Frequency | 50/60 Hz |
| IP Rating | IP65 |
| Dimming Method | 0-10v leads |
Product Overview
The Mean Well HLG-100H-24B is a 100-watt LED driver with a 24Vdc output for compatible LED fixtures. It accepts 100-277V input power at 50/60 Hz.
This driver is intended for fixture repair and replacement, retrofit support, and lighting maintenance work where the existing fixture requires a 24Vdc driver. Its IP65 rating supports protected outdoor and harsh-environment installations when the complete fixture assembly is suitable for the location.
Core Performance and Output
The driver delivers up to 100 watts with a 24Vdc output. Input operation is 100-277V at 50/60 Hz.
No efficiency value or beam distribution is specified for this driver. Output must match the electrical requirements of the connected LED fixture; this driver does not establish the fixture optical distribution.
Adjustability and Control Options
0-10V dimming leads are provided. The connected fixture and control system must support 0-10V dimming for that function to be used.
No additional control methods are specified. Confirm dimming lead connections during fixture repair, retrofit support, or field repair projects.
Longevity and Reliability
The specified operating temperature range is 32 degrees F to +122 degrees F. Operating conditions should remain within this range.
The driver carries an IP65 rating. No rated service life or warranty term is supplied for this model.
Build Quality and Physical Characteristics
The driver measures 9.41 inches by 7.13 inches. Confirm available enclosure space before replacing an existing driver.
Mounting hardware, enclosure material, and lead lengths are not specified. Installation must account for the fixture’s existing mounting arrangement and wiring space.
Where This Product Fits Best
This driver fits maintenance and repair work involving compatible LED fixtures that require 24Vdc output and operate from 100-277V input power. It also applies where 0-10V dimming leads are required by the fixture control arrangement.
- fixture repair and replacement
- lighting maintenance support
- retrofit support
- emergency backup integration
- code compliance upgrades
- field repair projects
IP65 construction and the specified operating temperature range support use where the installed fixture assembly is exposed to outdoor or harsh conditions. Final fit depends on fixture electrical requirements, available driver space, and control wiring.
Installation and Long-Term Use
Verify 100-277V input power, 24Vdc output requirements, and 100-watt driver capacity before installation. Confirm that the fixture wiring and connected LED load match the driver requirements.
Install the driver within the fixture or enclosure space available for its 9.41-inch by 7.13-inch dimensions. Maintain the specified 32 degrees F to +122 degrees F operating range during long-term operation.
How This Fixture Is Commonly Used
For fixture repair and replacement, the driver is installed where the existing fixture has space for its physical dimensions and requires 24Vdc output. Driver mounting position follows the host fixture design; no mounting-height requirement is supplied.
For retrofit support and field repair projects, wiring layout must allow input, output, and 0-10V dimming lead connections. Fixture layout and spacing remain determined by the host lighting system rather than the driver.
Safety, Certifications, and Warranty
This driver is UL certified. It is IP65 rated.
The specified input range is 100-277V at 50/60 Hz, and the operating temperature range is 32 degrees F to +122 degrees F. Warranty information is not supplied.
Frequently Asked Questions
Q: What input voltage does the HLG-100H-24B accept?
A: The driver accepts 100-277V input power at 50/60 Hz.
Q: What output does this LED driver provide?
A: It provides 24Vdc output and is rated for 100 watts.
Q: Does this driver support dimming?
A: Yes. It has 0-10V dimming leads.
Q: What should be checked when planning driver placement in a fixture?
A: Verify available space for the 9.41-inch by 7.13-inch driver dimensions, the 100-277V input supply, 24Vdc output requirement, and required wiring connections.
Application Questions and Clarification
Q: Is this driver appropriate for fixture repair and replacement?
A: It is appropriate when the fixture requires a 24Vdc, 100-watt driver, operates from 100-277V input power, and has space for the stated dimensions.
Q: What should be confirmed for retrofit support work?
A: Confirm fixture input voltage, required 24Vdc output, driver capacity, available installation space, and any 0-10V dimming lead requirements.
Q: Can this driver be considered for emergency backup integration?
A: Emergency backup integration requires confirmation of the complete fixture and emergency system requirements. The supplied data identifies this model as a 100-watt, 24Vdc driver with 0-10V dimming leads.
