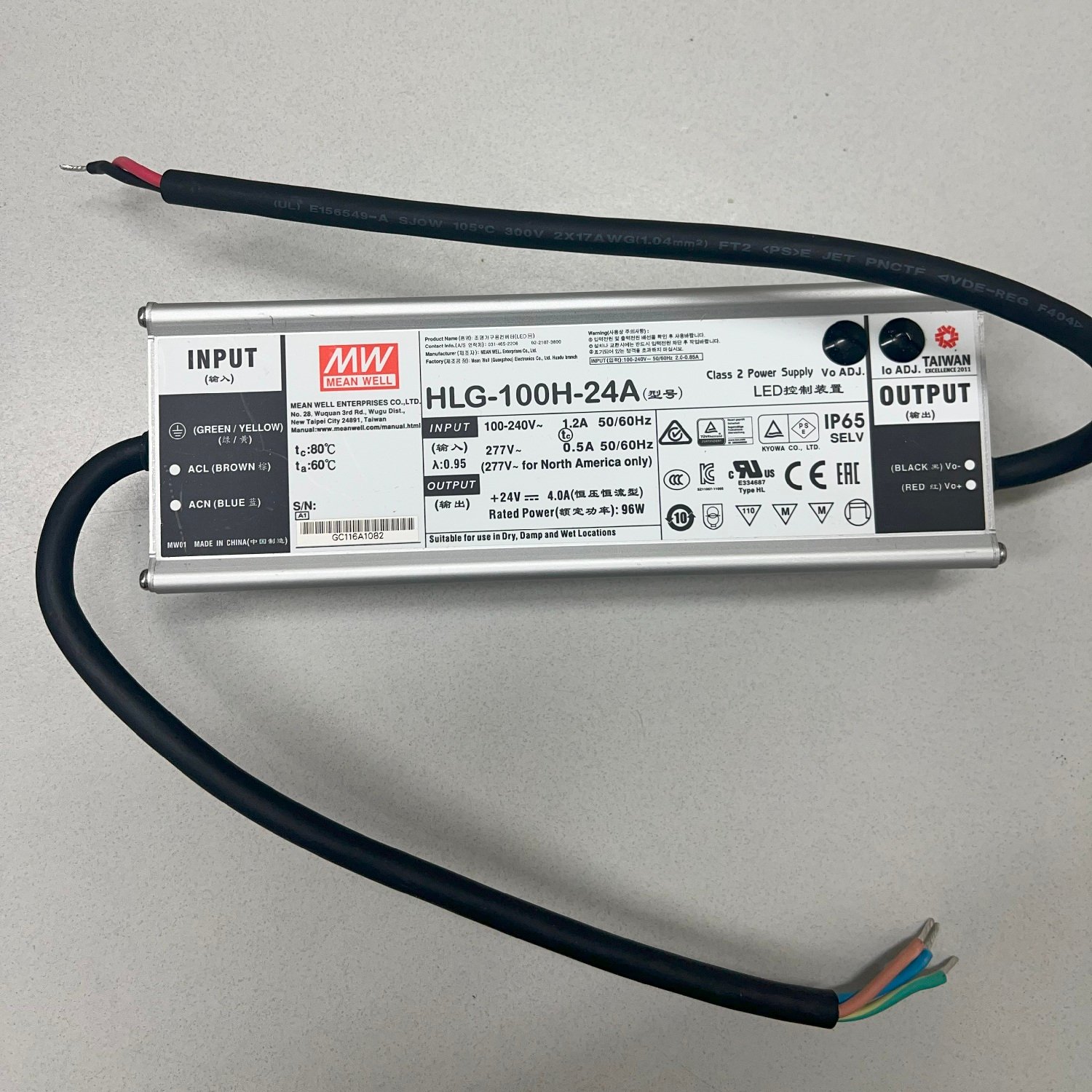

100 Watt Mean Well LED Driver | HLG-100H-24A

Product Overview

The 100 Watt Mean Well LED Driver | HLG-100H-24A is an outdoor-rated, constant voltage power supply designed for use with LED lighting systems. This unit is suitable for powering LED fixtures in demanding environments, including stadium and arena lighting installations. The driver operates at 100-277V input and is built for long-term reliability in both new installations and retrofit projects where robust, weather-resistant power delivery is required.

This driver is commonly used for fixture repair, replacement, and maintenance support in commercial and industrial lighting systems. The IP65 rating and UL certification allow for installation in locations exposed to dust, moisture, and harsh weather conditions.

Core Performance and Output

This driver provides a stable 100-watt output at 24V, supporting consistent performance for compatible LED fixtures. It is designed for high efficiency and reliable operation across a wide input voltage range (100-277V, 50/60 Hz). The unit maintains output stability under varying load conditions, which is critical for both primary and emergency lighting circuits.

Electrical performance is consistent in outdoor and indoor environments. Excessive fixture load or improper matching with fixture voltage requirements can result in reduced driver lifespan or inconsistent output. Always confirm fixture compatibility before installation.

Adjustability and Control Options

The HLG-100H-24A includes adjustable output current via internal potentiometer, allowing for fine-tuning to match fixture requirements. This supports flexibility in field repair and retrofit scenarios where fixture specifications may vary. The driver is compatible with standard on/off switching and can be integrated into lighting control systems as required by the application.

No onboard dimming interface is provided. External dimming or control integration must be verified for compatibility with the fixture and system design.

Longevity and Reliability

This driver is engineered for long service life in demanding environments. The IP65 enclosure protects against dust and water ingress, supporting reliable operation in outdoor and harsh indoor locations. Mean Well drivers are known for stable output and thermal management, reducing the risk of premature failure due to overheating or electrical stress.

Routine inspection of wiring connections and environmental seals is recommended to maintain long-term reliability, especially in locations with high humidity or temperature fluctuations.

Build Quality and Physical Characteristics

The HLG-100H-24A features a robust, sealed aluminum housing with dimensions of 9.41 inches by 7.13 inches. The enclosure is designed for surface or fixture mounting in both indoor and outdoor settings. The IP65 rating ensures resistance to dust and low-pressure water jets from any direction.

UL certification confirms compliance with safety standards for electrical components in commercial and industrial environments. The compact form factor allows for integration into a wide range of fixture housings and retrofit enclosures.

Where This Product Fits Best

This driver is suitable for environments where reliable, weather-resistant power delivery is required for LED lighting systems. Typical use cases include fixture repair, emergency backup integration, and retrofit support in commercial and industrial facilities.

• fixture repair and replacement
• emergency backup integration
• lighting maintenance support
• retrofit support
• code compliance upgrades
• emergency egress support
• service stock for maintenance teams
• field repair projects

The driver is designed for both indoor and outdoor installation, with protection against dust and water ingress. It is suitable for use in harsh environments where exposure to weather or contaminants is expected.

Installation and Long-Term Use

Installation is typically surface-mounted within or adjacent to the fixture housing. The compact size allows for integration into existing enclosures during repair or retrofit work. Secure mounting and proper sealing of electrical connections are required for outdoor or wet location use.

Long-term use is supported by the IP65 enclosure and robust construction. Periodic inspection of seals and wiring is recommended, especially in environments with high moisture or temperature variation. The driver is suitable for both planned maintenance and emergency repair scenarios.

How This Fixture Is Commonly Used

This driver is most often installed as a replacement component during fixture repair or as part of a retrofit upgrade. It is also used to integrate emergency backup systems into existing lighting circuits. Mounting location and spacing are determined by fixture design and available enclosure space.

In retrofit or maintenance-driven projects, driver selection and placement may be influenced by fixture wattage and voltage requirements. Using a driver with higher output than required can lead to reduced efficiency or fixture compatibility issues.

Safety, Certifications, and Warranty

The HLG-100H-24A is UL certified and meets IP65 requirements for dust and water ingress protection. These certifications support use in commercial and industrial environments where compliance with safety and environmental standards is required.

Warranty coverage is provided by the manufacturer. Refer to the product documentation for specific warranty terms and conditions.

Frequently Asked Questions

Q: What is the input voltage range for this driver?

A: The input voltage range is 100V to 277V AC, 50/60 Hz.

Q: Is this driver suitable for outdoor installation?

A: Yes, the IP65 rating allows for outdoor and wet location use.

Q: Can this driver be used for emergency backup integration?

A: Yes, it is suitable for emergency backup integration when matched with compatible fixtures and systems.

Q: Does this driver support dimming?

A: No onboard dimming interface is provided. External dimming compatibility must be verified with the fixture and system.

Q: What are the physical dimensions of the driver?

A: The driver measures 9.41 inches by 7.13 inches.

Q: How should this driver be mounted for long-term reliability?

A: Mount securely on a stable surface, ensure all wiring and seals are protected from moisture and contaminants.

Q: How do I determine the correct driver for a fixture repair or retrofit?

A: Match the driver output voltage and wattage to the fixture requirements. Confirm compatibility before installation.

Application Questions and Clarification

Q: Is this driver appropriate for use as service stock for maintenance teams?

A: Yes, it is commonly used as service stock for fixture repair and field replacement projects.

Q: Can this driver be used in code compliance upgrade projects?

A: Yes, it is suitable for code compliance upgrades when matched to the fixture and application requirements.

Q: Is this driver intended for use in new fixture installations or only for repairs?

A: It is suitable for both new installations and repair or retrofit scenarios, provided fixture compatibility is confirmed.

Q: What are the main applications where this driver is most often deployed?

A: Fixture repair and replacement, emergency backup integration, lighting maintenance support, and retrofit support.
