240 Watt Round Explosion Proof LED Light | 33600 Lumens | Class 1 Div 2 | 5000K | 100-277V | Optional 10 Year Warranty

Product Overview

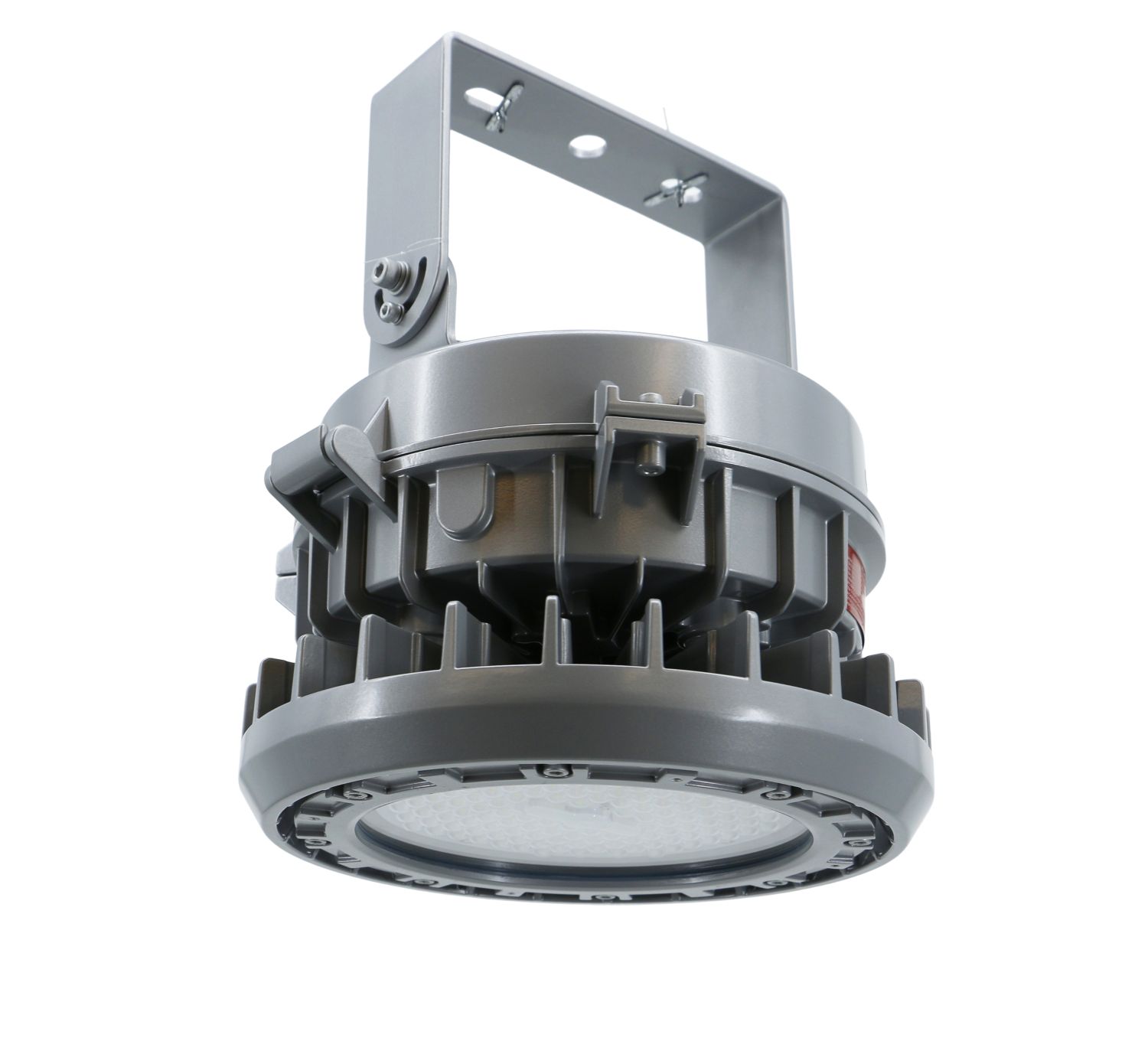

This is a 240 watt round explosion proof LED light designed for hazardous and industrial environments. It delivers 33,600 lumens at 5000K color temperature, providing a daylight-white output suitable for high-visibility applications.

The fixture is built to replace 1000 watt metal halide systems, offering a significant reduction in energy use and maintenance requirements. It operates on 100-277V and supports 1-10V dimming for output control.

The housing is powder coated aluminum with a tempered glass lens, rated for wet locations and harsh conditions. The fixture measures 9.7 by 15 inches and weighs 20 lbs.

Mounting options include yoke or 3/4 inch NPT pendant as standard, with pendant or surface mounting also available.

Where This Product Fits Best

This explosion proof LED light is intended for hazardous locations where flammable gases, vapors, or dusts may be present. It is suitable for use in areas classified as Class 1 Division 2, Class 2 Division 1 and 2, and Class 3, as well as various Zone environments.

Common applications include chemical plants, refineries, paint shops, grain processing, and other industrial facilities requiring certified hazardous location lighting.

The IP66 rating allows for installation in environments exposed to water, dust, and high humidity. The fixture can be used both indoors and outdoors where these conditions exist.

Its 5000K color temperature and high lumen output make it suitable for spaces where clear, bright illumination is required for safety and operational visibility.

Performance and Functional Considerations

This fixture produces 33,600 lumens at 140 lumens per watt, providing high efficacy for large, open spaces. The 120 degree beam angle delivers wide area coverage.

The 1-10V dimming capability allows for integration with compatible dimming systems to adjust light levels as needed. The fixture operates on 100-277V, supporting a range of commercial and industrial electrical systems.

It is rated for operation in ambient temperatures from -40°F to 149°F, supporting use in both cold storage and high-heat process areas. The power factor is greater than 0.90 and total harmonic distortion is less than 10%.

Surge protection is built in at 10kV, providing resilience against electrical disturbances common in industrial environments.

Installation and Long-Term Use

Mounting options include yoke or 3/4 inch NPT pendant as standard, with pendant or surface mounting also available. This allows for installation on ceilings, walls, or structural supports as required by the site layout.

The fixture is constructed with a powder coated aluminum housing and tempered glass lens for durability in harsh environments. The IP66 rating protects against water and dust ingress, while the IK08 rating provides resistance to impact.

No cord is supplied with the fixture, so field wiring is required. The fixture weighs 20 lbs, which should be considered when planning mounting and support.

The rated lifespan is 150,000 hours (L70), supporting long-term operation with minimal maintenance in demanding locations.

How This Fixture Is Commonly Used

Once installed, this explosion proof LED light provides consistent, high-output illumination in hazardous areas. The 5000K color temperature supports tasks requiring accurate color recognition and high visibility.

The 1-10V dimming feature allows you to adjust light output to match operational needs or shift requirements. The wide 120 degree beam angle reduces shadowing and helps maintain even light distribution across work areas.

The fixture's robust construction and environmental ratings mean it can be relied on in areas exposed to water, dust, and physical impacts. Maintenance requirements are low due to the long LED lifespan and durable housing.

Routine cleaning and inspection are straightforward, as the tempered glass lens and powder coated finish resist corrosion and buildup in industrial settings.

Safety, Certifications, and Warranty

This fixture is Class 1 Division 2, Group A, B, C, D certified. It is also certified for Class 2 Division 1 Groups E, F, G; Class 2 Division 2 Groups F, G; and Class 3 locations.

It carries Class I, Zone 2, Group IIC; Zone 20, Zone 21, and Zone 22 certifications. The fixture is UL844 listed for wet locations (UL 1598 / UL1598A), and holds CSA, ATEX, and IECEX certifications.

The fixture is IP66 rated for protection against water and dust, and IK08 rated for impact resistance. Surge protection is rated at 10kV.

LED Lighting Supply provides a 5 year warranty, with an optional 10 year warranty available.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100-277V.

What is the lumen output and efficacy?
The fixture delivers 33,600 lumens at 140 lumens per watt.

What are the environmental ratings?
The fixture is IP66 rated for water and dust protection and IK08 rated for impact resistance.

What mounting options are available?
Standard mounting is yoke or 3/4 inch NPT pendant, with pendant or surface mounting also available.

What certifications does this fixture carry?
This fixture is UL, CSA, ATEX, and IECEX certified for hazardous locations.

What is the warranty coverage?
A 5 year warranty is standard, with an optional 10 year warranty available.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
