60 Foot Stadium Light Pole | 1 Cross Arm For Up To 5 Light Fixtures
SKU: MLLG-AS-POLE-ST-60-AB-GV-1B-5 | Web ID: 2118
Product Alternatives
Height: | 60 |
Specifications: | ASTM |
Base Type: | Anchor Base |
Number of Anchor Bolts: | 6 |
Supports: | 5 lights |
Attachments: | (5) Light Cross Arm & 1 Lightning Rod |
Top Cross Arm Height: | 60 ft |
Wind Load Rating: | 130 mph |
Finish: | Galvanized per ASTM A123 |
Number of Sides of Pole: | 18 |
Shaft Material: | ASTM A572 GR65 |
Base Plate Material: | ASTM A572 GR50 |

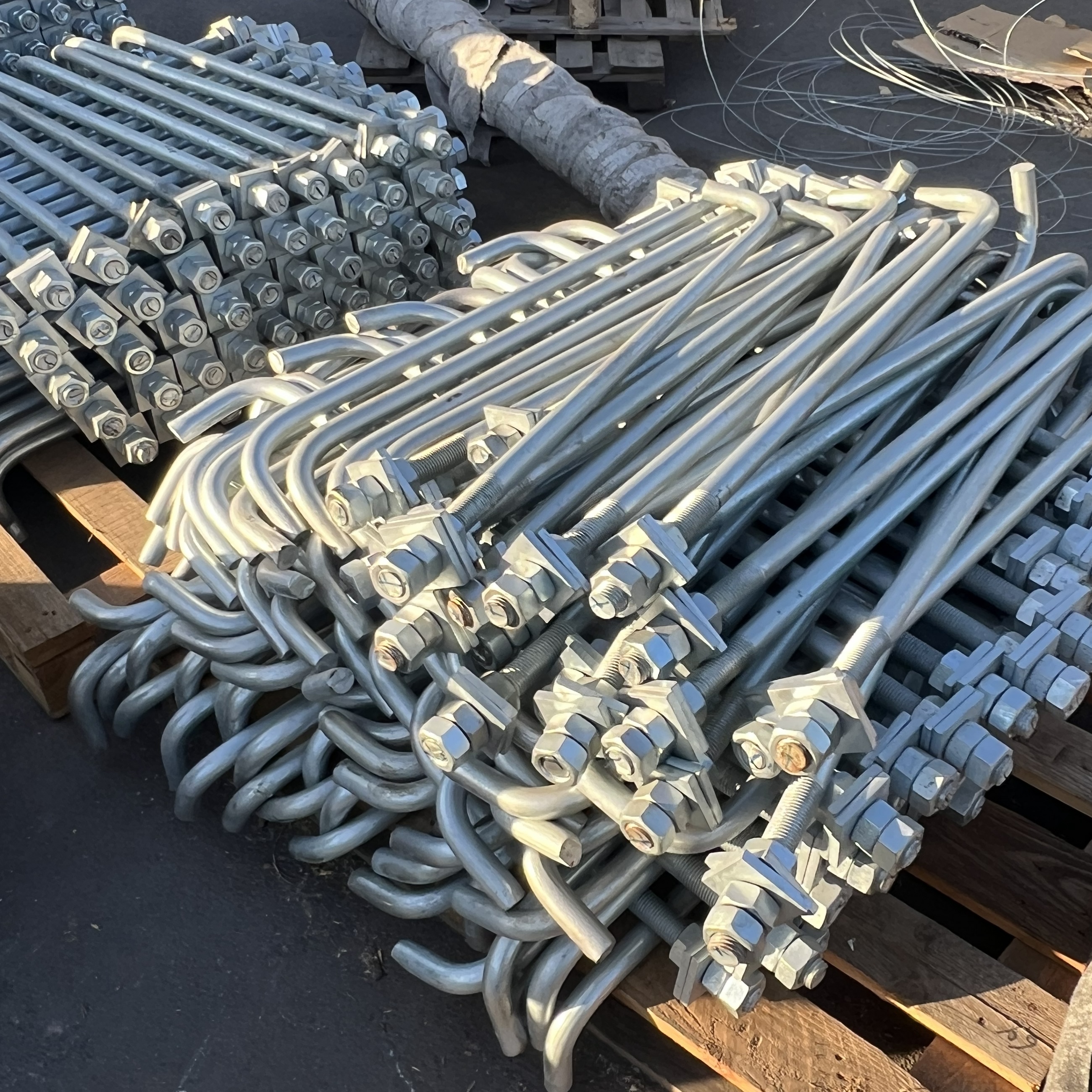

Anchor Bolt Grade: | F1554-55 |
Anchor Bold Size: | 1.25 in |
Bottom Pole Section Length: | 36 ft (0-36 ft) |
Top Pole Section Length: | 24 ft (36-50 ft) |
Anchor Embedment length: | 43 in |
Anchor Bolt Projection: | 2 in |
Base plate grade: | A572-50 |
Base plate thickness: | 1.6 in |
Bolt circle diameter: | 19.2 in |
Outer diameter: | 23 in |
Inner diameter: | 11.8 in |
View Full Spec Sheet
Out of stock
Availability:Built to Order 10-12 Weeks
Product Description

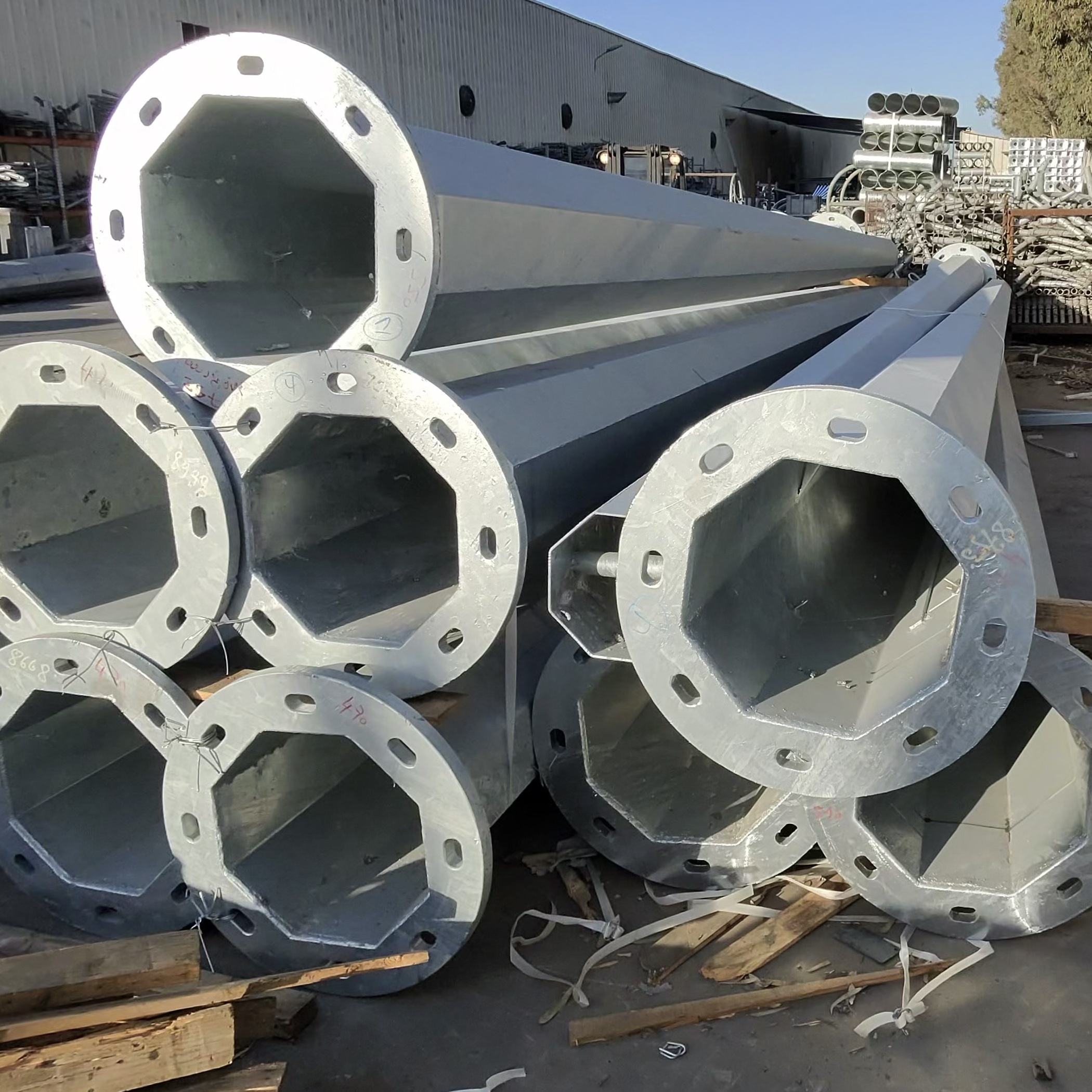

60-Foot Steel Galvanized Stadium Pole with 5 fixture cross arm. Lightning rod included.
Pole designed for 130 mph wind speed per the TIA-222-H Standard. Galvanized finish per ASTM A123.

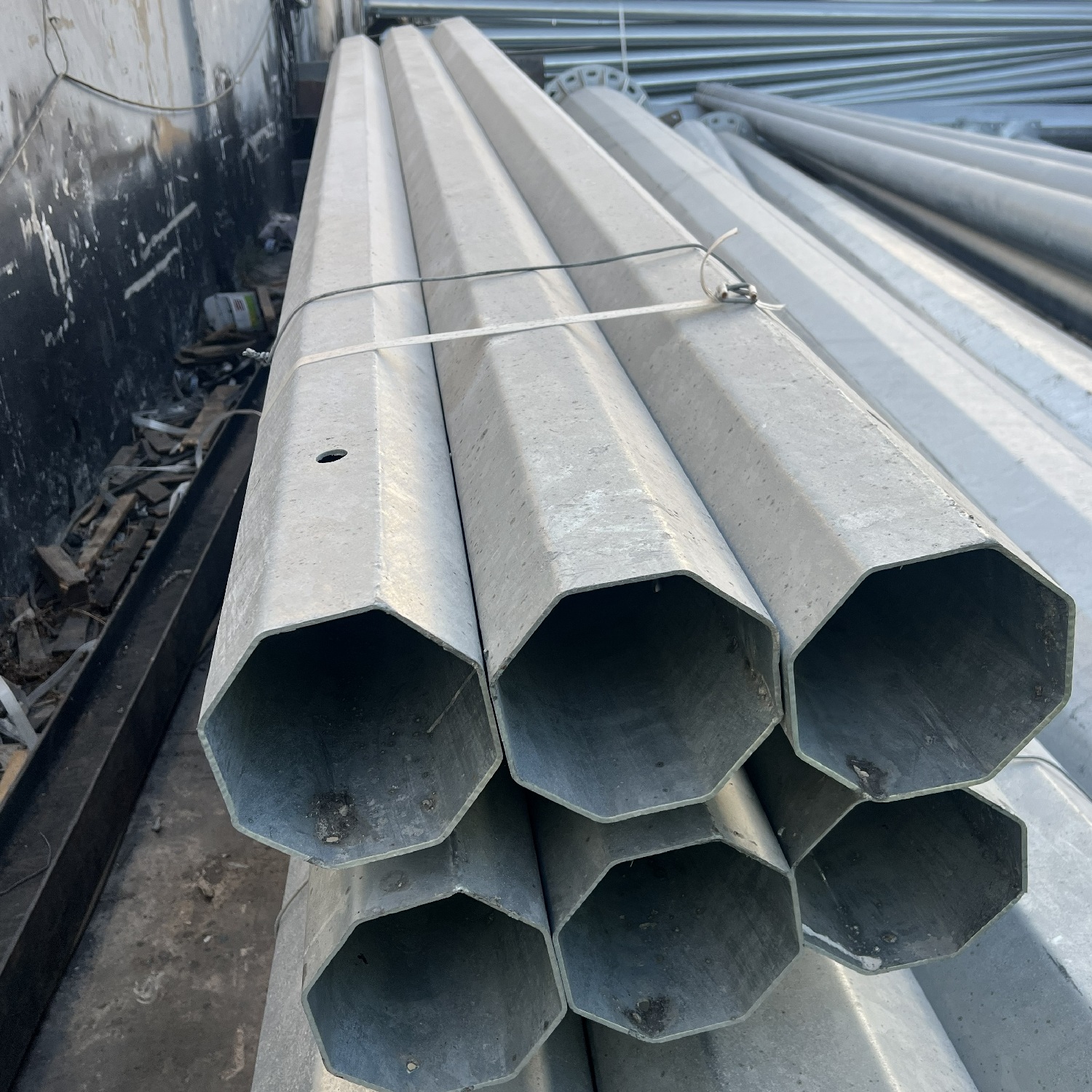

Pole arrives in 2 sections, base section 0-36ft and top section 36-50ft. Connections use galvanized A325 bolts, nuts, and locking devices. Installation per TIA/EIA-222 and AISC specs.
Unloading Poles/Accessories is the sole responsibility of the recipient (customer) and the recipient (customer) is required to provide all necessary equipment and/or manpower at the time of delivery.
Disclaimer: LED Lighting Supply is not responsible for improper loading (ie what is mounted to the pole), use, or foundation design of light poles. Dimensions and specifications of poles are subject to change without notice.
Full Product Specification
Height: | 60 |
Specifications: | ASTM |
Base Type: | Anchor Base |
Number of Anchor Bolts: | 6 |
Supports: | 5 lights |
Attachments: | (5) Light Cross Arm & 1 Lightning Rod |
Top Cross Arm Height: | 60 ft |
Wind Load Rating: | 130 mph |
Finish: | Galvanized per ASTM A123 |
Number of Sides of Pole: | 18 |
Shaft Material: | ASTM A572 GR65 |
Base Plate Material: | ASTM A572 GR50 |
Anchor Bolt Grade: | F1554-55 |
Anchor Bold Size: | 1.25 in |
Bottom Pole Section Length: | 36 ft (0-36 ft) |
Top Pole Section Length: | 24 ft (36-50 ft) |
Anchor Embedment length: | 43 in |
Anchor Bolt Projection: | 2 in |
Base plate grade: | A572-50 |
Base plate thickness: | 1.6 in |
Bolt circle diameter: | 19.2 in |
Outer diameter: | 23 in |
Inner diameter: | 11.8 in |
