50 Watt Round Explosion Proof LED Light | 7000 Lumens | Class 1 Div 1 | 5000K | 100-277V | Optional 10 Year Warranty

Product Overview

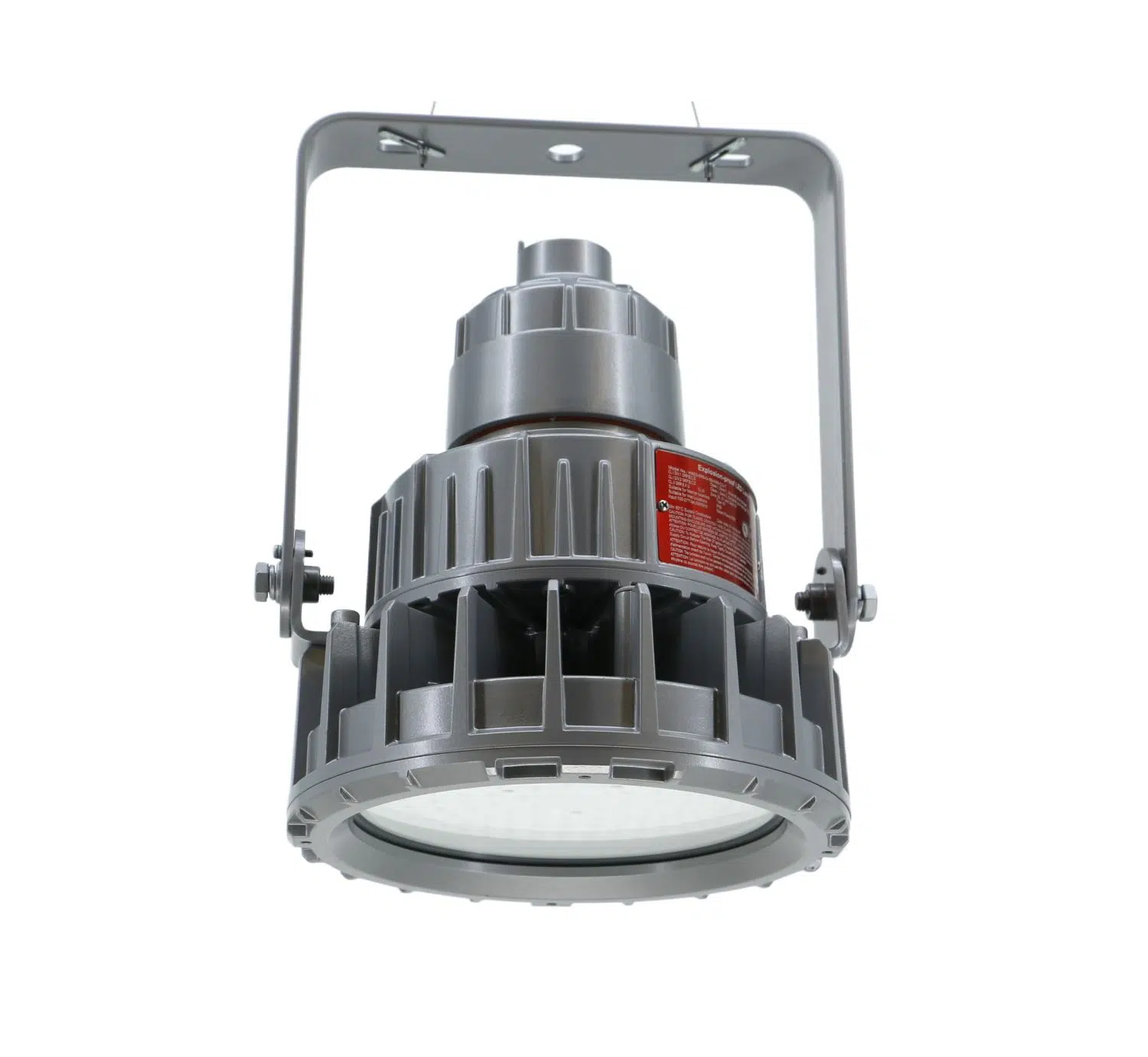

This is a 50 Watt round explosion proof LED light designed for hazardous locations. It delivers 7000 lumens at a 5000K color temperature and operates on 100-277V input. The fixture is built with a powder coated aluminum housing and a tempered glass lens.

The fixture is UL844 listed for hazardous locations, with coverage for Class 1 Division 1 and Division 2, Class 2 Division 1 and Division 2, and Class 3 environments. It also carries CSA, ATEX, and IECEX certifications. The fixture is rated for marine outside type and wet locations under UL 1598 and UL 1598A.

It is designed to replace 250 Watt metal halide fixtures in environments where explosion proof lighting is required. The fixture supports 1-10V dimming and offers a 120 degree beam angle for broad area coverage.

The housing is rated IP66 for dust and water ingress and IK10 for impact resistance. The fixture is available in gray and supports multiple mounting options including yoke, 3/4 inch NPT pendant, surface, and wall mounting.

Where This Product Fits Best

This explosion proof LED light is suitable for hazardous industrial environments where flammable gases, vapors, or dusts are present. It is appropriate for use in areas classified as Class 1 Division 1, Class 1 Division 2, Class 2 Division 1, Class 2 Division 2, and Class 3.

The fixture is also suitable for marine outside type and wet locations, making it a fit for chemical plants, refineries, paint shops, grain processing, and similar facilities. The IP66 rating allows use in areas exposed to heavy washdown, rain, or dust.

With a 150,000 hour rated lifespan and 6kV surge protection, this fixture is intended for locations where maintenance access is limited or where reliability is critical. The 5000K color temperature supports visibility in industrial workspaces.

It is compatible with 100-277V power supplies and can be installed in facilities with either 50Hz or 60Hz electrical systems.

Performance and Functional Considerations

The fixture delivers 7000 lumens at 140 lumens per watt, providing high output for hazardous location lighting. It is designed to replace 250 Watt metal halide fixtures, offering similar light levels with lower power consumption.

The 1-10V dimming capability allows for integration with compatible dimming controls. The 120 degree beam angle provides wide area illumination, suitable for general lighting in open hazardous spaces.

The fixture operates in ambient temperatures from -22°F to 122°F. The power factor is greater than 0.90 and total harmonic distortion is less than 10%, supporting stable operation in demanding environments.

Surge protection is rated at 6kV, providing resilience against electrical disturbances common in industrial settings.

Installation and Long-Term Use

The fixture supports multiple mounting methods: yoke, 3/4 inch NPT pendant, surface, and wall mounting. This allows adaptation to ceiling, wall, or pendant installations depending on site requirements.

The housing is constructed from powder coated aluminum for corrosion resistance. The tempered glass lens protects the LEDs from impact and environmental exposure.

The fixture is rated IP66, allowing it to withstand high pressure water jets and dust ingress. The IK10 rating means it can tolerate strong impacts without damage to the housing or lens.

With a rated lifespan of 150,000 hours (L70), the fixture is intended for long-term use in locations where frequent relamping is not practical. No cord is supplied with the fixture, so field wiring is required during installation.

How This Fixture Is Commonly Used

After installation, this explosion proof LED light provides consistent illumination in hazardous areas where safety and reliability are required. The 5000K color temperature supports clear visibility for workers in process areas, loading zones, or inspection points.

The fixture can be dimmed using 1-10V controls if desired, allowing adjustment of light levels to match operational needs or shift requirements. The wide beam angle covers large areas, reducing the number of fixtures needed for uniform lighting.

The powder coated aluminum housing and tempered glass lens are designed to withstand impacts, washdowns, and exposure to chemicals or salt spray. The fixture can be cleaned as part of routine maintenance without risk of water ingress.

Once installed, the fixture operates with minimal attention, relying on its rated lifespan and surge protection to minimize unplanned downtime in critical environments.

Safety, Certifications, and Warranty

This fixture is UL844 listed for hazardous locations and carries CSA, ATEX, and IECEX certifications. It is also UL 1598 and UL 1598A listed for wet locations and marine outside type environments.

The fixture is rated IP66 for protection against dust and water ingress. The IK10 rating covers impact resistance for industrial and marine environments.

Surge protection is rated at 6kV. An optional 10 year warranty is available from LED Lighting Supply.

All certifications and ratings are supported by the product specifications as listed.

Frequently Asked Questions

What voltage range does this fixture support?
This fixture operates on 100-277V input.

What is the rated output and replacement class?
The fixture delivers 7000 lumens and is designed to replace 250 Watt metal halide fixtures.

What environmental ratings does the fixture carry?
The fixture is rated IP66 for dust and water ingress and IK10 for impact resistance.

What mounting options are available?
Mounting options include yoke, 3/4 inch NPT pendant, surface, and wall mounting.

What certifications does this fixture carry?
This fixture is UL844 listed, UL 1598 and UL 1598A listed, and carries CSA, ATEX, and IECEX certifications.

What warranty coverage is available?
An optional 10 year warranty is available from LED Lighting Supply.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
