200 / 230 / 270 Wattage Adjustable High Bay Linear LED | 32100 to 39700 Lumens | 4000K / 5000K Adjustable | 100-277V | 2 Foot 7 Inches

Product Overview

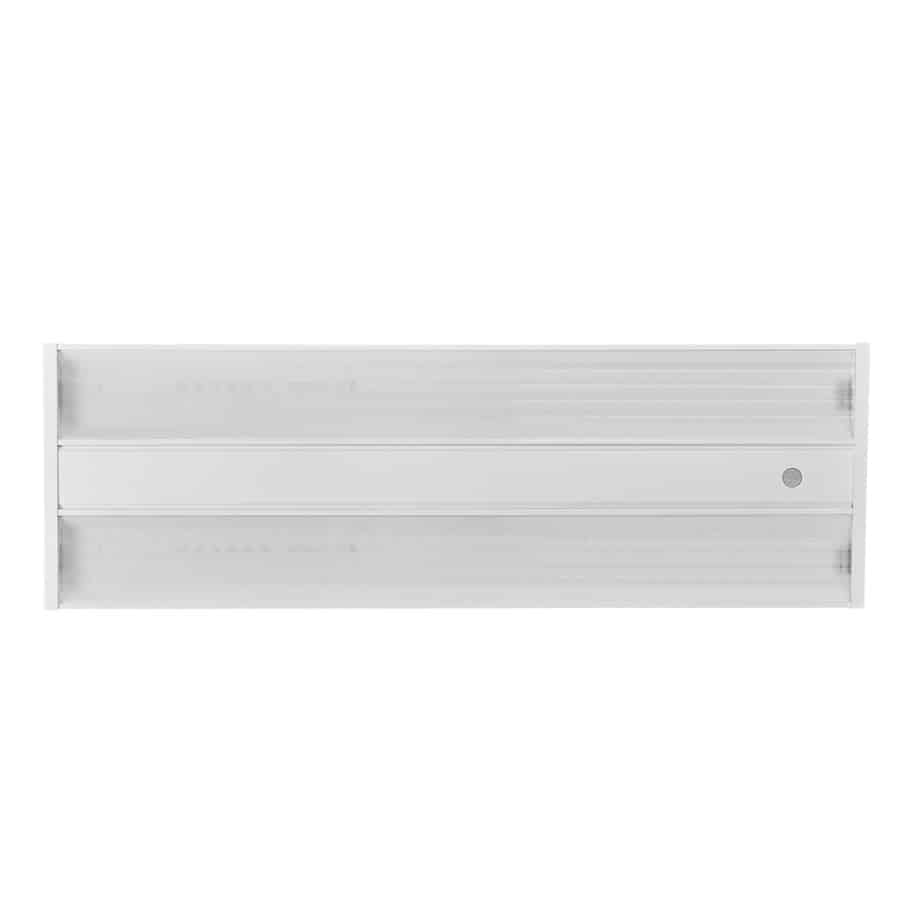

This high bay linear LED fixture offers selectable wattage settings of 200, 230, or 270 watts. Output ranges from 31,200 to 39,700 lumens, supporting both 4000K and 5000K color temperature adjustment.

The fixture is designed to replace 1000 or 1500 watt metal halide systems. It operates on 100V to 277V input and supports 0-10V dimming. The standard beam angle is 90 degrees with a frosted lens for glare control.

Housing is constructed from galvanized rolled iron. The fixture measures 31.2 by 10.2 by 1.8 inches and weighs 10 pounds. No cord is supplied with the fixture.

Mounting options include chain-cable as standard, with pendant and surface mounting available. The fixture is finished in white and rated for operation in environments from -4°F to 122°F.

Where This Product Fits Best

This fixture is suitable for commercial and industrial spaces requiring high-output linear lighting. Typical applications include warehouses, manufacturing areas, and distribution centers with high ceilings.

It is intended for use where legacy 1000 or 1500 watt metal halide fixtures are being replaced. The selectable wattage and color temperature allow adaptation to different lighting requirements within the same facility.

The fixture is compatible with 100V to 277V electrical systems. It can be used in locations where chain-cable, pendant, or surface mounting is practical and where a white fixture finish is acceptable.

Environments with ambient temperatures between -4°F and 122°F are supported. The galvanized rolled iron housing is suitable for standard indoor industrial conditions.

Performance and Functional Considerations

Selectable wattage settings allow adjustment of light output to match specific area requirements. The fixture delivers up to 150 lumens per watt, supporting energy-efficient operation.

Color temperature can be set to either 4000K or 5000K, providing flexibility for visual comfort or task-specific needs. The 0-10V dimming interface supports integration with compatible dimming controls.

The 90-degree beam angle and frosted lens help manage glare and distribute light evenly. The fixture maintains a CRI of 80+ for accurate color rendering in work environments.

Power factor is rated at 0.98, and total harmonic distortion is limited to 20% maximum. The fixture is designed for 50 or 60 Hz operation.

Installation and Long-Term Use

Chain-cable mounting is standard, with pendant and surface mounting options available for different ceiling types or installation preferences. The fixture does not include a cord, so field wiring is required.

The housing is galvanized rolled iron, providing durability for industrial environments. The fixture weighs 10 pounds, which should be considered when planning mounting hardware and installation labor.

Rated lifespan is 70,000 hours. The fixture is designed for continuous operation in ambient temperatures from -4°F to 122°F.

Maintenance requirements are minimal due to the solid-state LED design and robust construction. The frosted lens can be wiped down as needed to maintain light quality.

How This Fixture Is Commonly Used

After installation, you can set the wattage and color temperature to match the needs of each area. This is useful for spaces with changing requirements or where lighting standards differ between zones.

The 0-10V dimming capability allows you to connect the fixture to compatible dimming systems for further control over light levels. This can help manage energy use or adapt lighting to different tasks.

The frosted lens and 90-degree beam angle provide uniform light distribution, reducing glare and supporting visual comfort for workers. The fixture?s output range supports use in both open areas and more confined spaces.

Routine cleaning of the lens and periodic inspection of mounting hardware are the main ongoing tasks. The fixture?s construction and rated lifespan minimize the need for frequent maintenance or replacement.

Safety, Certifications, and Warranty

This fixture is UL listed.

The product is rebate eligible.

LED Lighting Supply provides a 5-year warranty on this fixture.

The fixture is rated for operation in environments from -4°F to 122°F. The galvanized rolled iron housing supports use in standard industrial and commercial settings.

Frequently Asked Questions

What voltage does this fixture support?
This fixture operates on 100V to 277V input.

What is the output range?
Output ranges from 31,200 to 39,700 lumens, depending on the selected wattage setting.

What mounting methods are available?
Chain-cable mounting is standard. Pendant and surface mounting options are also available.

Is this fixture UL listed?
Yes, this fixture is UL listed.

What is the warranty period?
LED Lighting Supply provides a 5-year warranty on this fixture.

Is this fixture eligible for rebates?
This fixture is rebate eligible.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
