500 / 400 / 300 Watt LED Parking Lot Light | up to 85000 Lumens | 3000K / 4000K / 5000K | 100V-277V or 277V-480V | Type 3 | Built-in Photocell

Product Overview

This LED parking lot light offers selectable wattage settings of 500, 400, or 300 watts, delivering up to 85,000 lumens at maximum output. It is designed to replace 1000, 1500, or 2000 watt metal halide fixtures in outdoor area lighting applications.

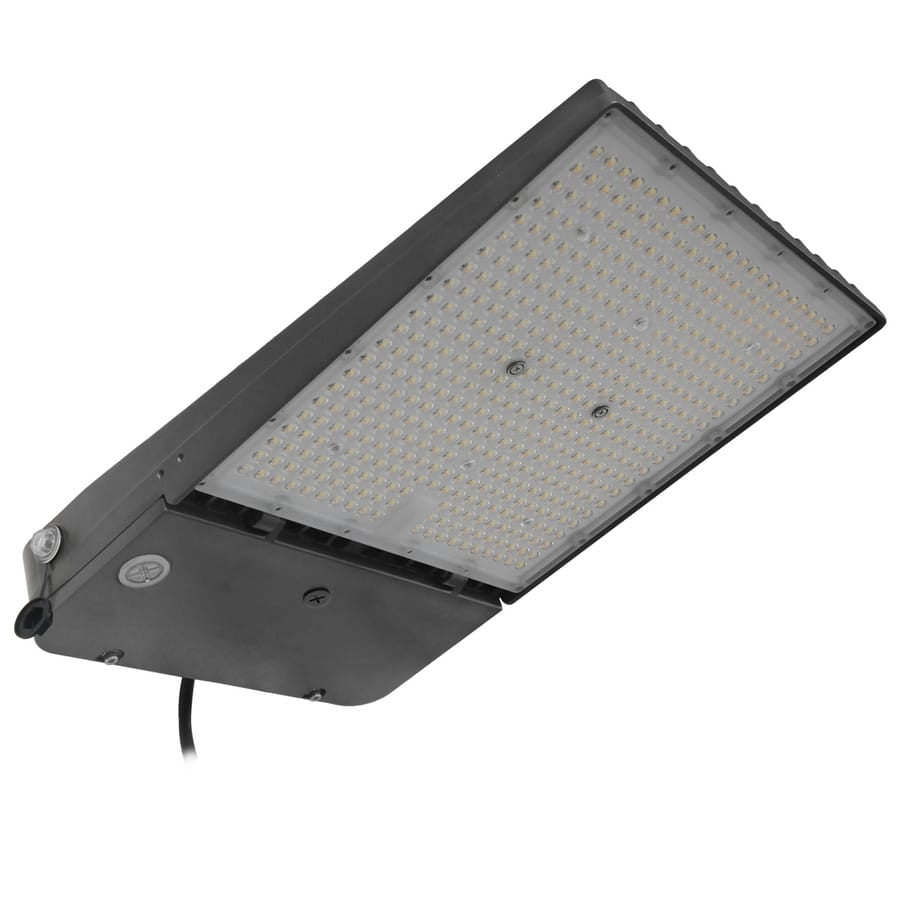

The fixture features a die-cast aluminum housing with a dark bronze finish and a built-in photocell. It uses a Type 3 optic, which is suited for general parking lot coverage. Color temperature can be set to 3000K, 4000K, or 5000K using an onboard toggle switch.

Voltage compatibility includes 100V-277V or 277V-480V, with a dimmable driver provided. The fixture is IP66 rated for wet locations and operates in ambient temperatures from -4°F to +122°F.

Where This Product Fits Best

This fixture is intended for outdoor parking lots, drive lanes, and perimeter areas where broad, even illumination is required. The Type 3 distribution pattern is suited for standard parking lot layouts and roadway edges.

It is suitable for use on poles, posts, or building walls in commercial, industrial, and institutional settings. The selectable wattage and color temperature allow adaptation to site-specific requirements or changes in lighting needs over time.

Environments with exposure to rain, snow, or washdown are supported by the IP66 wet location rating. The fixture is designed for use in climates with temperatures ranging from -4°F to +122°F.

Performance and Functional Considerations

The wattage adjustable feature allows selection between 500, 400, or 300 watts, providing flexibility in light output and energy use. Maximum output is 85,000 lumens at 170 lumens per watt.

The onboard color temperature switch enables selection of 3000K, 4000K, or 5000K, supporting different visual preferences or site requirements. The built-in photocell provides dusk-to-dawn operation without additional external controls.

The fixture is compatible with both 100V-277V and 277V-480V electrical systems. The dimmable driver supports integration with compatible dimming controls if required by the site.

The Type 3 optic is designed for wide, lateral light distribution, making it suitable for parking areas and roadways where coverage across a broad area is needed.

Installation and Long-Term Use

This fixture supports multiple mounting options, including yoke, arm, slip fitter, or trunnion brackets. It can be installed on poles, posts, or walls, allowing adaptation to existing infrastructure or new installations.

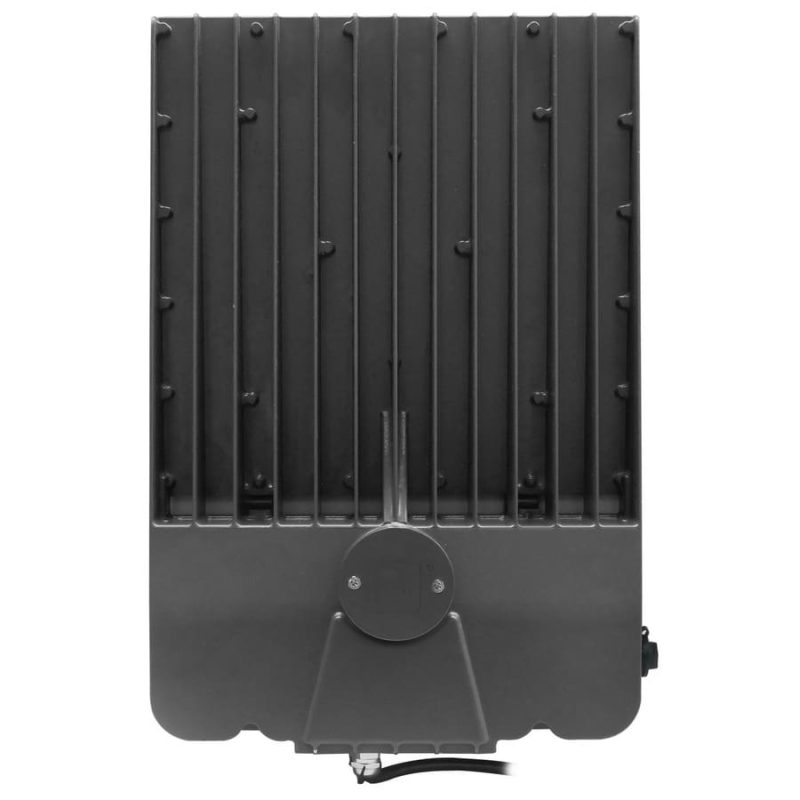

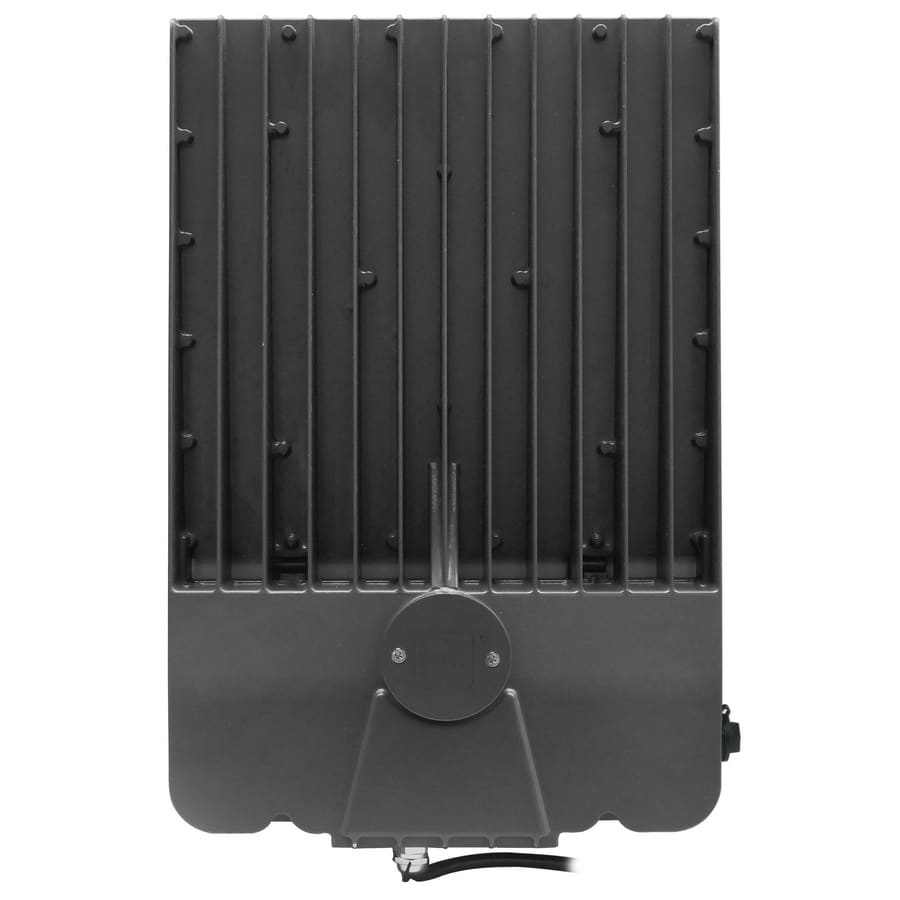

The die-cast aluminum housing provides durability in outdoor environments. The IP66 rating ensures protection against water ingress during rain or cleaning.

All adjustments for wattage and color temperature are made at the fixture using onboard switches. The built-in photocell is standard and does not require separate installation.

Routine maintenance is limited to periodic cleaning and inspection, as the fixture is designed for long-term outdoor use with minimal intervention.

How This Fixture Is Commonly Used

After installation, you can set the wattage and color temperature directly at the fixture using the onboard switches. This allows you to adjust light levels and appearance as site needs change, without replacing the fixture.

The built-in photocell enables automatic dusk-to-dawn operation. Once installed and configured, the fixture operates without manual intervention, turning on and off based on ambient light conditions.

The Type 3 distribution provides broad, even coverage across parking areas and drive lanes. The fixture is typically relied on for consistent illumination and visibility throughout the night.

Mounting options allow you to adapt the fixture to poles, walls, or posts, depending on the site layout. The fixture remains accessible for future adjustments if lighting requirements change.

Safety, Certifications, and Warranty

This fixture is IP66 rated for wet locations. It is designed to operate safely in outdoor environments exposed to rain, snow, or washdown.

The fixture is equipped with a dimmable driver and supports both standard and high-voltage electrical systems.

Warranty coverage is provided by LED Lighting Supply. Details are available upon request.

Frequently Asked Questions

What voltage does this fixture support?
This fixture is compatible with 100V-277V or 277V-480V electrical systems.

What is the maximum light output?
Maximum output is 85,000 lumens at the 500 watt setting.

What environmental conditions can this fixture handle?
The fixture is IP66 rated for wet locations and operates in temperatures from -4°F to +122°F.

What mounting options are available?
Mounting options include yoke, arm, slip fitter, or trunnion brackets for pole, post, or wall installation.

Is this fixture DLC or ETL listed?
Certification status is not specified in the provided product specifications.

What warranty is provided?
Warranty is provided by LED Lighting Supply. Details are available upon request.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
