20 Watt Portable Explosion Proof LED Work Light | 1600 Lumens | Class 1 Div 1 | 5000K | 10 Hour Run Time | 100-240V AC Charger Included | Intrinsically Safe

Product Overview

This is a 20 Watt portable LED work light designed for use in hazardous locations. The fixture is compact and mobile, supporting applications that require movement or repositioning within a classified area.

The light produces 1600 lumens at 5000K color temperature. It is rated for Class I, Division 1, Groups A, B, C, D, T4 hazardous environments under UL 913.

The fixture operates with a 120-degree beam angle and does not support dimming. It is supplied with a 100-240V AC charger and is intrinsically safe for use in specified hazardous locations.

Expected lifespan is 50,000 hours (L70). The power factor is greater than 0.95, and total harmonic distortion is less than 10%.

Where This Product Fits Best

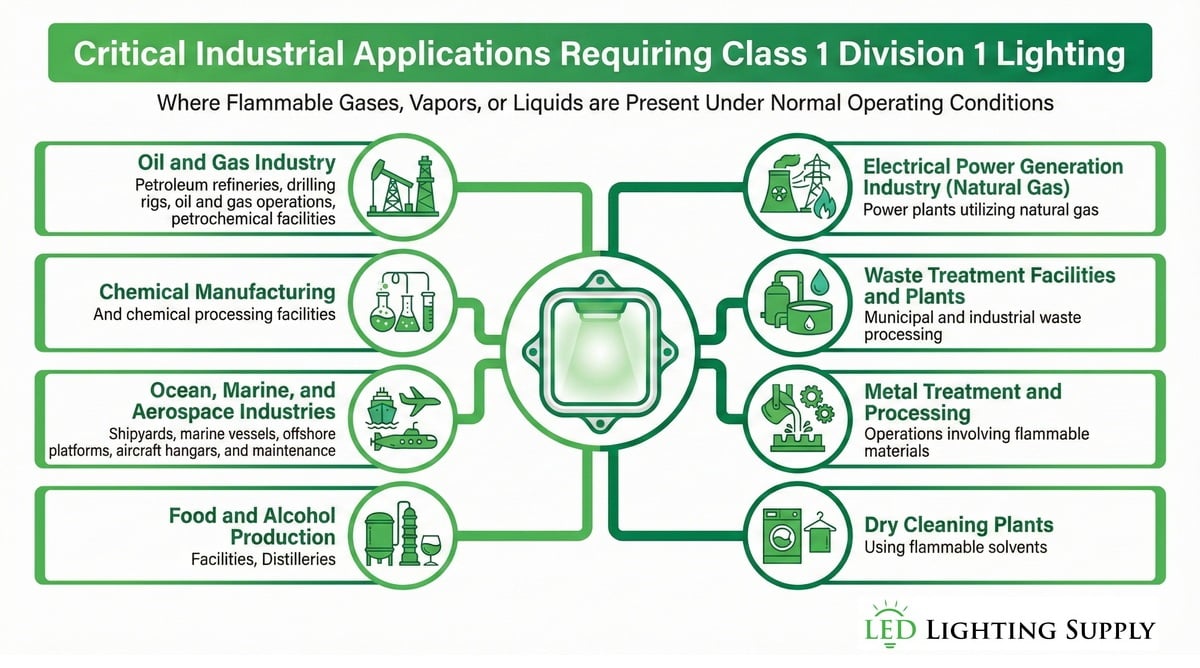

This light is intended for use in environments where explosive gases or vapors may be present, including oil and gas facilities, chemical plants, and refineries. It is suitable for areas classified as Class I, Division 1, Groups A, B, C, D, T4.

The portable design allows for temporary or mobile lighting needs, such as inspection, maintenance, or emergency response in hazardous locations. The intrinsically safe construction supports use where ignition sources must be controlled.

With an IP66 rating, the fixture can be used in locations exposed to dust and strong water jets. The 10-hour run time supports extended tasks without frequent recharging.

This light is not intended for permanent installation or for use outside of the specified hazardous location classifications.

Performance and Functional Considerations

The fixture delivers 1600 lumens at 20 watts, providing a balance of brightness and energy efficiency for close-range work in hazardous areas. The 5000K color temperature produces a neutral white light suitable for task visibility.

The 120-degree beam angle offers wide area coverage, reducing the need to reposition the fixture frequently during use. The light does not support dimming and operates at a fixed output.

The power factor above 0.95 and THD below 10% support stable operation on standard 100-240V AC charging sources. The 10-hour run time allows for a full work shift between charges.

The fixture is designed for environments where durability and safety are required, with an IP66 rating for dust and water resistance and UL 913 certification for hazardous locations.

Installation and Long-Term Use

This is a portable work light and does not require permanent mounting. The compact design allows for easy transport and repositioning as needed within hazardous areas.

The included 100-240V AC charger supports recharging from standard power sources. The fixture is intrinsically safe, supporting use in environments where explosive gases or vapors may be present.

Routine inspection should focus on maintaining the integrity of the enclosure and ensuring the charger and connections remain free of contamination. The 50,000-hour rated lifespan reduces the frequency of replacement.

Long-term use is supported by the robust construction and IP66 rating, which protects against dust ingress and strong water jets encountered in industrial settings.

How This Fixture Is Commonly Used

After charging, the fixture can be carried or positioned as needed for inspection, repair, or emergency work in hazardous locations. The wide beam angle provides broad illumination for confined or open areas.

Operators typically rely on the 10-hour run time to complete tasks without interruption. The fixed output and color temperature ensure consistent visibility throughout the work period.

The portable design allows you to move the light to different locations as work progresses, without the need for tools or mounting hardware. The enclosure can be wiped down or cleaned as part of routine maintenance.

Day-to-day use involves charging the fixture, transporting it to the work area, and positioning it for optimal coverage. The intrinsically safe design allows use in areas where other lighting options may not be permitted.

Safety, Certifications, and Warranty

This fixture is UL listed for hazardous locations under UL 913. It is rated for Class I, Division 1, Groups A, B, C, D, T4 environments.

The IP66 rating allows the fixture to withstand dust and strong water jets. The intrinsically safe design supports use in explosive gas or vapor environments.

LED Lighting Supply provides a 5-year warranty on this fixture.

Frequently Asked Questions

What voltage is supported for charging?
The included charger supports 100-240V AC input.

What is the output of this fixture?
The fixture produces 1600 lumens at 20 watts.

Is this fixture suitable for use in hazardous locations?
Yes, it is UL listed for Class I, Division 1, Groups A, B, C, D, T4 hazardous locations.

What is the environmental protection rating?
The fixture is rated IP66 for dust and water resistance.

What warranty is provided?
LED Lighting Supply provides a 5-year warranty.

Is this fixture DLC qualified?
No DLC qualification is listed for this fixture.

Application Questions and Clarification

This product description reflects the provided specifications, ratings, and configuration options. For questions related to site-specific conditions, electrical compatibility, control integration, or application requirements not addressed in the provided data, our team is available to provide clarification.
